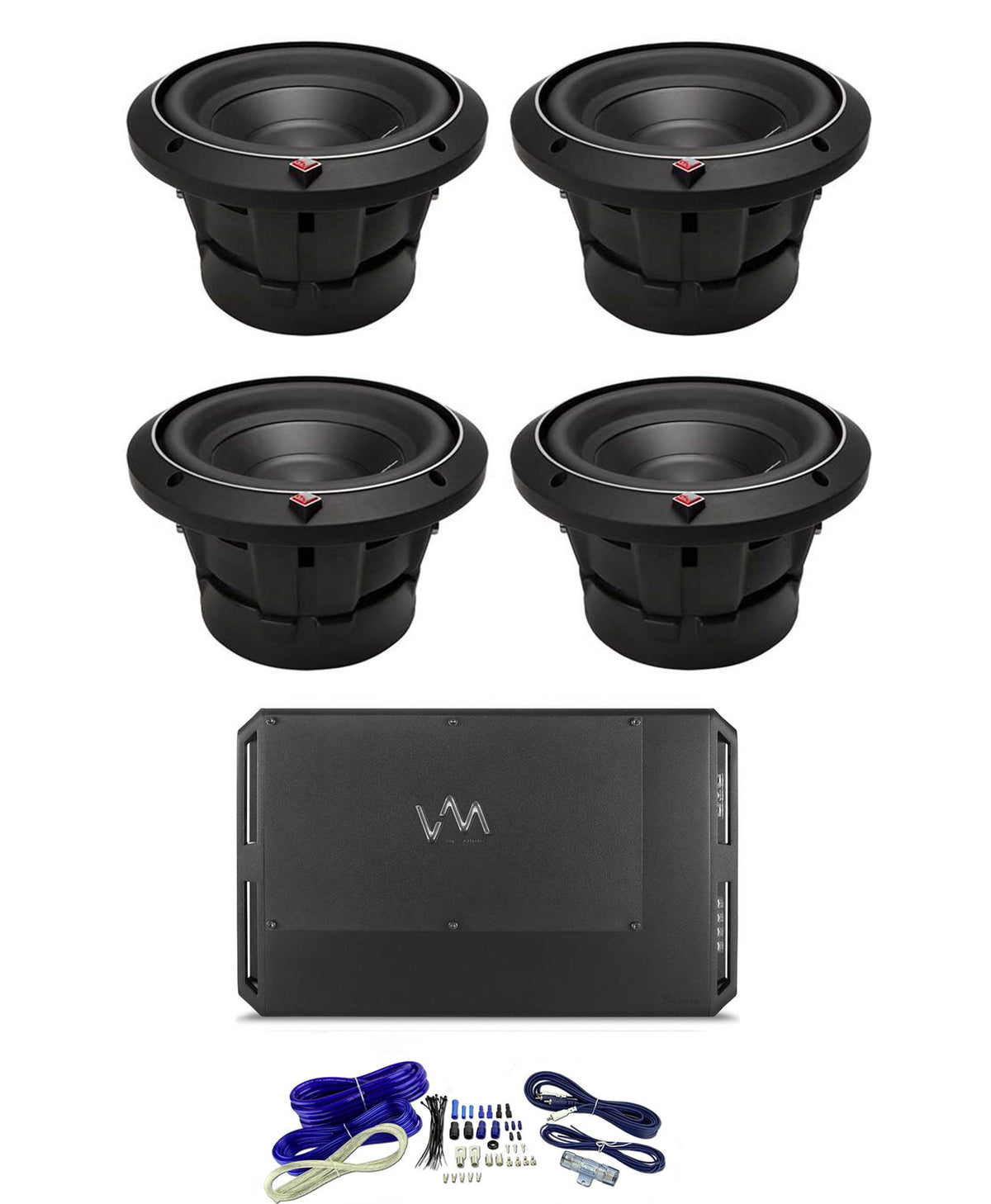

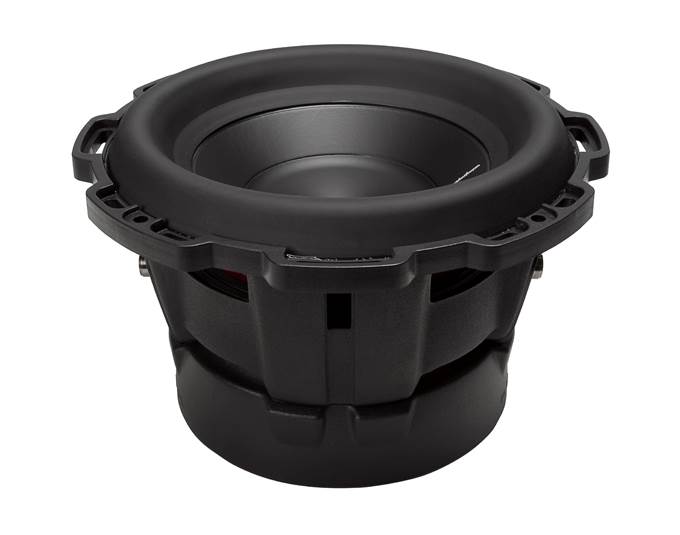

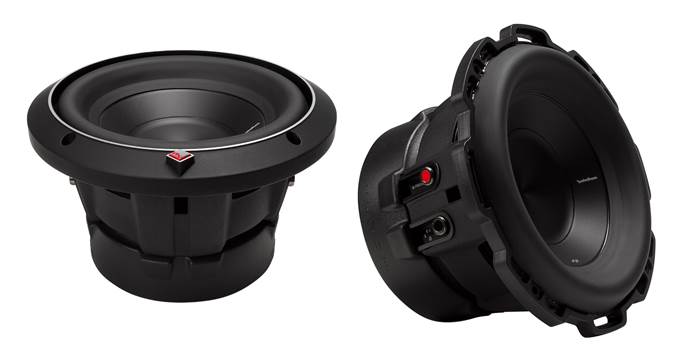

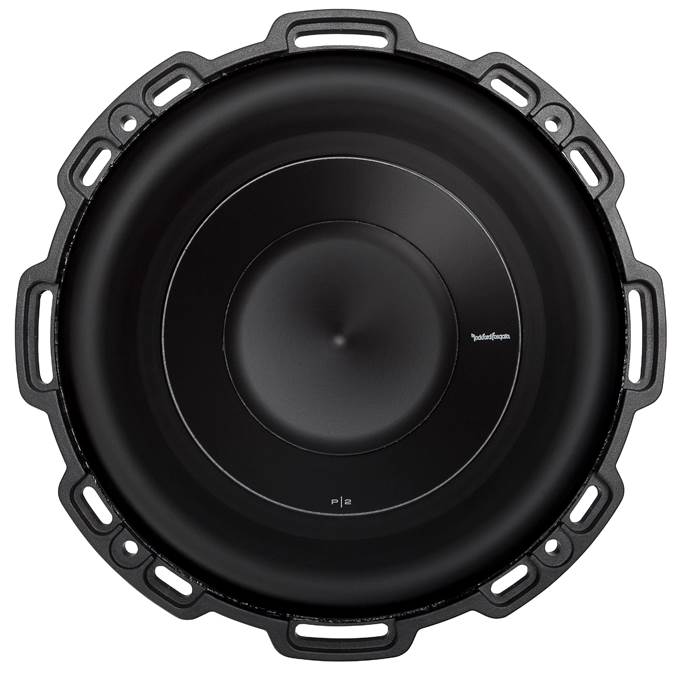

4) ROCKFORD FOSGATE P2D2-8 8" Punch 2-Ohm DVC Subs + 1-Ohm Class D Amp + Wiring

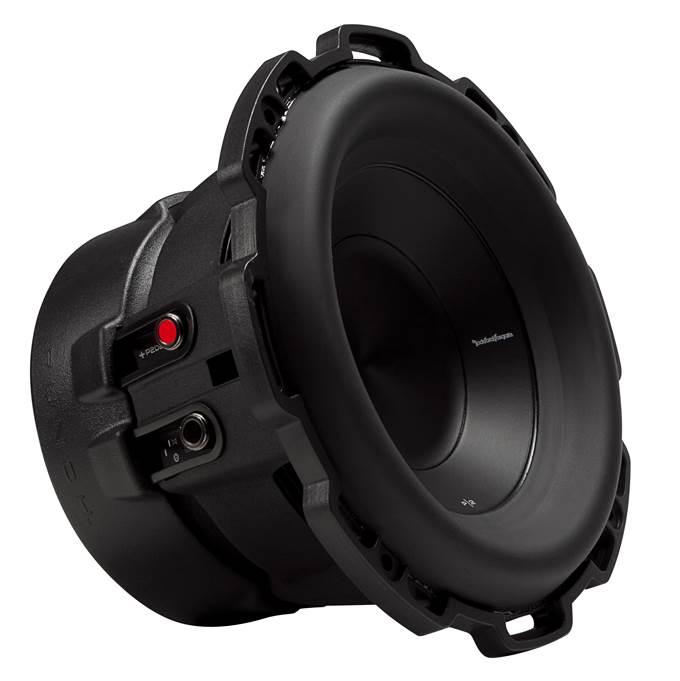

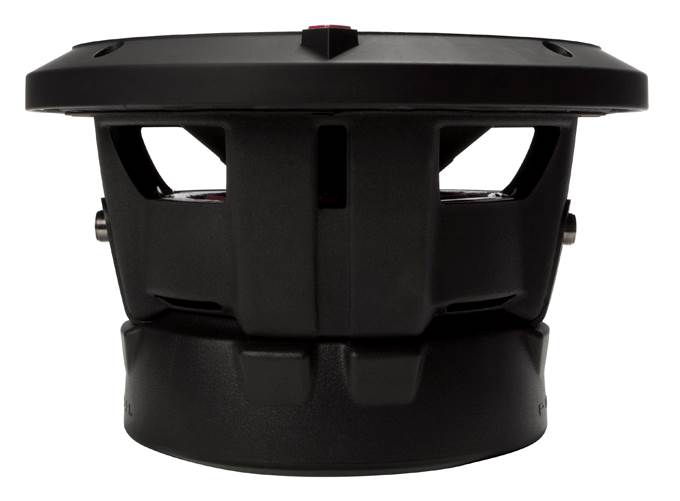

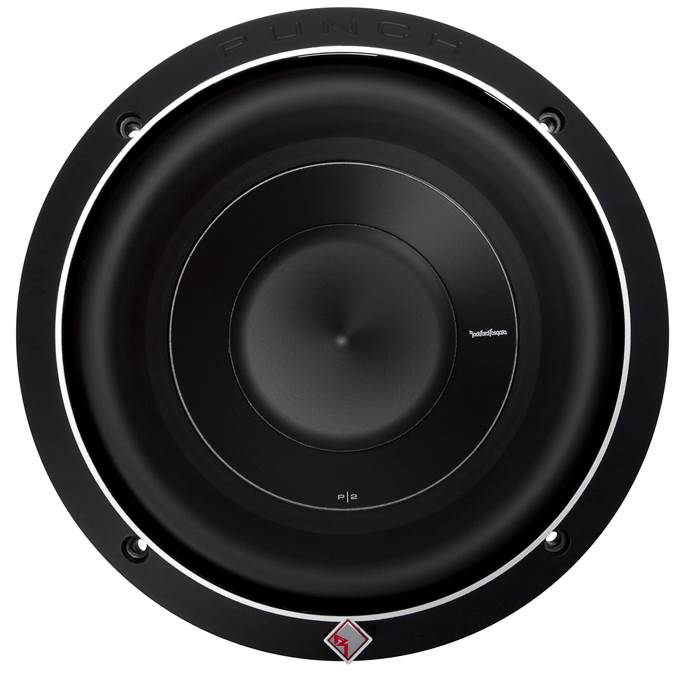

The **Rockford Fosgate P2D2 8** 8" Punch P2 500 Watt 2 Ohm DVC Car Audio Subwoofers are built to give you the punch you desire, thanks to Kevlar fiber reinforced paper cones that deliver bass impact you can feel, and VAST technology that increases cone surface area up to 25%. These subwoofers use an anodized aluminum voice coil former that provides superior heat dissipation (up to 100° at max power levels). The P2D2 8 subs have the capacity to handle power under continuous demand, conforming to CEA 2031 industry standards, and the stitched tinsel leads improve reliability and performance by reducing fatigue and possible shorting.

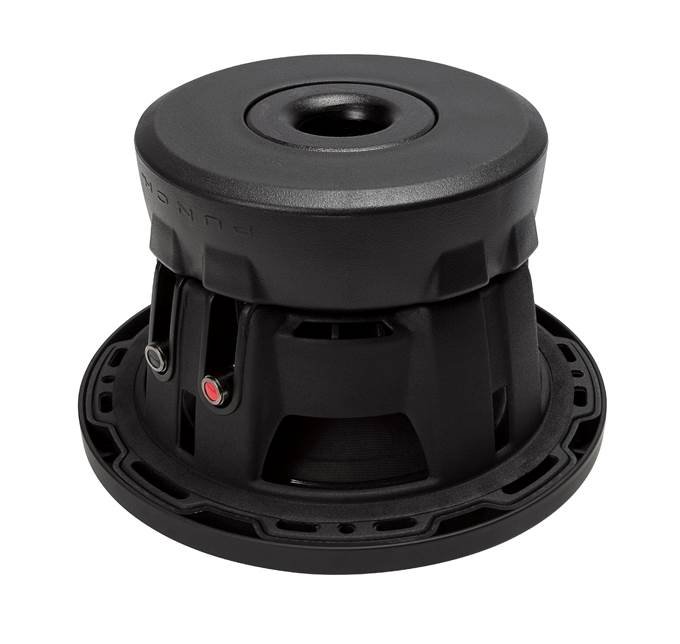

They also feature: 10 gauge nickle plated push terminals, a diamond cut aluminum trim ring with optional grille, a dual liner spider with embedded 16 gauge tinsel leads, a high temperature voice coil with spun laced Nomex® reinforcement collar, a protective PVC textured magnet cover, a StampCast basket with integrated spider venting, an extended pole piece, and bumped vented backplate, and they are best suited for standard sealed and vented enclosures. Feel the impact with the Rockford Fosgate P2D2 8 Punch P2 Subwoofer!

Read more [here][1]

Read the manual [here][2]

[1]: http://www.rockfordfosgate.com/rftech/library/2011/5_Subwoofers/RFPB_P2D2 8 TS_RevD.pdf

[2]: http://www.rockfordfosgate.com/rftech/library/2011/5_Subwoofers/4020118 0_P2Subs MAN_Rev2.pdf

• **Subwoofers*
• 4) Brand New **Rockford Fosgate P2D2 8** 8" Punch P2 2000 Watt 2 Ohm DVC Car Audio Subwoofers
• Power Handling (Max): 500 Watts per sub (2,000 Watts per 4 pack)
• Power Handling (RMS): 250 Watts per sub (1000 Watts per 4 pack)
• **Features:**
• 10 gauge nickle plated push terminals

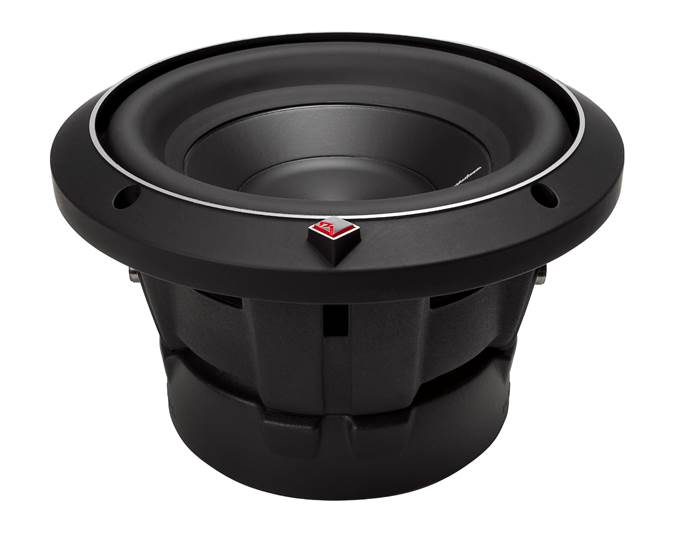

• Diamond cut aluminum trim ring with optional grille
• Dual liner spider with embedded 16 gauge tinsel leads
• High temperature voice coil with spun laced Nomex® reinforcement collar
• PVC textured magnet cover
• StampCast basket with integrated spider venting
• extended pole piece, and bumped vented backplate
• Kevlar fiber reinforced paper cone
• CEA 2031 Compliant
• **Specifications:**
• Size: 8 Inches
• Nominal Impedance: Dual 2 Ohm
• Voice Coil Diameter: 2.25" (57.7mm)
• Magnet Weight: 49 oz. (1.38kg)
• Speaker Connector: Dual 10 Gauge Compression
• Re: 3.40 Ohms
• Le: 2.9mH
• Qms: 5.40
• Qes: 0.51
• Qts: 0.46
• Vas: 9.9 (Liters)
• Sd: 221 (cm2)
• Xmax: 7.8mm
• Frequency: 39.6Hz
• Sound Pressure Level (SPL): 83 (dB at 1w/1m)
• Cutout Diameter: 7.13 Inches (181 mm)
• Mounting Depth: 4.76 Inches (120.8 mm)
• Woofer Displacement: 0.071 Cubic Feet
• Quantity: 2 Subs Total
• Weight: 41.2 lbs (shipping)
• Condition: BRAND NEW!
• Part Number: **P2D2 8**
• Manufacturer warranty: 1-year warranty
• ![List item][1]
• @[Video](9qTIjfDs6KQ)
• [1]: http://www.vminnovations.com/sys/resource.ashx?guid=d5209caca72e416fbd6998d1b683d9fd
•

• **Amplifier*

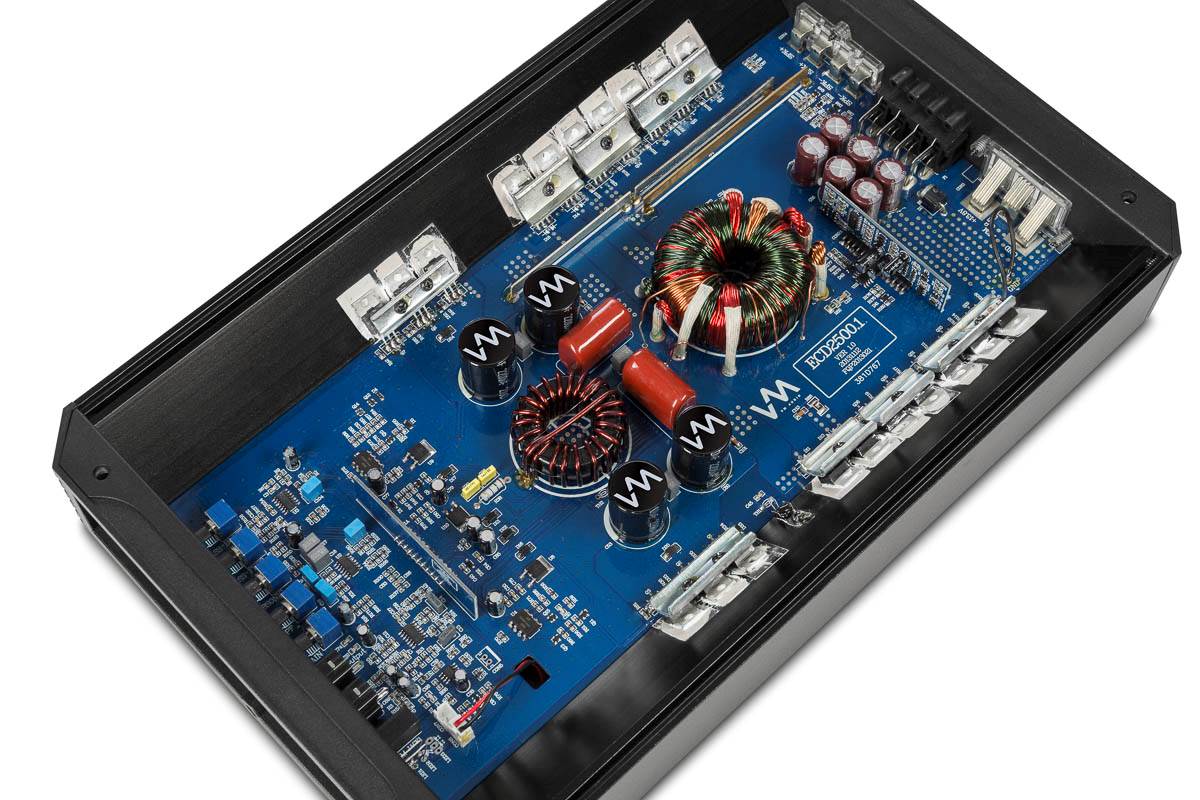

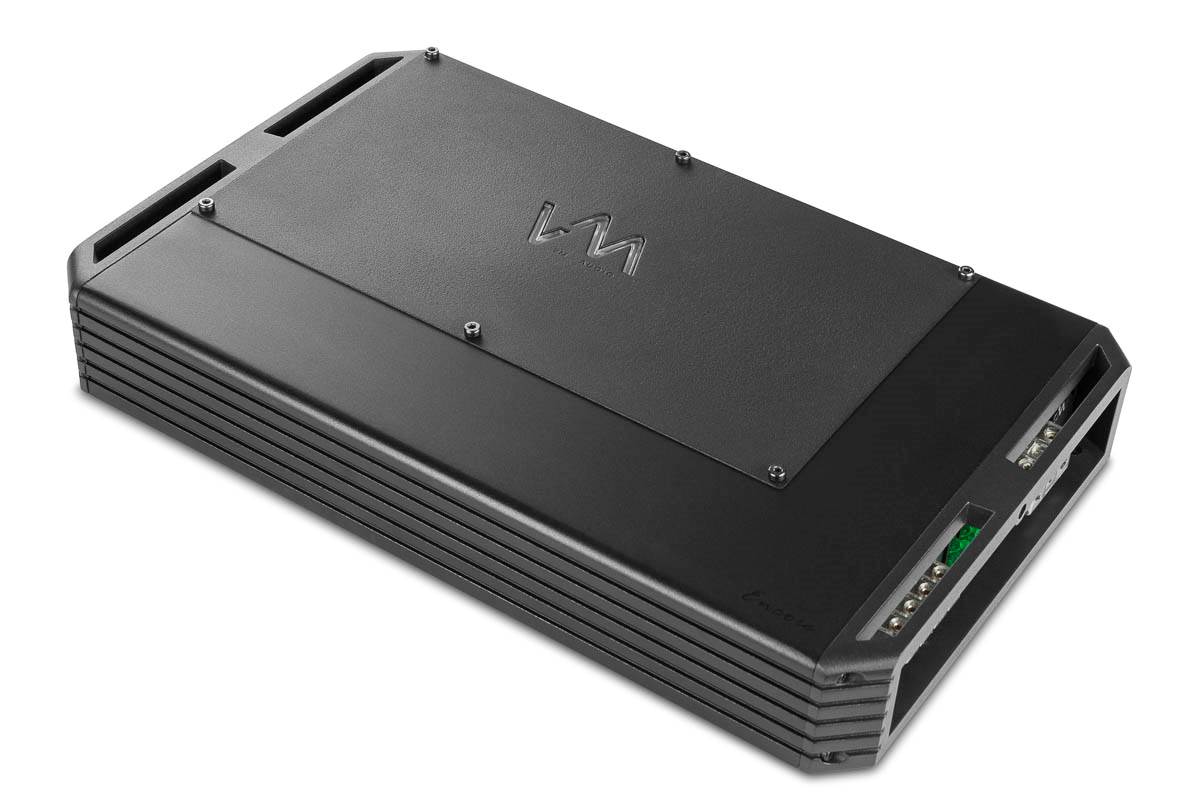

• VM Audio ECD2500.1 Class D Amplifier Specifications
• RMS Power 4 Ohms: 625W x 1

• RMS Power 2 Ohms: 1250W x 1

• RMS Power 1 Ohm: 2500W x 1

• Frequency Response: 10Hz – 180Hz

• Lowpass Crossover: 40Hz – 180Hz

• Subsonic: 0Hz – 50Hz

• Bass Boost Frequency: 30Hz – 80Hz

• Bass Boost: 0dB – 12dB

• Input Voltage: 0.12V – 4.2V

• Fuse 30A x 4
• Dimensions (L x W x H): 15.51” x 9.65” x 2.17”

• Manufacturer warranty: 1-year warranty
•

• **Wiring Kit**
• VM Audio 4 Gauge SRSK4B Wiring Kit
• 16 Ft blue 4 gauge power wire
• 3 ft silver 4 gauge ground wire
• 15 ft high performance RCA wire
• 4 Gauge In line AGU fuseholder
• 60 Amp AGU fuse
• 15 ft 18 Gauge Remote wire
• 20 ft 12 gauge Speaker wire
• 20) 6" wire ties
• 2) spade connectors
• 2) ring connectors
• 3) screws
• 3) butt connectors
• 4) fasten connectors
• 5) spade connectors
• Cable firewall black rubber gromments
• Product Condition: Brand New
• Part Number: SRSK4B
• Manufacturer warranty: 1-year warranty
