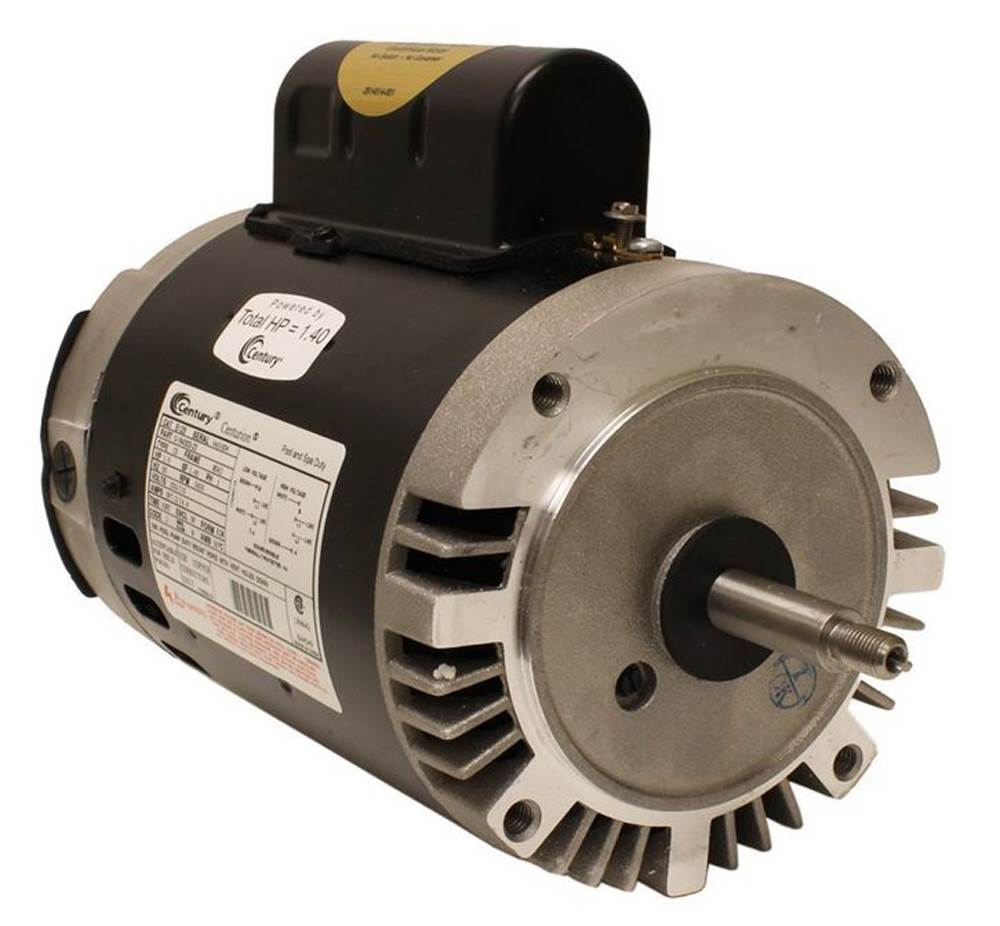

A.O. Smith Century B128 Full Rate 1 HP 3,450 RPM C-Face 1 Speed Pool Pump Motor

When your old pool pump motor calls it quits, have a replacement A.O. Smith 1-HP 3,450 RPM C-Face Single-Speed Pool Pump Motor ready to swap in so you can get back enjoying your relaxing day on the water.

This 1-horsepower full-rated replacement motor for above and in-ground swimming pool pumps has a threaded shaft and fits most pumps that require a 56J frame C-face motor. It operates on both 115 and 230 volts and has a 3,450 RPM. The motor features a 1.4 service factor, an automatic surge protector, capacitor start, and an open drip-proof housing for cooler operation. The B128 pool pump motor is compatible with pump series models like Jandy and Marlow.

A.O. Smith Century offers the very best in US-manufactured electric motors. With a comprehensive line of electric motors for commercial, industrial, and residential pump and general-purpose applications, century is a highly recognized brand in the leisure water industry for its breadth of product offering, quality, and reliability.

• Full-rated 1-horsepower 3,450 RPM C-face 56J frame replacement pool pump motor
• For use with above-ground and in-ground swimming pools
• Part Number: B128
• 115/230-volt power; open drip-proof housing ensures cooler operation and extends the life of your motor
• Compatible pumps include: Jandy and Marlow
• Not California Title 20 Compliant
• Specifications:
• Product type: Pool pump motor
• Service factor: 1.4
• Voltage: 115/230 volts
• Horsepower: 1 HP
• RPM: 3,450
• Amperage: 14.4/7.2 amps
• Hertz: 60
• Surge protector: Automatic
• Ambient temperature: 122 degrees Fahrenheit
• Start type: Capacitor
• Insulation: Class B
• Motor phase: Single-speed
• Rotation: CCW pump end
• Bearing type: Sealed ball bearings
• Max load: 115-volt: 14.4 amps; 230-volt: 7.2 amps
• Flange type: C-face
• Shaft type: Threaded 303 stainless steel
• Motor frame size: 56J
• Motor housing: Open drip-proof
• Pool type: Above-ground, in-ground
• Material: Stainless steel
• Color: Black
• Dimensions (L x W x H): 12 x 8.5 x 6.5 inches
• Weight: 32 pounds
• Manufacturer warranty: 1-year warranty
