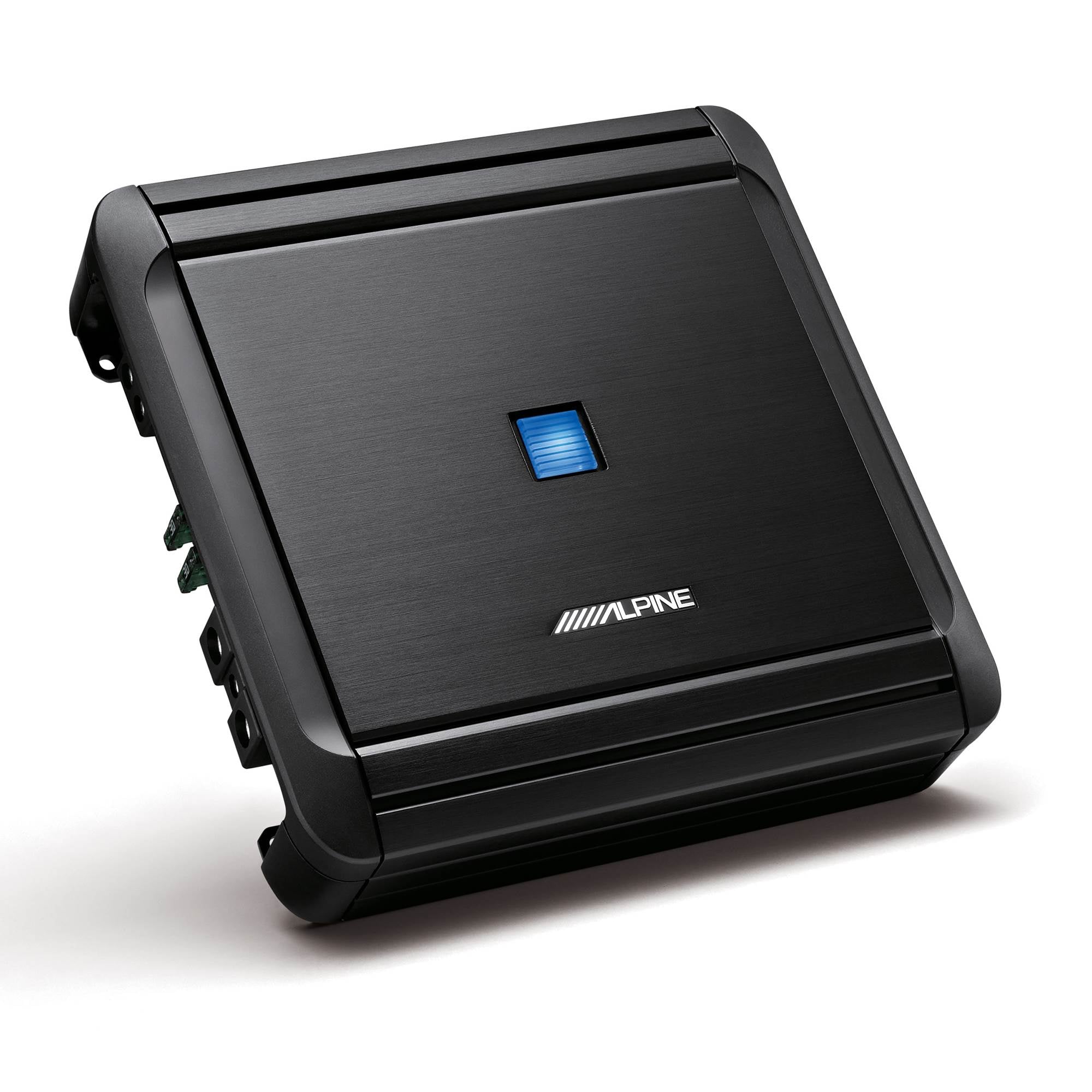

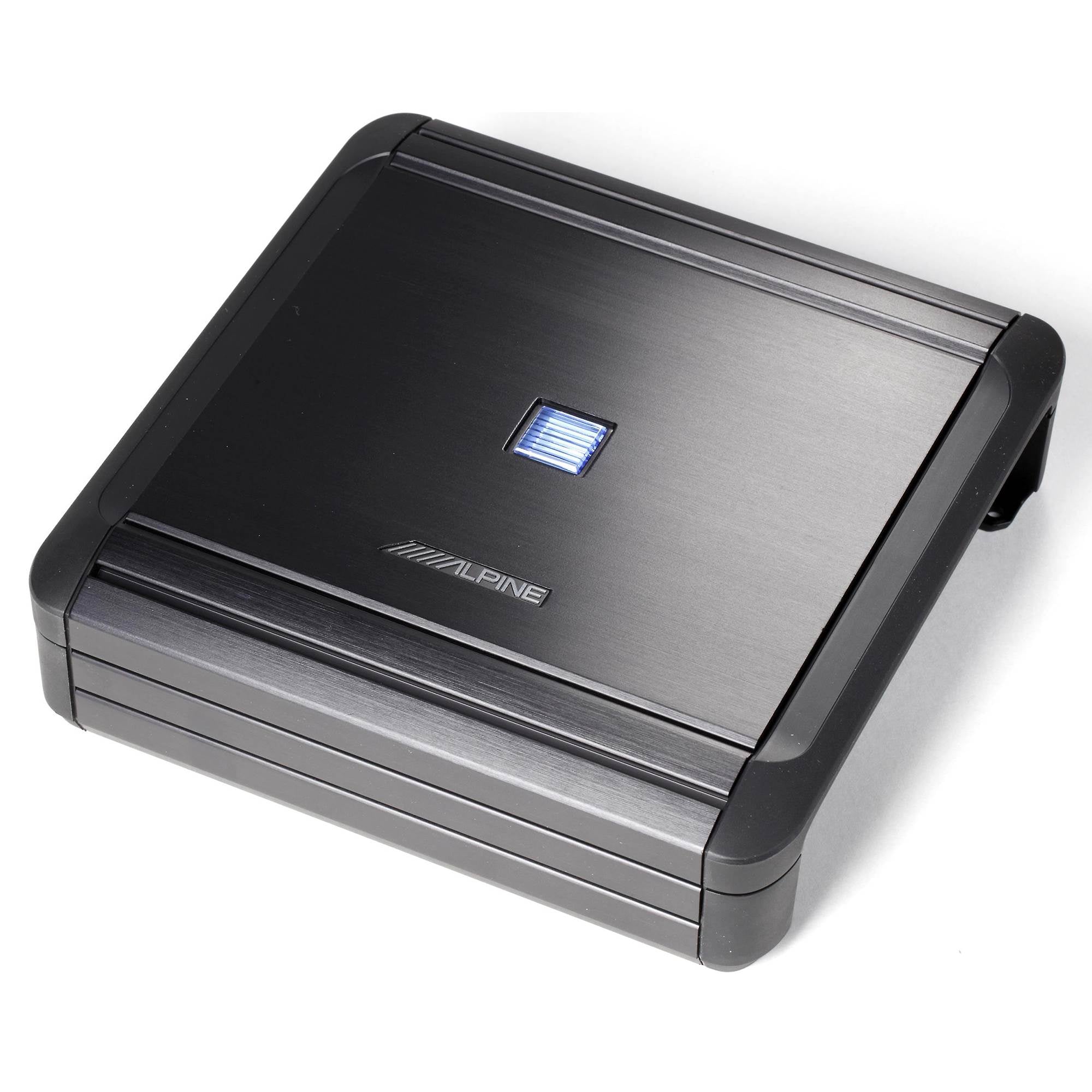

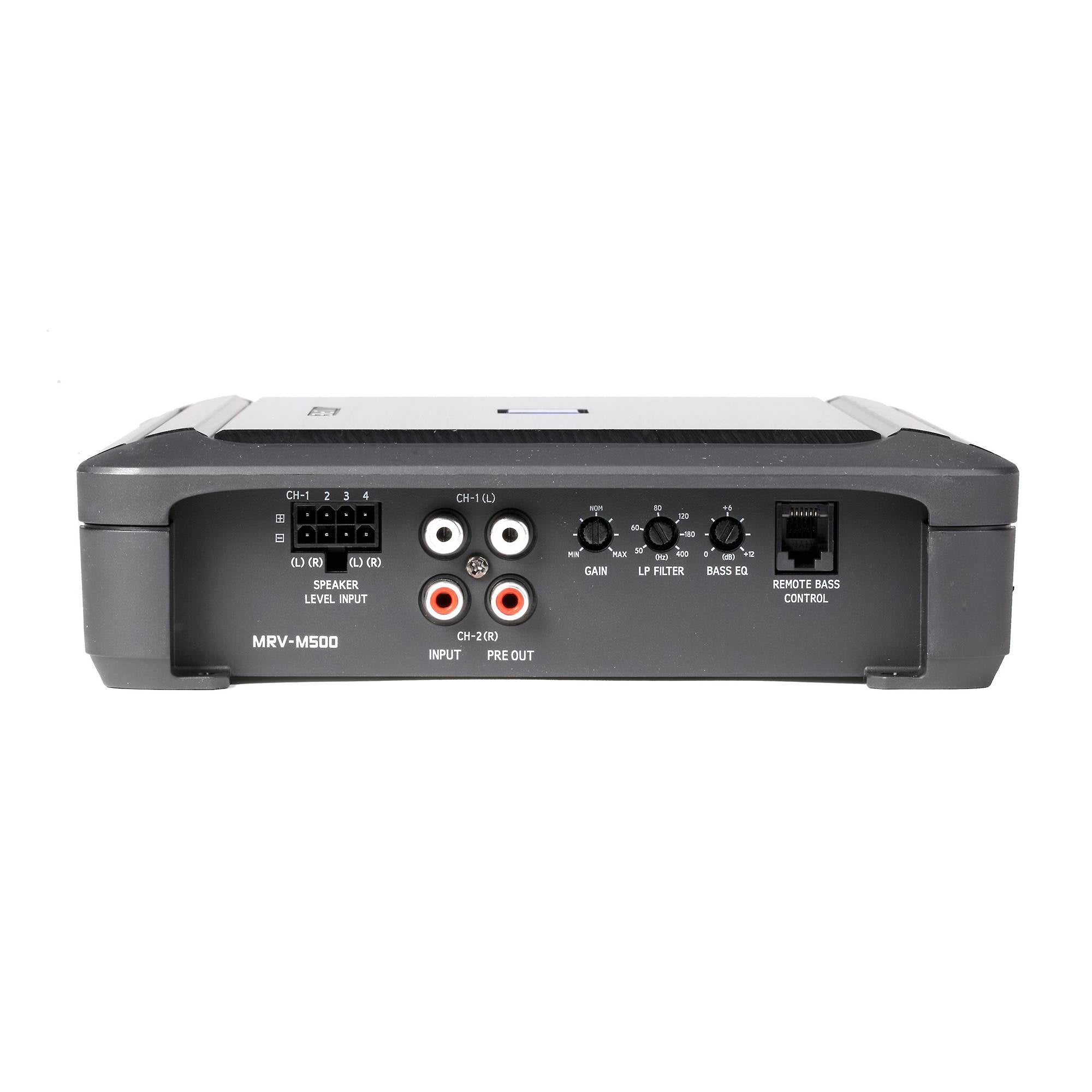

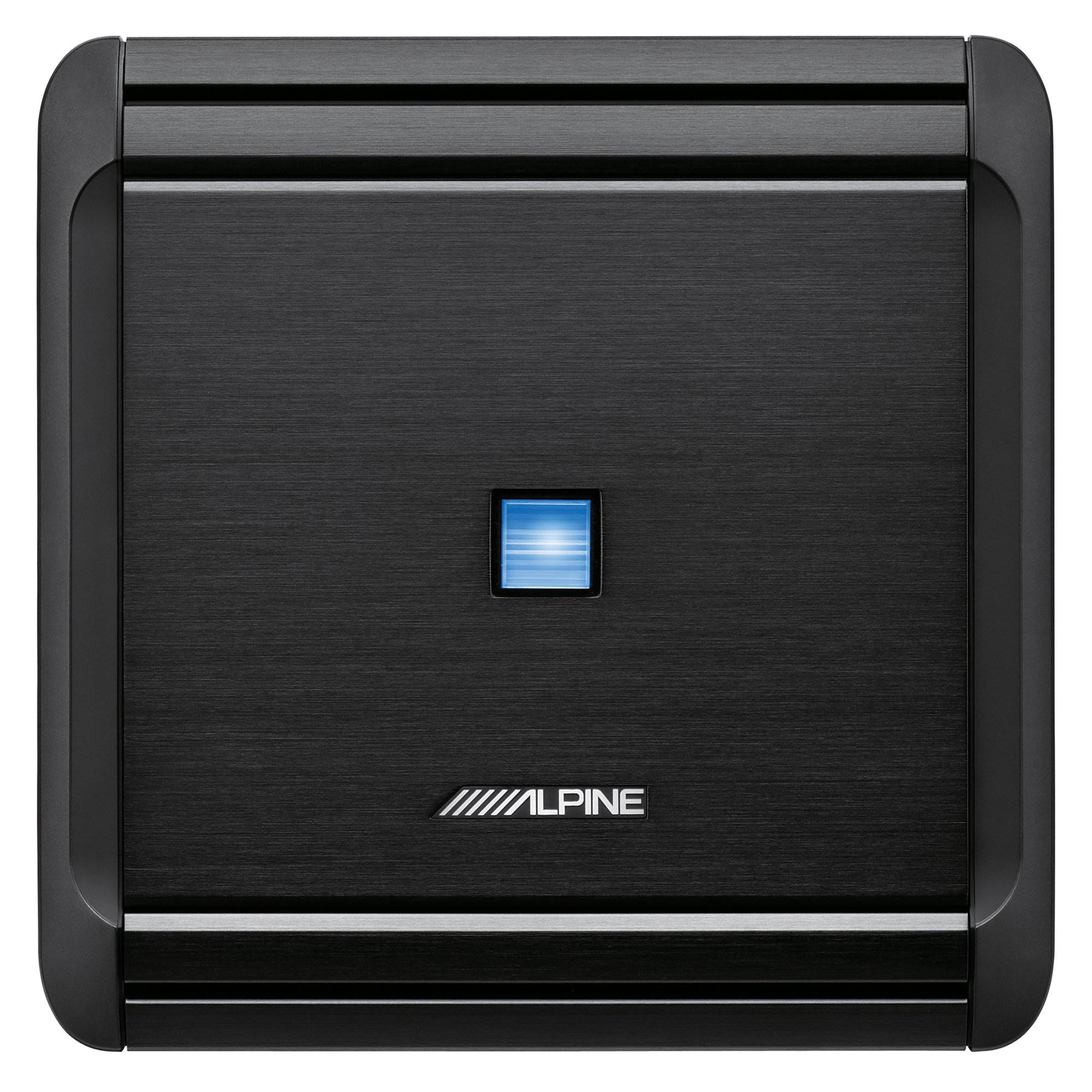

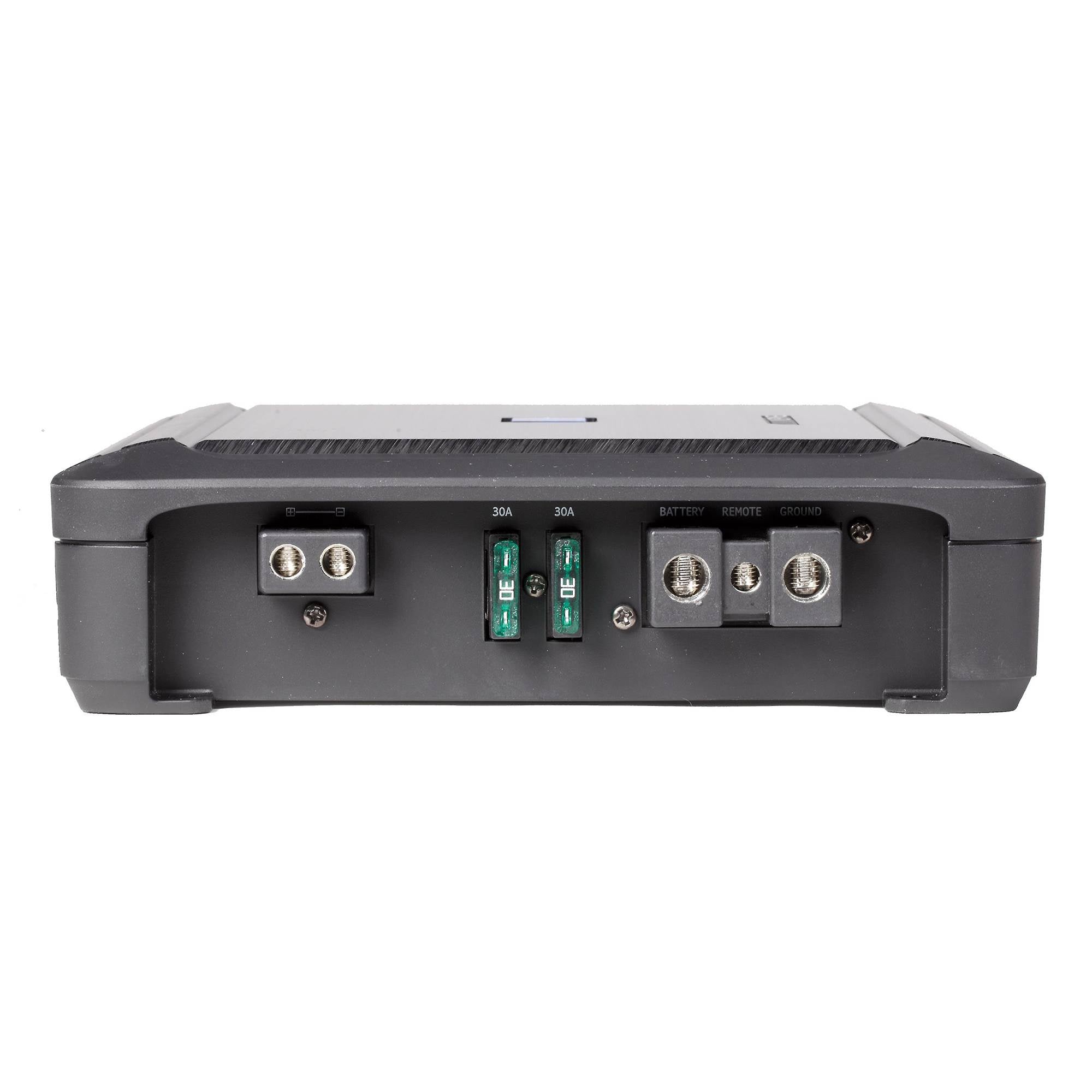

Alpine 500W 2 Ohm Class D Mono V-Power Digital Car Subwoofer Amplifier(Open Box)
Alpine 500W 2 Ohm Class D Mono V-Power Digital Car Subwoofer Amplifier(Open Box)
Alpine 500W 2 Ohm Class D Mono V-Power Digital Car Subwoofer Amplifier(Open Box)
Alpine 500W 2 Ohm Class D Mono V-Power Digital Car Subwoofer Amplifier(Open Box)
Alpine 500W 2 Ohm Class D Mono V-Power Digital Car Subwoofer Amplifier(Open Box)
Alpine 500W 2 Ohm Class D Mono V-Power Digital Car Subwoofer Amplifier(Open Box)
Alpine 500W 2 Ohm Class D Mono V-Power Digital Car Subwoofer Amplifier(Open Box)
Alpine 500W 2 Ohm Class D Mono V-Power Digital Car Subwoofer Amplifier(Open Box)
Alpine 500W 2 Ohm Class D Mono V-Power Digital Car Subwoofer Amplifier(Open Box)
Alpine 500W 2 Ohm Class D Mono V-Power Digital Car Subwoofer Amplifier(Open Box)

Alpine 500W 2 Ohm Class D Mono V-Power Digital Car Subwoofer Amplifier(Open Box)

Alpine SKU: 416135
Price
Save $4.70
/
  • Free 1-3 day shipping
  • Easy & Secure Payments
  • Hassle Free Returns
  • In stock, ready to ship
  • Backordered, shipping soon

####Item is open box, unharmed and in very good condition. All accessories or parts are included with the item.####


  • Sound tuning:
  • Per channel into 2 Ohms: 500W RMS x 1 (14.4V at <1% THD+N)
  • Per channel into 4 Ohms: 300W RMS x 1 (14.4V at <1% THD+N)
  • RMS power ratings:
  • Crossover frequency (LPF): 50 400 Hz, 24dB/oct.
  • EQ (Equalizer): 0 to +12dB, fc=50Hz
  • Input sensitivity (RCA Input): 0.15 4.0 V
  • Power requirements: 14.4 V.DC (11 16V allowable)
  • RCA output: Non fading pre amp output (4 Volts)
  • Board circuitry: S.T.A.R. circuit
  • Current protection: Over current, over voltage, under voltage, and thermal protection
  • Remote turn on: Remote sensing function (for RCA input and speaker input)
  • Bass control: Remote bass control ready (RUX KNOB)
  • Bass EQ: Bass EQ dunction
  • Gain control: Continuously adjustable gain control
  • Crossover: Variable lowpass filter
  • Final outputs: Power MOSFET
  • Pre amp stage: Discrete
  • Power supply: MOSFET
  • Power supply design: DC DC PWM power supply
  • Channel design: 1 channel (mono)
  • Amplifier type: Class D (digital)
  • Screw mount: Integrated wire and mounting screw terminals
  • Terminal layout: 2 sided
  • Remote level: 20 to 0 dB (remote sold separately)
  • Preamp output: 4.0V max
  • Signal to noise (Rated Power into 4 Ohms): >105 dB
  • Signal to noise (1W into 4 Ohms): >85 dB
  • Damping factor (10W into 4 Ohms at 100Hz): >750
  • THD+N (Rated Power into 2 Ohms): ?.3 %
  • THD+N (Rated Power into 4 Ohms): ?.2 %
  • THD+N (10W into 2 Ohms): ?.03 %
  • THD+N (10W into 4 Ohms): ?.02 %
  • Frequency response (+0, 3dB: 1W into 4 Ohms) for Subwoofer: 7 400 Hz
  • Input impedance: >10k ohms
  • Input sensitivity (Speaker Level Input): 0.4 10 V
  • Speaker level inputs: 4 channel speaker level inputs
  • General:
  • Power indicator: Top mounted blue LED power indicator
  • Dimensions
  • Weight: 3.96 pounds
  • Heat sink: 6.5 x 2.19 x 7.88 inches
  • Foot print: 7.88 x 2.19 x 7.88 inches
  • Thermal control: Multi stage power limits
  • Product Condition: Open Box – Like new
  • Product Warranty: 30-day VMInnovations warranty
