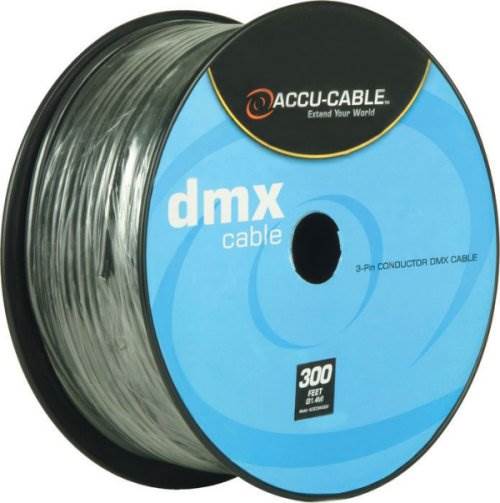

American DJ ADJ Accu-Cable 3-Pin XLR DMX Lighting Cable - Bulk 300 Ft. Spool

The American DJ AC3CDMX300 **Accu Cable** consists of 22 AWG stranded (0.15 x 19 ) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil® (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.

Purchase the American DJ AC3CDMX300 3 Pin XLR **Accu Cable** with VMInnovations! If you want the most for your money, this is the way to go. Great for parties, weddings, and any type of festive occasion. American DJ provides top quality DJ/Party equipment, and the AC3CDMX300 is no exception!

**We are an authorized American DJ dealer**

• Brand New American DJ **Accu-Cable** AC3CDMX300 3 Pin XLR Cable Spool
• 300 FT
• Conductor:
• Number of Pairs: 1
• Total Number of Conductors: 2
• AWG: 22
• Stranding: 0.15 x 19
• Conductor Diameter: .0354"
• Conduct or Material: TC-Tinned Copper
• Insulation:
• Insulation Material: PE Polyethylene
• Lay Length:
• Lay Length: 2.5"
• Direction: Left Hand Lay
• Twists: 4.8 per foot
• Inner Jacket:
• Inner Jacket Material: PE
• Polyethylene
• Inner Jacket Diameter: .055"
• Pair Color Code: Black/White
• Outer Shield:
• Outer Shield Trade Name: Duofoil®
• Outer Shield Type: Tape/Braid
• Outer Shield Material:
• Layer Number:1, Material Trade Name: Dufoil®, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
• Layer Number: 2, Material Trade Name: Dufoil®, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85
• Outer Jacket:
• Outer Jacket Material: PVC-Polyvinyl Chloride
• Overall Nominal Diameter:
• Overall Nominal Diameter: .229"
• Mechanical Features:
• Operating Temperature Range: (-30 degrees C To + 75 degrees C)
• Bulk Cable Weight: 31 lbs/1000
• Minimum Bend Radius (Install): 3.2"
• Maximum Recommended Pull Tension: 72 lbs.
• Electrical Features:
• Nominal Characteristic Impedence: 110 Ohms
• Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/f t
• Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
• Nominal Velocity of Propagation: 66%
• Nominal Delay: 1.6 Nanoseconds per foot
• Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
• Nominal Outer Shield D C Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
• Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
• Maximum Recommended Current: 2.1 A mps per conductor @ 25 degree C
• Product Condition: Brand New
• Part Number: AC3CDMX300
