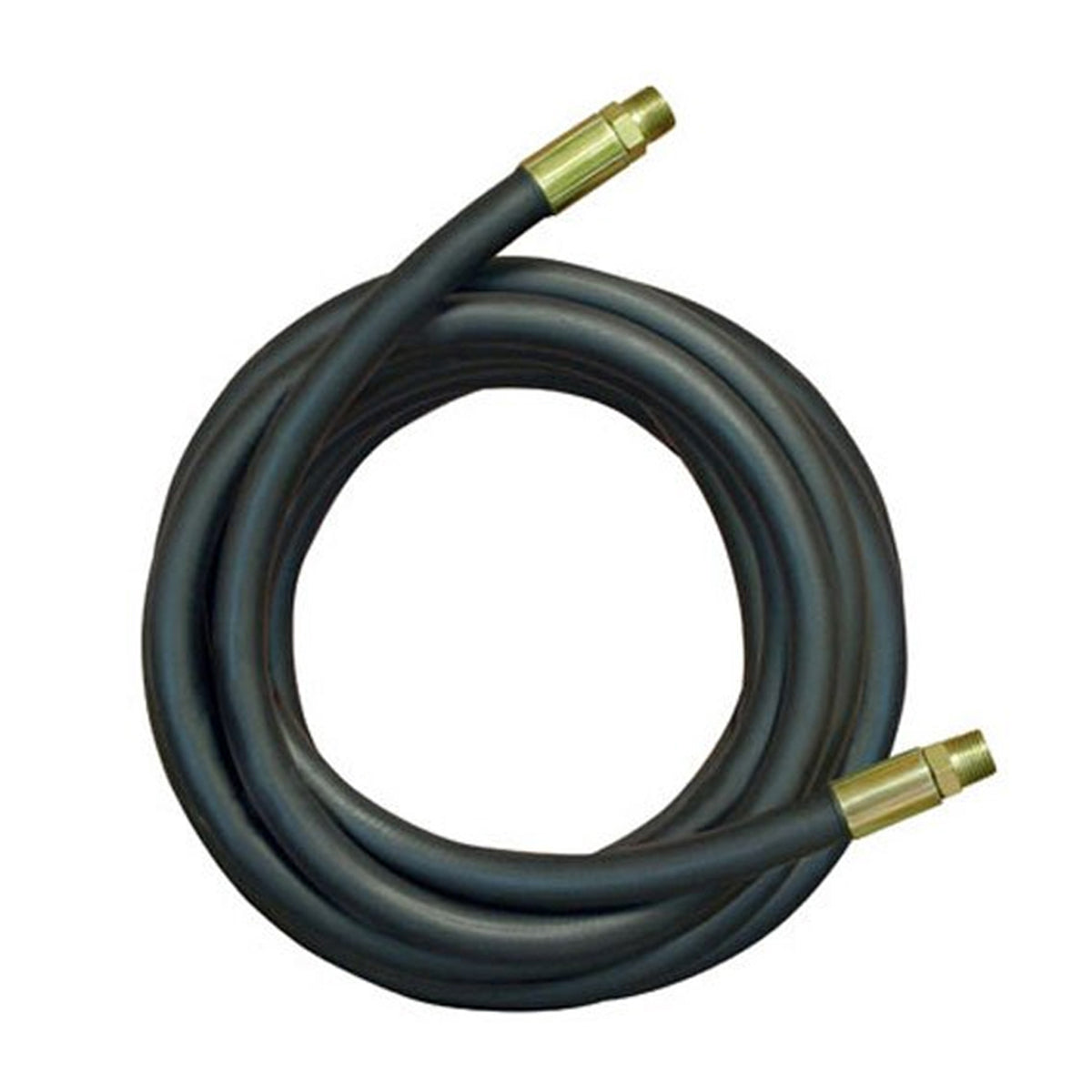

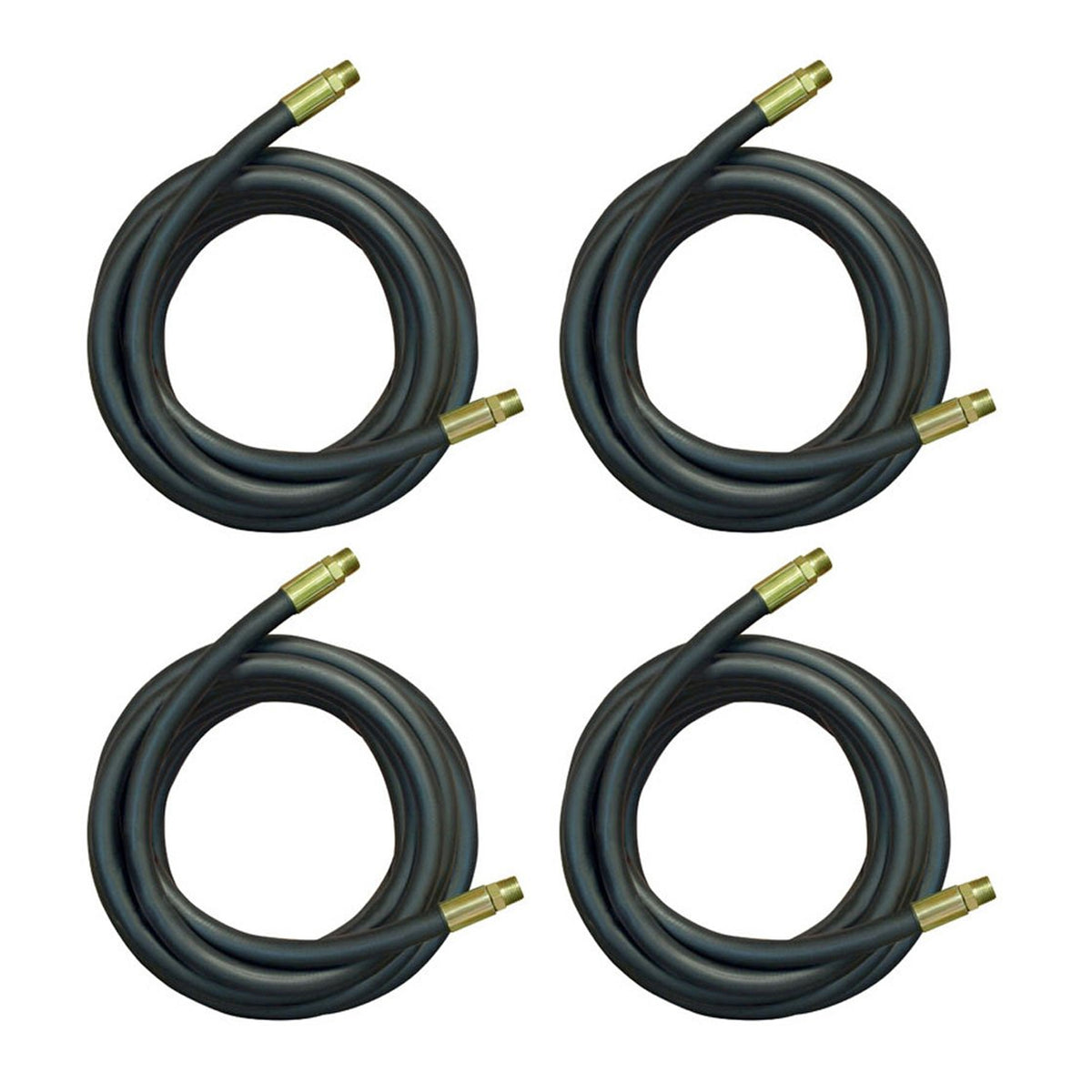

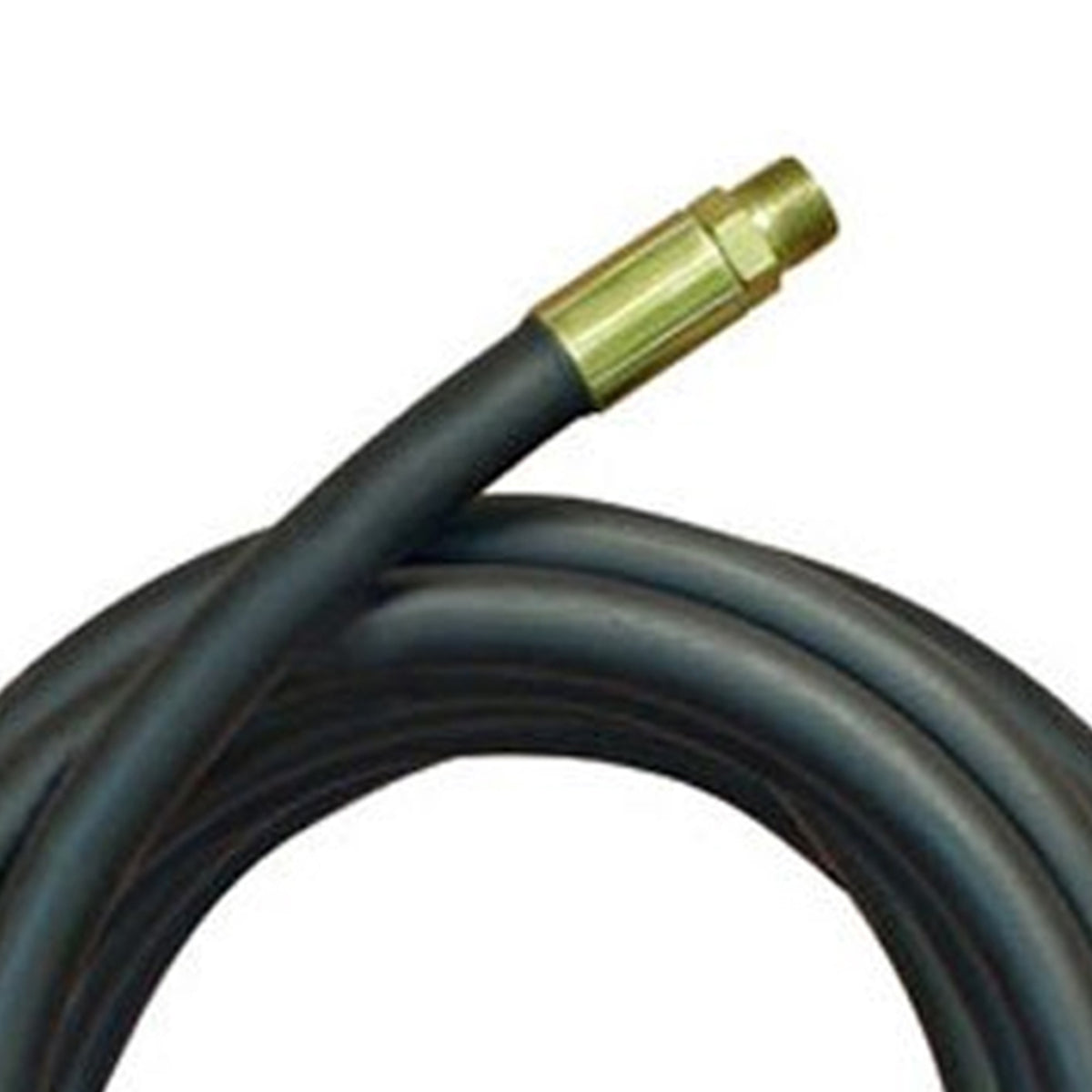

Add some strength and stability to your application with the Universal Hydraulic Male by Male Fitting Hoses by Apache.
These premium hydraulic tubes are made from premium black oil resistant synthetic rubber to ensure a long life and reliability. Each hose is coiled and sleeved for easy storage and labeled with size and specification for easy identification. With a versatile temperature range, each hose can transfer liquids between -40 degrees Fahrenheit to 212 degrees Fahrenheit
The hoses are designed for use with petroleum and water based hydraulic fluids but can handle gasoline, diesel fuels, mineral oils, glycol, lubricating oils, and more. Every lightweight fittings hose is reinforced by 2 steel braids for superior strength and durability. This return hose has a 3/4-inch pipe thread, 48-inch hose length, and maximum PSI of 2250. Each hose meets SAE 100R2AT standards.
Complete the toughest projects with the Universal Hydraulic Male by Male Fitting Hoses by Apache.
- Tubing is made from premium black oil-resistant synthetic rubber to ensure a long life and reliability
- Each hose is coiled and sleeved for easy storage and labeled with size and specification for easy identification
- Designed for use with petroleum and water based hydraulic fluids
- Can handle gasoline, diesel fuels, mineral oils, glycol, lubricating oils and more
- 3/4-inch pipe thread, 48-inch hose length, and maximum PSI of 2250
- Reinforced by 2 steel braids for superior strength and durability
- Assemblies meet SAE 100R2AT standards
- Inside diameter: 0.75 inch
- Inside diameter: 19.05 mm
- Outside diameter: 1.16 inches
- Outside diameter: 29.39 mm
- Maximum PSI: 2250
- Minimum bend radius: 9.45 inches
- Fittings: Male pipe thread x male pipe thread
- Temperature range: -40 to 212 degrees Fahrenheit
- Cover material: SBR/CR/BR
- Tube material: NBR
- Reinforcement 2 steel braids
- Color: Black
- Weight: 3.66 pounds
- Manufacturer warranty: 30-day limited warranty
- Quantity: 4
