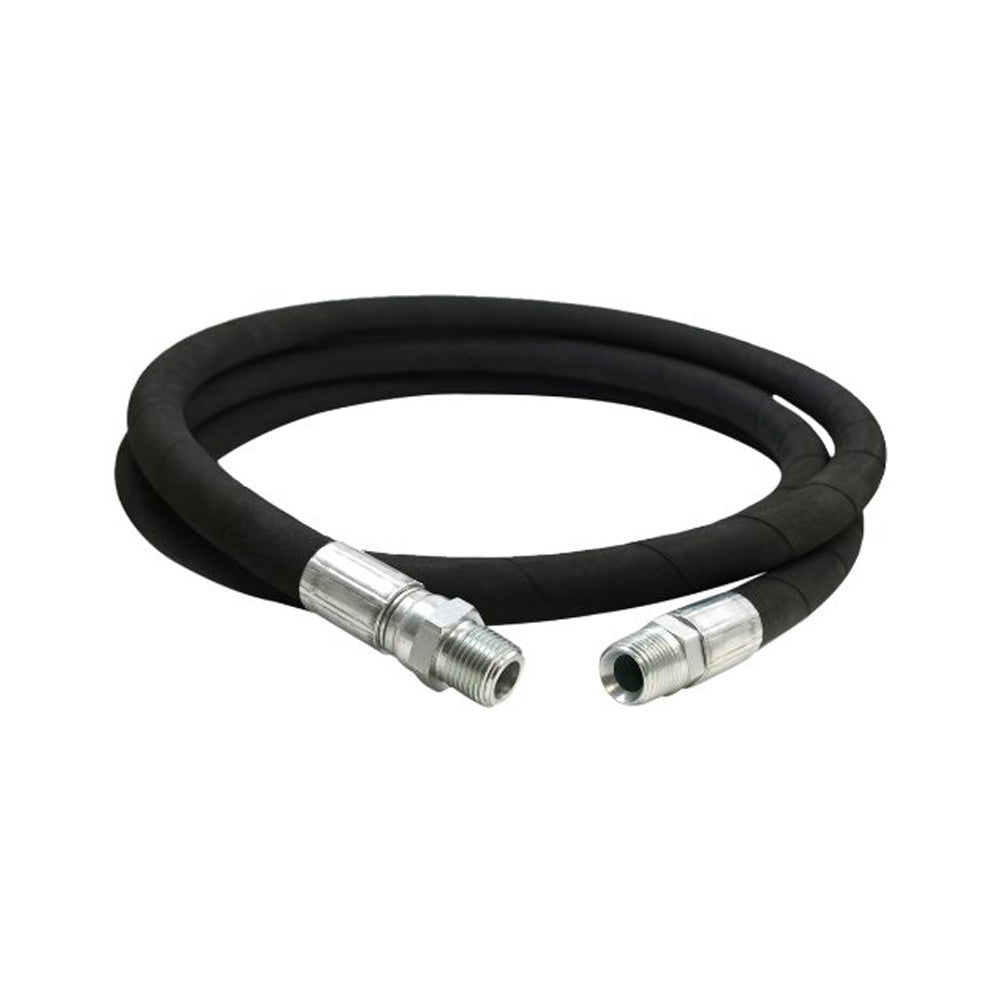

Add some strength and stability to your application with the Apache 98398625 1/2 Inch x 96 Inch Hydraulic Hose Assembly.
This premium hydraulic tube is made from premium black synthetic rubber to ensure long life and reliability. Each hose is coiled and sleeved for easy storage and labeled with size and specification for easy identification.
It's designed for use with petroleum and water-based hydraulic fluids. This hose is capable of handling liquids such as gasoline, diesel fuels, mineral oils, glycol, lubricating oils, and more. This lightweight fittings hose is reinforced by 2 steel braids for superior strength and durability. Rest ensured that this hose is capable of handling all your heavy-duty transfer tasks. This return hose has a 1/2-inch pipe thread, 96-inch hose length, and maximum PSI of 3500. Each hose meets SAE 100R2AT standards. This bundle comes with 15 sets of hydraulic hose assemblies.
Complete the toughest projects with the Apache 98398625 1/2 Inch x 96 Inch Hydraulic Hose Assembly.

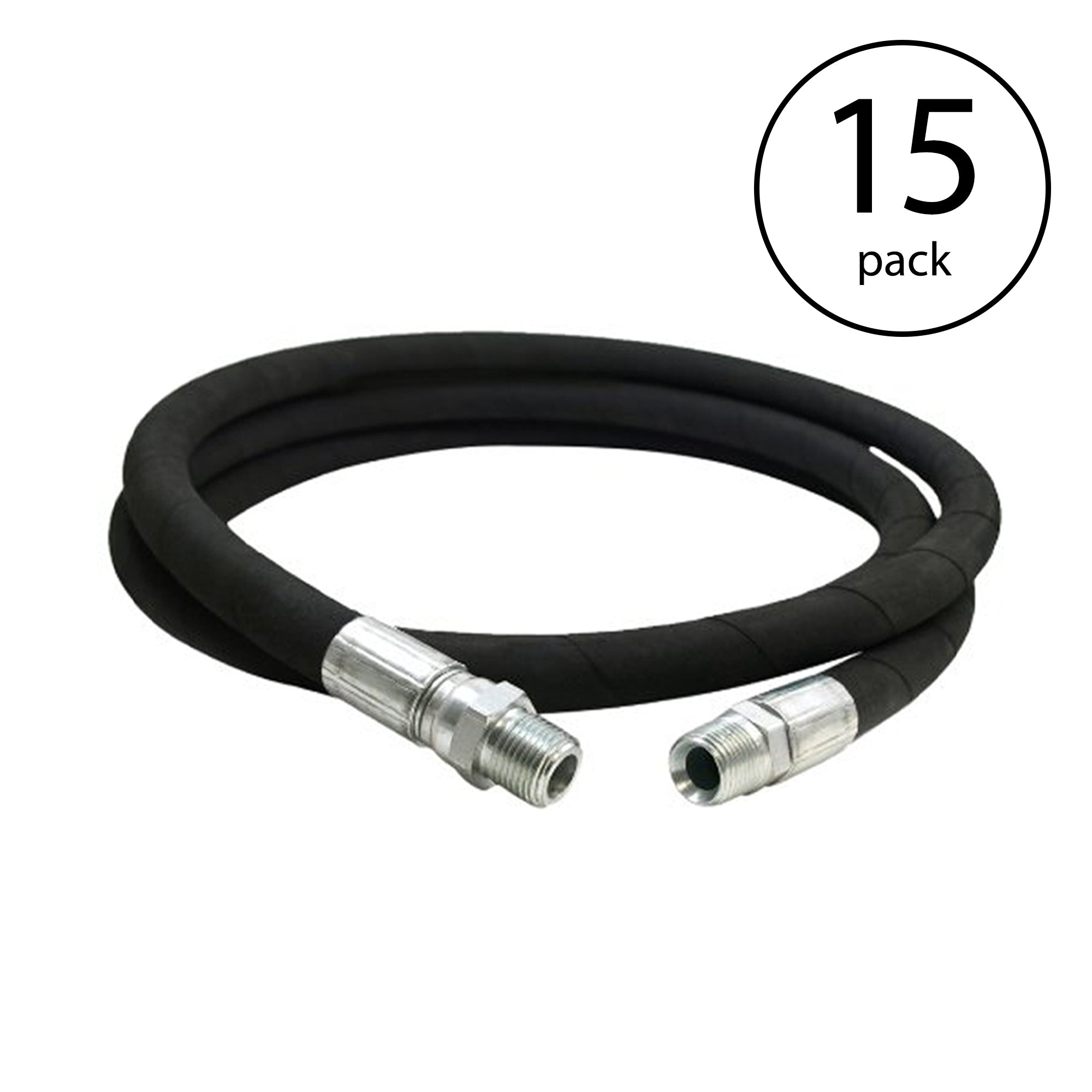

- This bundle comes with 15 sets of hydraulic hose assemblies
- Tubing is made from premium black synthetic rubber to ensure long life and reliability
- Each hose is coiled and sleeved for easy storage and labeled with size and specification for easy identification
- Designed for use with petroleum and water-based hydraulic fluids
- Can handle gasoline, diesel fuels, mineral oils, glycol, lubricating oils, and more
- Reinforced by 2 steel braids for superior strength and durability
- 1/2-inch pipe thread, 120-inch hose length, and maximum PSI of 3500
- Assemblies meet SAE 100R2AT standards
- Inside diameter: 0.50 inch
- Inside diameter: 12.7 mm
- Outside diameter: 0.88 inches
- Outside diameter: 22.3 mm
- Maximum PSI: 3500
- Minimum bend radius: 7.09 inches
- Fittings: Male pipe thread x male swivel
- Temperature range: -40 to 212 degrees Fahrenheit
- Cover material: SBR/CR/BR
- Tube material: NBR
- Reinforcement 2 steel braids
- Color: Black
- Weight: 3.62 pounds
- Manufacturer warranty: 30-day limited warranty
- Quantity: 15
