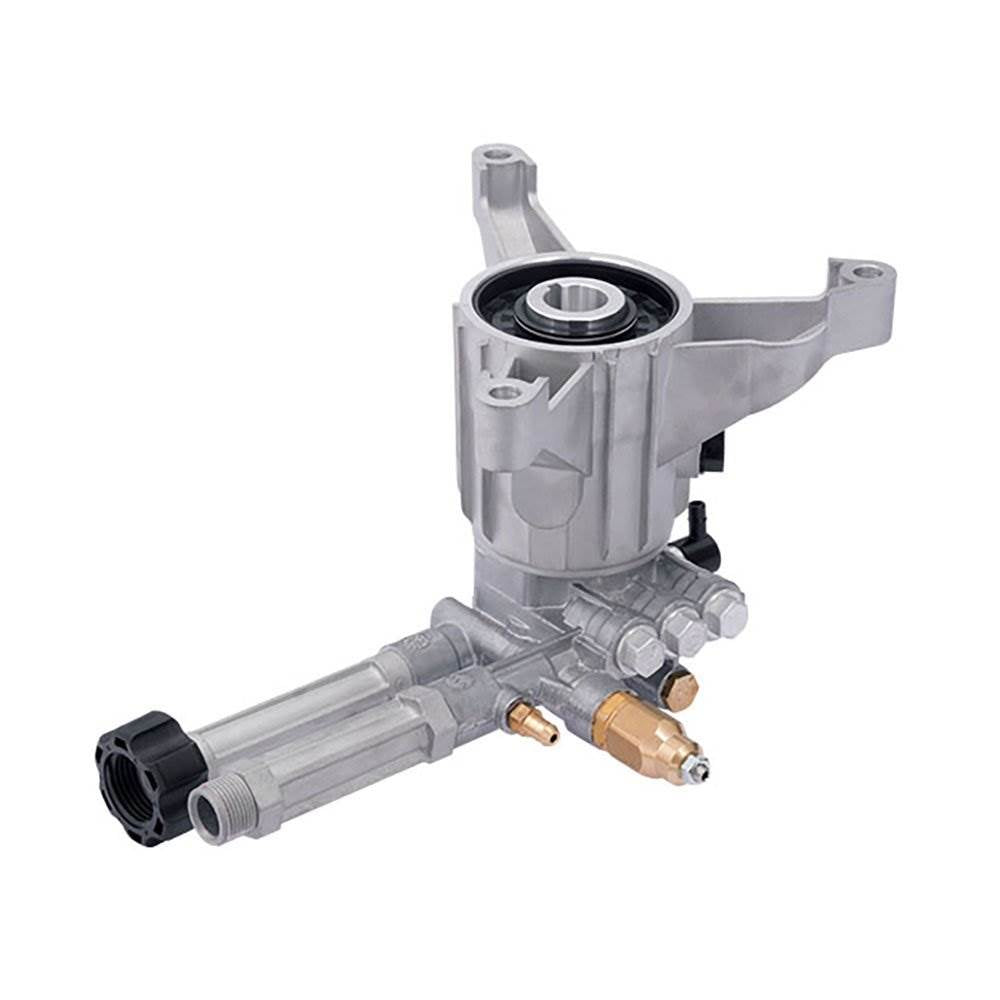

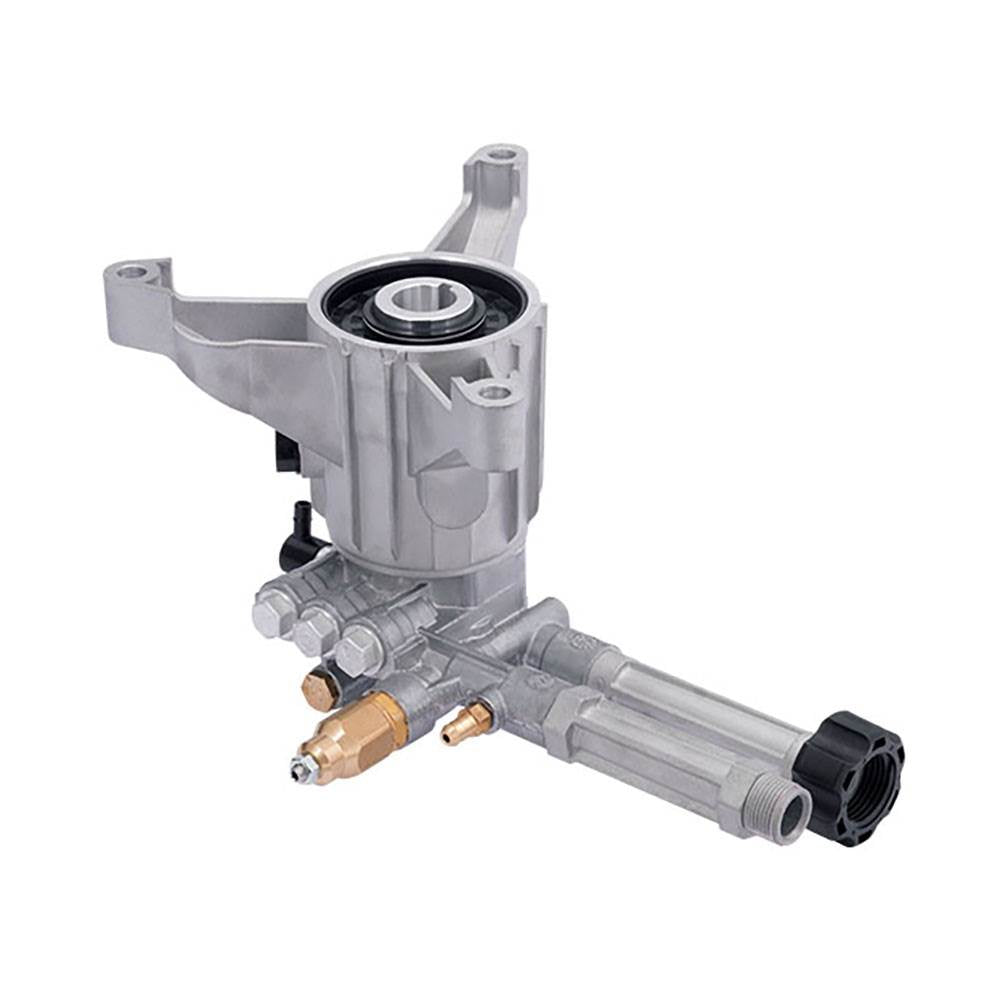

AR North America 2600 PSI Axial Radial Pressure Washer Pump | Open Box

####This item is open box and is in very good condition!####

• This S version of the vertical flange plunger pump for pressure washers has upgraded grade valves
• Part Number: SRMW22G26-EZ-SX
• Axial radial design with with Easy Start Valve (EZ), thermal relief valve, and integral regulating valve
• Features a 180-degree SX rotated shaft design
• With a 3-piston alternating volumetric build, the pump can be coupled to a variety of motors
• Features an optional system for detergent suction
• Constructed out of strong die-cast aluminum alloy with steel and brass parts
• Tempered steel pistons driven by a swash plate mechanism
• Features 2 bearing systems in support of the pistons and pump shaft
• Sealing system features a double gasket
• For more efficiency, the intake valves were placed above the pistons
• Specifications:
• Max GPM: 2.2 GPM
• Max L/minute: 8.3
• Max PSI: 2,600 PSI
• MaxBar: 173
• Power EBHP: 3.9
• Bore diameter: 12 mm
• Stroke: 9.7 mm
• Crankshaft ID stamp: 1
• Inlet: 0.75-inch GHA
• Outlet: 22 mm x 1.4 M
• Max temperature: 140 F
• Oil capacity: 2.2 ounces
• RPM: 3,400 RPM
• Shaft size: 7/8 inches
• Shaft version: D
• Shaft type: Hollow
• Weight: 7.3 pounds
• Condition: Open Box
• Warranty: 30 Day VMinnovations Warranty
