Bosch Climate 5000 Mini Split Air Conditioner Heat Pump System, 12,000 BTU 230V

Keep you, your family, and your guests cool and comfortable with the full Bosch Climate 5000 Minisplit Air Conditioner and Heating System with Refrigerant Line.

The Bosch Climate 5000 ductless minisplit series provides simple installation, maintenance, and cleaning. Shorter service times and high quality means minimizing money spent while maximizing comfort and peace-of-mind.

This Energy Star system utilizes a combination of efficient technologies to achieve up to a 20.7 SEER rating, reducing electricity usage and lowering your electric bill, while featuring whisper quiet operation. This unit can keep your room toasty in bitter winters and crispy cool on sweltering summer days.

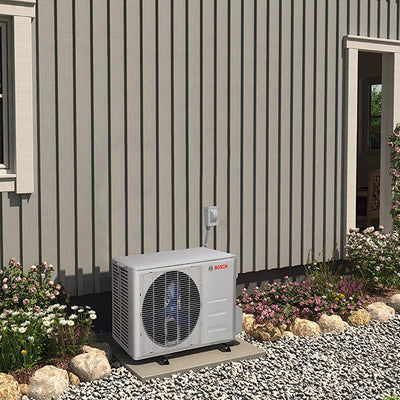

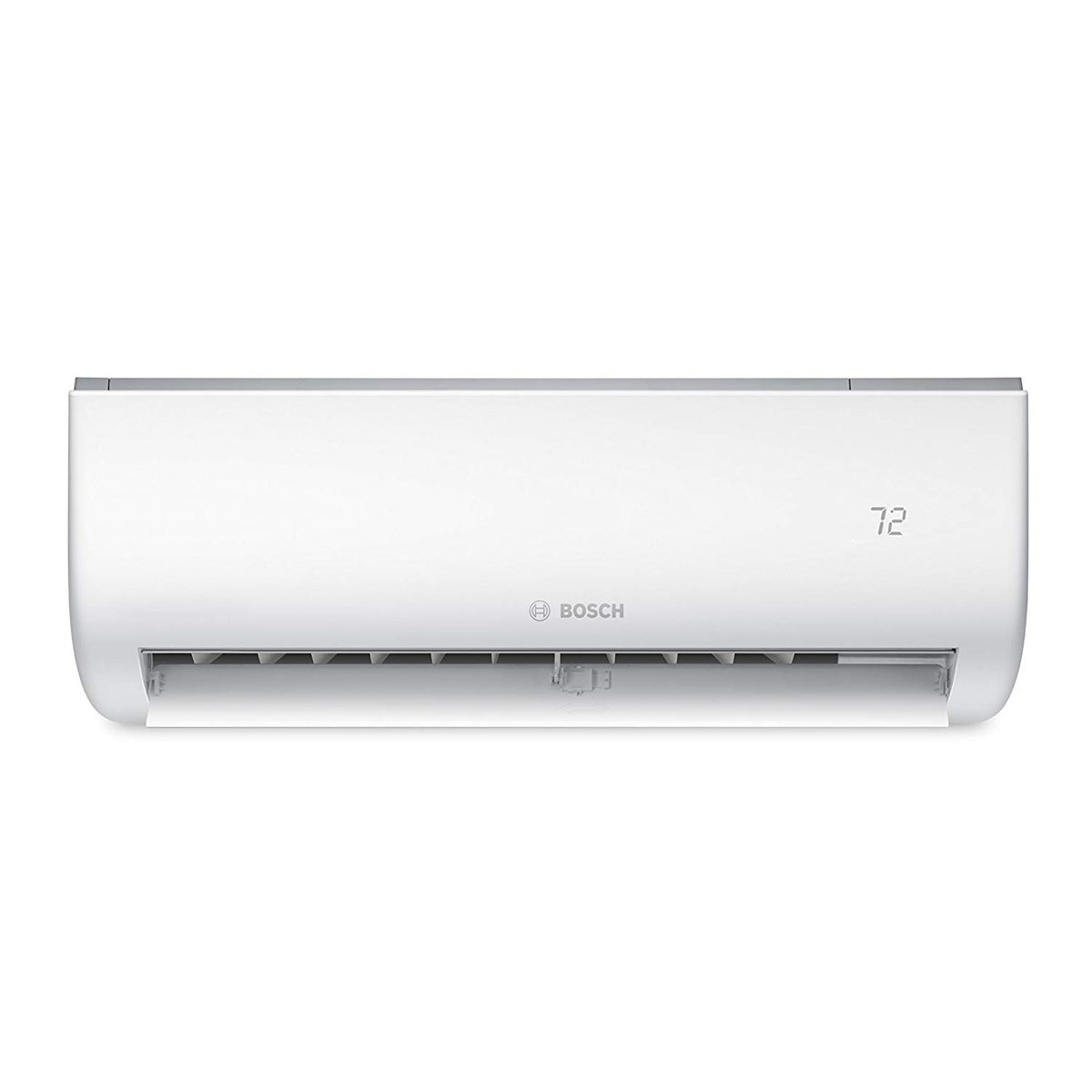

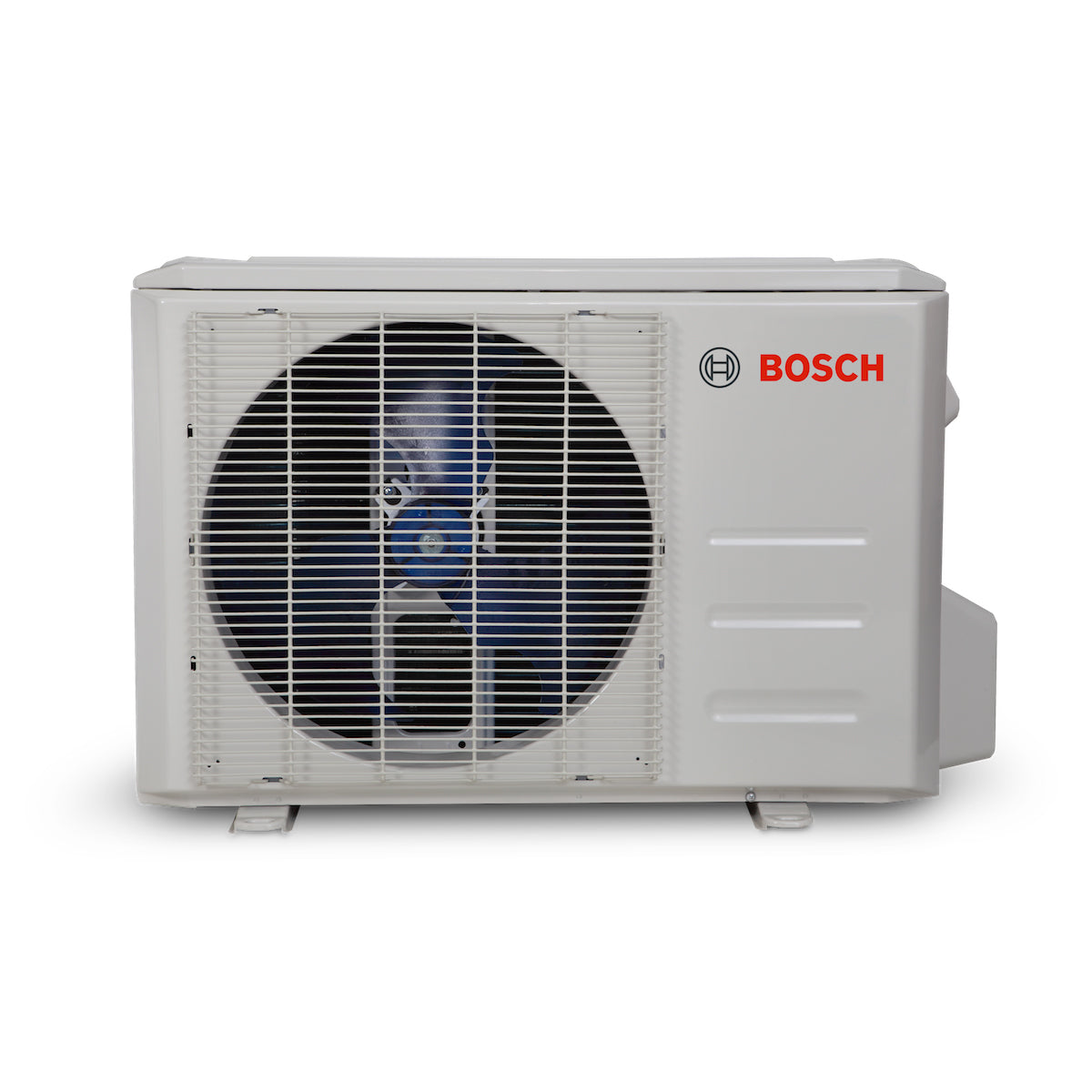

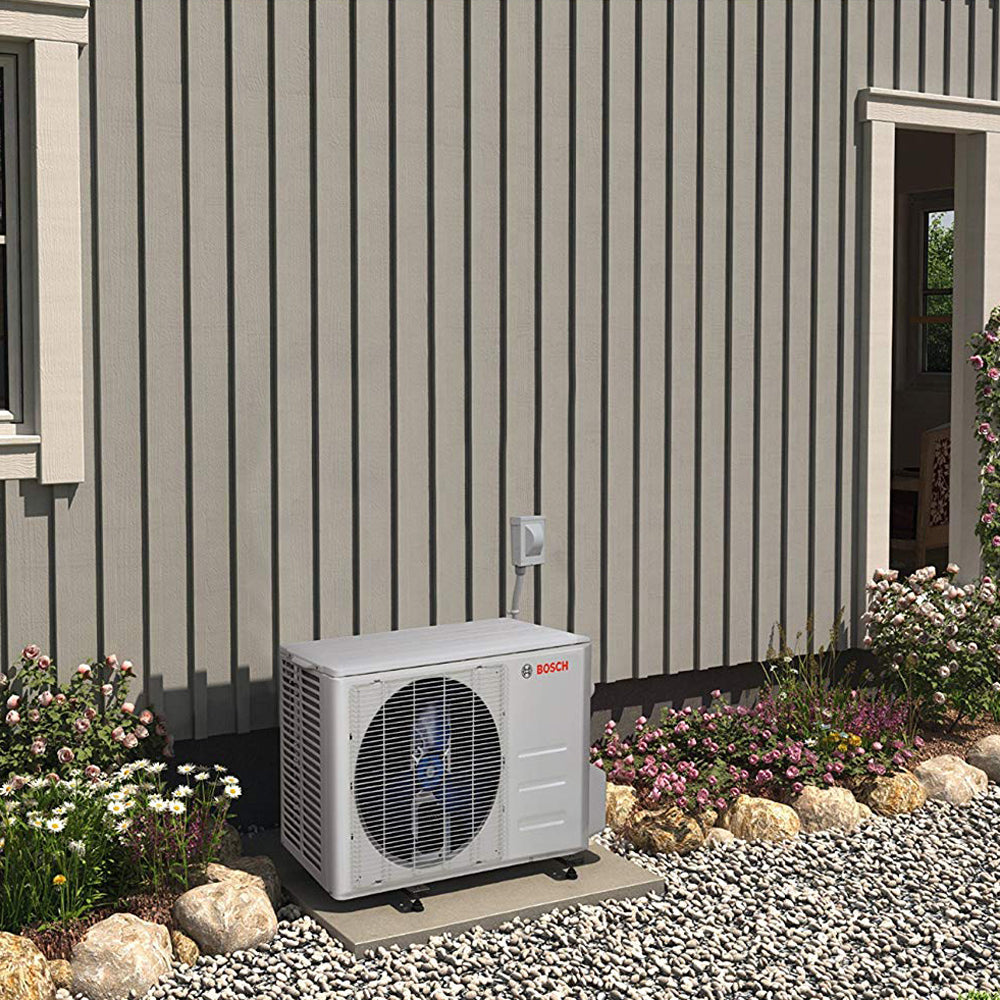

Altogether, the minisplit air conditioner produces up to 12,000 BTUs of heating and cooling power. This single zone air conditioner cools a single room. The mini split air conditioner system uses an outdoor condenser that draws air from the outside and an indoor air handler that circulates air through your home. For set up, you'll need a 230-volt outlet.

You should consult an HVAC professional for proper sealing and peak performance.

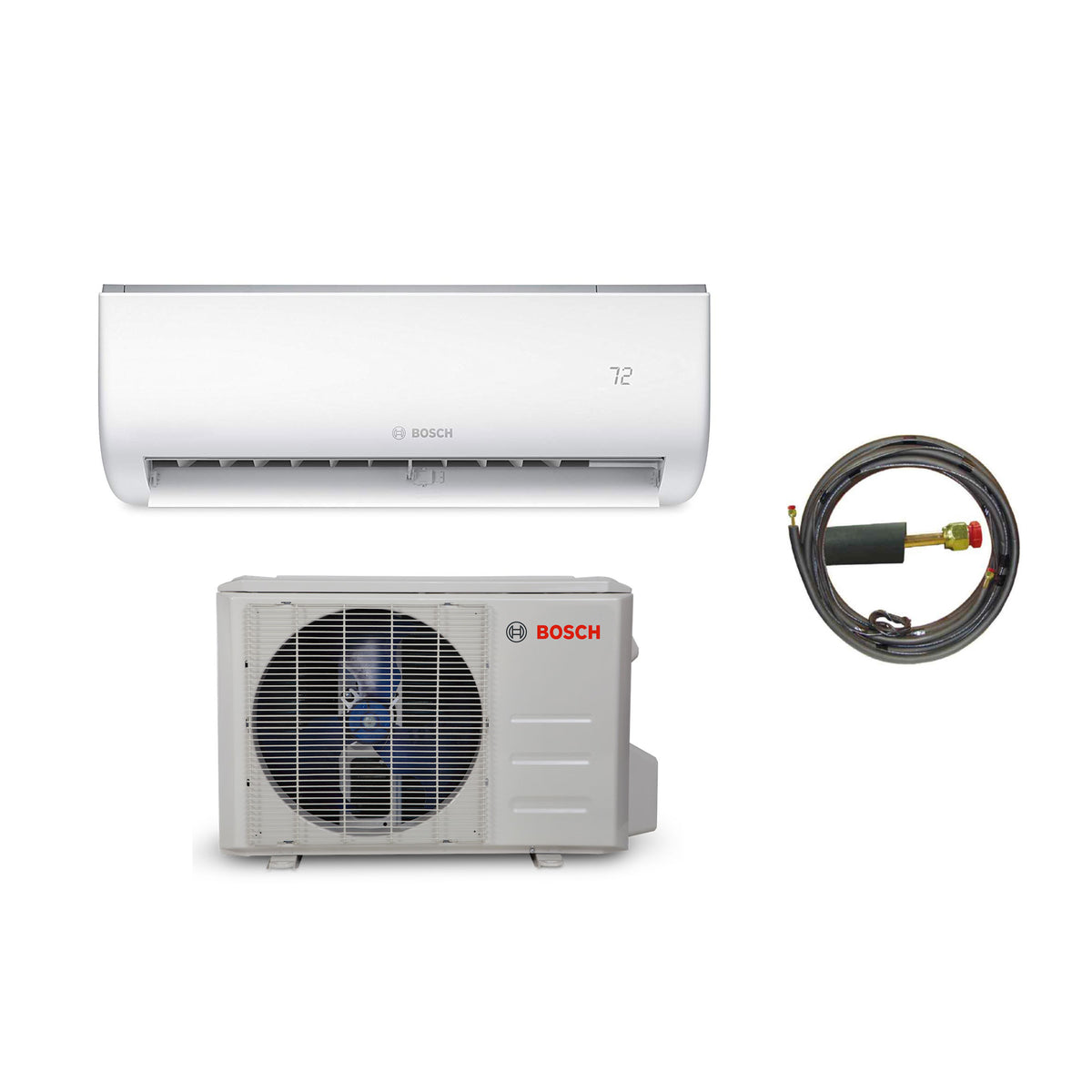

• Full mini-split air conditioner and heating system with indoor air handler, outdoor condenser, and refrigerant line kit
• Included model numbers: BMS500-AAU012-1AHXXA and BMS500-AAS012-1CSXXA
• Energy star rated single zone system keeps a single room, garage, or guest room cool or warm
• Requires 230-volt outlet and should be installed by an HVAC professional for proper sealing and peak performance
• Ductless wall mounting makes installation easy and simple maintenance
• Runs super quietly for peaceful operation
• Moving deflectors keeps air circulating and cool air flowing over every corner of the room
• Heats and cools to keep any room comfortable for you and your family

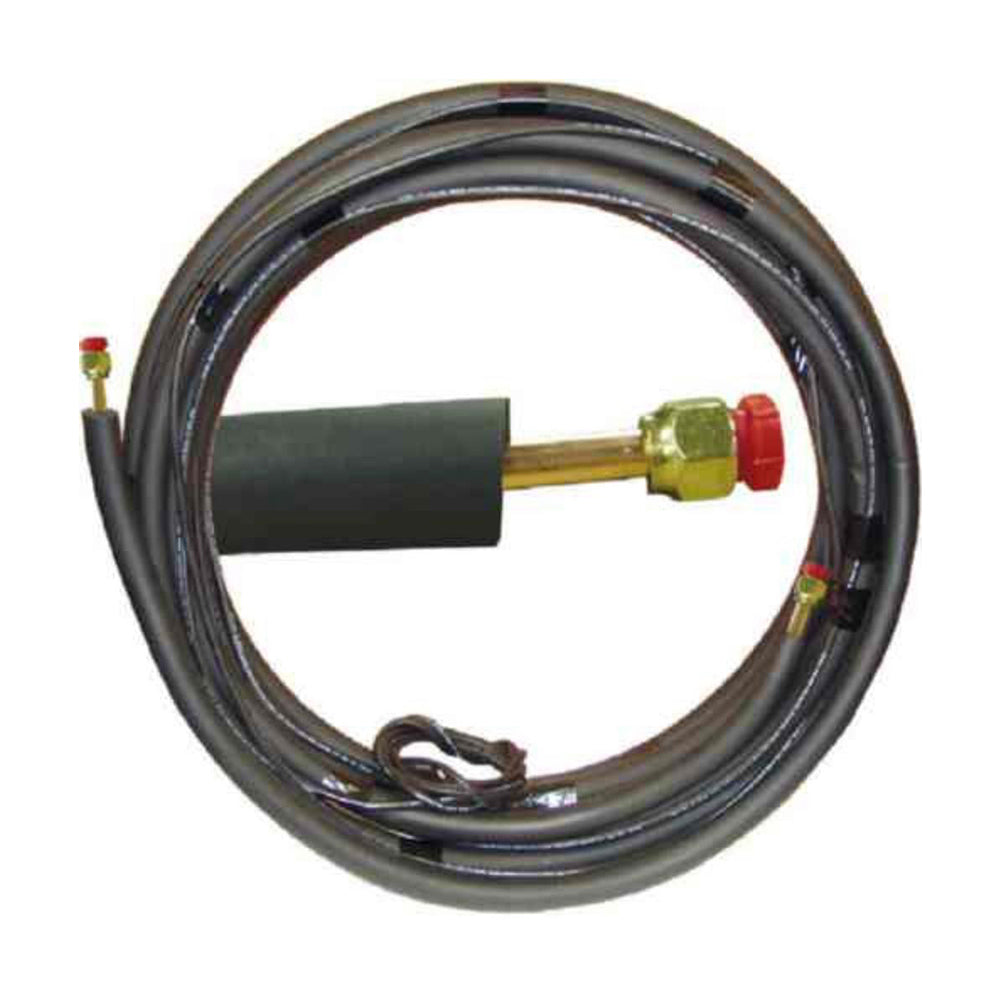

• Line assembly includes 1/2-inch suction line size and 1/4-inch liquid line size and 25-foot, semi-flexible copper pipes
• Insulated line with pre-flared fittings so no soldering or brazing is required
• Specifications:
• BTUs: 12,000
• Refrigerant type: R410A
• Cooling EER rating: 12.5
• Cooling SEER rating: 20.7
• Air flow, air handler (hi/med/lo): 306 / 265 / 200 CFM
• Air flow, condenser: 1,120 CFM
• Noise level, air handler (hi/med/lo): 39.5 / 35 / 28 dBA
• Noise level, condenser: 54.5 dBA
• Color: White
• Dimensions, air handler (L x W x Hcompressor): 7.6 x 31.65 x 11.81 inches
• Dimensions, condenser (L x W x H): 13.11 x 31.5 x 21.81 inches
• Dimensions, line set (L): 25 feet
• Weight, air handler: 18.7 pounds
• Weight, condenser: 81.6 pounds
• Manufacturer warranty: 5 year replacement parts and 7 year
