Century AO Smith B2748 Single Speed Square Flange Swimming Pool Pump Motor 2 HP

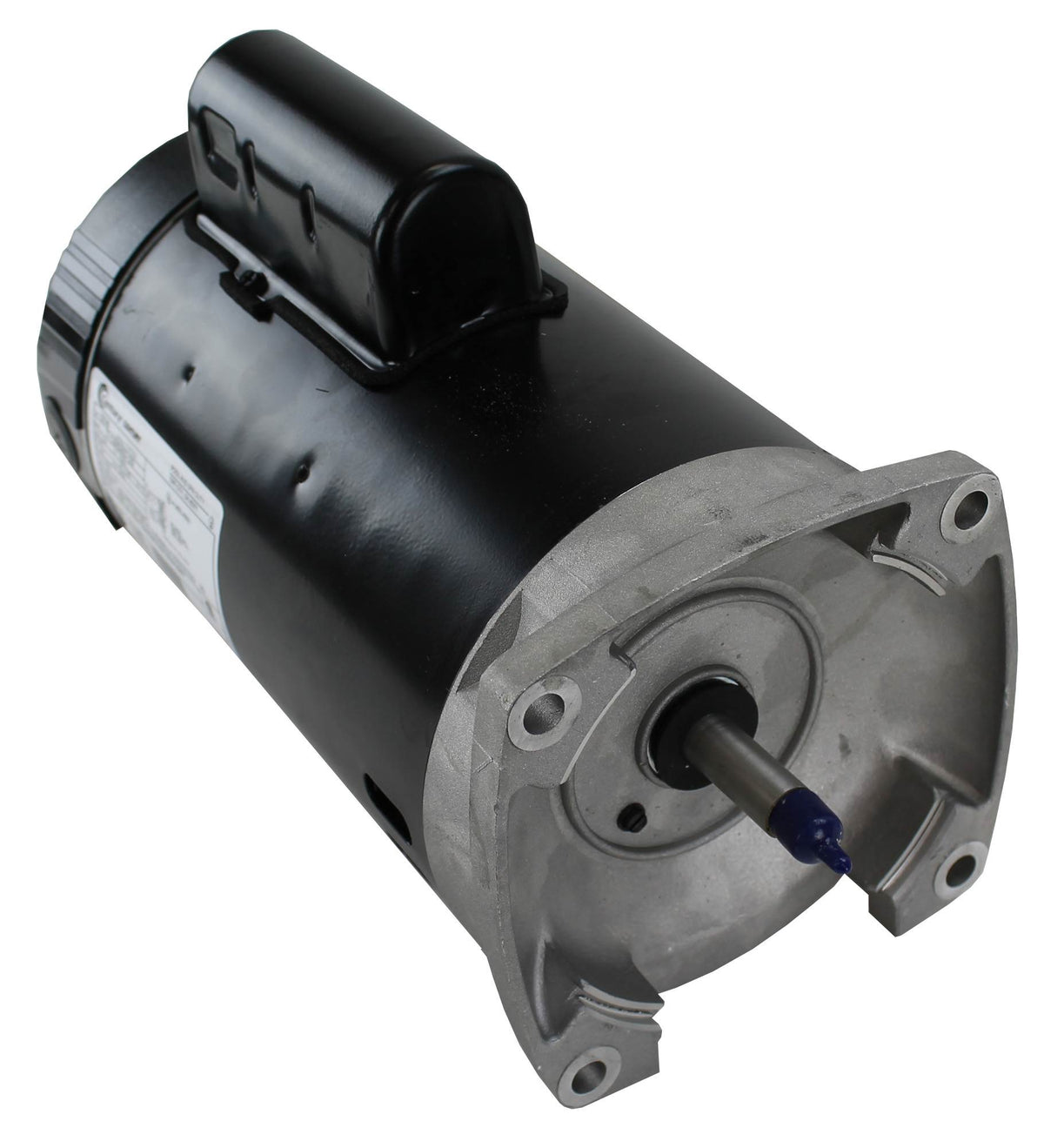

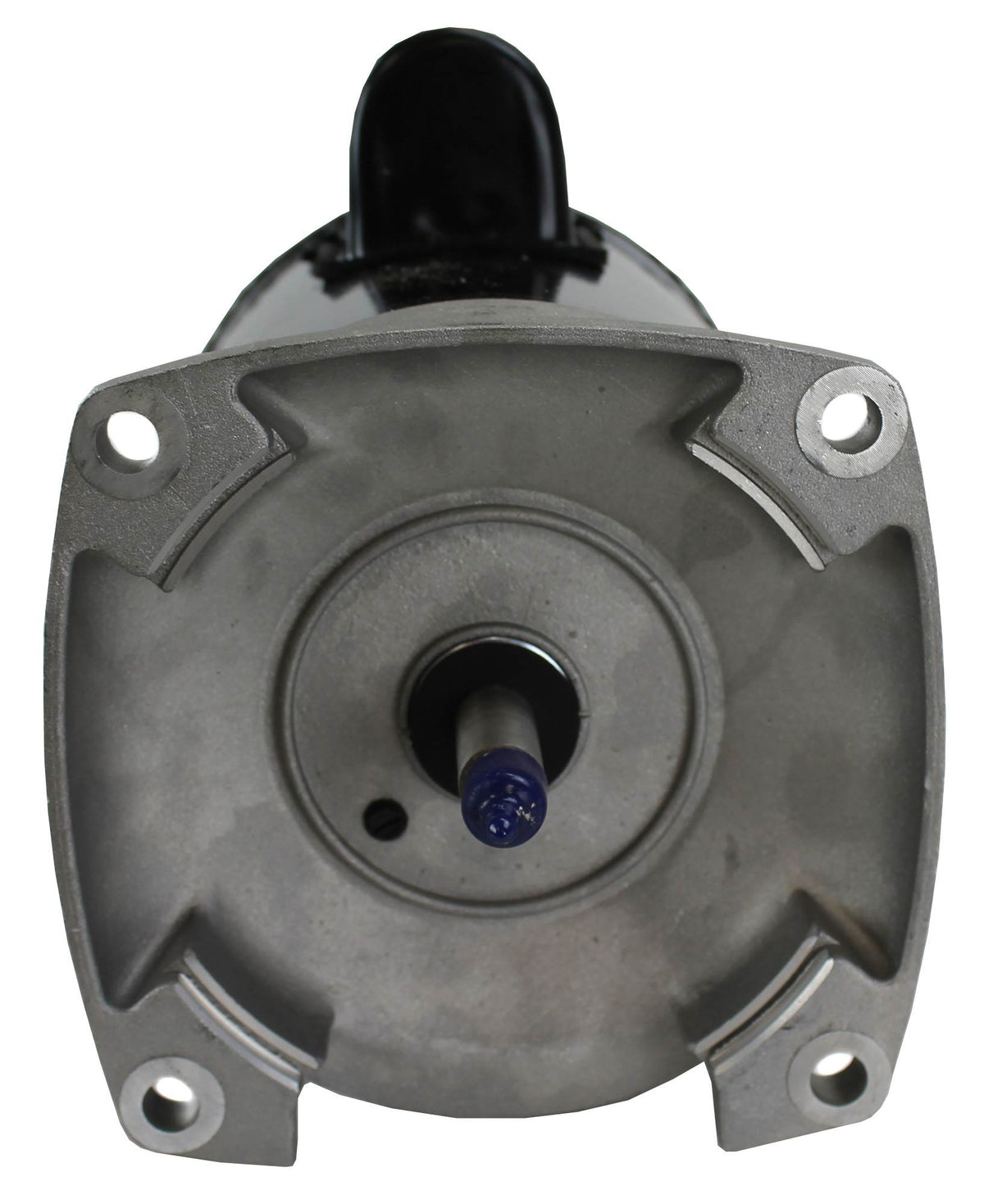

The AO Smith/Century B2748 Pool Pump Motor is a square flange style motor with a 56Y Frame and is a Full Rated 2 Horsepower motor. Square Flange motors have a square "face" where the motor mounts to the pump with 4 non-threaded bolt holes to attach the pump and a threaded shaft.

Square Flange motors are most commonly used on Pentair Challenger, WhisperFlo, SuperFlo and Pinnacle pumps, Hayward TriStar and Max-Flo II pumps, most Jandy pump. and Sta-Rite Max-E-Pro, Max-E-Glas/Max-E-Glas II, Dura-Glas/Dura-Glas II, Dyna-Pro, Dyna-Glas and Dyna Max pumps.

• New Century B2748 2 HP Swimming Pool Pump Motor
• Formerly known as A.O. Smith
• Single Speed Pump Motor
• Full 2 Horsepower
• 3450 RPM
• 230 Volts
• Service Factor Amps = 11.5
• Service Factor = 1.30
• THP = 2.6
• Frame = 56Y
• Threaded Shaft
• Automatic Overload Protector
• "C" Dim. = 13.4
• Ball Bearings
• 50°C Ambient
• 60 Hz
• Rotation: CCW Pump End
• Class B Insulation
• Stainless Steel Shafts
• Energy Efficient
• Product Condition: Brand New
• Part Number: B2748
• 1 Year Manufacturer's Warranty
