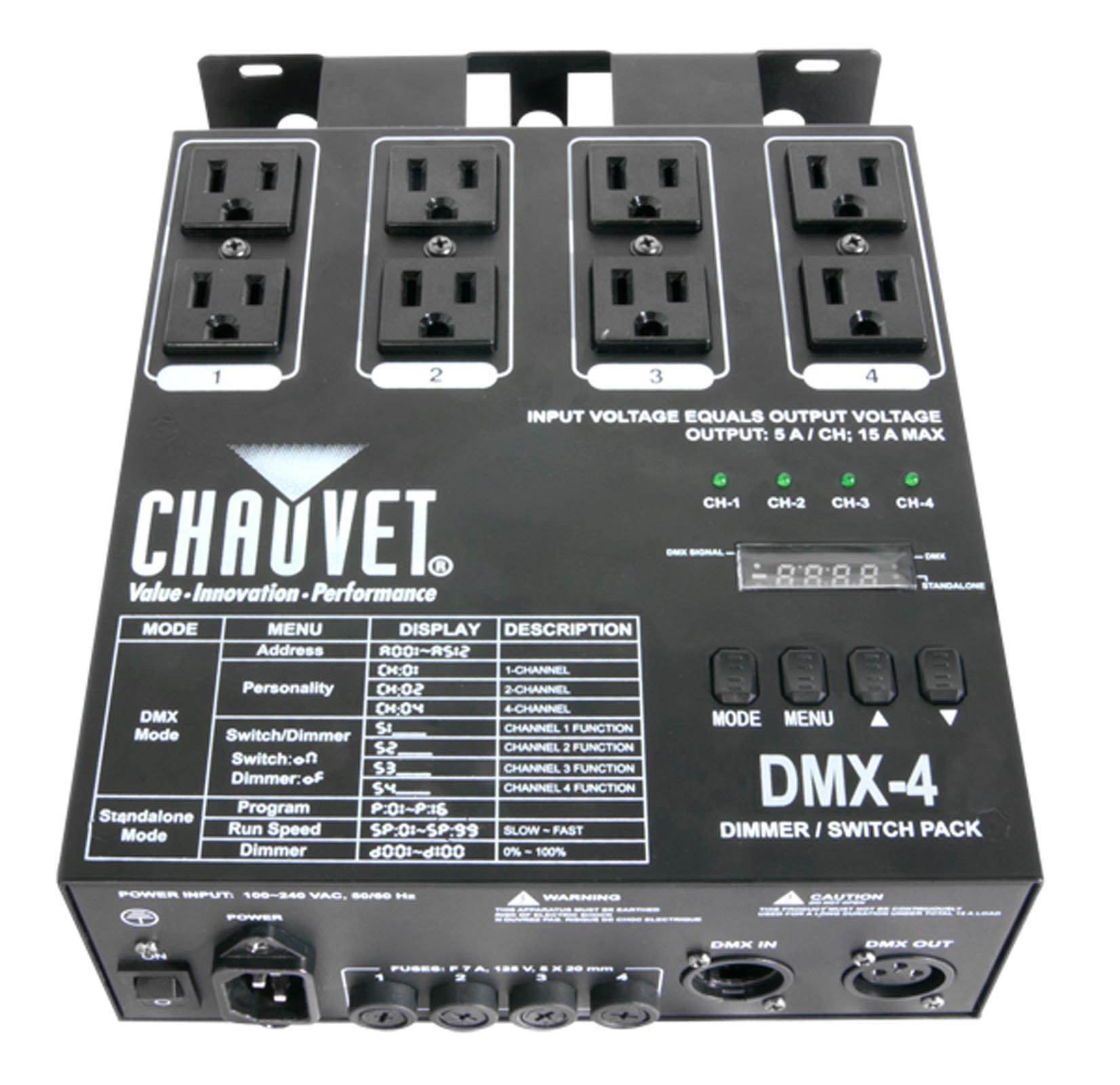

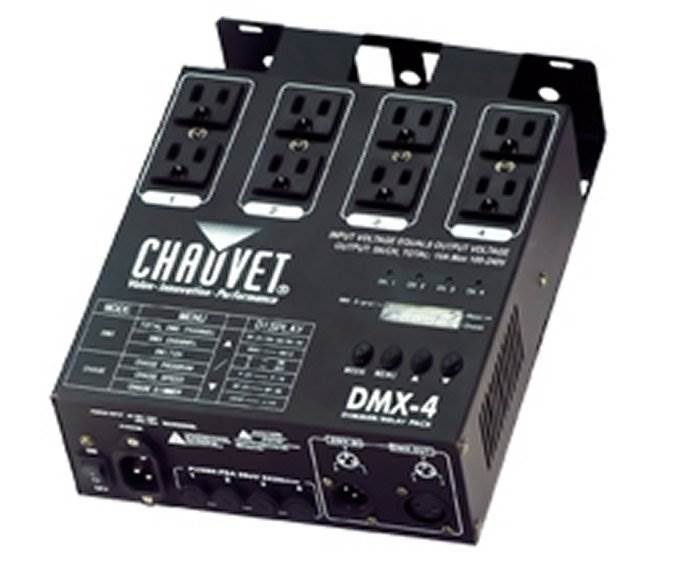

The Chauvet DMX 4 is a 4 channel dimmer/relay pack providing DMX control for on/off or dimming to units not equipped with DMX on their own. The fixture is optimized for use with small LED fixtures to prevent ghosting and flickering. Each of the 4 sets of outlets (duplex) can be set to any DMX address and independently set as a dimmer or relay.
Sixteen user selectable chase patterns make programming the Chauvet DMX 4 a breeze. Make sure your next show is synchronized using the DMX 4's built in automated programs.
- 4 channel dimmer/switch pack with up to 5 amps per channel (15A max)
- Provides DMX control for on/off or dimming to non DMX fixtures
- Built in circuitry generates a phantom load to prevent ghosting and flickering in LED fixtures
- Custom looks at your fingertips with 16 built in, configurable chases,
- Easy control using standalone mode or DMX control
- Increase flexibility by setting each channel as a dimmer or switch
- Control up to eight units simultaneously with four duplex outlets
- Monitor the status of each channel with separate LED indicators
- Generate a synchronized show using easily accessible automated programs, built in automated programs
- Great control without DMX using automated programs with adjustable speeds and dimmer levels
- DMX channels: 1, 2, or 4
- DMX connectors: 3 pin
- Input voltage: Auto ranging 100 240VAC 50/60Hz
- Weight: 5 pounds
- Size: 8.3 x 7.7 x 2.8 inches
- Approvals: CE
- Manufacturer warranty: 2-year warranty
