Chauvet DJ XPRESS-512 DMX USB Interface Lighting Controller & Software w/ Cable

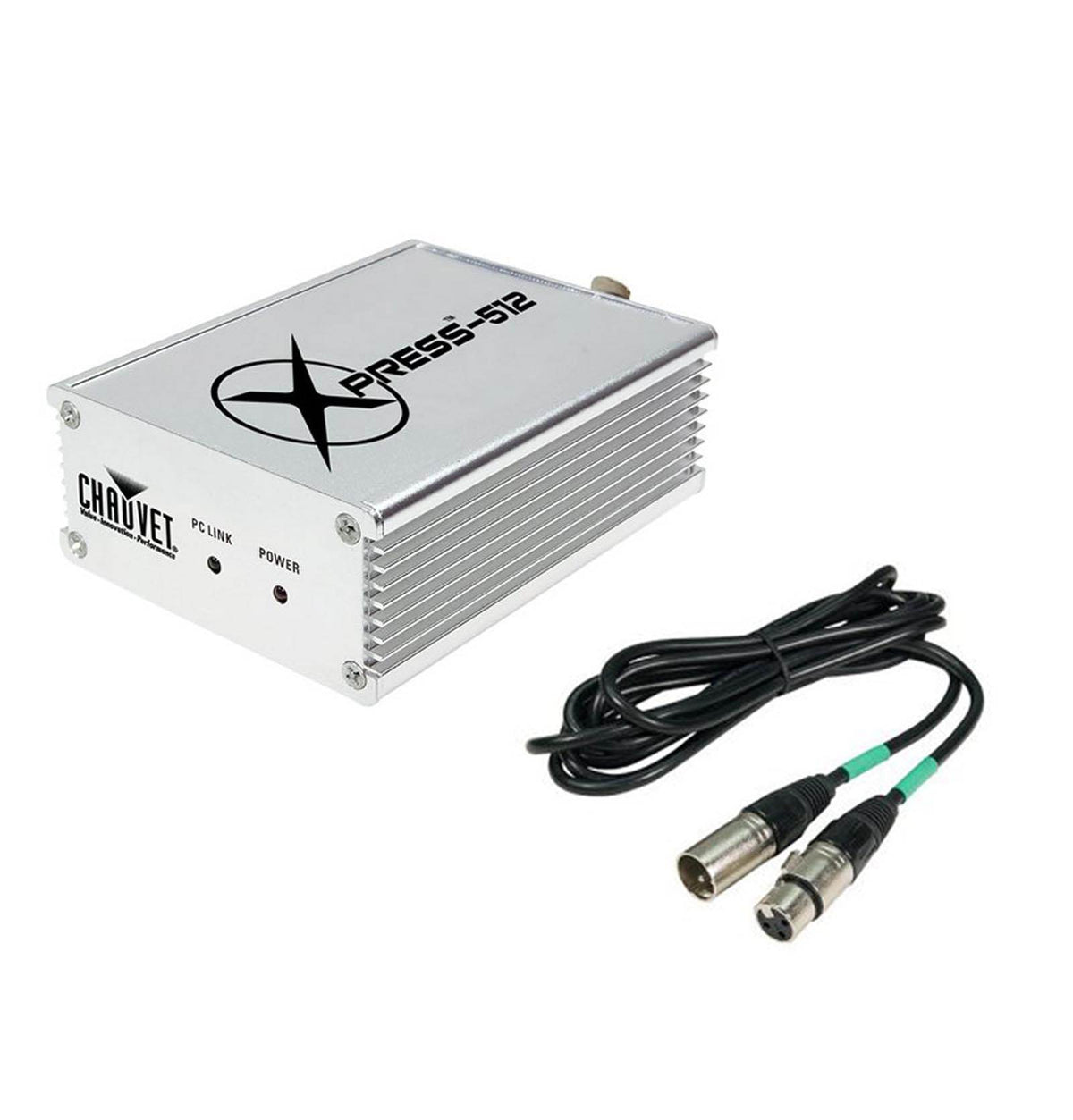

The Chauvet Xpress 512 is a self-contained DMX-512 interface for the ShowXpress software. The interface is capable of transmitting one universe of DMX and works on both Windows and Mac OS X platforms.

Use the Chauvet Xpress 512 to connect multiple units for multiple universes of control. Users can store and playback one show without a computer or unlimited shows with a computer or create unlimited shows when using a computer.

ShowXpress is a software program that turns almost any computer into a lighting console. The program, which is free and is updated regularly, can be downloaded to a computer supported by Windows XP, Vista and Windows 7 as well as Mac OSX.

ShowXpress allows the user to create, store and play back scenes with any DMX lighting fixture. The software communicates with the lights via a required DMX 512 interface available from CHAUVET with options ranging from beginner to expert. DMX3P25FT

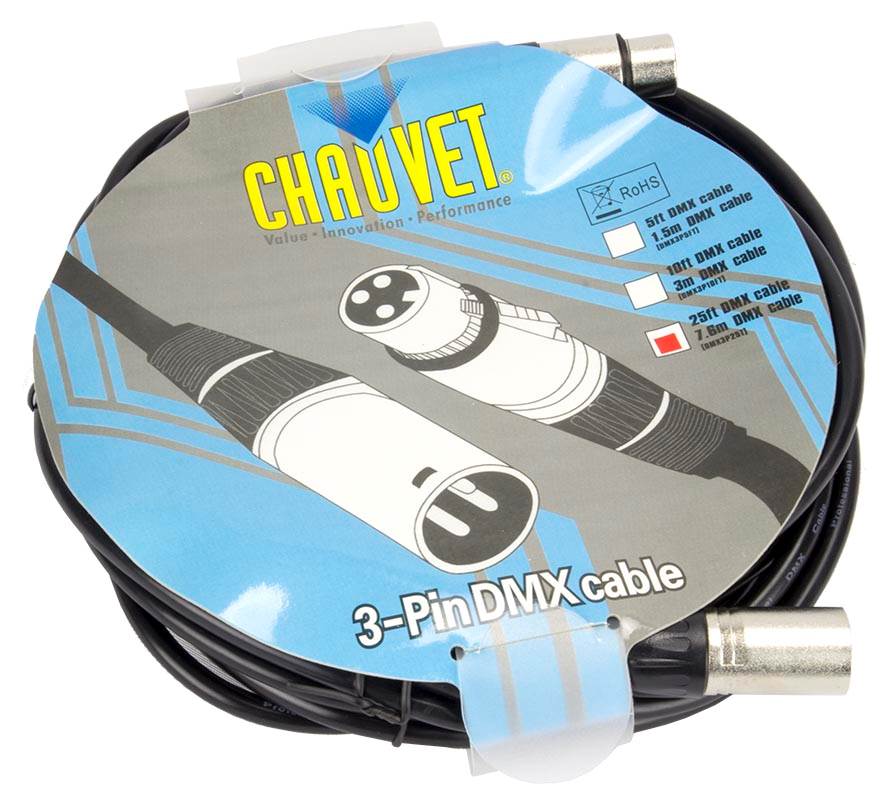

The Chauvet DMX Cable will ensure your equipment works at optimal levels. Chauvet produces a variety of cables for all of its fixtures, including DMX this 3-pin, 25-foot long cable. All Chauvet DMX cables are made specifically for lighting and meet stringent standards of suitability and quality to provide safety, shielding and prevent transmission interferences.

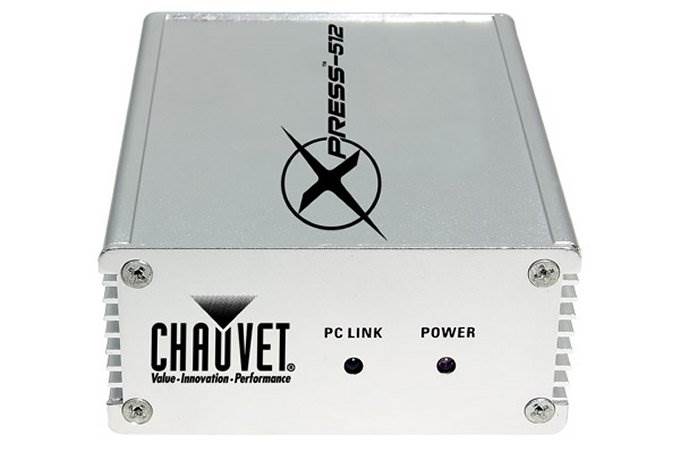

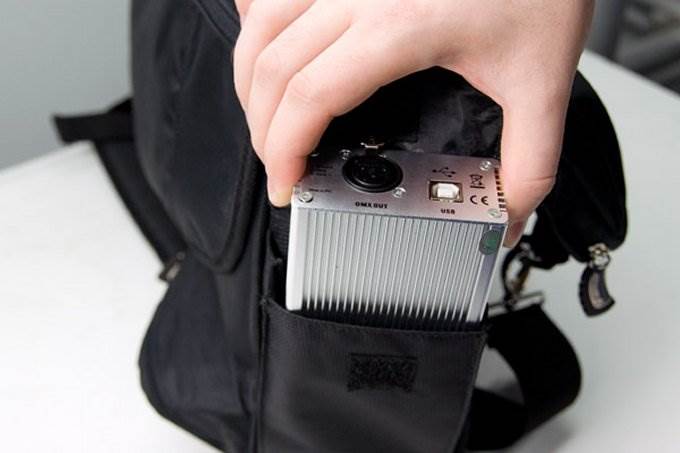

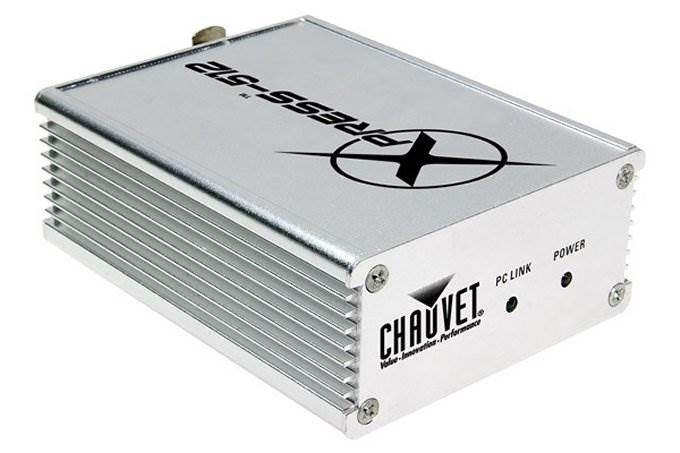

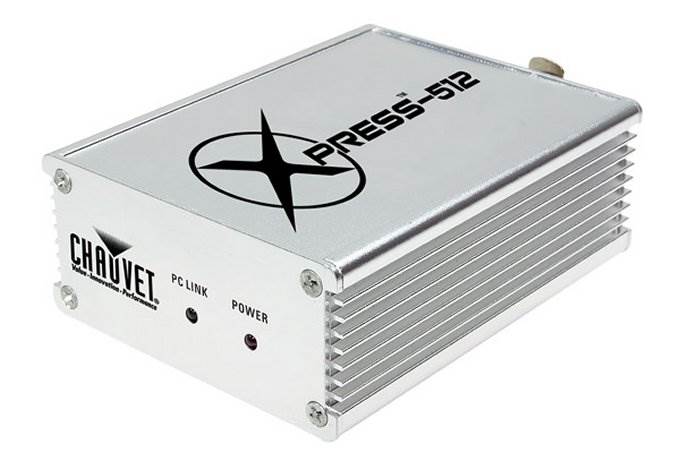

• XPRESS-512
• Self-contained DMX interface for the ShowXpress software
• Transmits 1 DMX universe or connect multiple units to control multiple universes
• Create unlimited shows when operating with a computer
• Easily store and playback 1 show without a computer
• Compatible with Windows® and Mac OS X systems

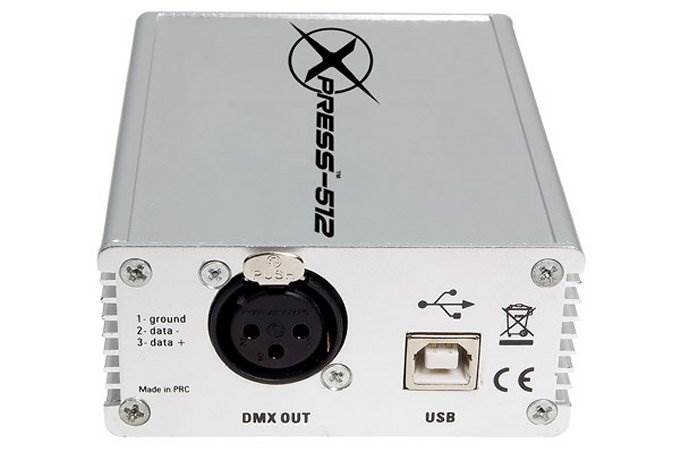

• Lock your cable into place using the Neutrik® DMX connector
• DMX Connectors: 3-pin
• Input Voltage: 5 VDC, USB
• Weight: 0.5lbs (0.2kg)
• Size: 4.3in x 3.2in x 1.5in / 108mm x 80mm x 37mm
• Product condition: New
• Part number: XPRESS-512
• ShowXpress Software
• Control Board
• Works on Windows® and Mac OS X
• Main window where all other screens are accessed
• Controls up to 6 universes (3,072 DMX channels)
• Setup
• Create new fixture profiles or select from internal library
• Automatically assign DMX addresses to list of fixtures
• Define channel configurations and values
• Editor
• Combines BUILDER, 2D VIEW and GENERATOR into a single window
• Easily program steps, scenes and shows
• On-screen color and gobo selections
• Unlimited scenes (when using a computer)
• Pan & tilt locks for spot light effect using a mouse
• Manually enter DMX values per channel (no more fader-sliding)
• Change background image to mirror actual application
• Move and select fixture(s) for grouping-on-the-fly (drag-and-drop technology)
• Generate movement or color macros with variable delay effects
• Select any color using the RGB color palette
• Live
• Simultaneous playback of multiple lighting scenes (layering)
• Completely user-configurable
• Stand Alone
• Up to 4 separate windows with unlimited pages per window
• Trigger scenes by mouse click, keyboard, date and time, automatic, sound and manual BPM
• Playback timelines with lighting, audio and video with a single click
• Timeline
• Synchronized multimedia creator with lighting, audio and video
• Plays multimedia file types: WAV, MP3, OGG, BMP, JPG, PNG, GIF, AVI, MPG, MPEG, MOV, WMV
• True drag-and-drop technology for all multimedia files
• Select individual scenes to upload to interfaces
• Stand-alone scenes automatically start when computer is removed or powered off
• Simultaneous playback of multiple lighting scenes (layering) (with Xpress Plus™ and Xpress™-512 Plus interfaces only)
• Import/Export
• Import and export shows from others
• Email backup files to friends or co-workers
• Backup and restore an unlimited number of shows
• 3D View
• See and control a complete show in real-time from any point of view
• Create new 3D objects or select from internal library
• Change object’s position, orientation, scale and color
• Import custom images to use as the ceiling, floor or walls

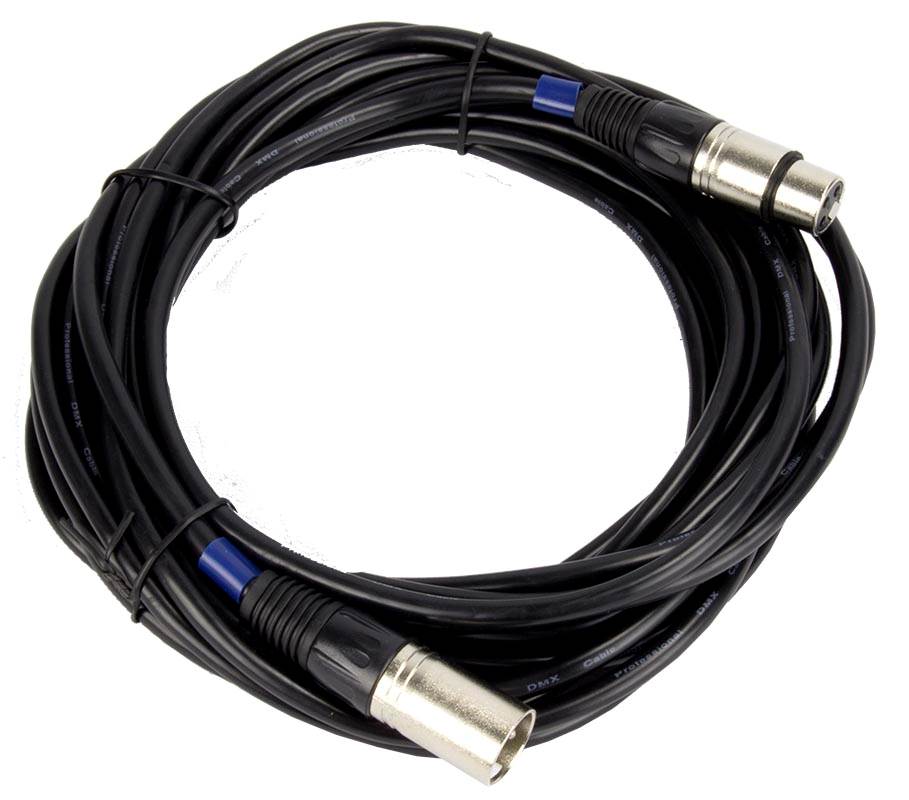

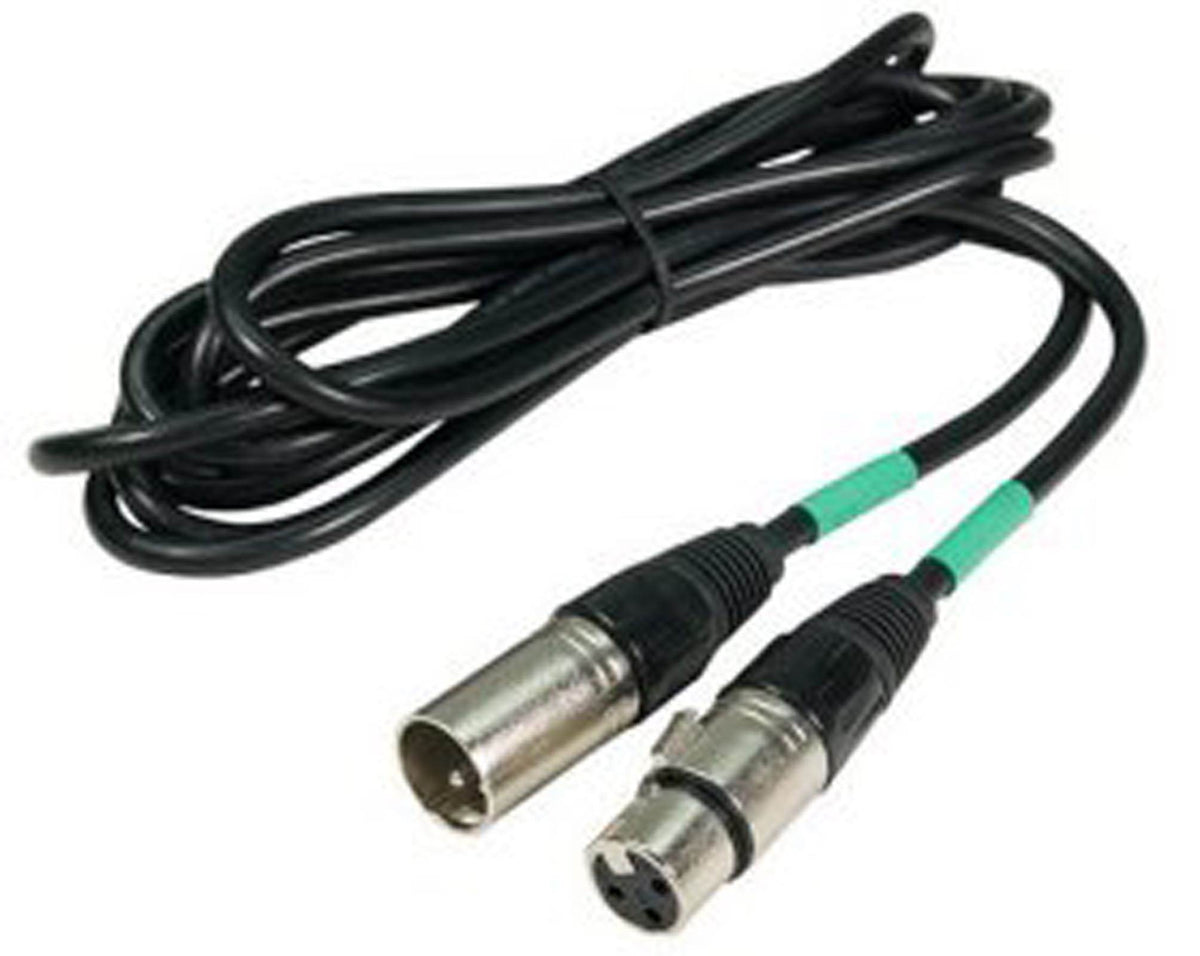

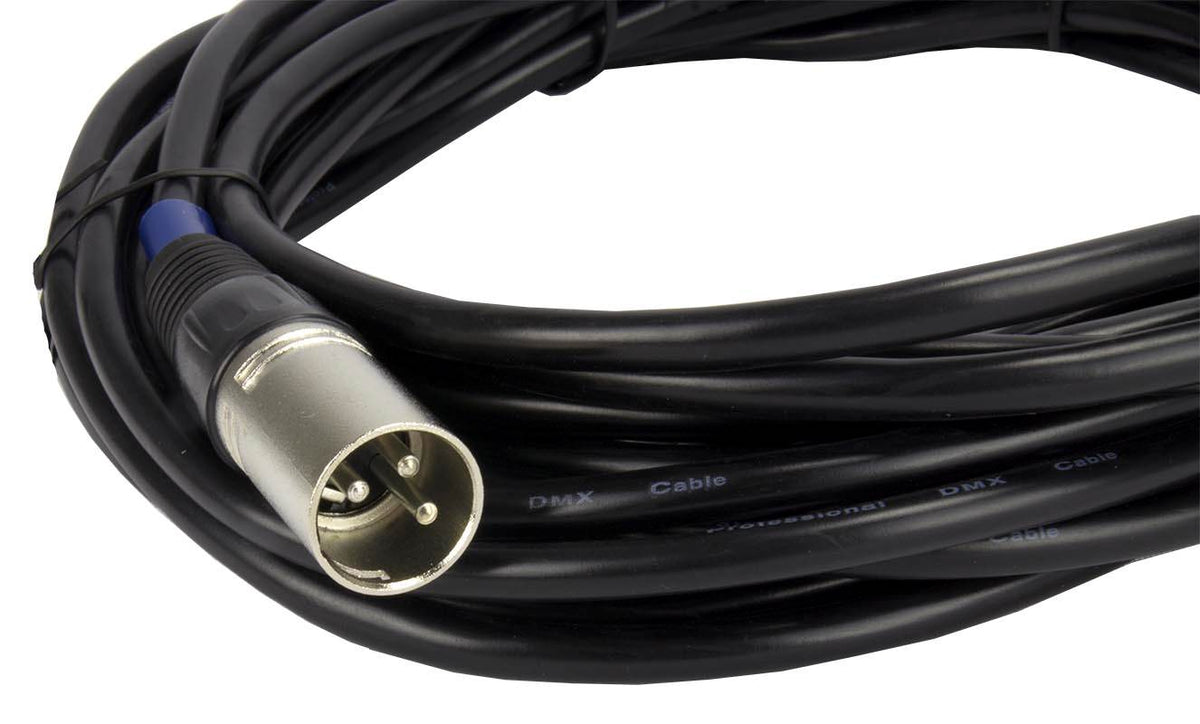

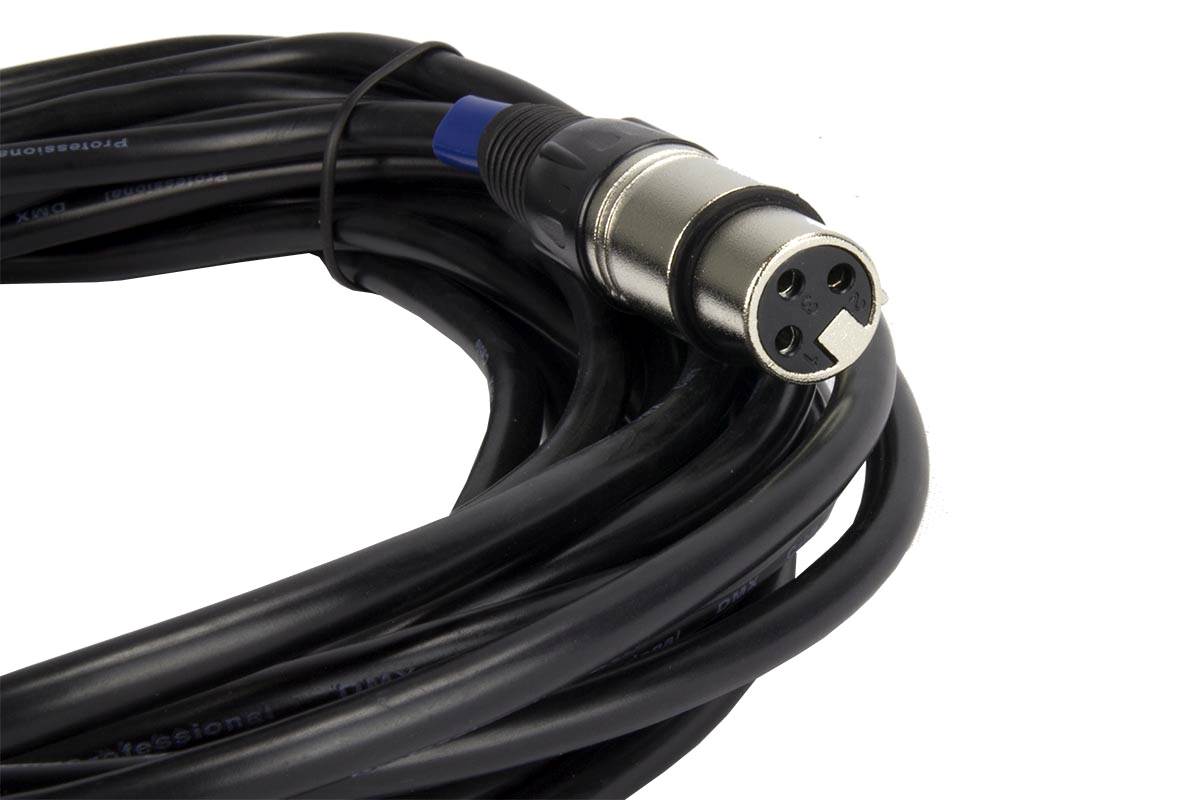

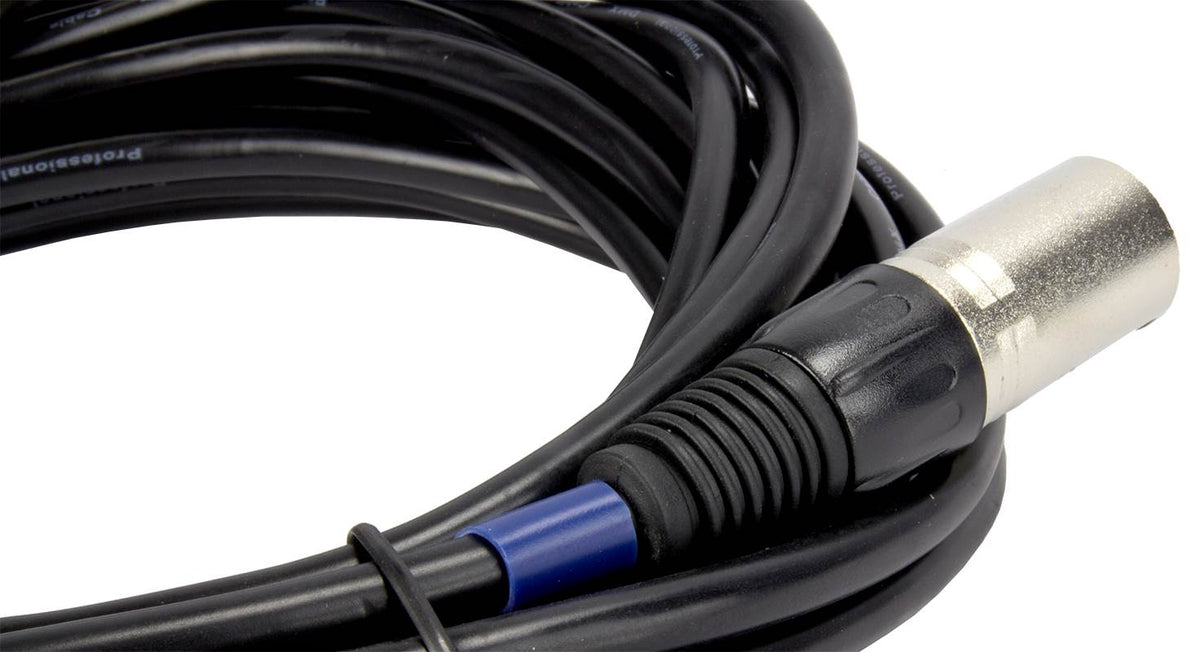

• DMX3P25FT
• Connector: Male to Female DMX
• Pins: 3
• AWG: 24
• Impedance: 117 Ohm
• Length: 25 feet
• Condition: New
• Part number: DMX3P25FT
