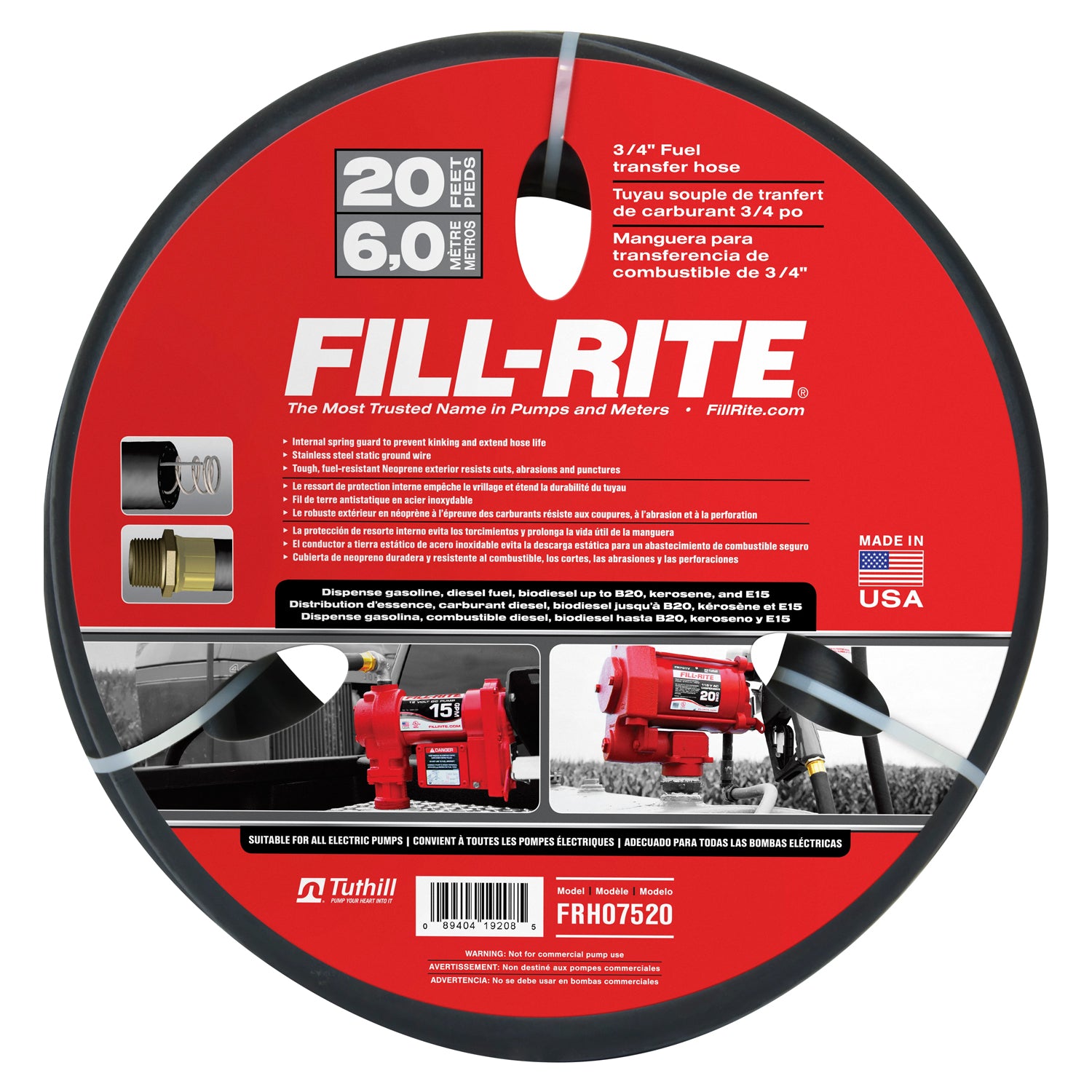

Fill Rite FRH07520 20 Ft Gasoline Fuel Pump Transfer Hose Bundle w/ Accessories

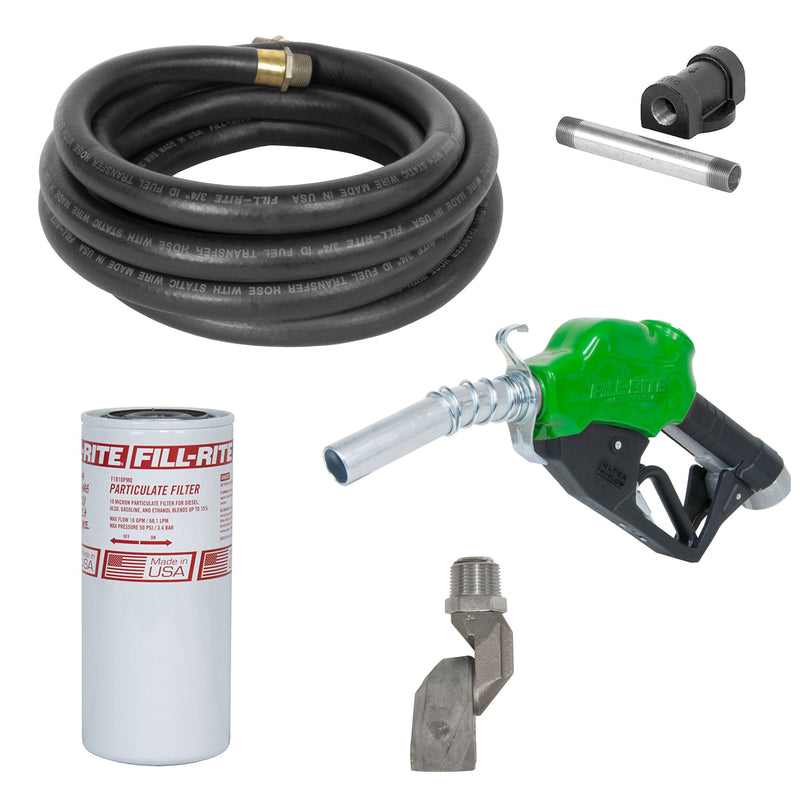

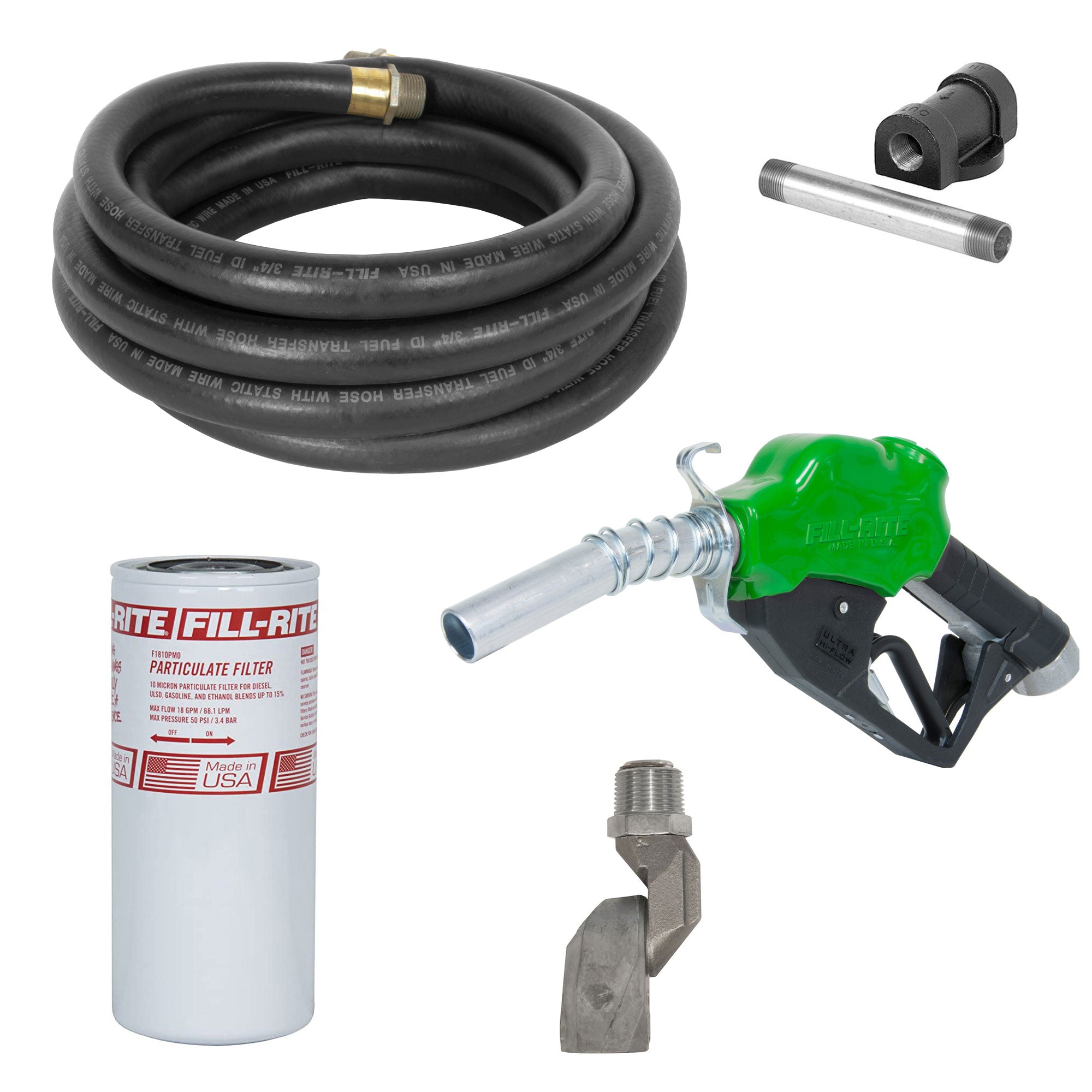

The Fill-Rite 0.75 Inch x 20 Foot Neoprene Gasoline Fuel Pump Transfer Hose Bundle has everything you need to fuel up. The bundle includes a 20-foot fuel transfer hose, an electric nozzle, a spin-on fuel filter, a 3.4-inch filter head, and a 3/4 inch multi-plane swivel.

This fuel transfer hose is molded with a fuel-resistant neoprene exterior and a high-quality nitrite interior, making it suitable to carry just about any type of commercial or personal-use fuel, including gasoline, diesel, biodiesel up to B20, ethanol up to E15, kerosene, and mineral spirits. A stainless-steel ground wire is threaded through the hose, preventing static sparks from causing a flare-up. Each end of the hose features standard 0.75-inch male NPT fittings, suitable for the included filter head, swivel, and electric nozzle pump.

An internal spring-guard prevents the diesel gasoline hose from kinking up and cutting off the transfer flow. In your home garage, mechanic's bay, or heavy-machinery equipment shed, the Fill-Rite 0.75 Inch x 20 Foot Neoprene Gasoline Fuel Pump Transfer Hose Bundle makes sure all your vehicles and tools get fed quickly and efficiently.

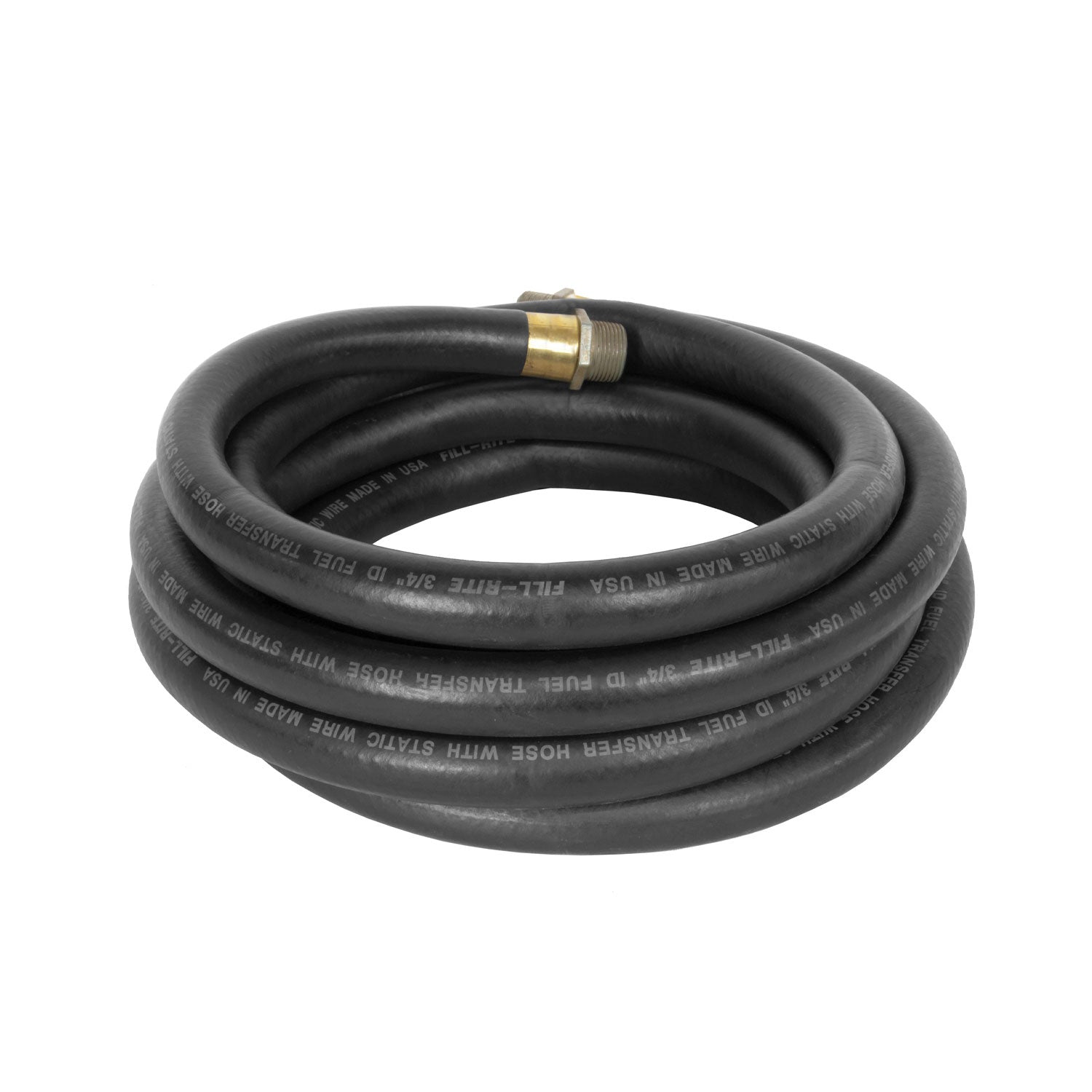

• Fill-Rite FRH07520 20 Foot Neoprene Gasoline Fuel Pump Transfer Hose Bundle
• Provide fast and consistent transfer of fuel from your pump to your vehicle
• Long-lasting design crafted from fuel-resistant neoprene exterior with a durable nitrile inner tube
• Kink-resistant internal spring guard prevents the hose from tangling and cutting off the supply
• Built-in stainless steel ground wire prevents sparks and other safety hazards
• Compatible with gasoline, diesel, biodiesel up to B20, ethanol up to E15, kerosene, and mineral spirits
• Made in the USA
• Fitment: 0.75-inch male NPT fittings
• Material: Neoprene (outer), nitrile (inner)
• Color: Black
• Dimensions (diameter x L): 0.75 x 240 inches
• Weight: 8 pounds

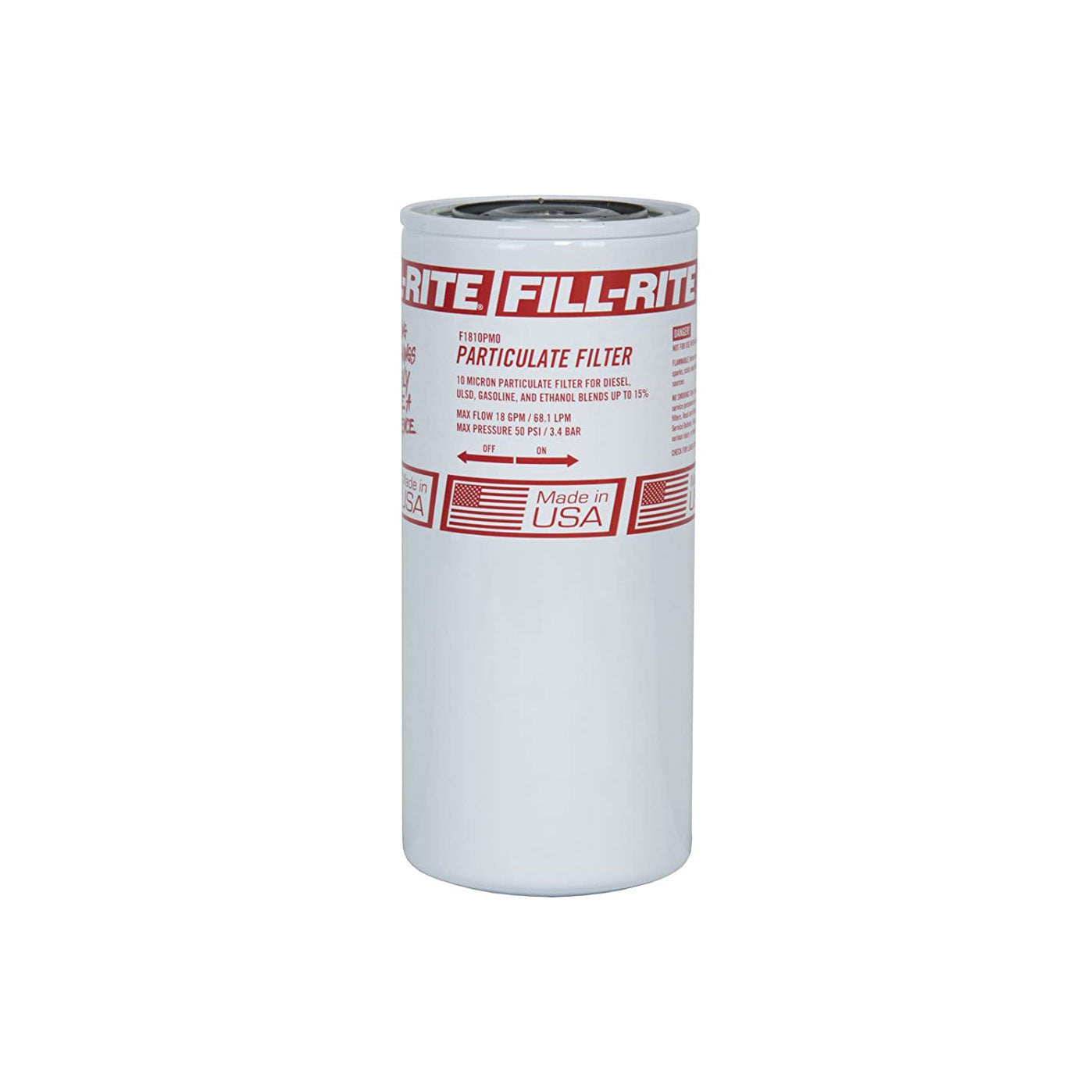

• Fill-Rite F1810PM0 1 In 18 GPM 10 Micron 50 PSI Particulate Spin On Fuel Filter
• Fuel filter great for filtering gasoline, diesel, or kerosene pumped out of above-ground storage and transfer tanks
• Resin-impregnated cellulose media filters out dirt, rust, or microbes; made in the U.S.A.
• Please note that this filter does not absorb water out of fuel
• Designed for flow ranges up to 18 GPM
• Filters particulates up to 10 microns
• Compatible with the Fill-Rite head kit 1200KTG9075; thread on top is 1-inch
• Mounting kit not included
• Maximum working pressure: 50 psi
• Color: White
• Dimensions (L x W x H): 4 x 4 x 8 inches
• Weight: 1.2 pounds

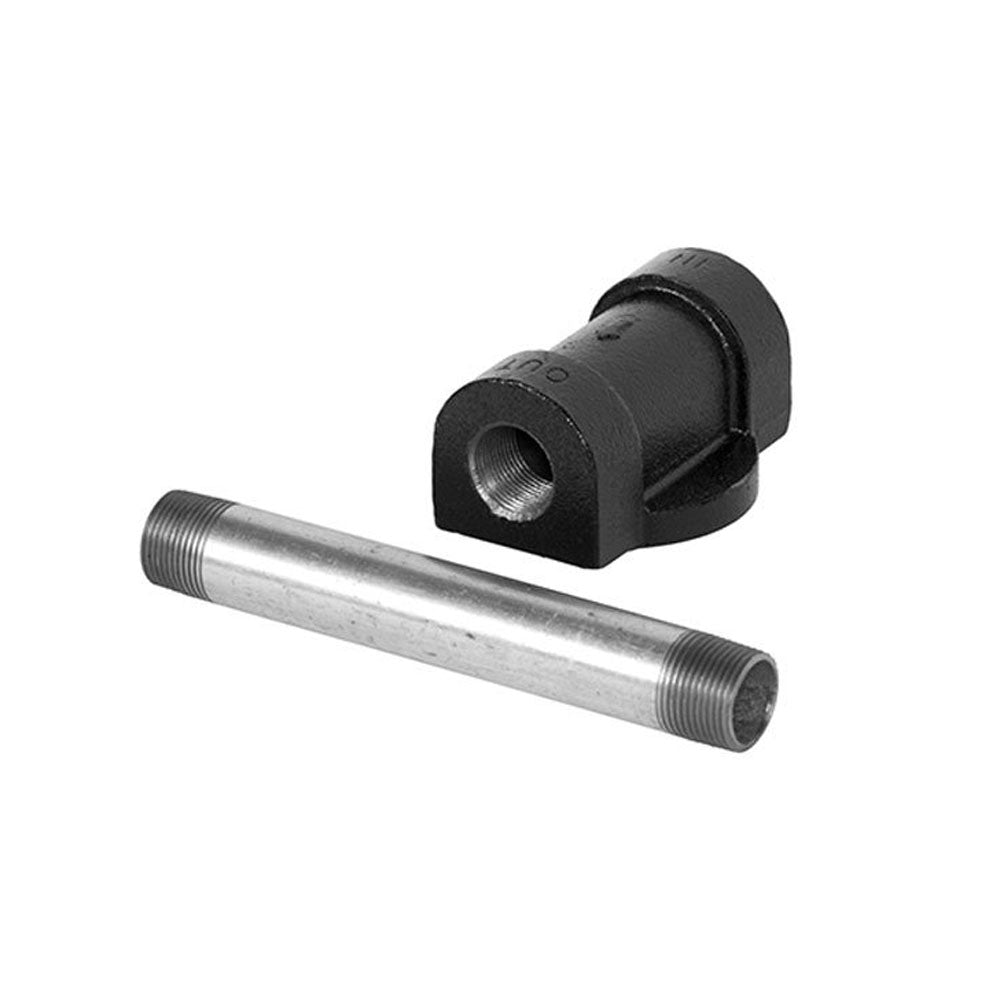

• Fill-Rite 1200KTG9075 Universal Cast Iron 3/4 Inch Filter Head w/ Pipe Extension
• 3/4-inch fuel filter head compatible with Fill-Rite and other branded fuel filters
• Durable cast iron construction for long-lasting performance; Pipe extension included
• Designed for electrical fuel pumps with 3/4-inch outlet and 3/4-inch outlet (NPT threads)
• Use with F18 Particulate and hydrosorb filters
• Machined finish for improved durability
• Material: Cast iron
• Dimensions (L x W x H): 8.50 x 5.25 x 3 inches
• Weight: 1 pound

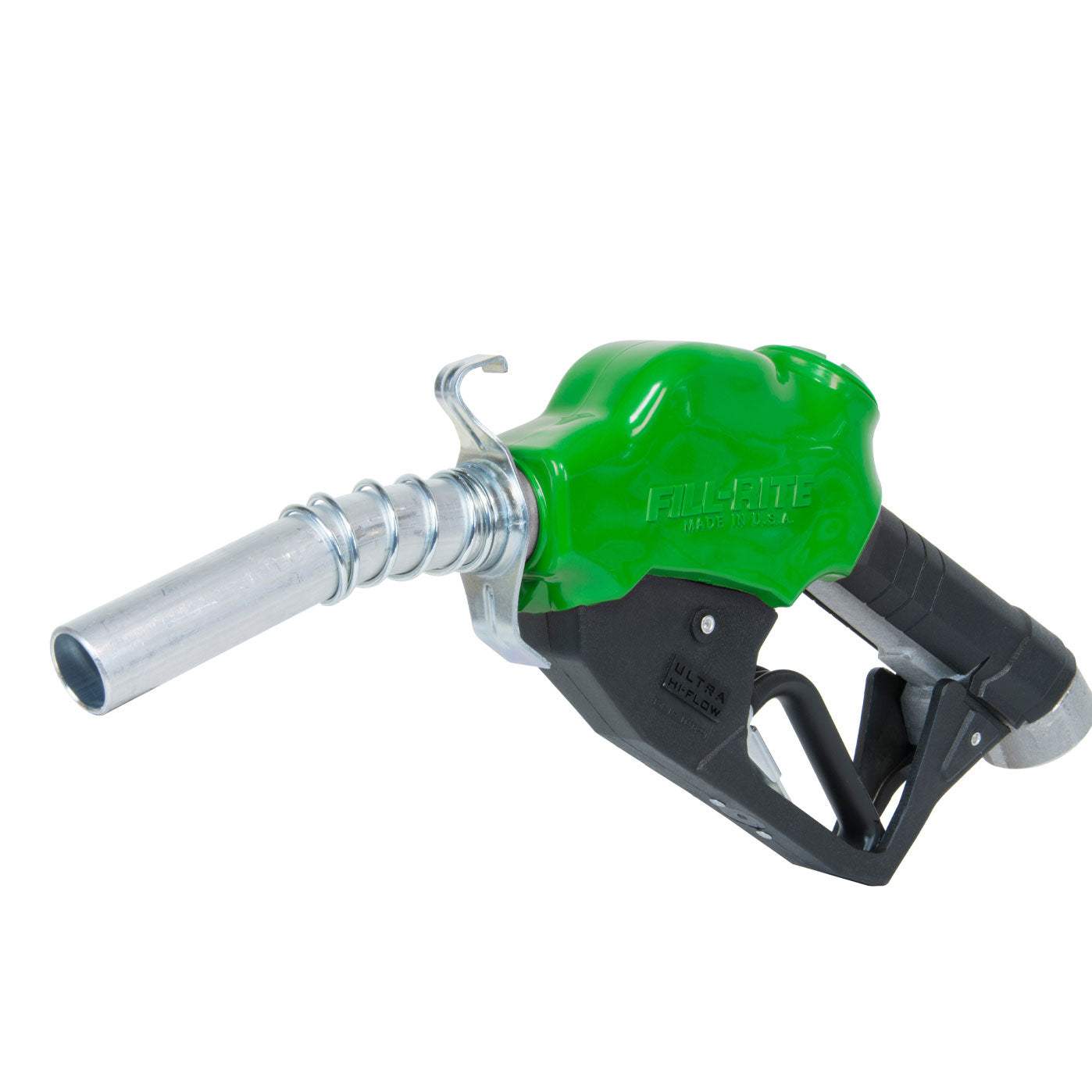

• Fill-Rite N075DAU10 3/4 Inch Automatic Gas Pump Fuel Hose Nozzle w/ Hook, Green
• Fuel nozzle used for pumping gasoline, diesel, E15, biodiesel up to B20, and kerosene
• 3 locking flow-rate positions for customized filling
• No pressure and no flow feature for added safety
• Integral hook and spout spring
• Heavy duty aluminum body with weather-proof nozzle cover
• Color: Green
• Dimensions (L x W x H): 18 x 6 x 2.5 inches
• Weight: 3.5 pounds

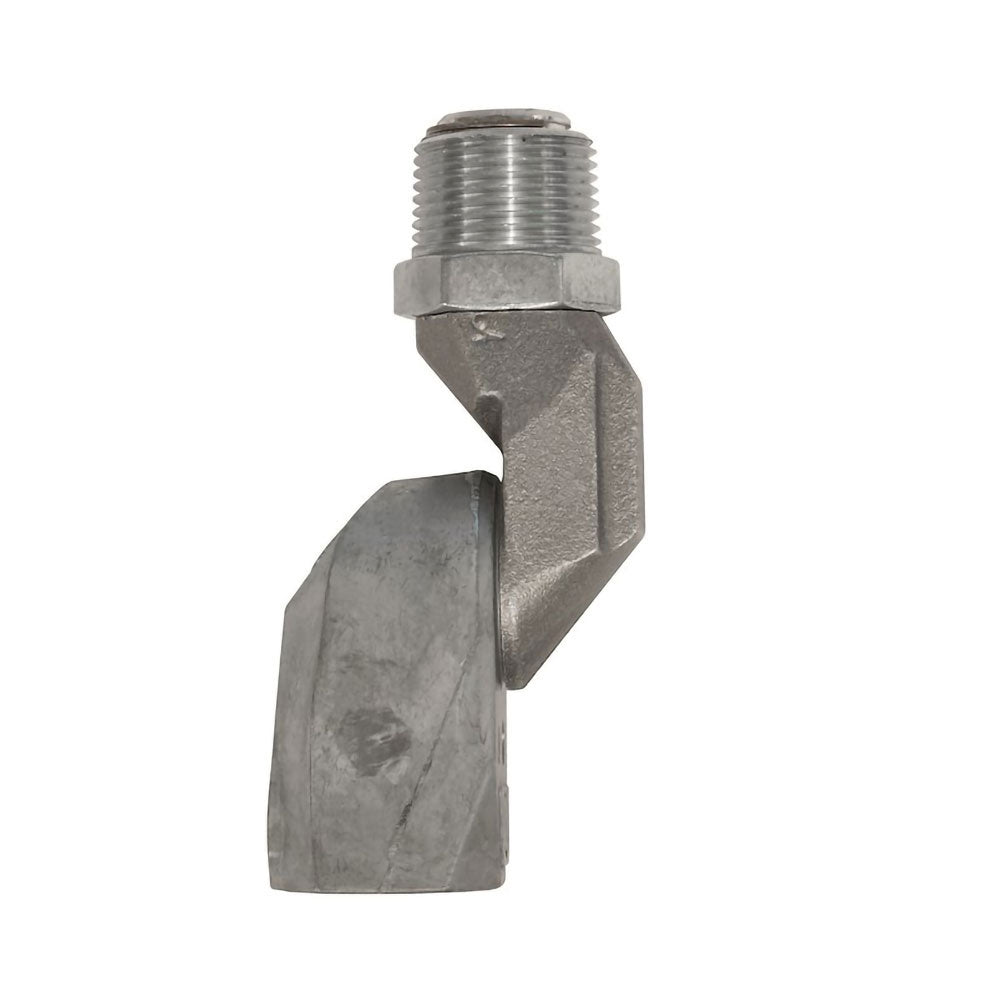

• Fill Rite S075H1314 3/4 Inch Multi Plane Swivel for Fuel Transfer Pumps & Hoses
• 3/4-inch swivel from Fill-Rite features NPT threads and double O-ring seals
• Compatible with unleaded gasoline, diesel, kerosene, and ethanol blends through E10
• Designed to reduce the stress on the hose for a neutral nozzle position
• UL and cUL listed product is able to withstand low temperatures down to -40 degrees Fahrenheit
• Full 360 degree spherical rotation allows for easy movement
• No emblem cutout or mounting hardware
• Brand compatibility: Fill-Rite
• Material: Aluminum zinc alloy
• Color: Silver
• Dimensions (L x W x H): 4.75 x 1.50 x 1 inches
• Weight: 7.10 ounces
• Manufacturer warranty: 1-year warranty
