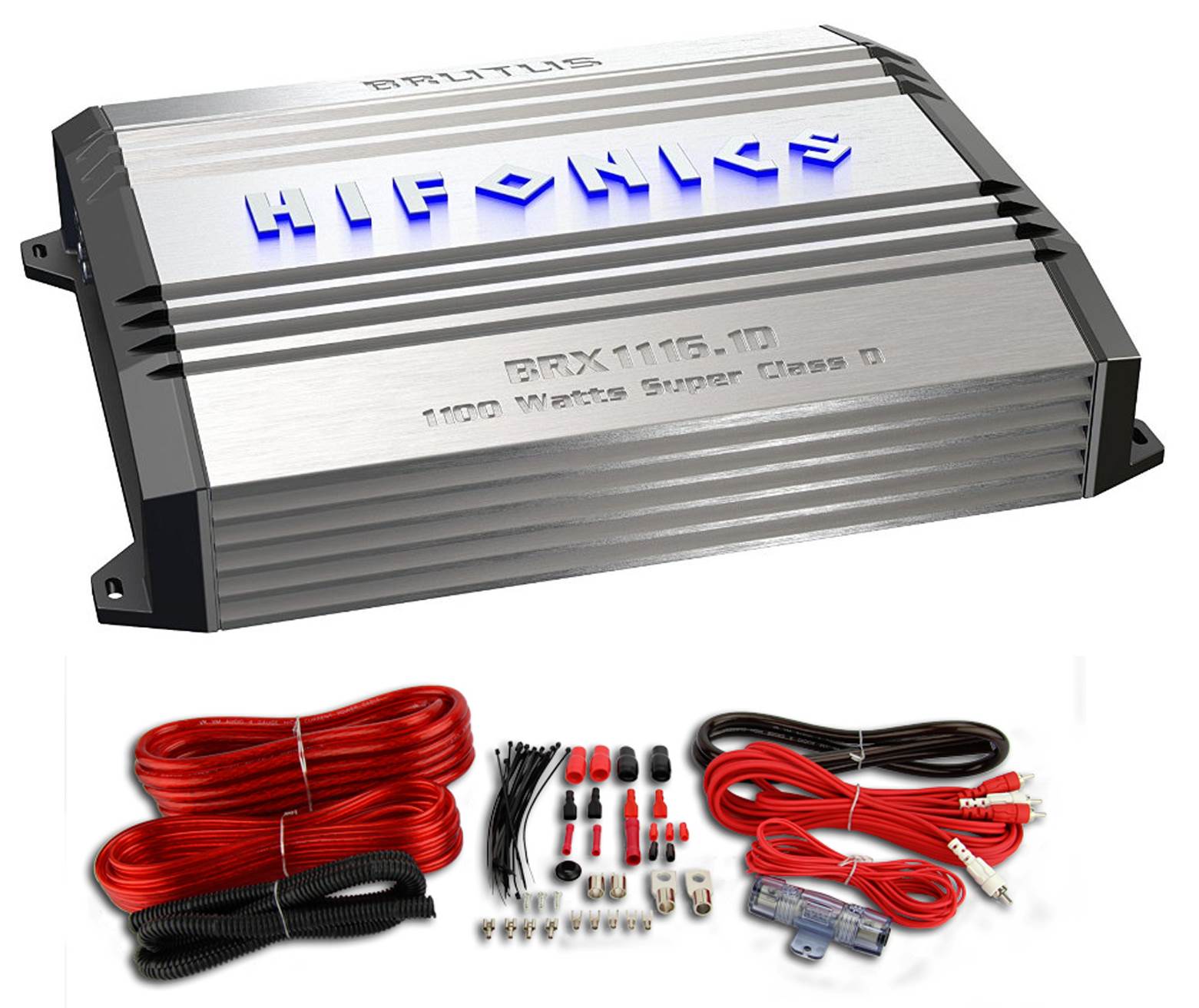

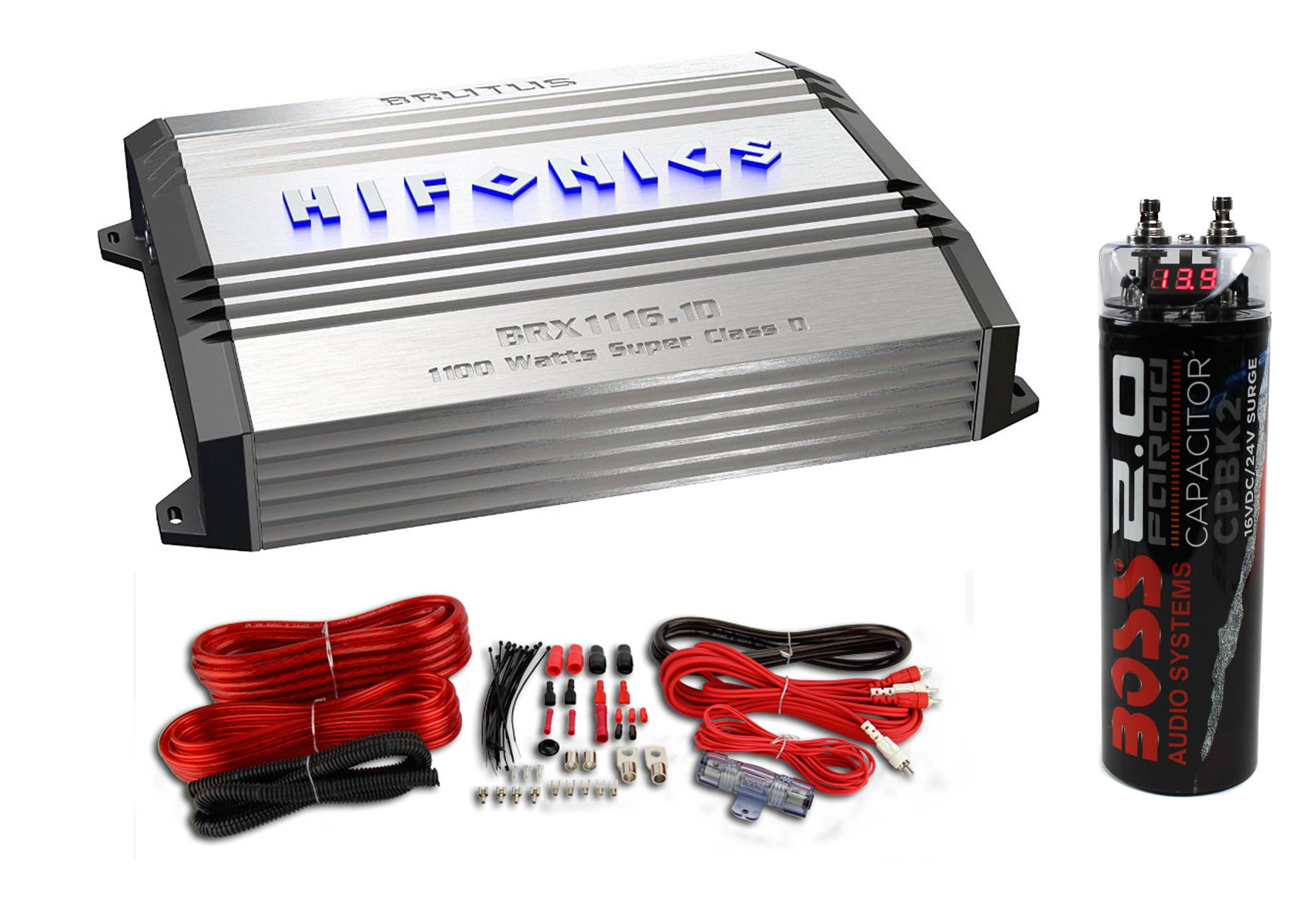

Hifonics BRX1116.1D MONO 1100 Watt Class D Amplifier Amp + Wiring + Capacitor

This Package Includes:

1 x Hifonics Monoblock Class D Amplifier

1 x 4 Gauge Wiring Kit

1 x Capacitor

The **Hifonics BRX1116.1D** MONO car amplifier features a MAX power handling of 1100 watts and a RMS power handling of 400 watts at 1 channel with 4 ohms. Other features include the Molded and angled ILLUMINATED Terminals for stress free installation access, Preamp RCA outputs and adjustments for sound shaping and Ultra Fi™ MOSFETS.

There are several options for installation and the mono Next Generation Super D Class Brutus amplifiers can run at 1,2 or 4 Ohm as well, for an even tighter bass response.

4 ohms: 400 watts x 1 chan.

Remote Bass Control Included

Boss CPBK2 2 Farad Car Capacity has an equivalent series resistant of 0.00195 Ohms at 120 Hz at 25 degrees C. This capacitor has a low level input voltage of 20V and a high input voltage of 24V. This is a remote terminal screw in capacity with dimensions of 10.3" x 3" x 3".

Not only is the Shaker Series Amplifier Installation Kit a true lifesaver, but it also is designed to make your entire sound system work at peak performance. If you want your amplifier to operate at its best you simply cannot use inferior parts and accessories. Our exclusive, pre selected set of tools includes CopperCure highly conductive copper wires that are oxygen free to ensure clean and consistent power transfer.

**We are an authorized Hifonics dealer**

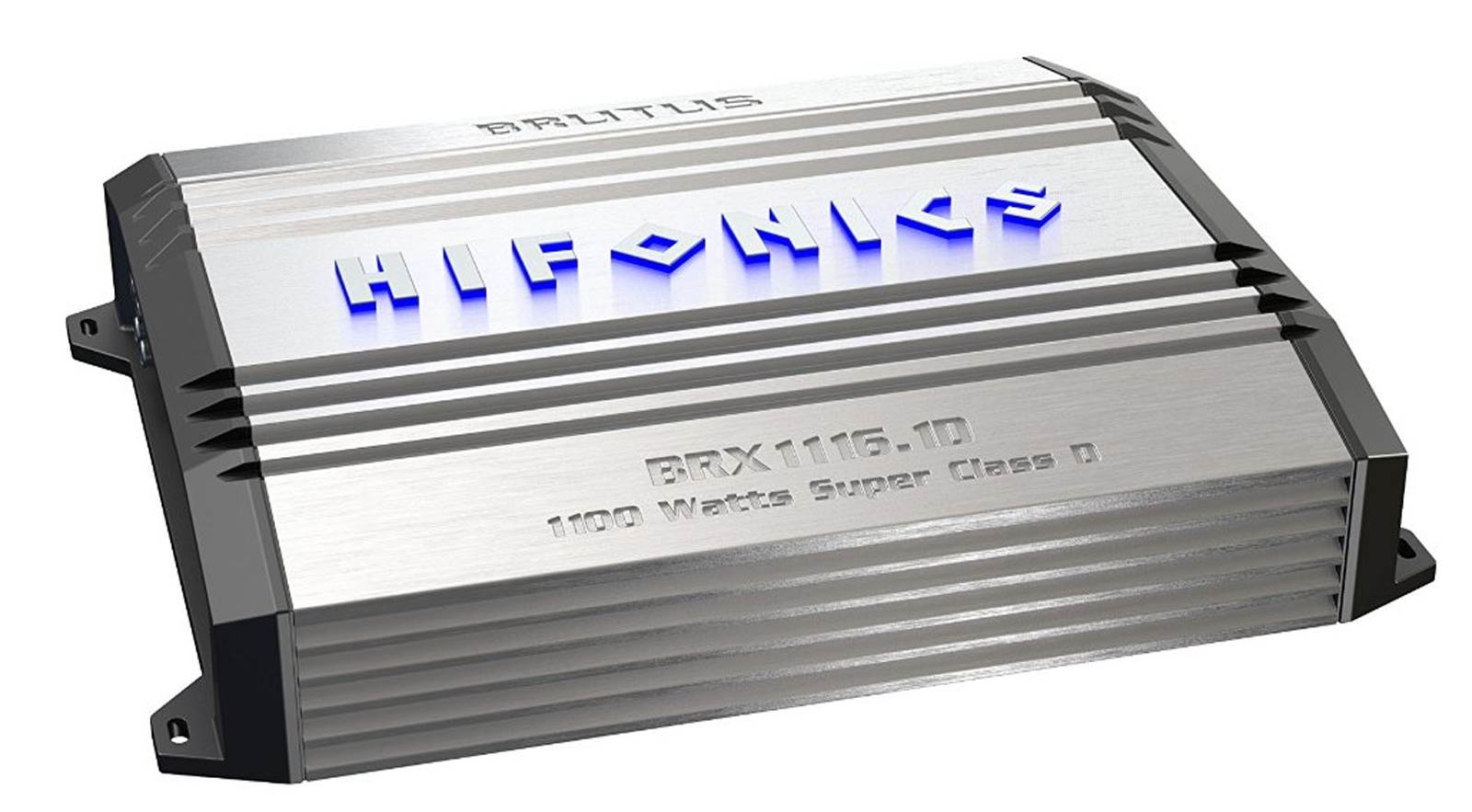

• **Amplifier**
• New Hifonics BRX11116.1D Brutus MONO 1100 Watt Class D Car Audio Amplifier Amp
• RMS Power Rating:
• 4 ohms: 400 watts x 1 chan.
• 2 ohms: 700 watts x 1 chan.
• 1 ohm: 1100 watts x 1 chan.
• Max power output: 1100 watts x 1 chan.
• Blue illuminated Hifonics badge, terminals, and heatsink
• Ultra Fi™ Pulse Width Modulated MOSFET power supply
• Remote bass level control included
• Variable Bass Boost (0 to +10 dB bass boost at 50 Hz)
• Soft start turn on
• Speaker level (high level) inputs with signal sensing for automatic turn on
• Preamp RCA outputs to daisy chain multiple amps
• 4 way protection circuitry (DC, thermal, overload, and speaker short protection)
• Dual speaker terminals
• Accu Cross™ crossovers and adjustments
• Heavy duty aluminum alloy heat sink
• Input sensitivity: 0.2V 9.0V
• Variable low pass filter (35 250 Hz, 24 dB/octave)
• Subsonic filter (24 dB at 15 35 Hz)
• Frequency Response: 10Hz 50KHz
• Dimensions: 10.2 x 2.4 x 9.8" (260x62x250mm)
• Condition: Brand New!
• Item Weight: 9.50 lbs.
• Part Number: **BRX1116.1D**
• 1 Year Manufacturer Warranty

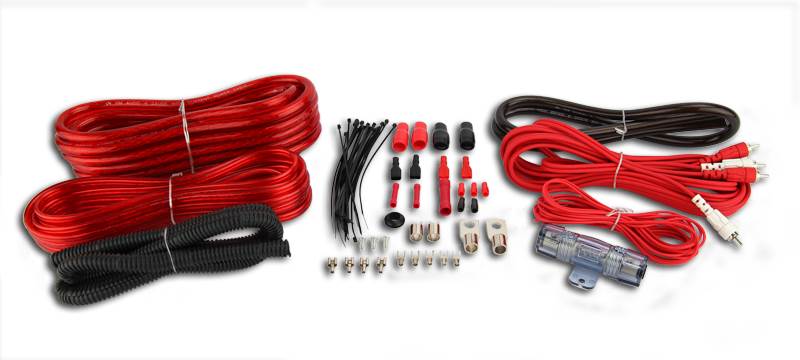

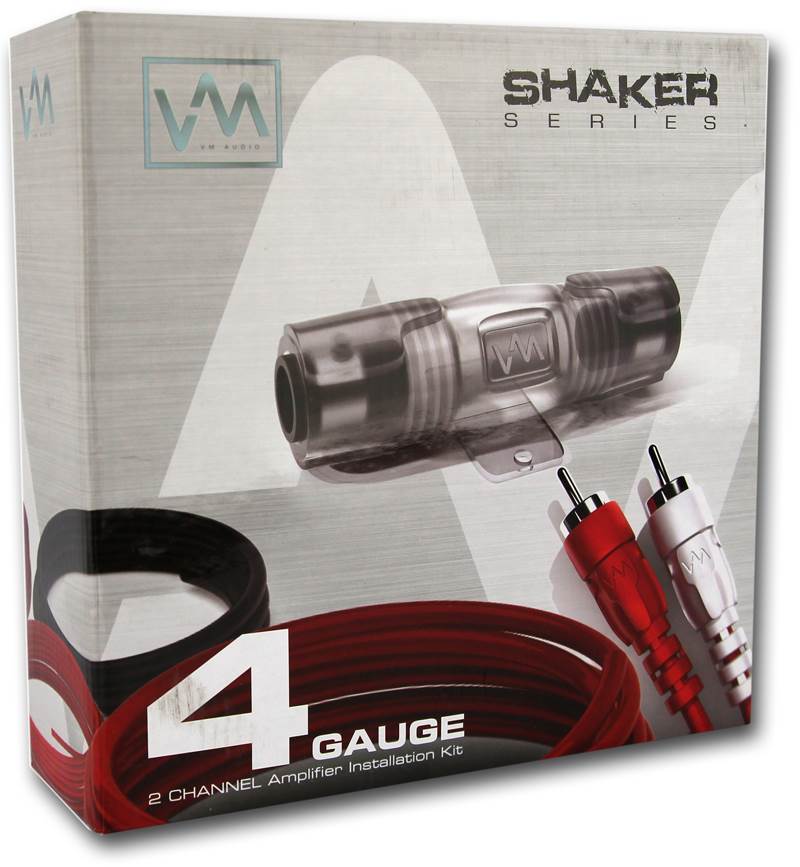

• **Wiring Kit**
• VM Audio SRPK4R 4 Gauge Wiring Kit
• Type: 2 Channel
• Amplifiers Supported: Single Amplifier
• Power/Ground Wire Size: 4 Gauge
• Strand Count: 315
• Power Wire Length: 16Ft
• Ground Wire Length: 3Ft
• Speaker Wire Size: 12 Gauge
• Speaker Wire Length: 20Ft
• Remote Wire Size: 18 Gauge
• Remote Wire Length: 15Ft
• RCA Cable Length: 15Ft

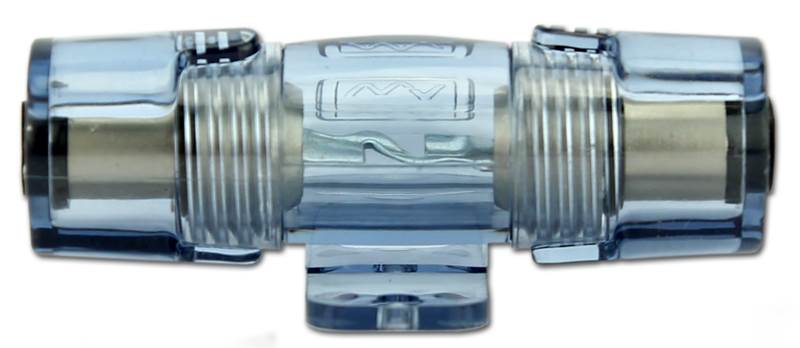

• Fuse Holder: AGU
• Fuse Size: 60A
• Wire Ties: 20
• Spade Connectors: 2
• Ring Connectors: 2
• Ring Spade Terminals: 5
• Butt Connectors: 3
• Split Loom Tubing: Yes
• Screws: 3
• Fasten Connectors: 4
• **Capacitor**
• New **Boss CPBK2** 2 Farad Car Capacitor
• Equivalent Series Resistance (ESR): 0.00195 Ohms @ 120 Hz @ 25 Degrees C
• Low Level Input Voltage: 20 Volts
• Remote Terminal Screw
• Capacitance: 2 Farad, 2000000 Microfarad
• High Level Input Voltage: 24
• %Capacitance Tolerance: 10
• Finish Color: Black
• Dimensions: 10.3" x 3" x 3"
• Product Condition: Brand New
• Part Number: **CPBK2**
• 1 Year Manufacturer Warranty
