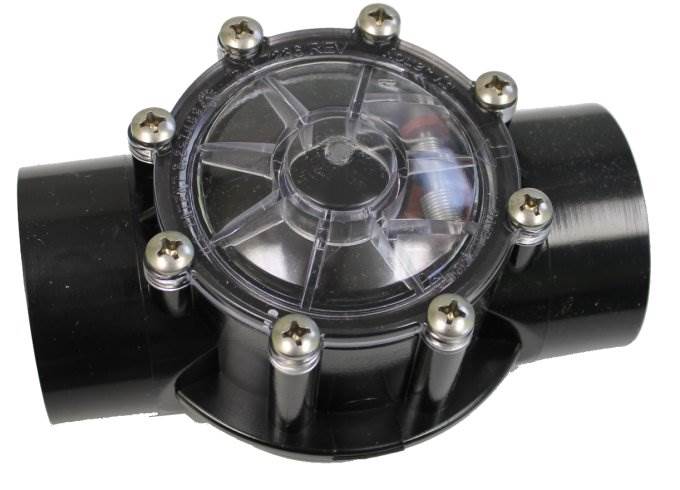

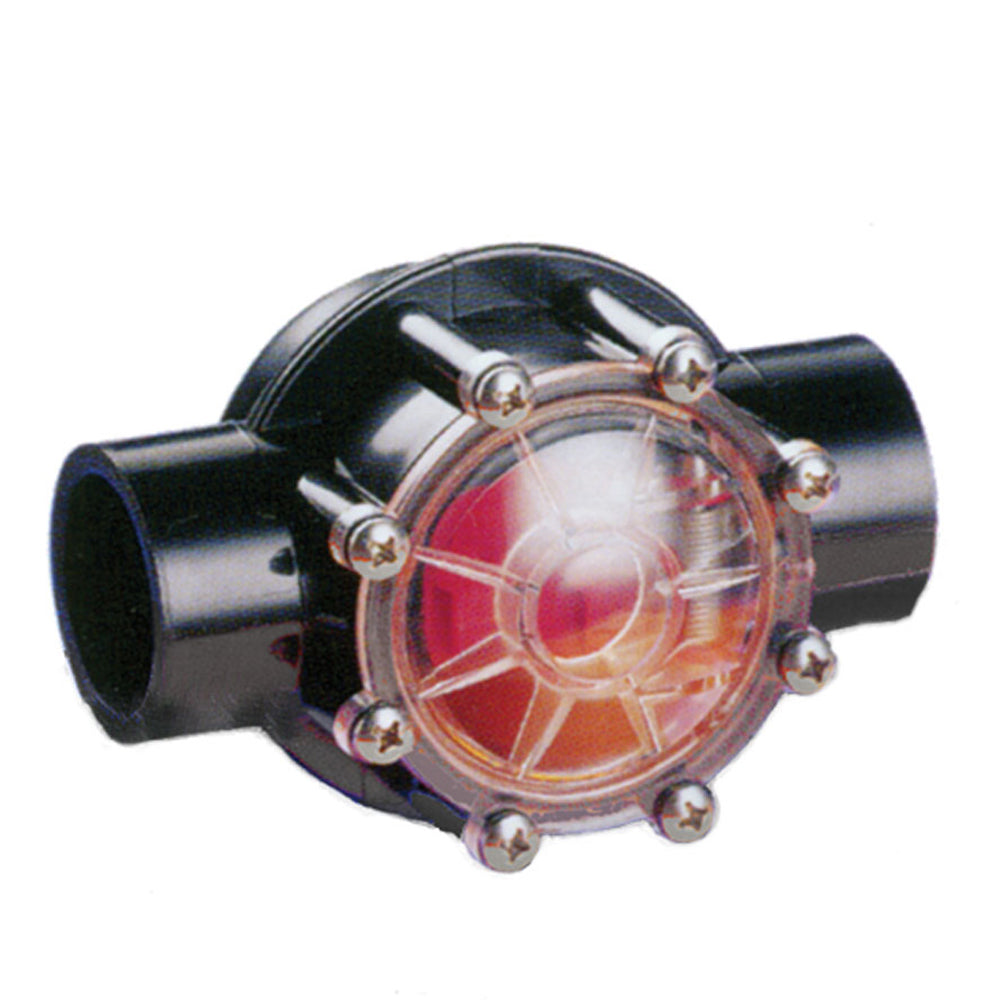

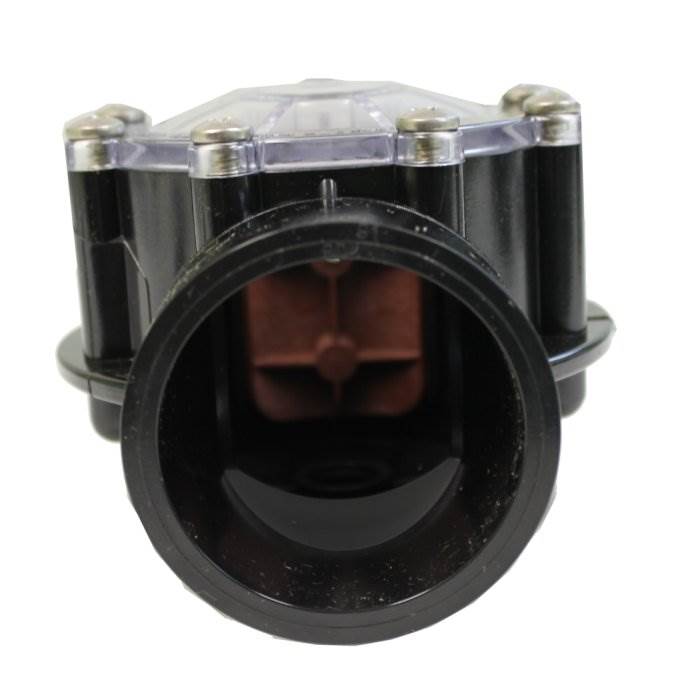

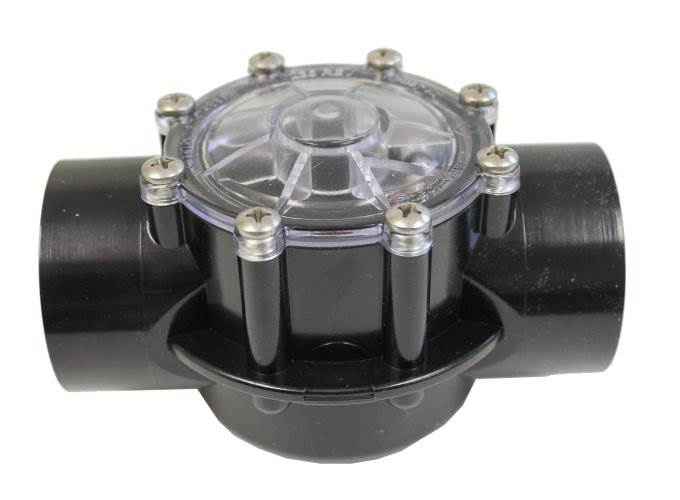

Jandy 1.5" to 2" 180 Degrees Check Valve Pool 7235 Swimming Pool/Spa Plumbing

The Jandy Pro Series Check Valve features a clear lid and red seal plate for easy inspection, as well as a unique swing/spring design. It's made of the toughest CPVC material and can easily be disassembled for clearing debris. It is fits 1.5-inch and 2-inch pipes.

The large 2.5 by 3-inch dimension is designed to easily connect with the Jandy Pro Series 3HP Stealth Pump and can handle flow rates up to 170 gallons per minute with minimal head loss, making it great for spas and water features that require high flow rates.

Constructed of the same tough CPVC material used on the NeverLube, this Jandy Check Valve is built to last. This Jandy Check Valve’s clear lid and red seal plate let you easily see and access debris. It features a unique swing/spring design for both return and intake water, and the diverter swings completely open with minimal back pressure and no water turbulence.

• Pro Series check valves lets water flow in 1 direction and automatically closes when water flow decreases or reverses direction
• Fits 1.5-inch or 2-inch pipe
• Straight-through, 180-degree design
• Constructed of durable CPVC that resists corrosion, chemicals, and weather damage
• Clear lid and red seal plate make it easy to inspect
• Easy to disassemble when clearing debris
• Unique swing/spring design combines a pressure spring with a flapper
• Must be installed so arrow indicators point in the same direction as your water flow
• Designed to connect with the Jandy Pro Series 3-Horsepower Stealth Pump
• Can also be used with other pumps and applications
• Handles flow rates up to 170 gallons per minute
• Minimal hydraulic loss when added to a line
• Great for spas and water features that need high flow rates
• Specifications:
• Part number: 7235
• Color: Black
• Dimensions (L x W x H): 3 x 2.5 x 2.5 inches
• Manufacturer warranty: 1-year warranty
