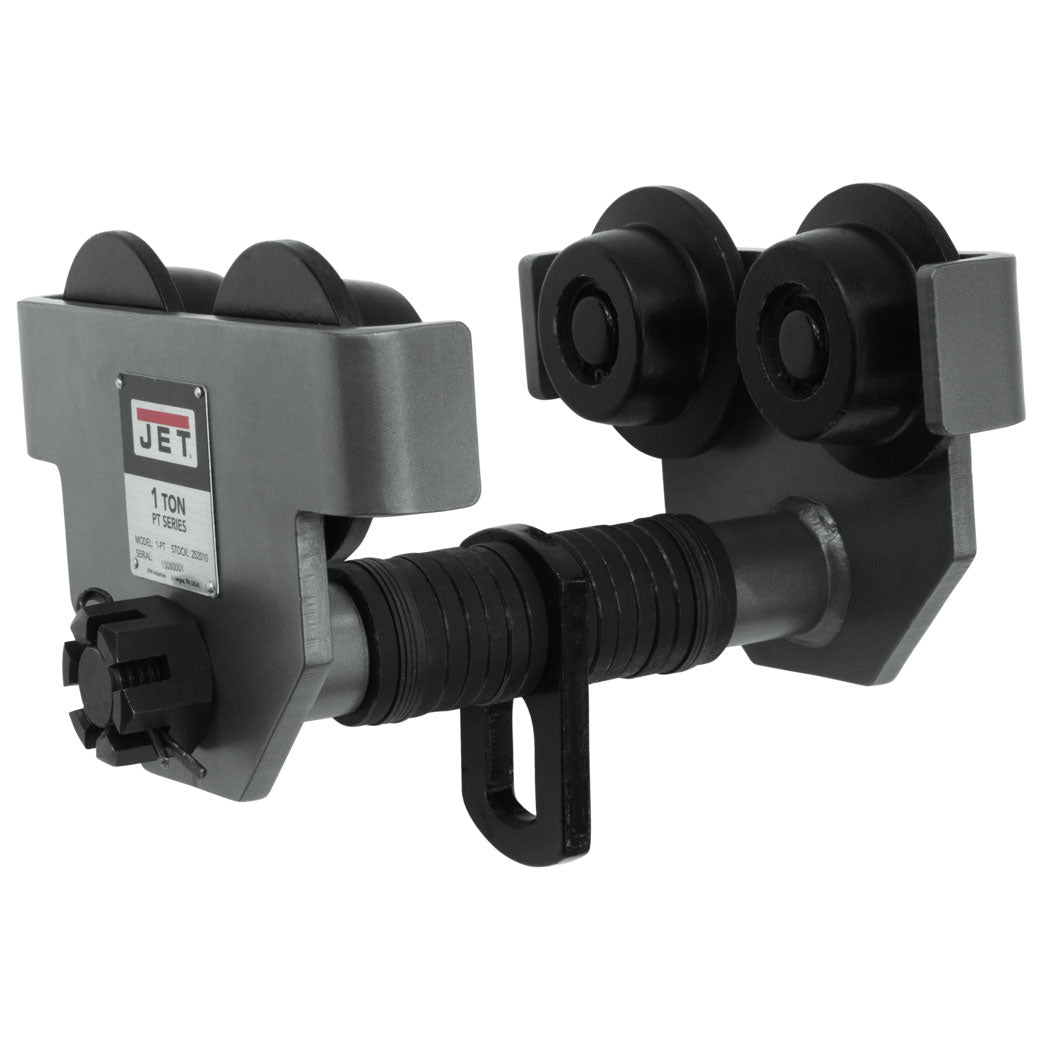

JET 252010 1 PT 1 Ton Capacity Heavy Duty Steel Plain Manual Beam Trolley System

Add the mobility you need to your shop with the JET 252010 1-PT 1-Ton Capacity Manual Trolley. The trolley is made from welded heavy gauge steel and has a powder coat finish to provide maximum durability and protection.

The easily adjustable trolley can adjust to wide-flange H-beams, standard I-beams, or curved track with the included spacer washers. The hardened large steel wheels and thicker double sealed lubricated ball bearings provide smooth movement. The heavy-duty trolley has built-in bumper guards on the side plates to increase safety and extend the life of the trolley.

The minimum beam flange width is 3 to 8 inches and the minimum beam curve radius is 39 inches. Whatever your lifting, pulling, or holding needs might be, the JET 252010 1-PT 1-Ton Capacity Manual Trolley will cater to even the most demanding environment.

• Welded all-steel frame and powder coat finish provide maximum durability and protection
• Built-in bumper guards on the side plates increase safety and extend trolley life
• Hardened steel wheels and double sealed lubricated ball bearings provide smooth movement
• Easily adjustable to wide-flange H-beams, standard I-beams or curved track with the included spacer washers
• Load capacity: 1 ton; Meets OSHA regulations and ANSI/ASME standards; Load tested to 125-percent of capacity
• Minimum beam flange width: 3 - 8 inches
• Minimum beam curve radius: 39 inches
• Material: Steel
• Color: Black
• Dimensions (L x W x H): 13.4 x 6.9 x 7.7 inches
• Weight: 31 pounds
• Manufacturer warranty: 2-year limited warranty
