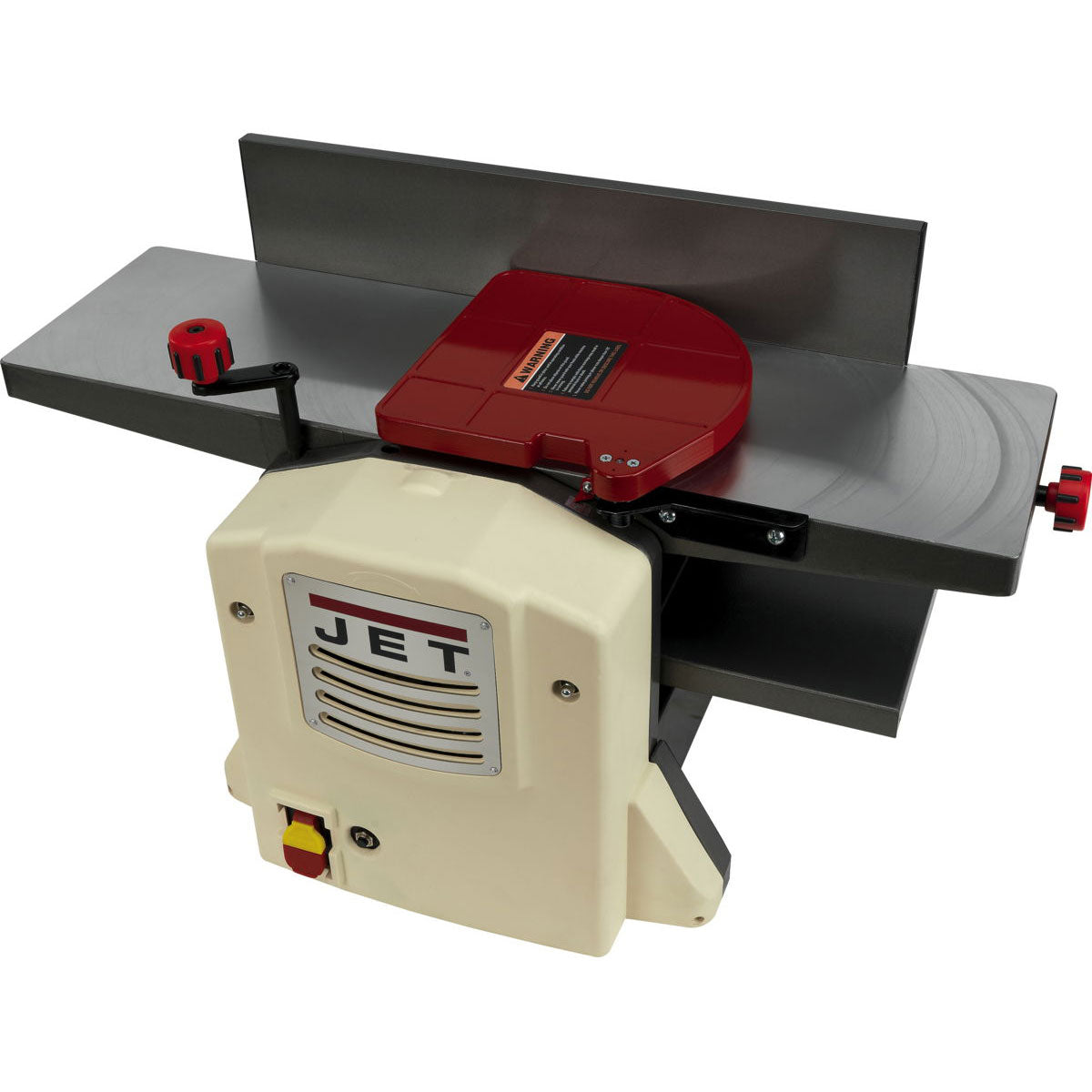

Jet Heavy-Duty B3NCH 13 Amp 8 Inch Portable Woodworking Planer & Jointer Combo

Designed with the space limitations faced by many of today’s woodworkers, the JET 8" Jointer/Planer packs the capabilities of the jointer and planer into a single, space-saving footprint. Combining the jointer and planer, two of the most-used core woodworking machines also saves money.

The JET 8" Jointer/Planer is powered by a 13A, 120V (only) motor. A paddle-style switch controls the motor. This switch has a removable “key” that helps prevent usage of the machine when you are not present. A push button next to the paddle switch resets the automatic thermal protection circuit.

The motor power is delivered to the cutterhead with a drive belt for smooth, consistent operation. The cutterhead spins at 9000 RPM to give the best overall performance with the various wood species and grain types you may encounter. The motor also powers the feed rollers for the planning function using a chain drive. The entire drive system is enclosed within a housing that keeps you safe while helping to protect the mechanism from dust contamination.

The cast aluminum jointing table is 29" long and 8-1/4" wide overall. The table surface is precisely machined to be flat and smooth. The JET 8" Jointer/Planer is capable of a maximum cut depth of 1/8" with the cut adjusted using a single knob at the end of the infeed table. A handy cut depth gauge is provided at the front edge of the infeed table. The infeed table is locked in position with a pair of finger-operated knobs.

The extruded aluminum fence is 4-1/8" tall and 21" long. The fence can be used at 90 degrees to the table surface for squaring stock or it can be tilted up to 45-degrees (right) for bevel cuts. The fence is locked in place with an easy-to-use handle on the rear.

The planer table surface is 17-1/2" long (with the included extension table) by 8-1/2" wide. The table is raised and lowered with a hand crank that plugs into the top of the JET 8" Jointer/Planer. A handy scale next to the planer infeed opening shows the current table to knife distance and makes setup fast and easy. The planer table moves up and down on four lead screws, one in each corner of the main cabinet for maximum stability. The table is secured for making cuts with a single locking handle.

The JET 8" Jointer/Planer has a maximum planer thickness capacity of 4-1/8", max cut width of 8-1/4" and a maximum cut depth of 5/64". The JET 8" Jointer/Planer will also plane work pieces with a minimum length of 6"! For the best overall performance the JET 8" Jointer/Planer has a fixed feed rate of 19.5 FPM. (feet per minute)

• Combination benchtop jointer & planer provides a 2 in 1 machine to maximize workspace
• Compact benchtop design fits conveniently in small workshops
• Integrated cord wrap makes transporting easy and ensures workshop safety
• Heavy-Duty 13 Amp motor for various cutting applications
• Two high speed steel knives for precise, smooth cuts
• Oversized, ergonomic knobs provide ease of use and maximum control
• Large aluminum extruded fence makes joining stable and precise
• Sheet metal outfeed table with height adjustment supports long workpieces and helps reduce snipe
• Planing and joining tables lock to ensure precision cutting
• Precision machined table top ensures a smooth, straight cut
• Specifications:
• Cordless/corded: Corded
• Product type: 2-in-1 woodworking planer and jointer
• Planer cutting capacity (W x D): 1/5 x 4-18/25 inches
• Fence size: 21 x 4-1/8 inches
• Color: Red and tan
• Manufacturer warranty: 5-year warranty
