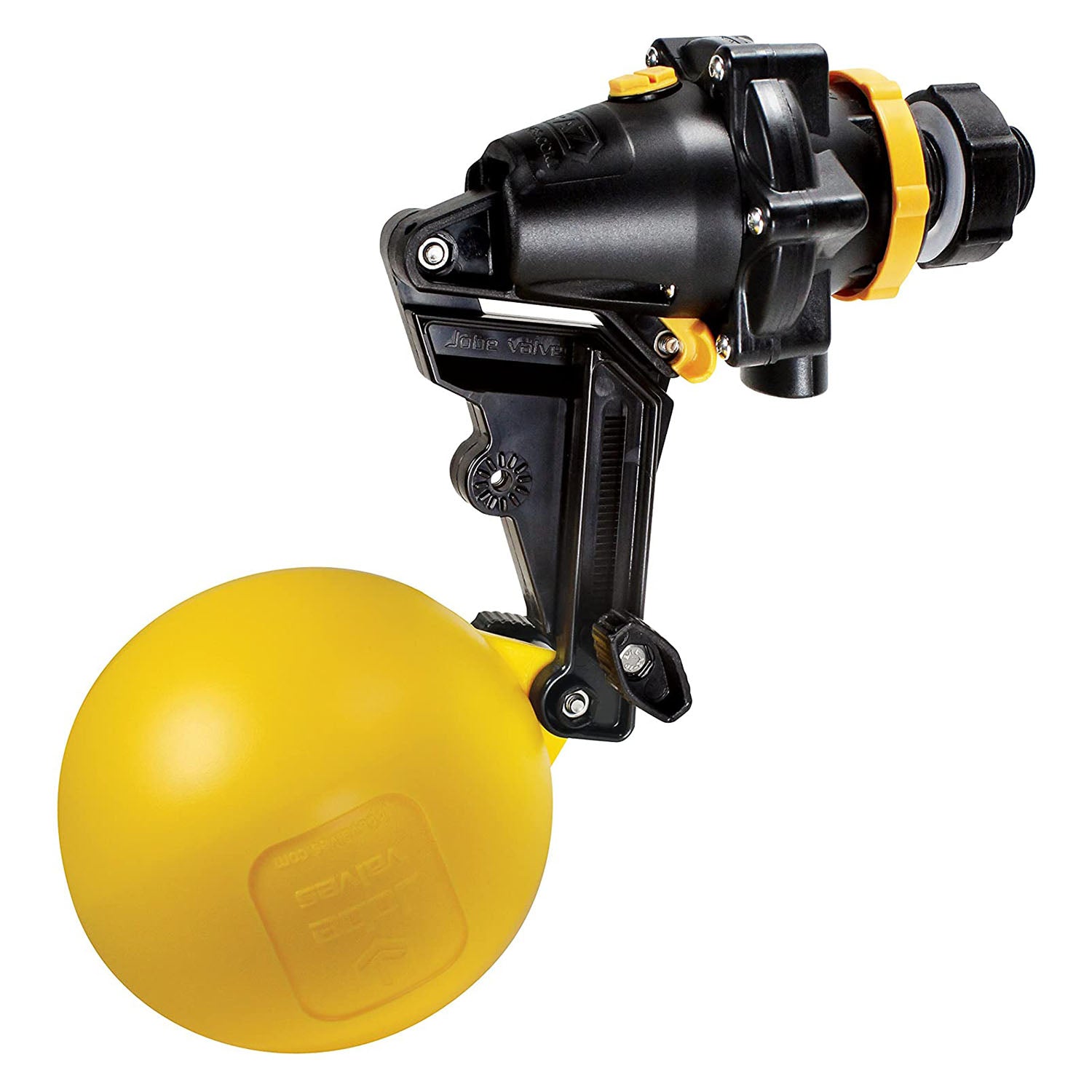

Jobe Valves TPV0100DLT Topaz Detach Long Tail Trough Float Valve, 1 Inch, Yellow

Optimize your water tank capabilities with the Topaz Water Tank Float Valve by Jobe Valves.

This water tank control valve is a float operated valve for the automatic filling of various water storage tanks, troughs, and cisterns. The versatile design allows the trough valve to be mounted anywhere above or below the waterline. This floating ball valve is constructed from premium material to withstand the harsh elements and wear and tear over the years.

The flotation valve operates a small pilot valve which in turn operates the main diaphragm valve. The Topaz water tank valve is a mechanically operated floating valve that is a good choice for high flow rate systems.

Whether you're using this valve for a water trough or livestock water tank, the Topaz Water Tank Float Valve has you covered.

• Water tank control valve is a float operated valve for the automatic filling of various water storage tanks, troughs, and cisterns
• Versatile design allows the valve to be mounted anywhere above or below the waterline
• Float operates a small pilot valve which in turn operates the main diaphragm valve
• Constructed from premium material to withstand the harsh elements and wear and tear over the years
• Compatible with animal drinking troughs, water storage tanks, water cisterns, air conditioning systems, high-pressure cleaning systems, and irrigation applications
• Features a switch locking system to lock the valve in the off position
• Easily adjustable without any tools or hardware
• Flow speed: 200 liters per minute
• Type: Detach long tail
• Inlet size: 1 inch
• Operating pressure: 5 to 100 PSI
• Maximum operating temperature: 140 degrees Fahrenheit
• Color: Yellow
• Dimensions (L x W x H): 7 x 6 x 9 inches
• Weight: 1 pound
