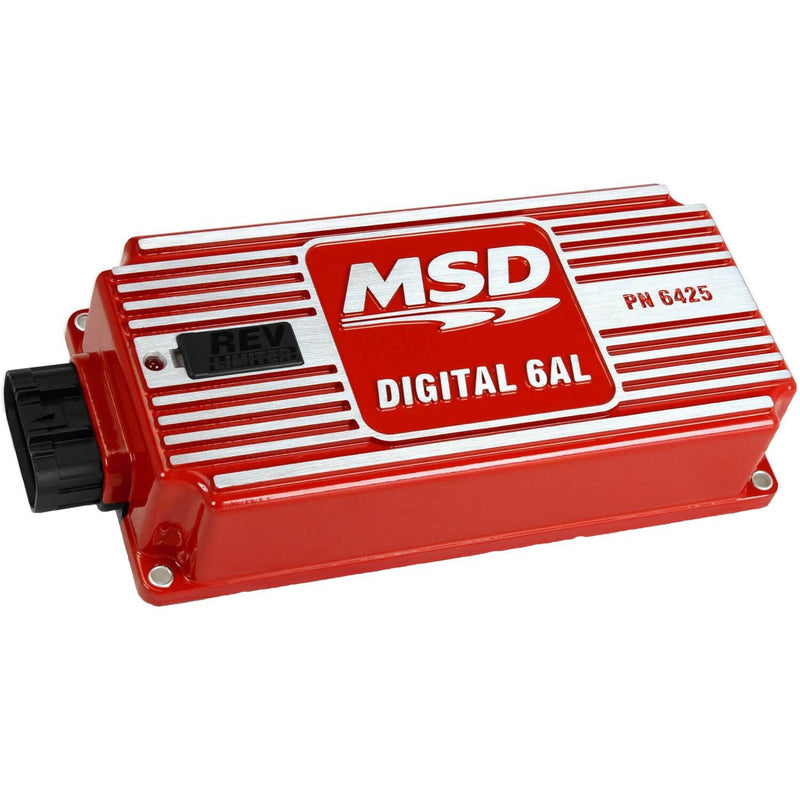

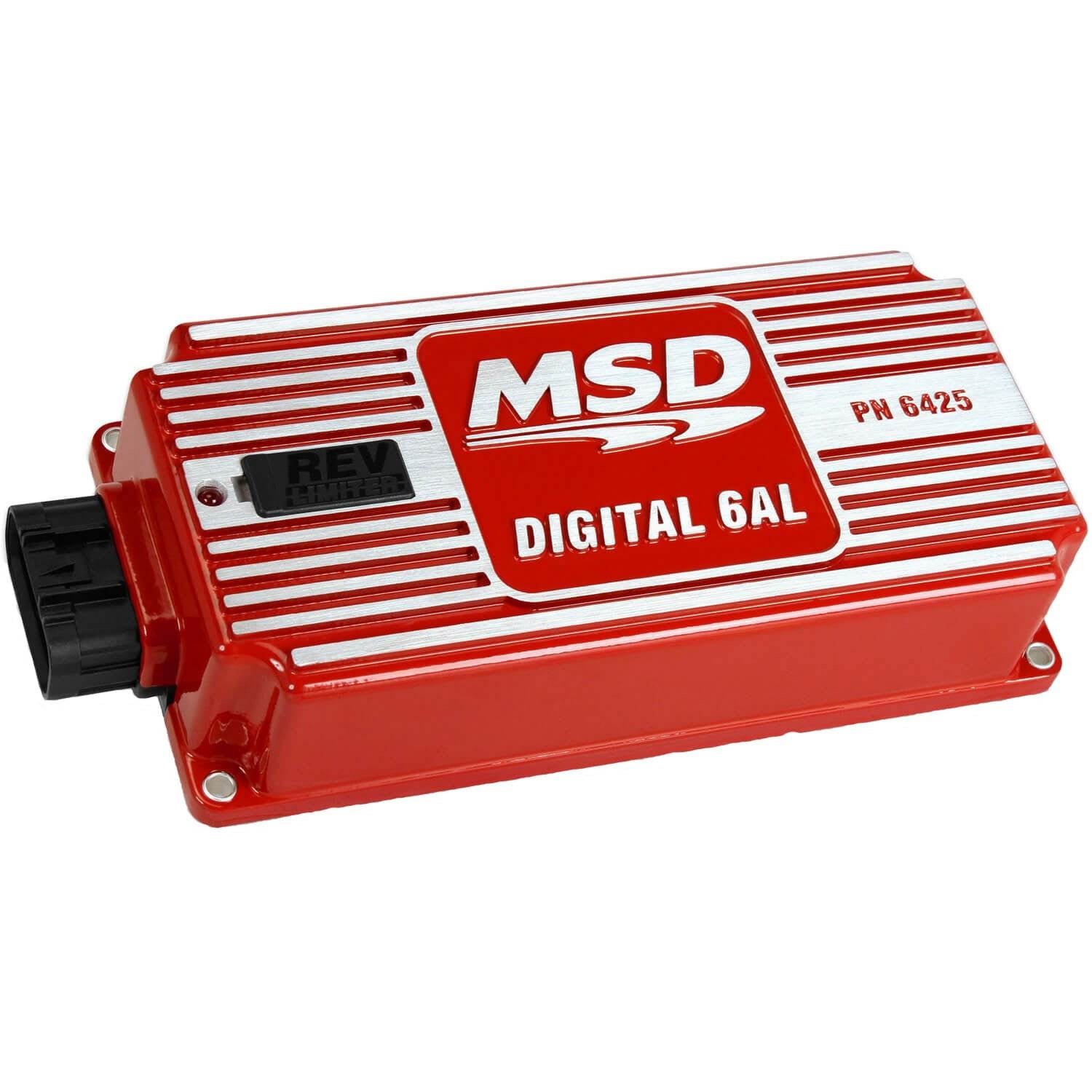

MSD 6425 Digital 6AL Ignition Control Module Unit Box for 4, 6, or 8-Cylinder

Every part of your car should not just work, but work well. The MSD Digital 6AL Ignition Control aims to make your car ignition start reliably and powerfully.

The microprocessor inside the Digital 6AL reliably monitors and controls every firing and rev limit. You can even set the rev limit in 100 RPM increments via 2 rotary dials.

Dedicated to efficiency, the Digital 6AL uses updated circuits and components that let the ignition produce more power while drawing less current. It produces 530 volts to the coil and up to 135mJ of spark energy every firing, while only requiring 12-15 volts to run and 7 volts to start.

Compatible engines include 4, 6, and 8-cylinders with 12-volt, negative ground electrical systems. Practically universal, this ignition accepts trigger inputs from breaker points, amplifiers, and magnetic pickups.

It's time to get started with the MSD Digital 6AL Ignition Control.

• Compatible with 4, 6, and 8-cylinder engines with 12-volt, negative ground electrical systems
• All wiring exits through a sealed and locking connector at the end of the unit, making for easy and clean installation
• Produces 530 volts to the coil with up to 135mJ of spark energy every firing
• Rev limiter located next to 2 rotary dials that let you set an RPM limit in 100 RPM increments with 2 rotary dials
• Includes wiring harness, necessary installation components, and vibration mounts
• Designed efficiently to use less current to produce more power
• Has built-in LED for system checks

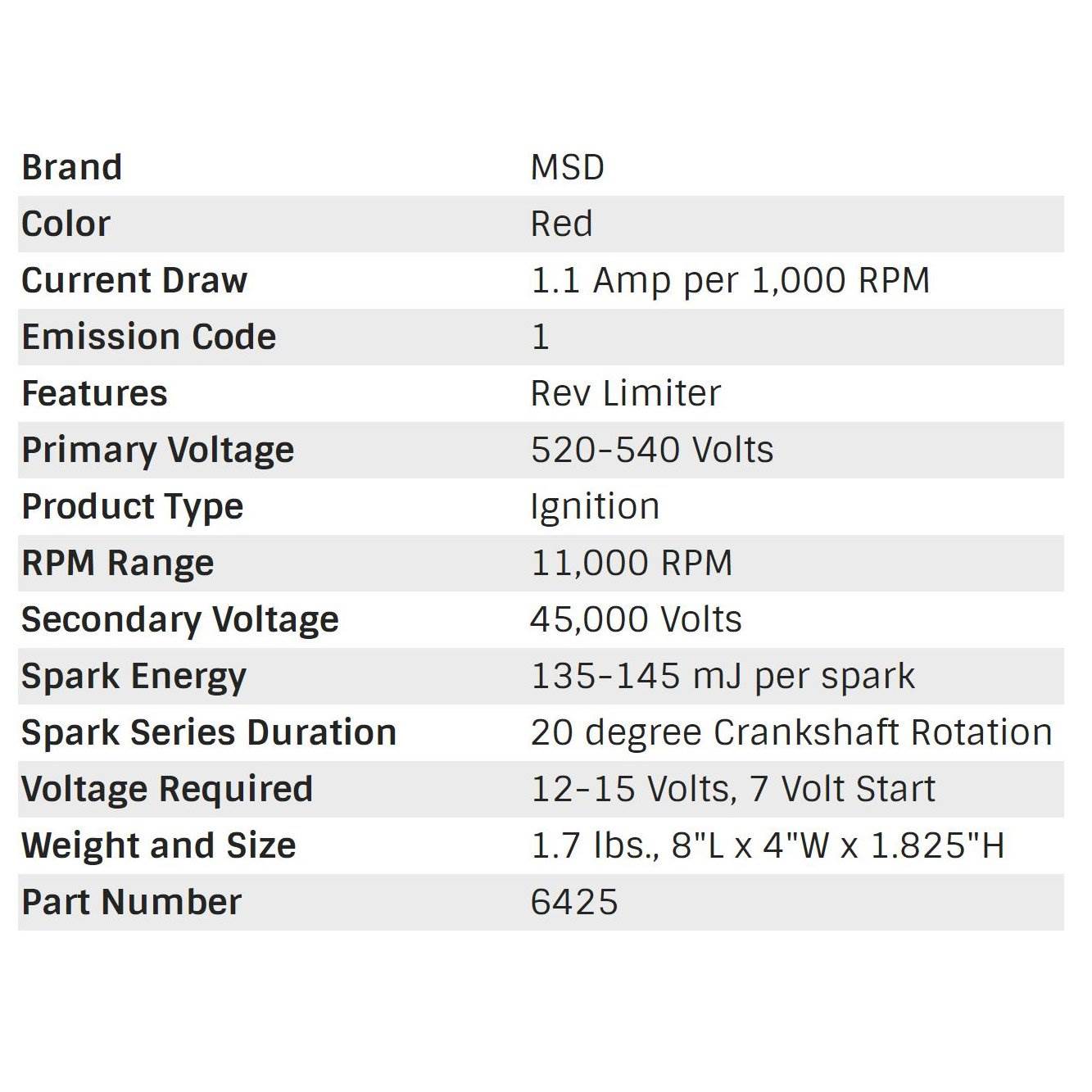

• Specifications:
• Current draw: 1.1 amp per 1,000 RPM
• Emission code: 1
• Features: Rev limiter
• Primary voltage: 520-540 volts
• Product type: Ignition
• RPM range: 11,000 RPM
• Secondary voltage: 45,000 volts
• Spark energy: 135-145 mJ per spark
• Spark series duration: 20-degree crankshaft rotation
• Voltage required: 12-15 volts, 7-volt start
• Color: Red
• Dimensions (L x W x H): 8 x 4 x 1.825 inches
• Weight: 1.7 pounds
• Manufacturer warranty: 1-year warranty
