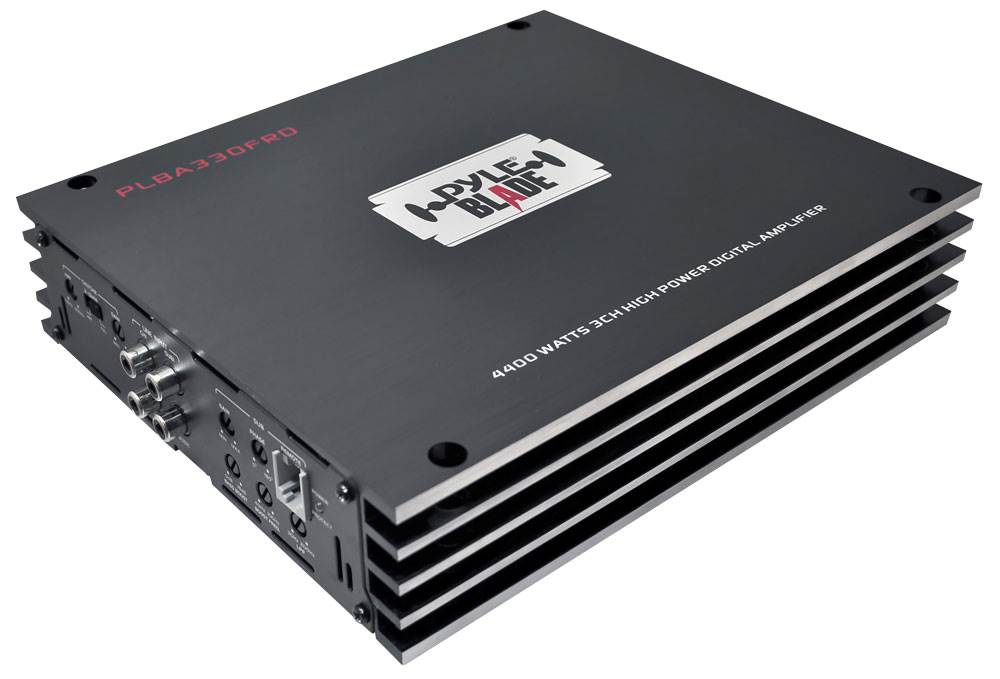

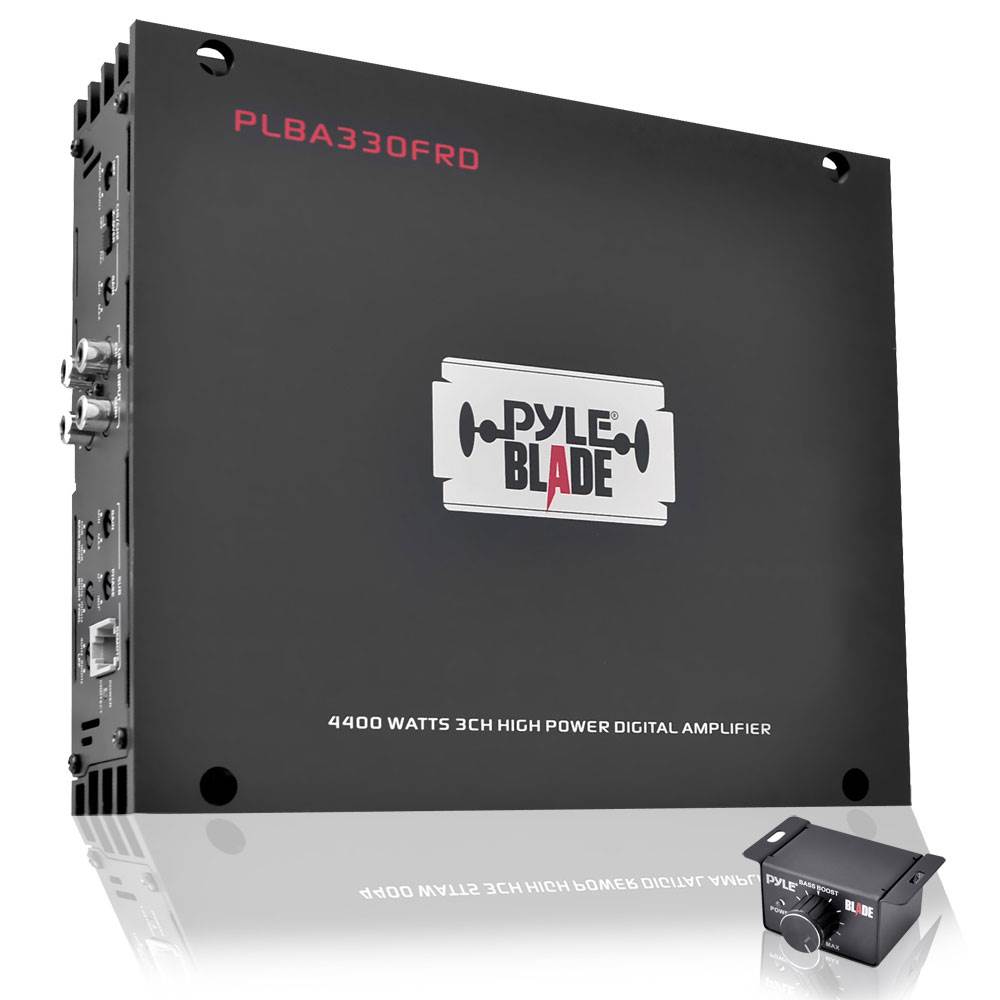

NEW Pyle BLADE 4400W 3 Channel Compact Class-D Full Range Hybrid Car Amplifier

The Pyle Blade Series Amplifiers will cut through the noise and provide you with some serious sound power. Add performance and quality enhancement to your music when you upgrade your audio system with these Compact Full Range Class-D Hybrid Amps. These rugged and powerful sound machines are the result of tomorrow’s advanced high-speed switching technology that are sure to outperform and overcome less-efficient amplifiers in its class.

The newest edition to Pyle’s lineup of efficient and next-generation amps, the Blade Series will give you that sharp sound you’ve been looking for. Blade Amps reflect your true appreciation for crisp music reproduction in the mobile environment. The DC to DC switching power supply is designed to have adequate headroom for even the most demanding peaks and dynamic ranges found in today’s audiophiles.

**Sound Specialization**

These High-Efficiency Class-D Full Range Amplifiers are where form and function meet. The included mountable Bass Boost Module gives you the ability to take your sound experience to the next level – and it’s all within arm’s reach. Install the module in a convenient location so you’ll be able to achieve that extra bass kick on your command. Nickel-plated RCA speaker connectors and screw terminals ensure a high-quality connection between amplifier and speakers and also provide distortion-free sound. The Blade Series Amps come with plenty of more features that are sure to gash through the competition.

**Intelligent Design**

Safety features include power and protection LED indicators; soft turn-on/off, thermal, overload and speaker-short protection. The built-in air-induction fan cooling system acts as another line of safety keeping you and your equipment safe. Status LED lights indicate when the amplifier is powered up normally and when your system is experiencing a protection fault.

**Pump it Up**

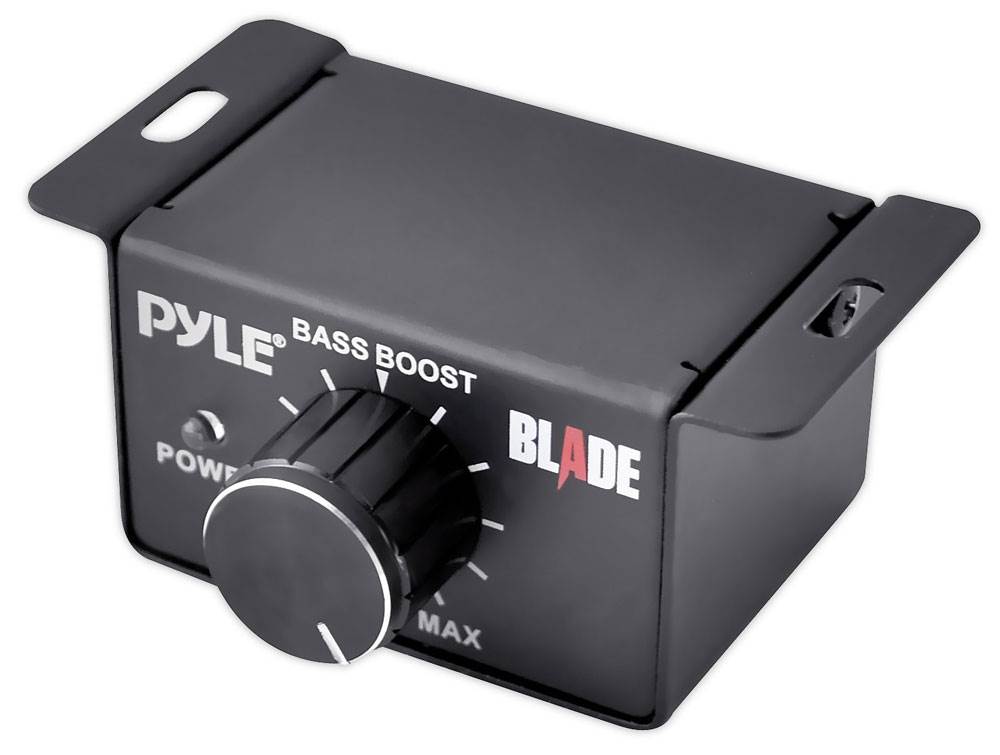

Take advantage of the Bass Boost function to instantly add massive quality sound and performance, - 0 to +18dB. The Low Pass Filter must be switched on for the bass boost to activate. Amplifier comes with Bass Boost Remote Control and connection cable.

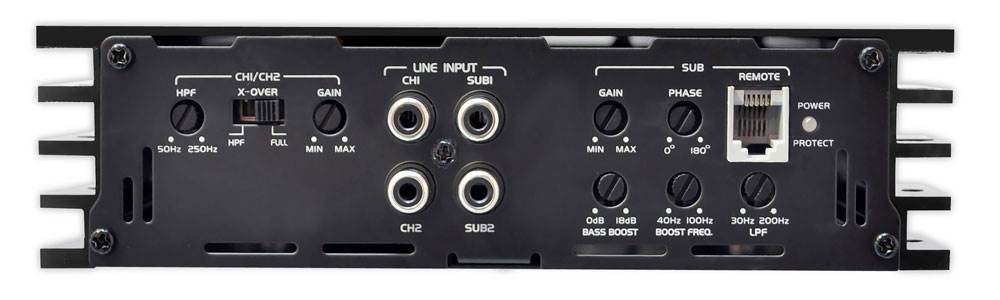

**Remote Gain Control** - This amplifier comes complete with a compact remote gain controller which can be mounted in an easily accessible and convenient location. Input Gain adjustments match the preamp stage of the amplifier to your source unit. Ranges between 200mV – 4V.

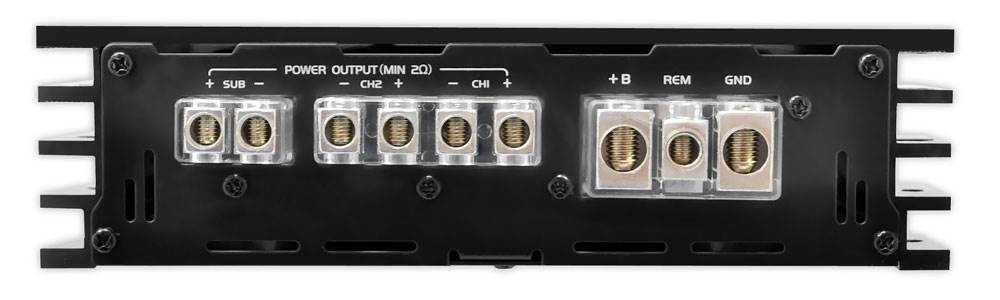

**Speaker Output Terminals**

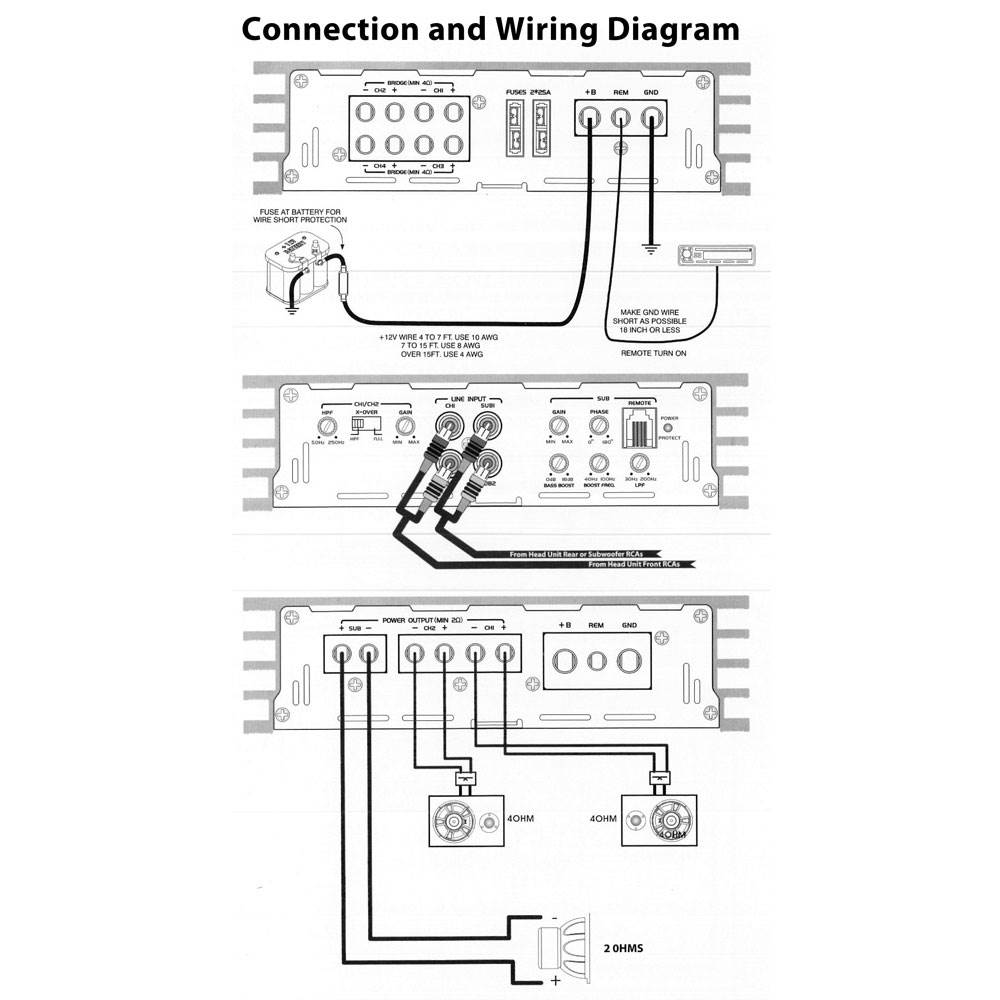

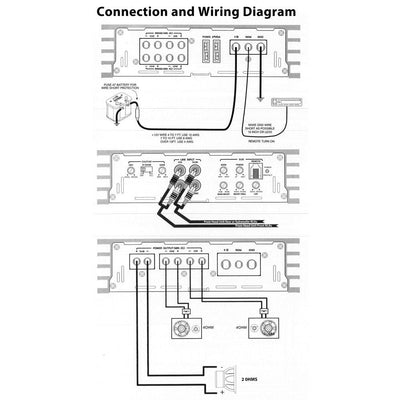

Connect your speaker’s connection cables to these terminals. Bridged connections use the CH + and CH – as two connections. The 2 and 4-Channel amplifiers will perform into 2 Ohm stereo loads or 4 Ohm bridged loads. Further information can be found in the included User Manual.

**Power Input Connections**

These connections are for input power, chassis ground and remote turn-on function. Use a minimum of 8-gauge wiring for power and ground connections. The terminals will handle up to 4-gauge wiring with no negative effect or distortion of audio.

• 2 x 300 Watts + 1 x 800 Watts RMS @ 4 Ohms
• 2 x 600 Watts + 1 x 1600 Watts MAX @ 4 Ohms
• 2 x 450 Watts + 1 x 1200 Watts RMS @ 2 Ohms
• 2 x 1200 Watts + 1 x 2000 Watts MAX @ 2 Ohms
• High Gloss Black Heat Sink
• New Compact Design Based on Class-D Technology
• Double-Sided SMT Circuit Board
• 2 Ohms Stereo Stable
• LPF Variable Crossover : 30Hz-200Hz 24dB/Oct
• HPF Variable Crossover : 50Hz-180Hz 12dB/Oct
• Variable Bass Boost Frequency : 40Hz-100Hz dB(Variable)
• Variable Bass Boost:0-18dB
• Phase Adjustable : 0°
• 180°
• Dash Mount Remote Subwoofer Control
• Nickel Plated Low Level RCA Input
• Power Protection LED Indicators
• Advanced Protection Circuitry
• Soft Turn On/Off
• Frequency Response : 20 Hz – 40K Hz
• S/N Ratio > 95 dB
• T.H.D. : 0.06%
• Fuse : 25A x 2
• Dimension : 8.78''(L) x 7.40''(W) x 1.99''(H)
