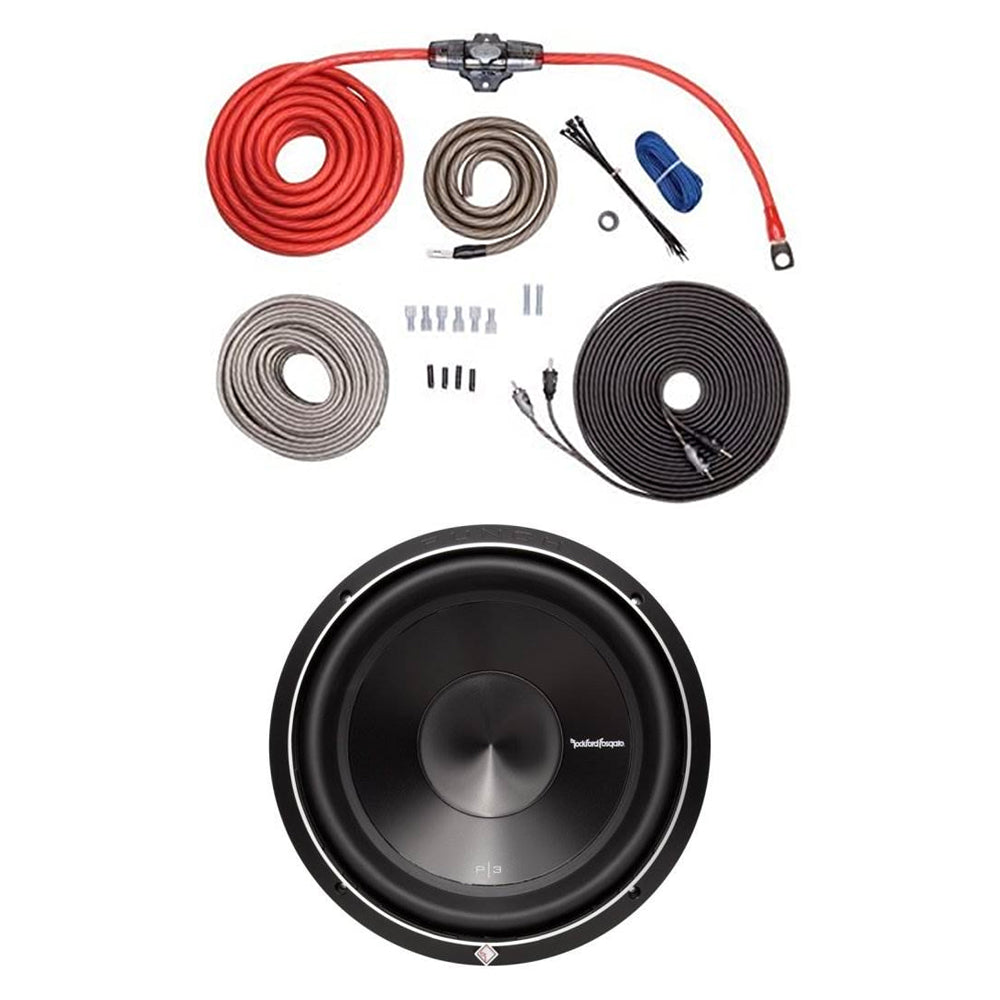

Rockford Fosgate 4 AWG Amplifier to Speaker Installation Kit & Subwoofer Package

Connect your car audio system with an installation kit you can rely on with the 4 AWG Amplifier to Speaker Installation Kit and Subwoofer Package by Rockford Fosgate.

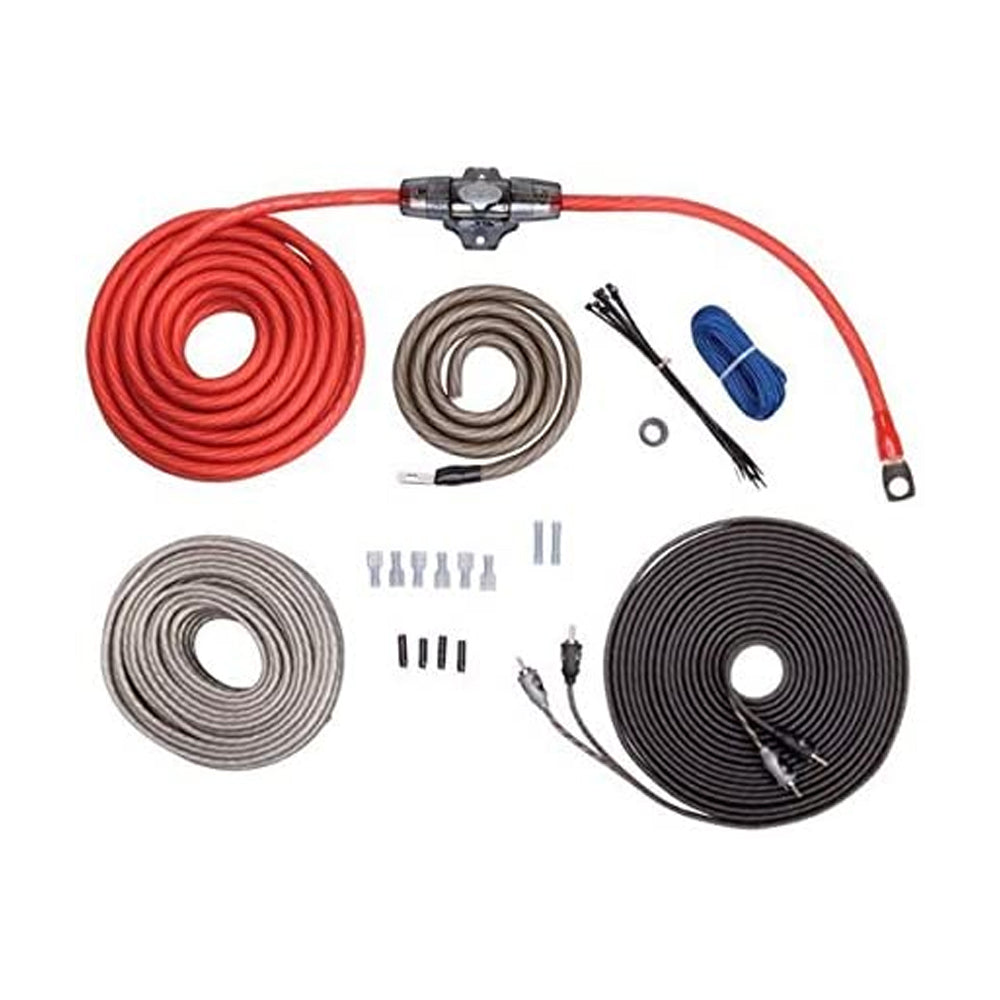

The premium audio wiring kit includes 17 feet of 4 AWG power wire, 3 feet of 4 AWG ground wire, 30 feet of 16 AWG speaker wire, 16 feet twisted pair RCA, Maxi fuse holder and fuse, 20 feet of remote wire, and 100 amp fuse. The power wire has necessary cables for both B(+) and GND(-). The RCA patch cables are used to transfer low-level signal from the source unit to the amplifier, typically located in the rear of the vehicle.

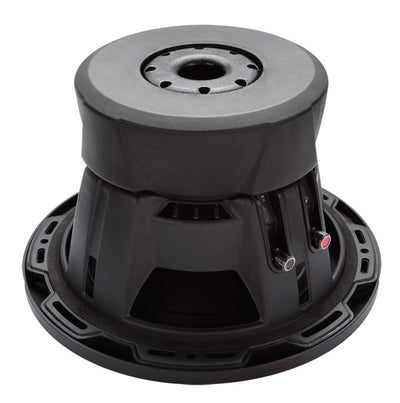

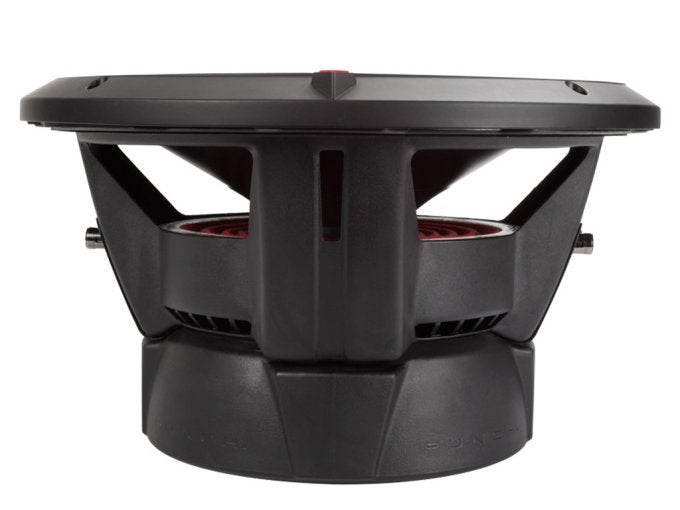

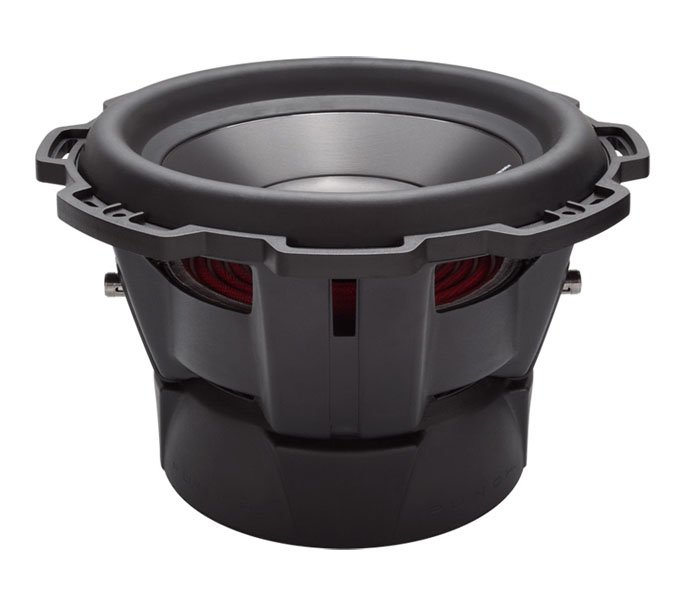

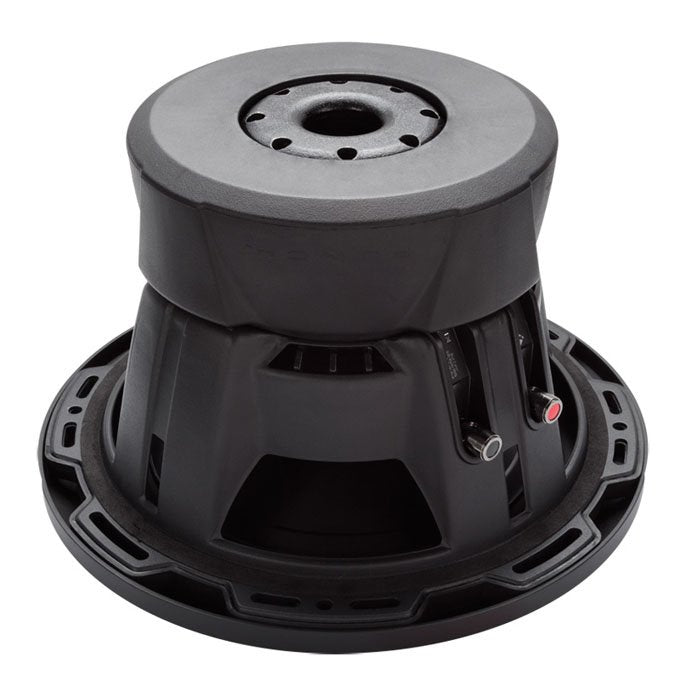

The P3 subwoofer now features an anodized aluminum cone and dustcap along with unique spider venting to keep the motor cooler than previous versions. The sub features VAST technology to increase surface cone area up to 25 percent and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.

Get the sound you've always dreamed of with the4 AWG Amplifier to Speaker Installation Kit and Subwoofer Package by Rockford Fosgate.

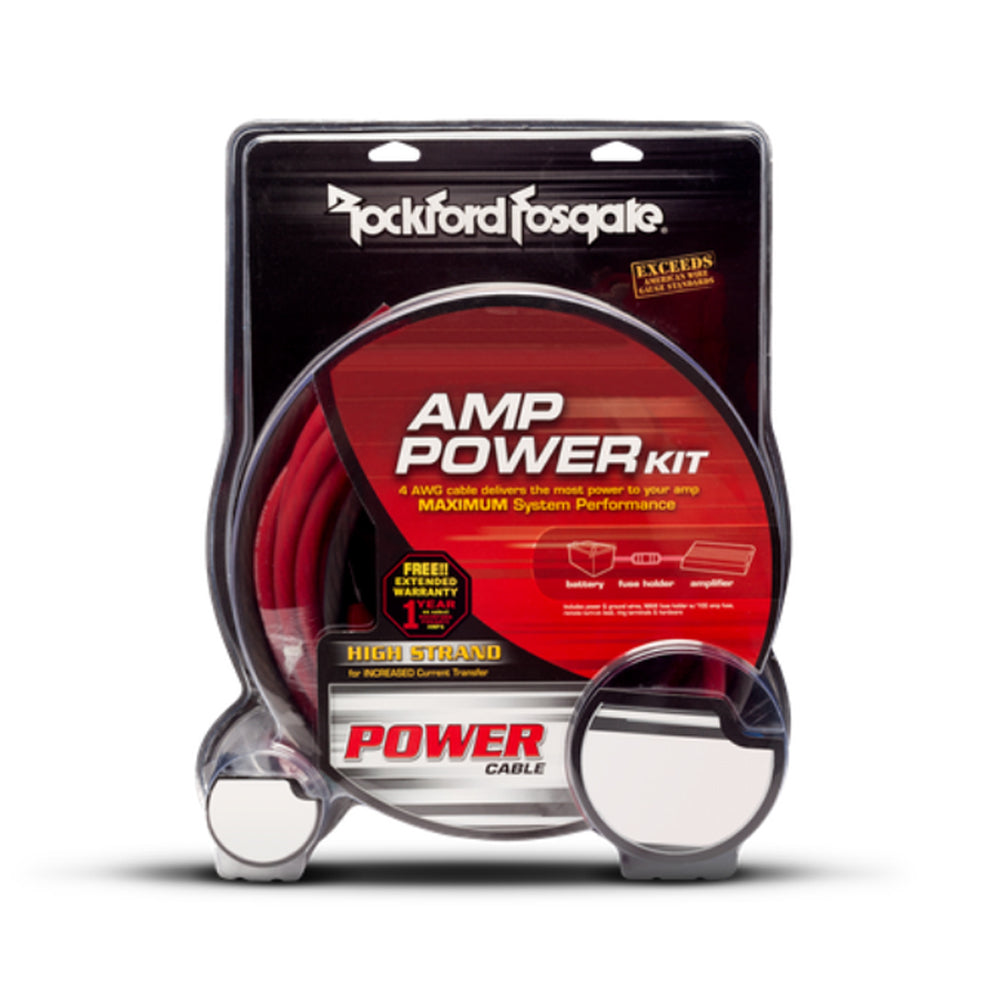

• Rockford Fosgate RFK4X 4 AWG Complete Amplifier to Speaker Installation Kit
• Kit includes 17 feet of 4 AWG power wire, 3 feet of 4 AWG ground wire, 30 feet of 16 AWG speaker wire, 16 feet twisted pair RCA, Maxi fuse holder and fuse, 20 feet of remote wire, and 100 amp fuse

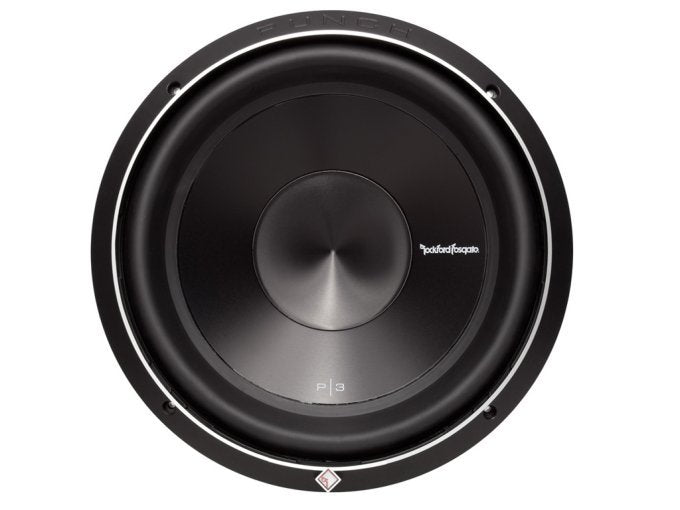

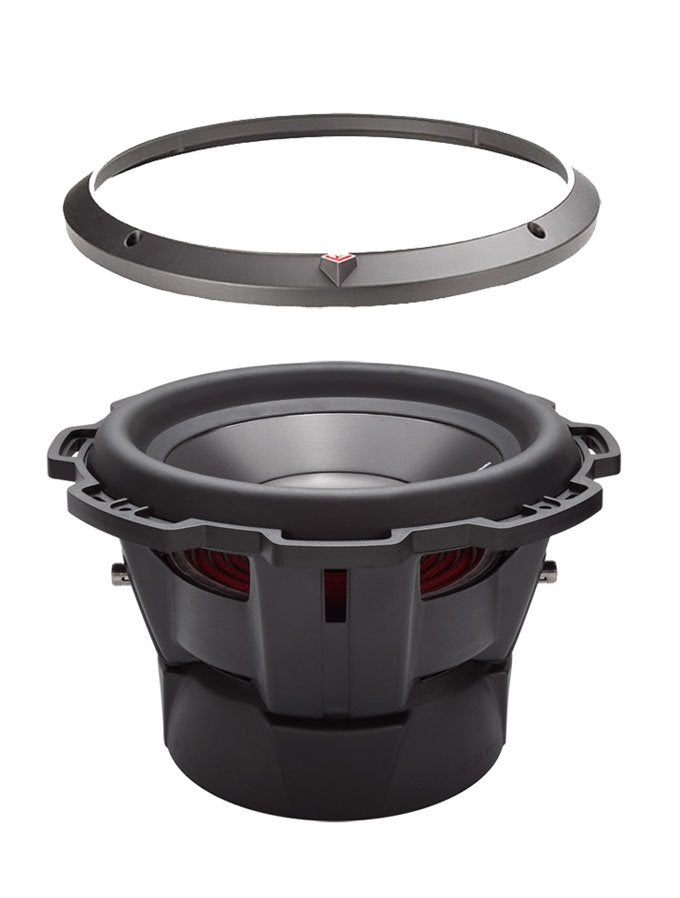

• Rockford Fosgate P3D4-10 10-Inch 1000 Watt Subwoofer
• Power wire has necessary cable for both B(+) and GND(-) (remote turn-on power wire included)
• Fused distribution utilizes a stand-alone fuse holder that can be installed in a convenient place under the hood
• Speaker wire connects amplifier to speakers
• RCA patch cables are used to transfer low-level signal from the source unit to the amplifier, typically located in the rear of the vehicle
• Cables conform to the CEA-2015 industry standard
• 100 percent pure crystal-oxygen free copper (PC-OFC)
• Includes appropriate wire termination hardware
• 4 AWG (21.1mm²) 1,862 strands
• 16 AWG (1.31mm²) 65 strands
• Speaker Specifications:
• 1000 Watts MAX
• 500 Watts RMS
• Anodized aluminum cone and dustcap
• Stitched Tinsel Leads for improved reliability and performance
• Anodized Voice Coil Former for superior heat dissipation (up to 100° at full power levels)
• VAST Surround increases the cone area without complicating installation
• Flex Fir Basket to help fine-tune the Sub's mounting position
• Hybrid Stamp Cast basket
• Size: 10"
• Impedance: Dual 4-Ohm
• SPL: 82dB
• Voice Coil Diameter: 2.5" (65.5 mm)
• Magnet Weight: 81 oz. (2.30 kg.)
• Speaker Connector: Dual 10 AWG compression
• Fs (Hz): 28
• Re (Ohms): 6.40
• Le (mH): 7.0
• Qms: 5.00
• Qes: 0.63
• Qts: 0.56
• Vas (Liters): 27.0
• Sd (cm2): 360
• Xmax (mm): 15.9
• Woofer Displacement: 0.127 cu. ft. (3.6 Liters)
• Cutout Diameter: 9.13" (232 mm)
• Mounting Depth: 6.18" (156.8 mm)
• CEA-2031 Compliant
• Weight: 22.3 pounds
• Manufacturer warranty: 1-year limited warranty
