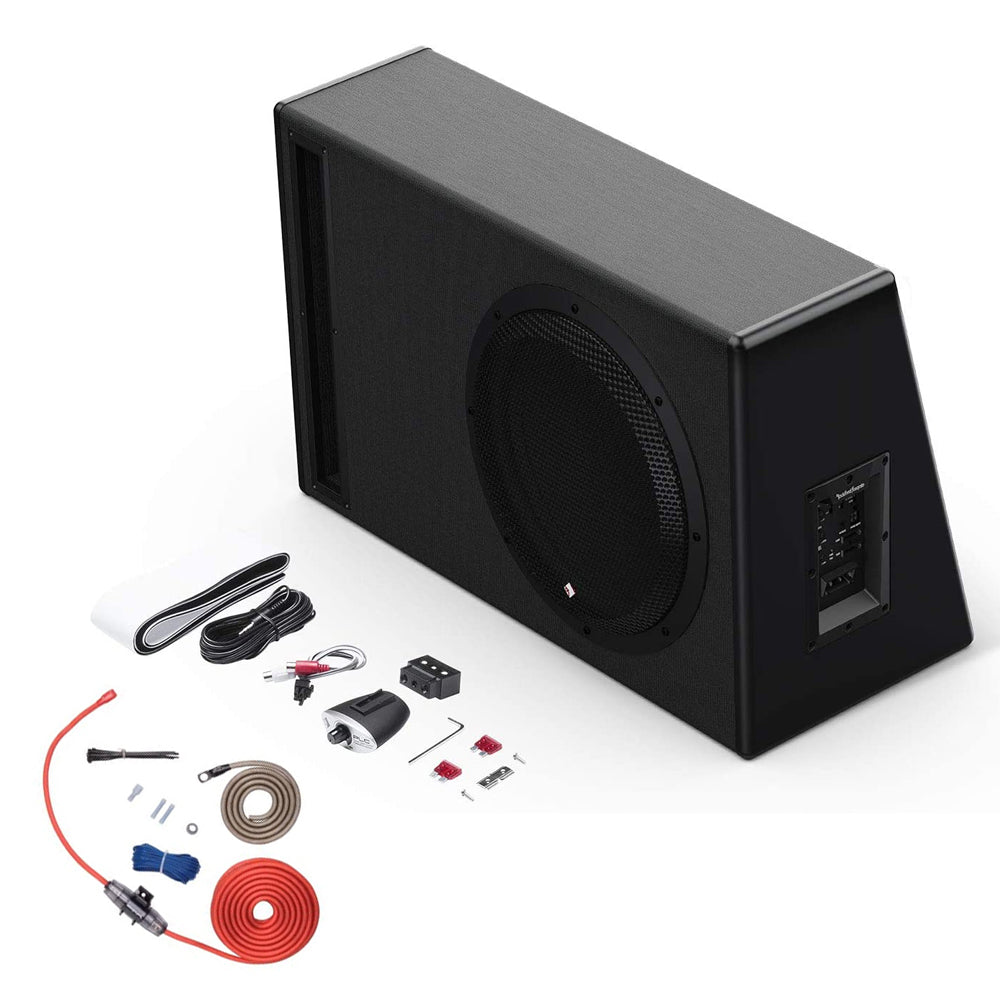

Rockford Fosgate Audio Amp Installation Wiring Kit & Enclosed Subwoofer Package

Connect your car amplifier with an installation kit you can rely on with the Rockford Fosgate Audio Amp Installation Wiring Kit & Enclosed Subwoofer Package.

This premium car audio kit includes 17 feet of 4 AWG power wire, 3 feet of 4 AWG ground wire, Maxi fuse holder and fuse, and 100 Amp fuse. The power wire has necessary cables for both B(+) and GND(-). Its fused distribution utilizes a stand-alone fuse holder that can be installed in a convenient place under the hood. It's also BC-5W2 certified meaning this cable is suitable for use on boats and non-commercial marine vessels. All cables conform to the CEA-2015 industry standard.

The Rockford Fosgate Punch Woofer is an all-in-1 solution for enhanced bass in any vehicle. The 12-inch high output woofer features a 500-watt internal amplifier in a compact design that fits perfectly in trucks and small cars. The unique closed-loop design ensures optimum performance between woofer, amplifier, and enclosure. For even more control of your bass, plug in the included punch level control to the amp panel and route the cable to your desired mounting position so you can do it all from the driver's seat.

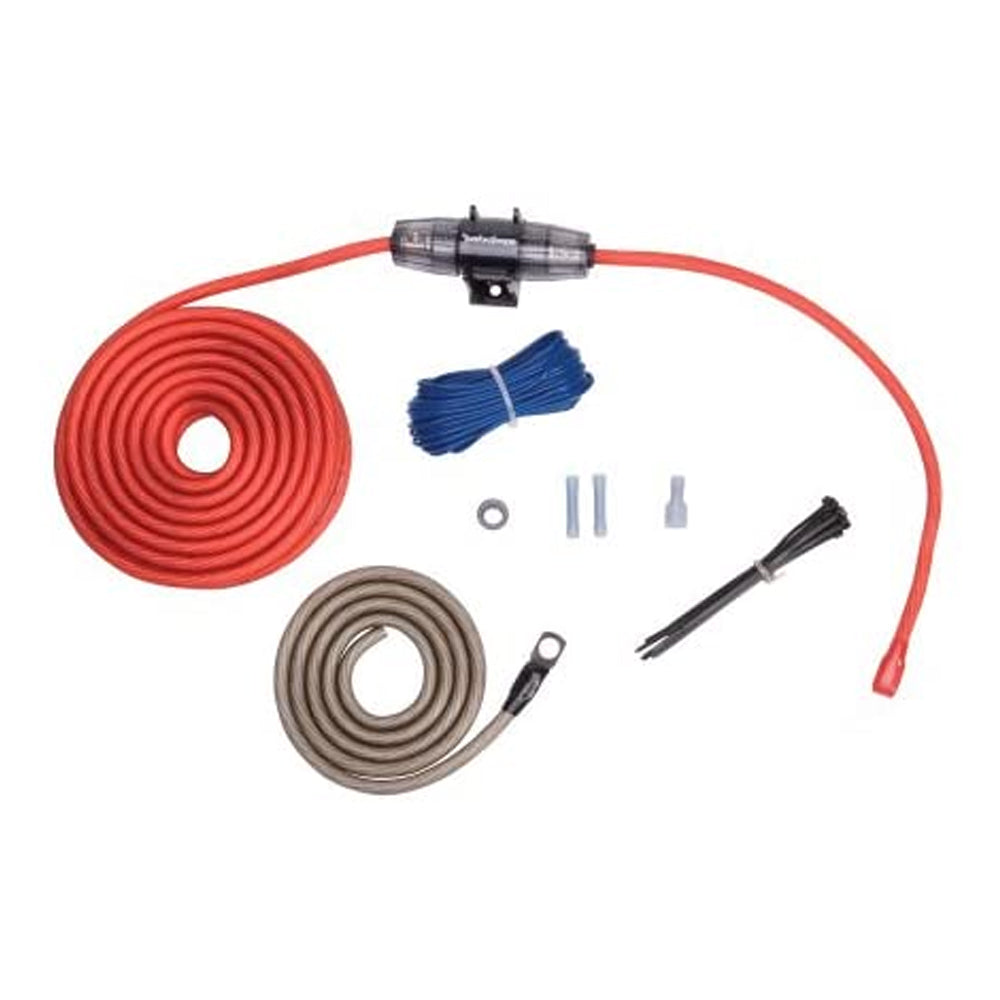

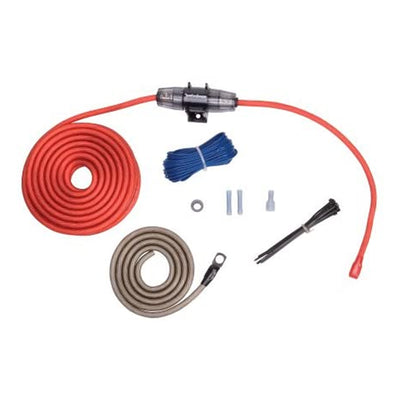

• Wiring kit includes 17 feet of 8 AWG power wire, 3 feet of 8 AWG ground wire, AGU fuse holder and fuse, 20 feet of remote wire, and 40 Amp fuse
• Universal all-in-1 self-contained subwoofer enclosure with built-in amplifier for any factory or aftermarket system
• Power wire has necessary cable for both B(+) and GND(-) (remote turn-on power wire included)
• Fused distribution utilizes a stand-alone fuse holder that can be installed in a convenient place under the hood
• Features adjustable 12dB/octave low pass crossover, on-board adjustable bass boost EQ, and on-board phase switch
• BC-5W2 certified meaning this cable is suitable for use on boats and non-commercial marine vessels
• Cables conform to the CEA-2015 industry standard
• 100% pure crystal-oxygen free copper (PC-OFC)
• Includes appropriate wire termination hardware
• 8 AWG (8.36mm²) 735 strands
• Battery PWR/GND gauge: 8 AWG
• Amplifier PWR/GND gauge: 8 AWG
• Fuse size: 60 amp
• Fuse type: AGU
• Dimensions (L x W x H): 11.3 x 6.5 x 12 inches
• Weight: 1.55 pounds
• Manufacturer warranty: 1-year limited warranty
• Part number: RFK8
• Manufacturer warranty: 1-year warranty

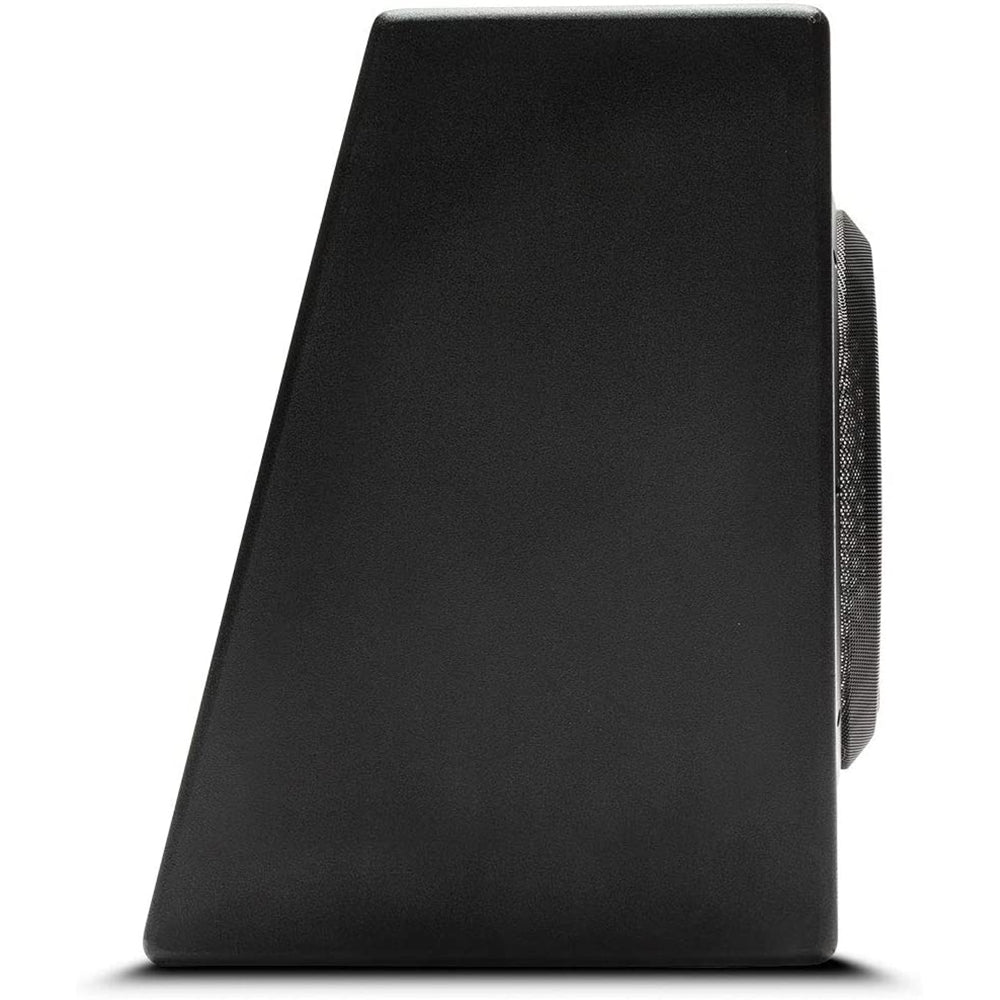

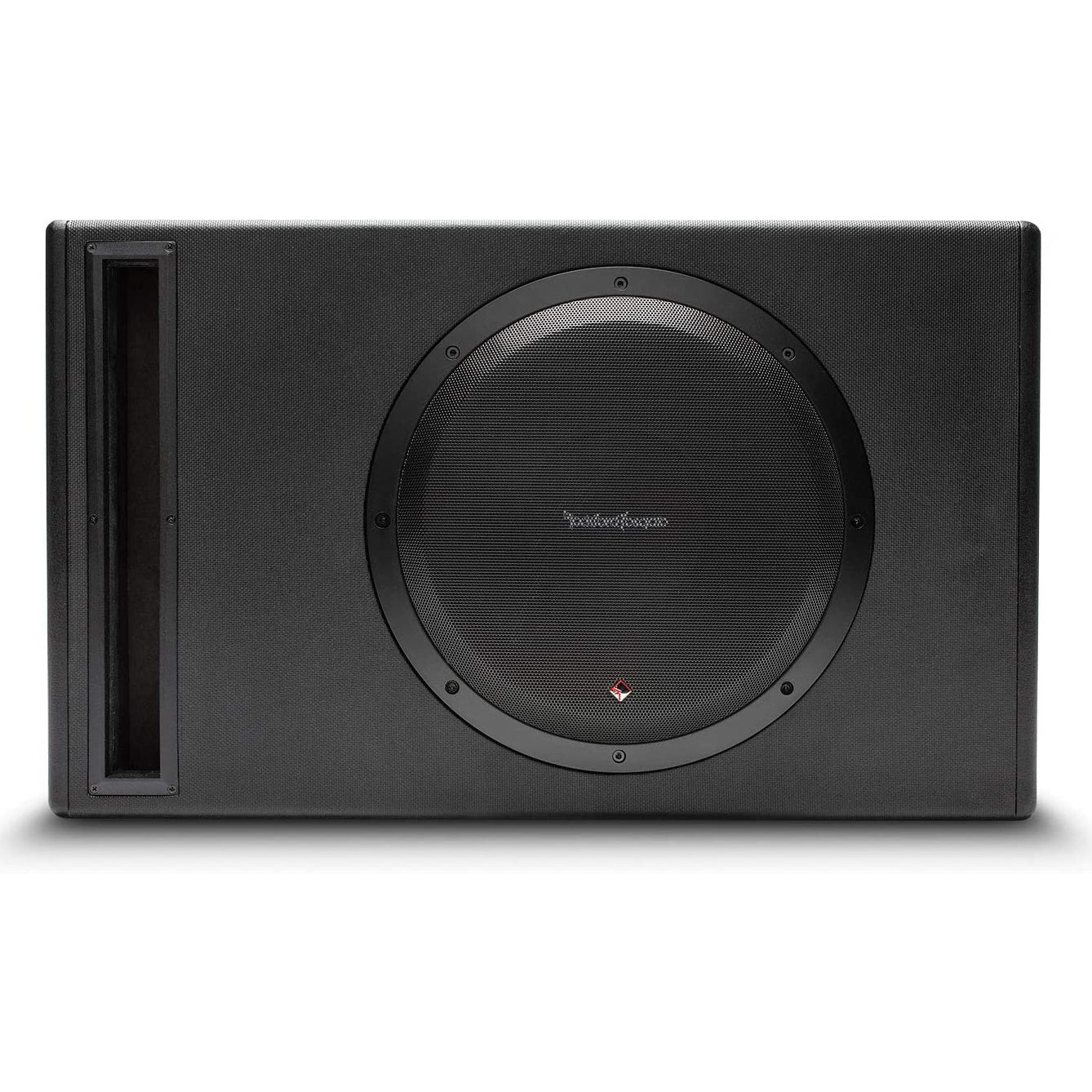

• Rockford Fosgate P500-12P Punch 12" 500W Powered Ported Woofer Enclosure System
• Intelligent automatic on/off circuit eliminates the need for a separate turn-on wire
• Precision designed using MDF and covered with heat activated vinyl for superior acoustical properties

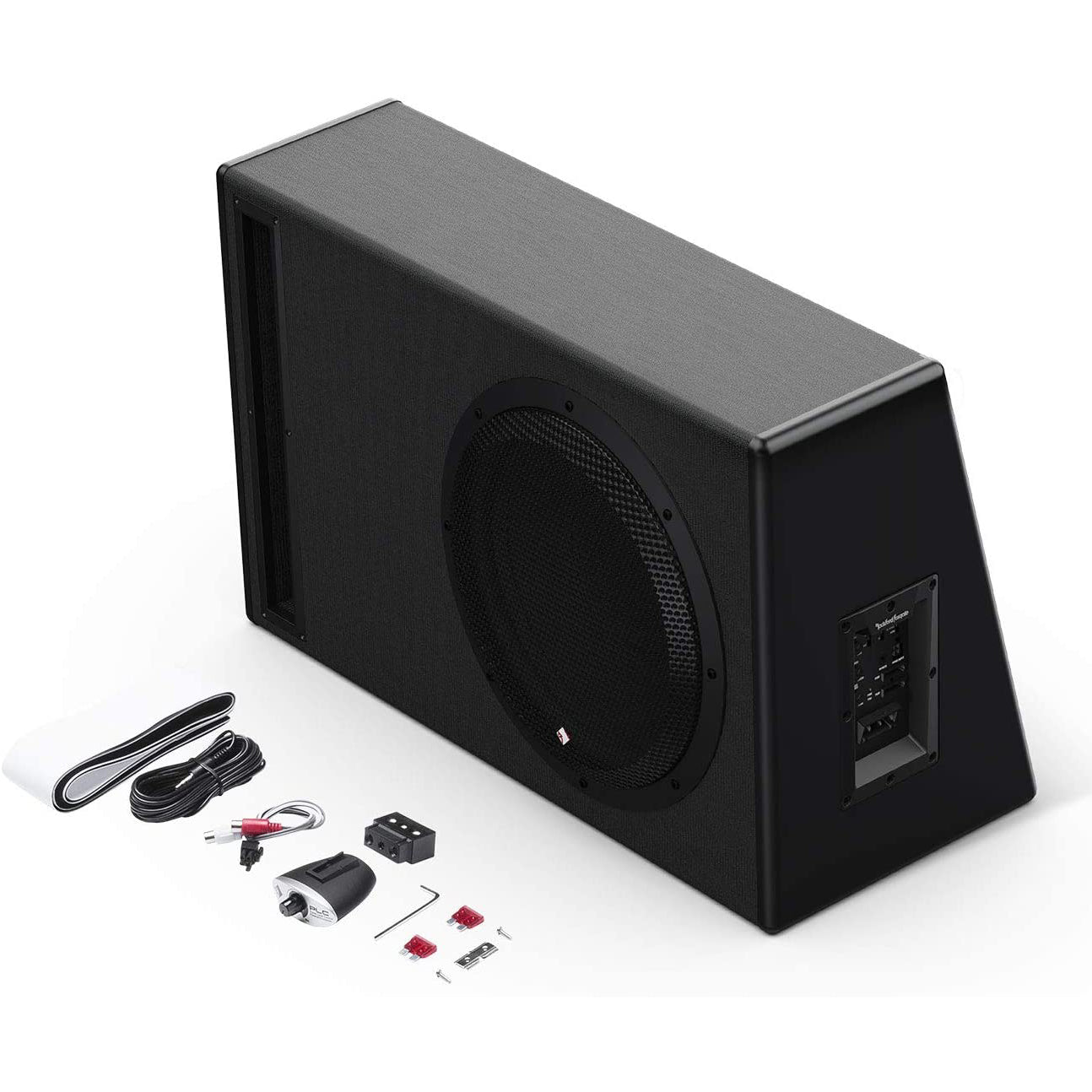

• Includes 1 12-inch low-impedance woofer with punch level control, mounting hardware, and equipment for easy installation
• Built-in 500-watt amplifier with optimized closed loop design offers optimum performance between woofer, amp, and enclosure
• Slim design enclosure is perfect for trucks and small car applications

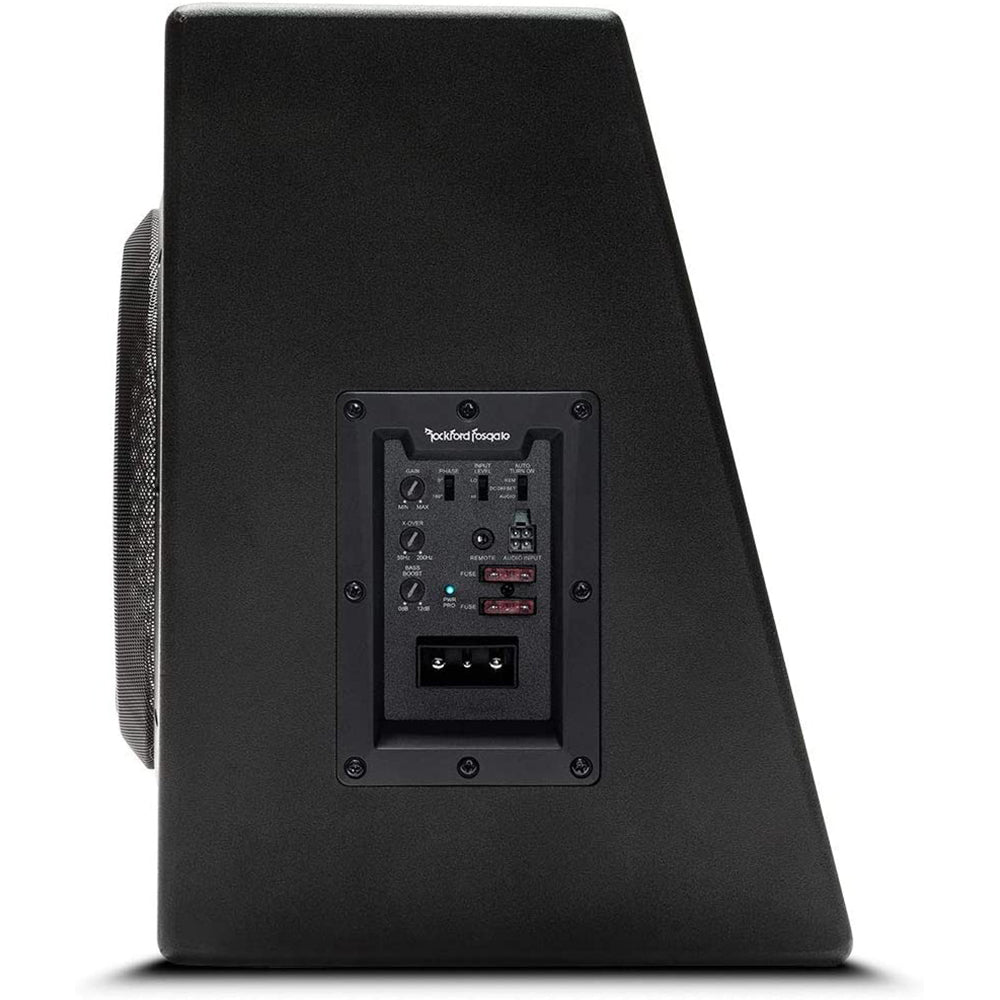

• Connect via speaker level inputs for connection to factory systems or traditional line level inputs for aftermarket systems
• Quick release input and power connectors make for an easy removal
• Great for systems that need an extra punch on the low-end of the frequency spectrum
• Frequency response: 20 Hz to 200 Hz
• Power handling: 500 watts RMS
• Enclosure type: Ported
• Enclosure material: 5/8-inch medium density fiberboard
• Integrated amplifier: 500 watts RMS
• Tone controls: Bass boost 0 dB to +12 dB
• Phase control: 0 to 180 degrees
• Remote control: Punch level control
• Input sensitivity (low-level): 150 mV to 6 volts
• Input sensitivity (high-level): 300 mV to 12 volts
• Input impedance: 20k Ohms
• Circuit topology class: Class-D
• Fuses: 30 amp
• Color: Black
• Dimensions (L x W x H): 15 x 25 x 11 inches
• Weight: 48 pounds
• Manufacturer warranty: 1-year limited warranty
• Part number: P500-12P
• Manufacturer warranty: 1-year warranty
