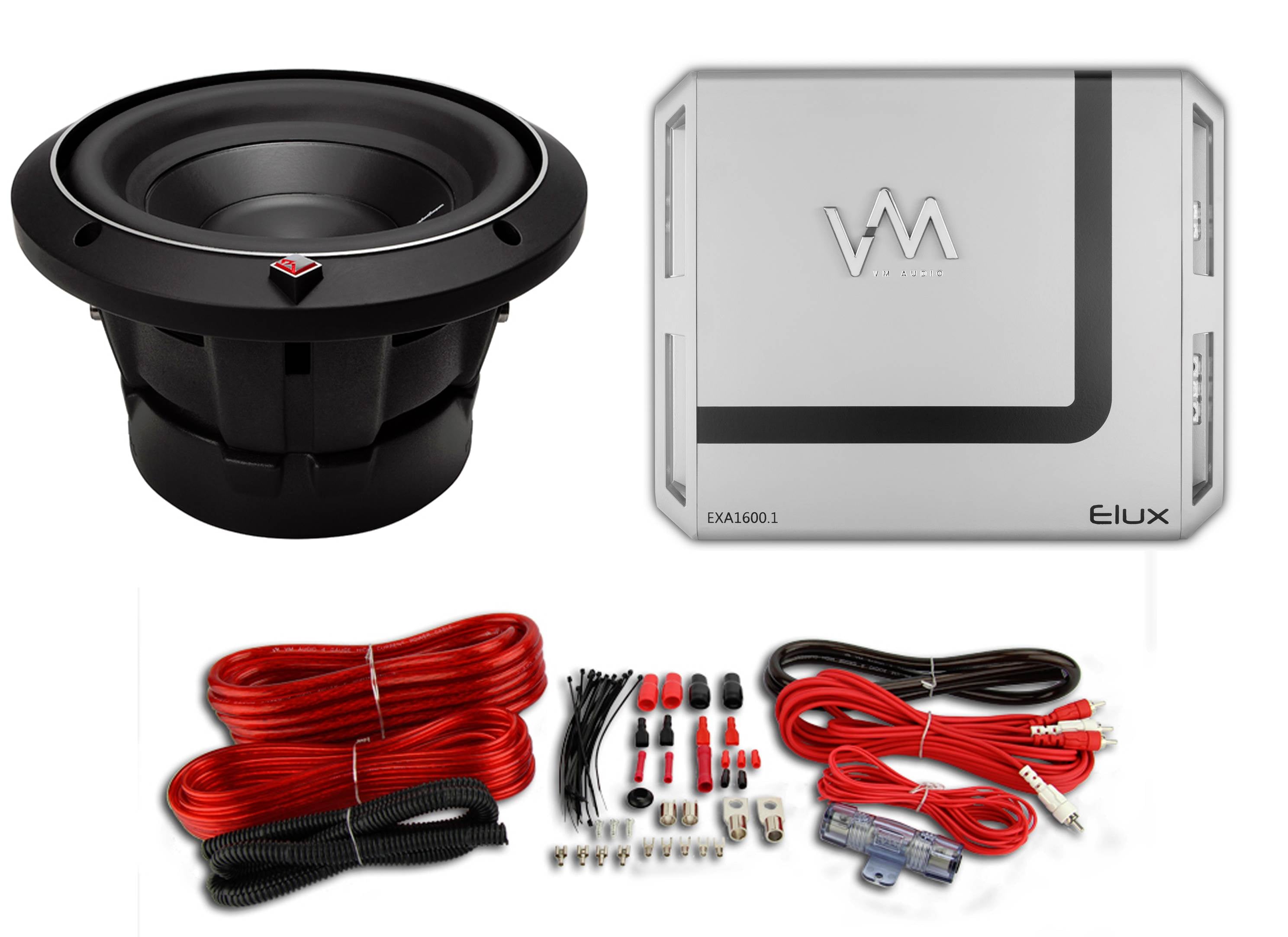

Rockford Fosgate P2D4-8 8" Punch P2 4-Ohm DVC Car Sub + Box + 1600W Amp + Wiring

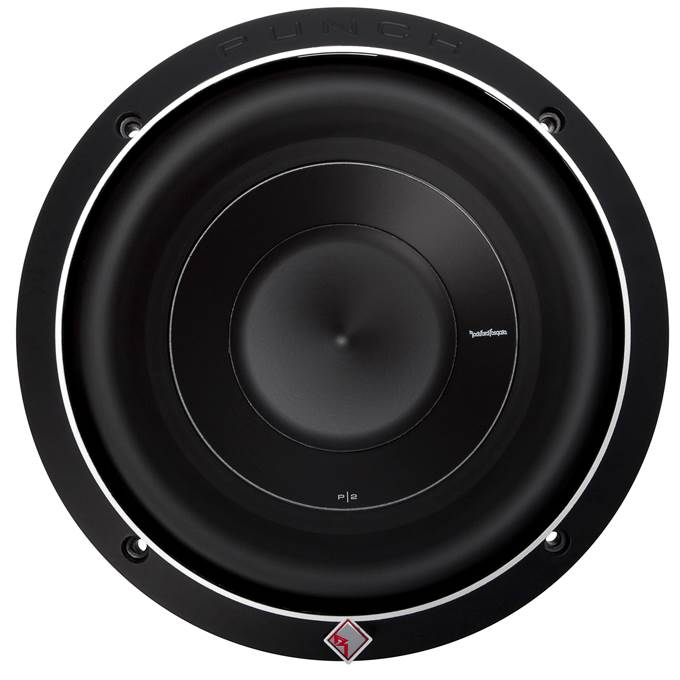

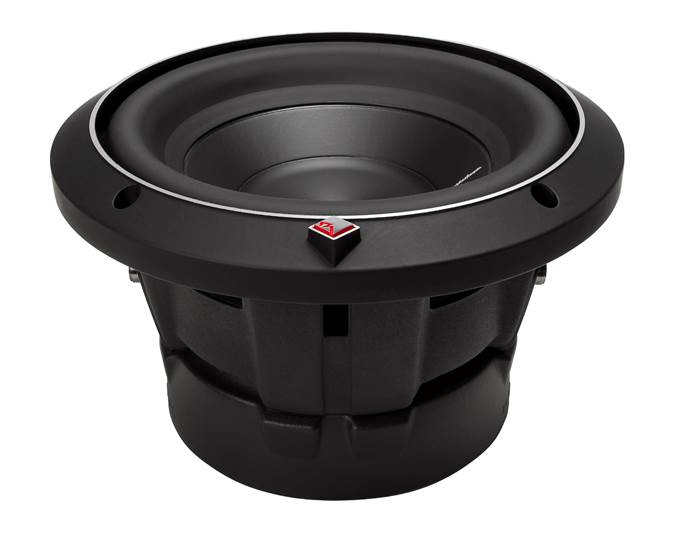

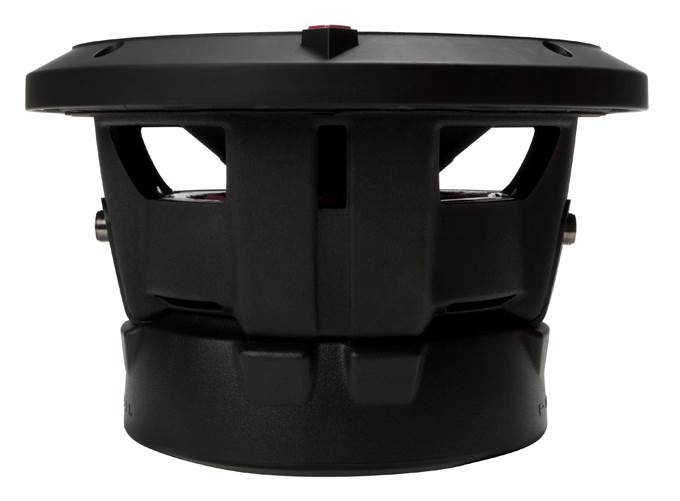

The **Rockford Fosgate P2D4 8** 8" Punch P2 500 Watt 4 Ohm DVC Car Audio Subwoofer is built to give you the punch you desire, thanks to Kevlar fiber reinforced paper cones that deliver bass impact you can feel, and VAST technology that increases cone surface area up to 25%. This subwoofer use an anodized aluminum voice coil former that provides superior heat dissipation (up to 100° at max power levels). The P2D4 8 has the capacity to handle power under continuous demand, conforming to CEA 2031 industry standards, and the stitched tinsel leads improve reliability and performance by reducing fatigue and possible shorting.

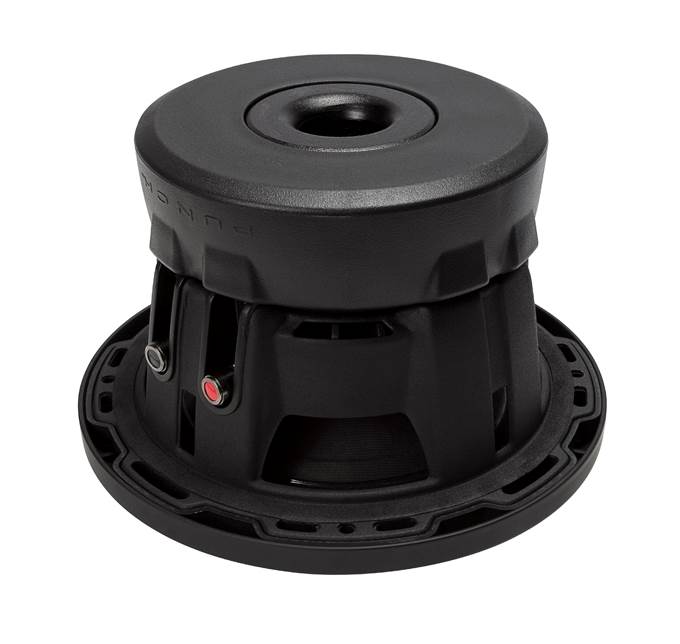

It also features: 10 gauge nickle plated push terminals, a dual liner spider with embedded 16 gauge tinsel leads, a high temperature voice coil with spun laced Nomex® reinforcement collar, a protective PVC textured magnet cover, a StampCast basket with integrated spider venting, an extended pole piece, and bumped vented backplate, and is best suited for standard sealed and vented enclosures. Feel the impact with the Rockford Fosgate P2D4 8 Punch P2 Subwoofer!

Read more [here][1]

Read the manual [here][2]

[1]: http://www.rockfordfosgate.com/rftech/library/2011/5_Subwoofers/RFPB_P2D4 8 TS_RevD.pdf

[2]: http://www.rockfordfosgate.com/rftech/library/2011/5_Subwoofers/4020118 0_P2Subs MAN_Rev2.pdf

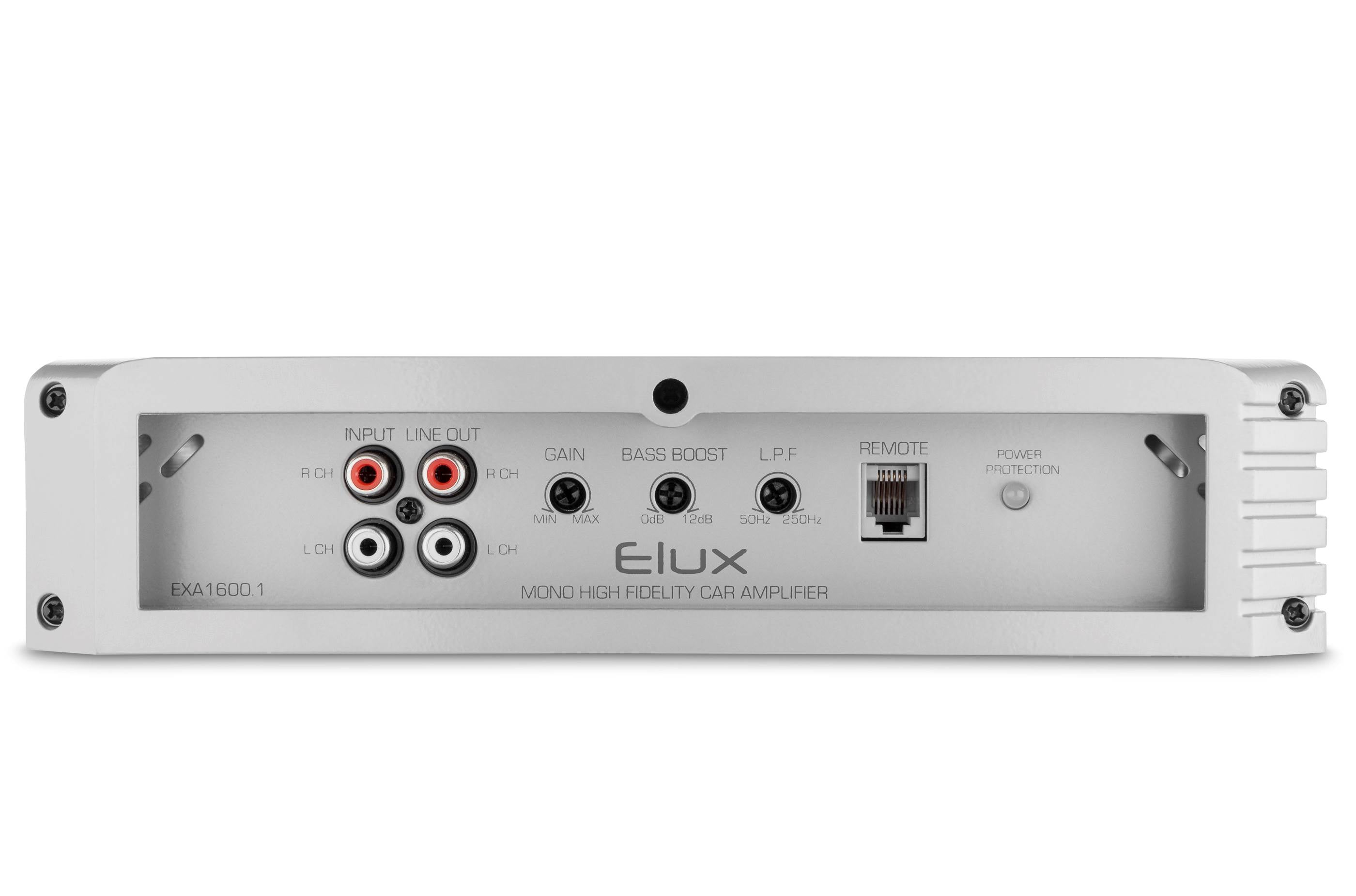

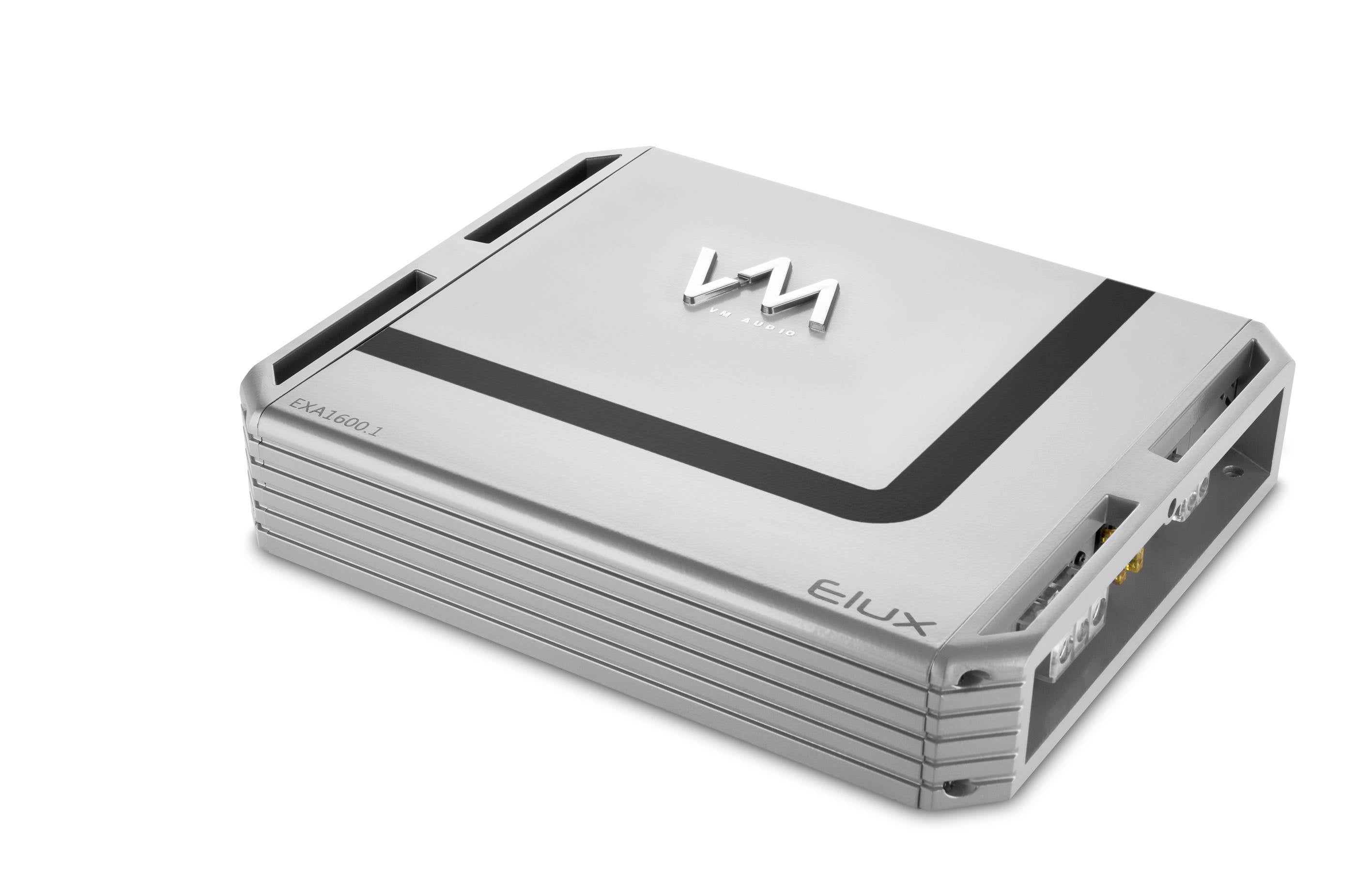

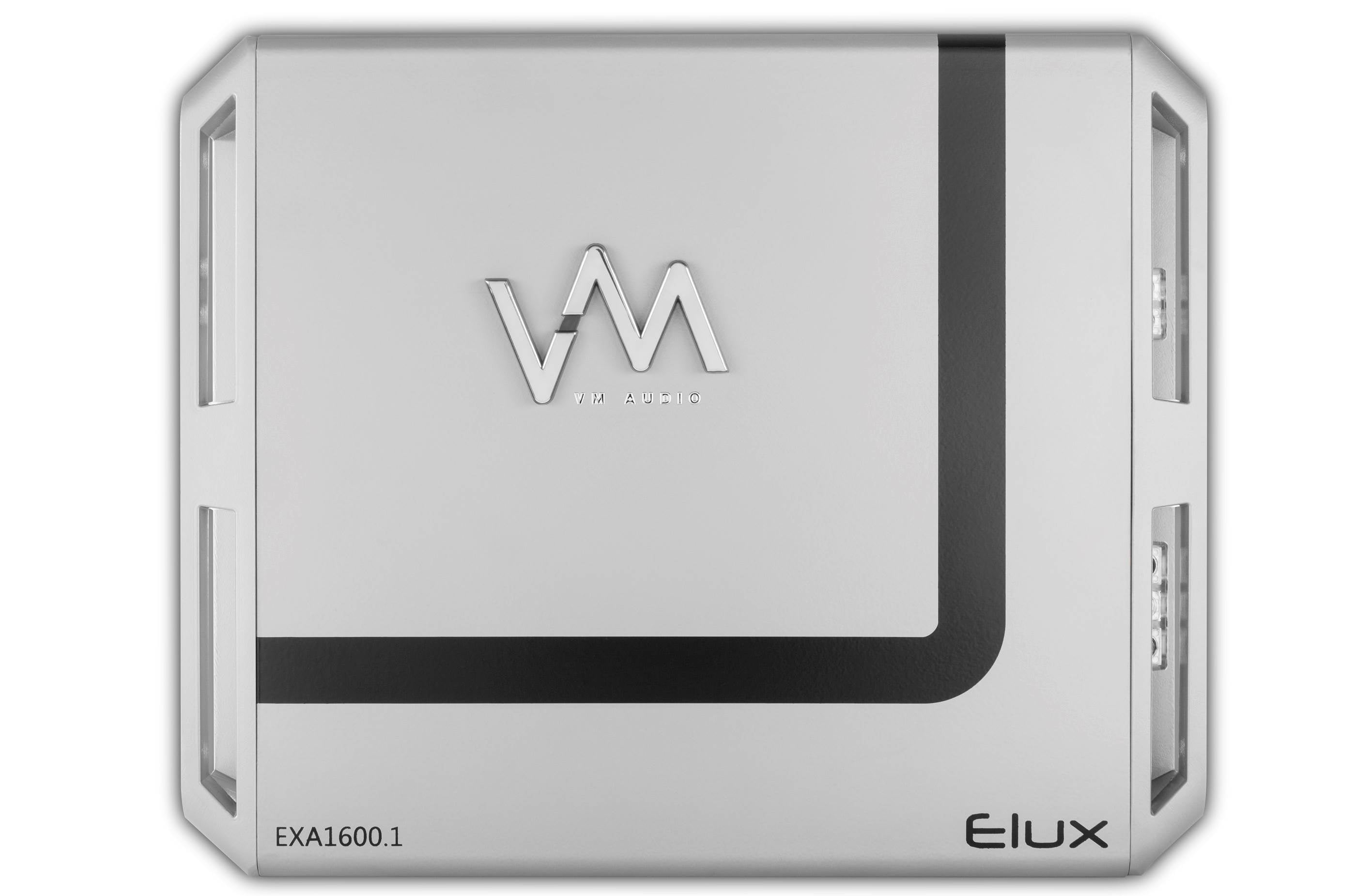

This VM Audio Amplifier offers an RMS power rating of 800 watts x 1 channel at 4 Ohm and a peak power of 1600 watts x 1 channel at 2 Ohm. Its extremely low noise and distortion means this amplifier runs quietly and efficiently, and it offers a dedicated soft turn on circuit.

The Fidelity Class A/B Circuitry delivers precise half signal transitions with low heat generation. Signals are reproduced separately and joined together to complete the full signal. Measuring 11.57"L x 9.65" W x 2.17" H, this amplifier can fit in slim spaces.

**New VM Audio SRPK4R 4 Gauge Amplifier Complete Wiring Kit**

@[video](MRzkUJK2Ez4)

• Brand New **Rockford Fosgate P2D4 8** 8" Punch P2 500 Watt 4 Ohm DVC Car Audio Subwoofer
• Power Handling (Max): 500 Watts
• Power Handling (RMS): 250 Watts
• **Features:**
• 10 gauge nickle plated push terminals
• Dual liner spider with embedded 16 gauge tinsel leads
• High temperature voice coil with spun laced Nomex® reinforcement collar
• PVC textured magnet cover
• StampCast basket with integrated spider venting
• extended pole piece, and bumped vented backplate
• Kevlar fiber reinforced paper cone
• CEA 2031 Compliant
• **Specifications:**
• Size: 8 Inches
• Nominal Impedance: Dual 4 Ohm
• Voice Coil Diameter: 2.25" (57.7mm)
• Magnet Weight: 49 oz. (1.38kg)
• Speaker Connector: Dual 10 Gauge Compression
• Re: 6.90 Ohms
• Le: 4.3mH
• Qms: 5.40
• Qes: 0.58
• Qts: 0.52
• Vas: 9.9 (Liters)
• Sd: 221 (cm2)
• Xmax: 7.7mm
• Frequency: 43Hz
• Sound Pressure Level (SPL): 83 (dB at 1w/1m)
• Cutout Diameter: 7.13 Inches (181 mm)
• Mounting Depth: 4.76 Inches (120.8 mm)
• Woofer Displacement: 0.071 Cubic Feet
• Weight: 10.3 lbs (shipping)
• Condition: BRAND NEW!
• Part Number: **P2D4 8**
• Warranty: 1 Year manufacturer Warranty

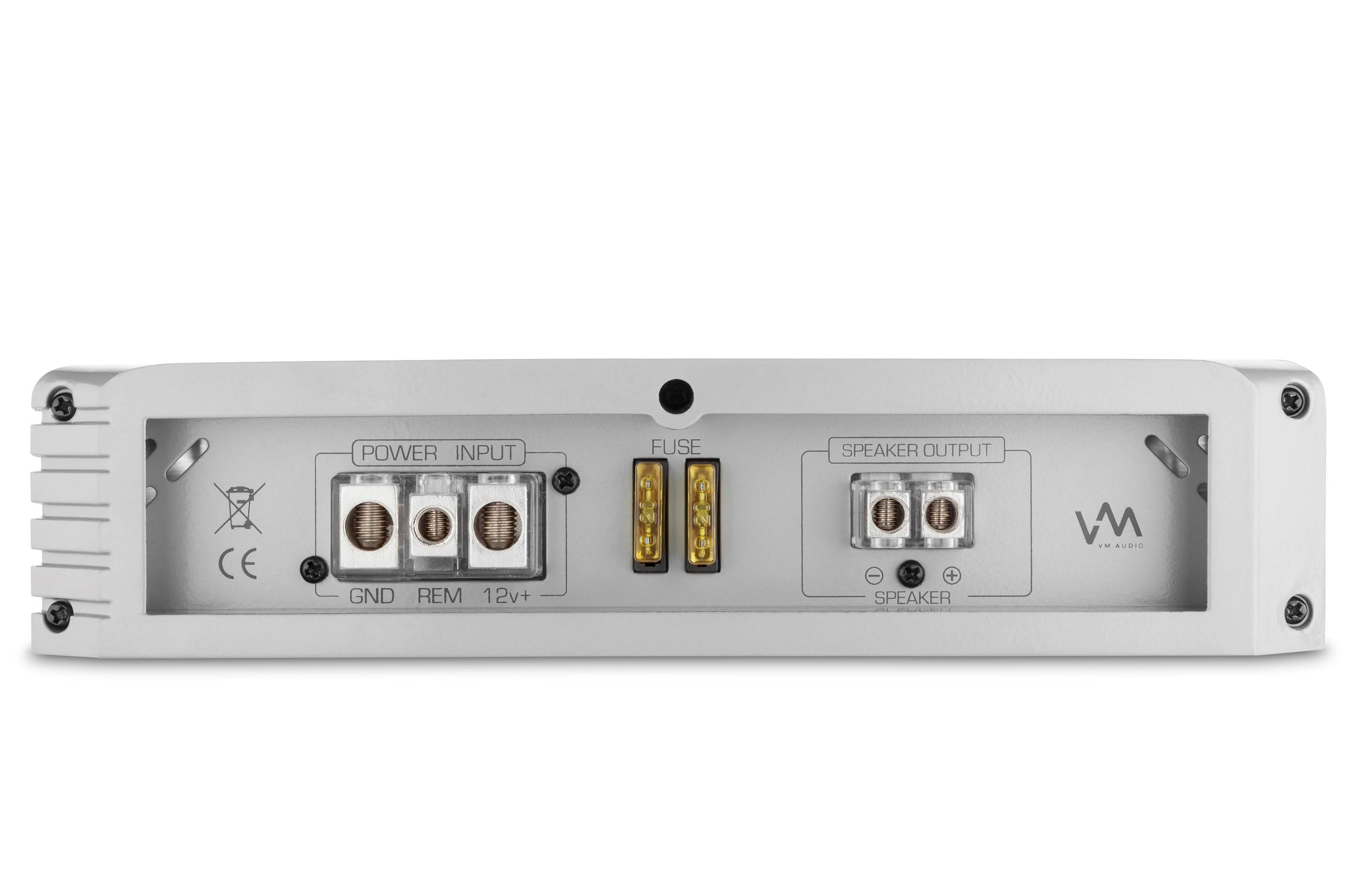

• **Amplifier:**
• **VM Audio EXA1600.1 Class A/B Mono Block 1600W **
• Power Amplifier
• Type: Mosfet
• Channels: 1
• Total Power: 1600W
• RMS Power @ 4 Ohm: 800Wx1
• Peak Power @ 2 Ohm: 1600Wx1
• Peak Power @ 4 Ohm Bridged: NA
• Minimum Impedance Unbridged:2
• Minimum Impedance Bridged: NA
• Frequency Response: 10Hz 250kHz
• Single to Noise Ratio: 93dB
• Circuit Type:A/B
• Protection Circuit: 5 Way
• Low/Highpass Crossover: 50Hz 250Hz
• Preamp Outputs: 1 Pair
• Bass Boost: 0dB 12db
• Bass/Gain Remote: NA
• Power Indicator: Yes
• Terminals: Nickel Plated
• Power /Ground Connection: 4 Gauge
• Input Voltage: 14.4V
• Fuse: 2x20A
• Dimensions: 11.57"L x 9.65" W x 2.17" H
• Warranty: 1 Year
• **Amp Kit:**
• New VM Audio SRPK4R **4 Gauge Amplifier Complete Wiring Kit**
• Maximum of 2000 watts
• Complete amplifier wiring kit with cables, connectors and accessories
• 4 Gauge high current power cables with 315 multi stranded bare copper
• 4 Gauge high current ground cables with 315 multi stranded bare copper
• 18 Gauge remote turn on wire with solid red insulation jacket
• 12 Gauge high density two conductor copper speaker wire with clear red insulation jacket
• E.M.I isolated RCA audio cables with maximum surface contact connection and exclusive VM audio barrel grip
• Nickel plated, high impact resistant 60 AGU fuse holder with exclusive 4 Gauge maximum wire to surface current flow directivity
• 4 Gauge nickel plated power/ground solder less ring crimp terminals
• 4 Gauge nickel plated power/ground solder less spade crimp terminals
• Quick connect nickel plated crimp speaker wire connector
• Element protection power cable loom jacket
• High quality insulated solder less crimp butt terminals
• Durable high strength nylon tie wraps

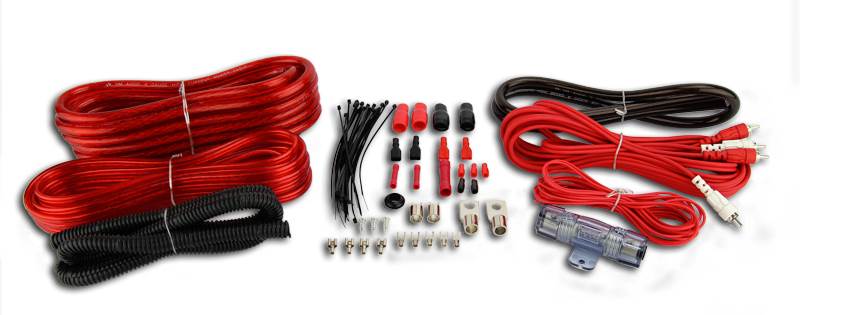

• Kit includes:
• 16 Ft red 4 gauge power wire
• 3 ft black 4 gauge ground wire
• 15 ft high performance RCA wire
• 4 Gauge In line AGU fuse holder
• 60 Amp AGU fuse
• 15 ft 18 Gauge Remote wire
• 20 ft 12 gauge Speaker wire
• 20) 6" wire ties
• 2) spade connectors
• 2) ring connectors
• 3) screws
• 3) butt connectors
• 4) fasten connectors
• 5) spade connectors
• Cable firewall black rubber grommets
• Product Condition: Brand New
• Part Number: SRPK4R
• 1 Year Manufacturer Warranty
