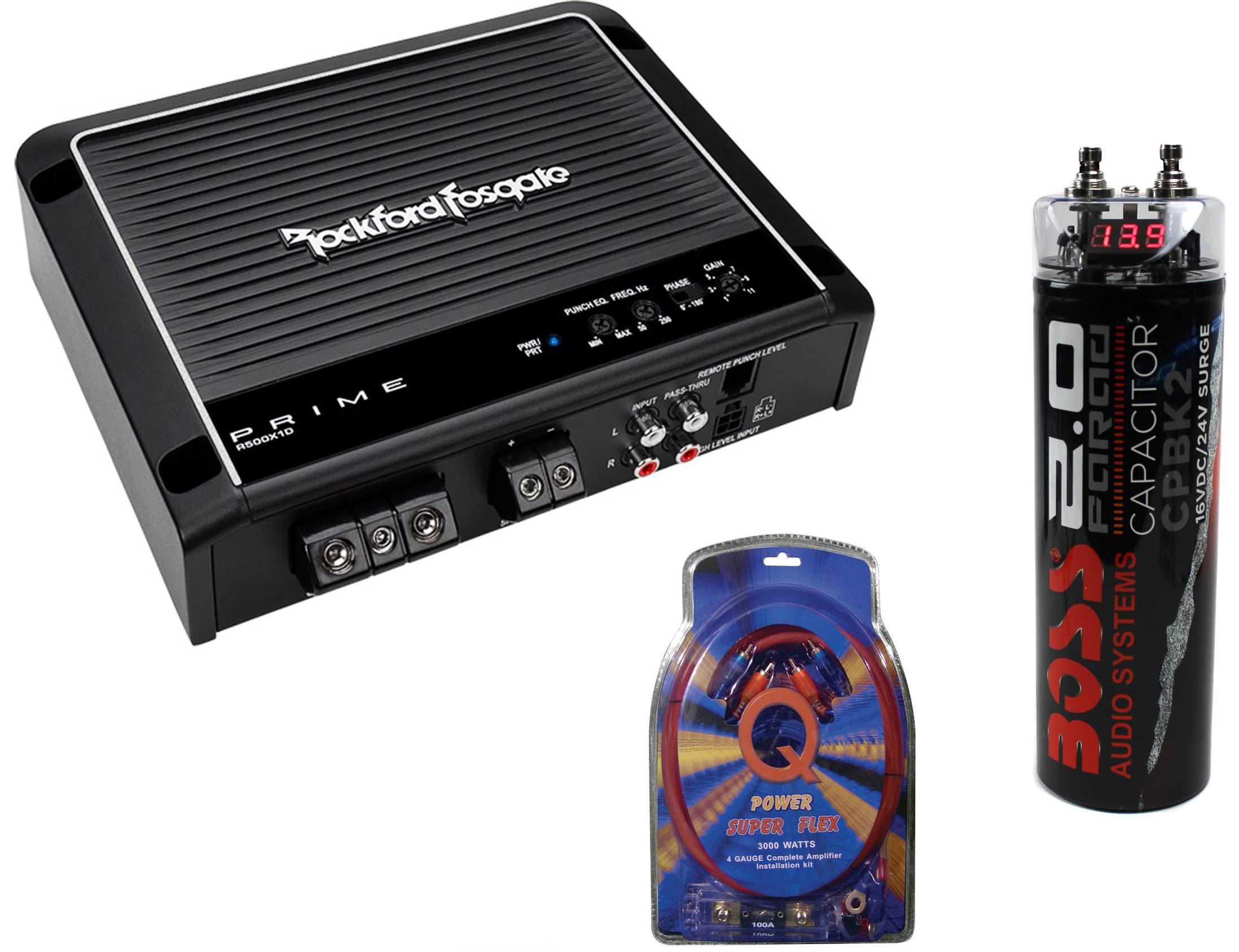

Rockford Fosgate Prime R500X1D 500W RMS Mono Class D Amplifier + Amp Kit + Cap

This Package Includes:

1 x R500X1D Rockford Amplifier

1 x 4 Gauge Wiring Kit

1 x 2 Farad Capacitor

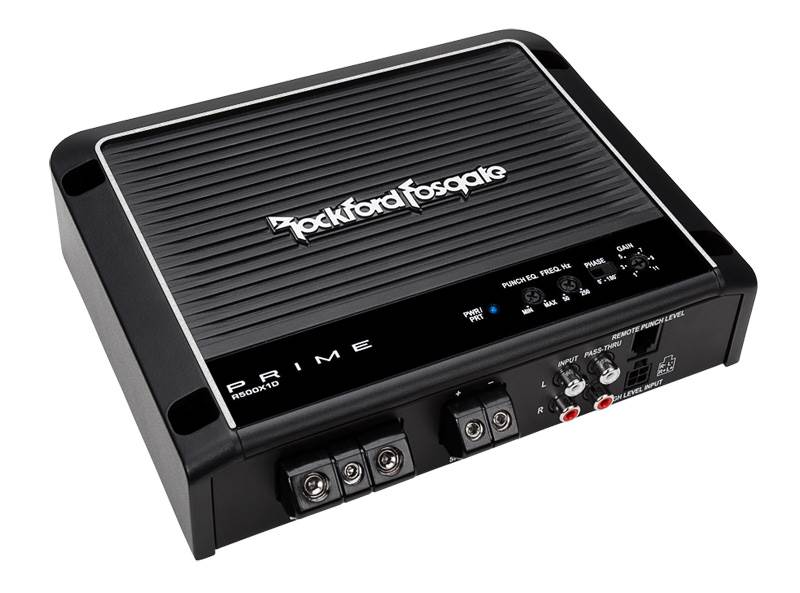

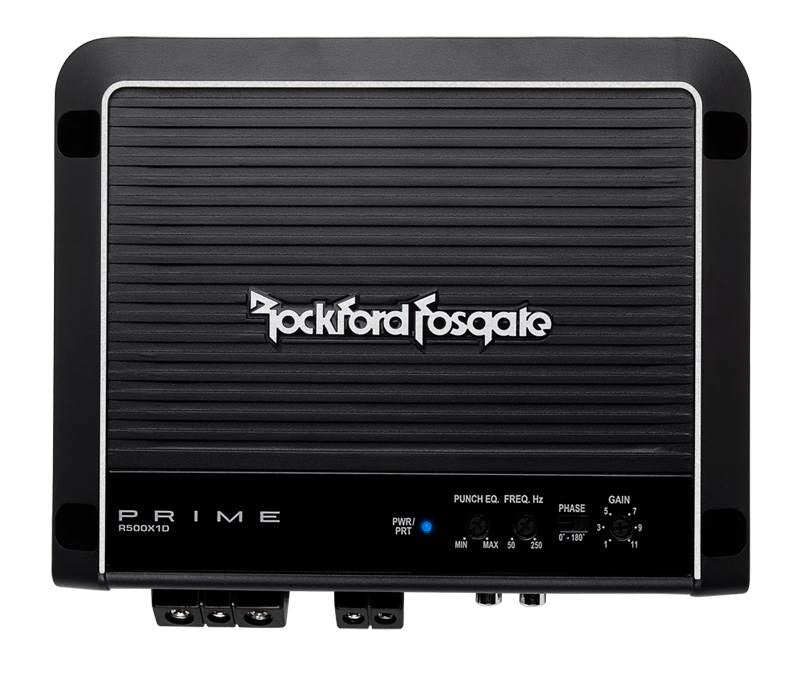

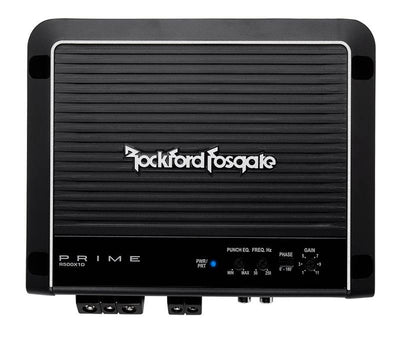

The Prime **Rockford Fosgate R500X1D** is a 500 watt mono amplifier using efficient Class D circuit topology. This amplifier is capable of running a 2 Ohm load and includes on board Punch Bass and remote Punch Level Control.

Class D

MOSFET power supply

Cast aluminum heatsink

**We are an authorized Rockford Fosgate dealer**

• **Amplifier:**
• New Rockford Fosgate R500X1D 500 Watt Mono D Car Amplifier
• Rated Power:
• 250 Watts x 1 @ 4 Ohms
• 500 Watts x 1 @ 2 Ohms
• Dynamic Power:
• 333 Watts x 1 @ 4 Ohms 0° Res
• 647 Watts x 1 @ 2 Ohms 0° Res
• Class D
• MOSFET power supply
• Cast aluminum heatsink
• Over current protection
• Short circuit protection
• Muted turn on
• 12dB/octave Butterworth crossover
• RCA pass thru outputs
• On board Punch EQ with +18dB boost @ 45Hz.
• High level inputs
• 0°/180° Phase Switch
• Real time output and power supply thermal sensing
• Remote Bass Control Included!
• 4 Gauge power/ground connectors
• CEA 2006 Compliant
• Product Condition: Brand New
• Item Weight: 6 lbs.
• Part Number: **R500X1D**
• 1 Year Manufacturer Warranty

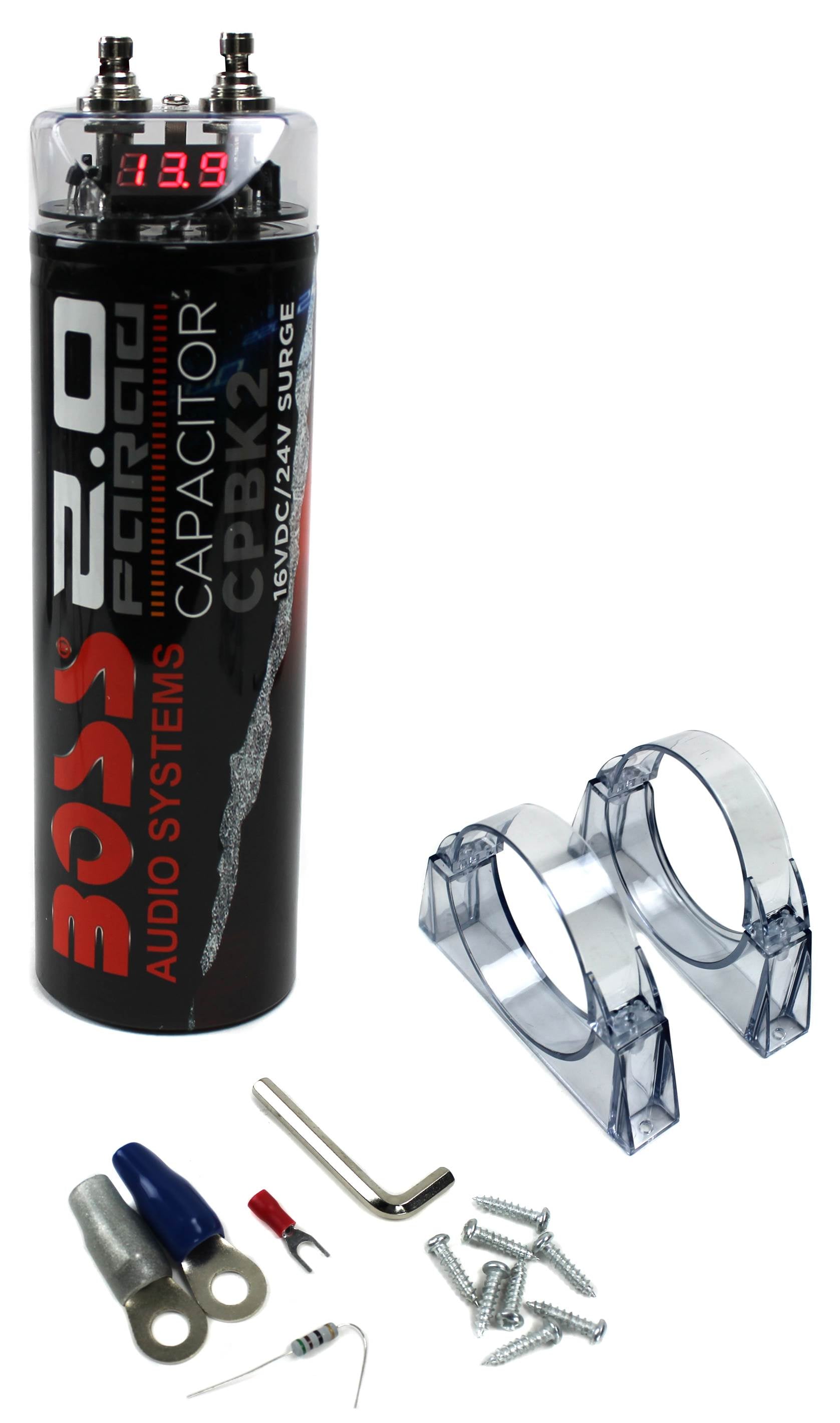

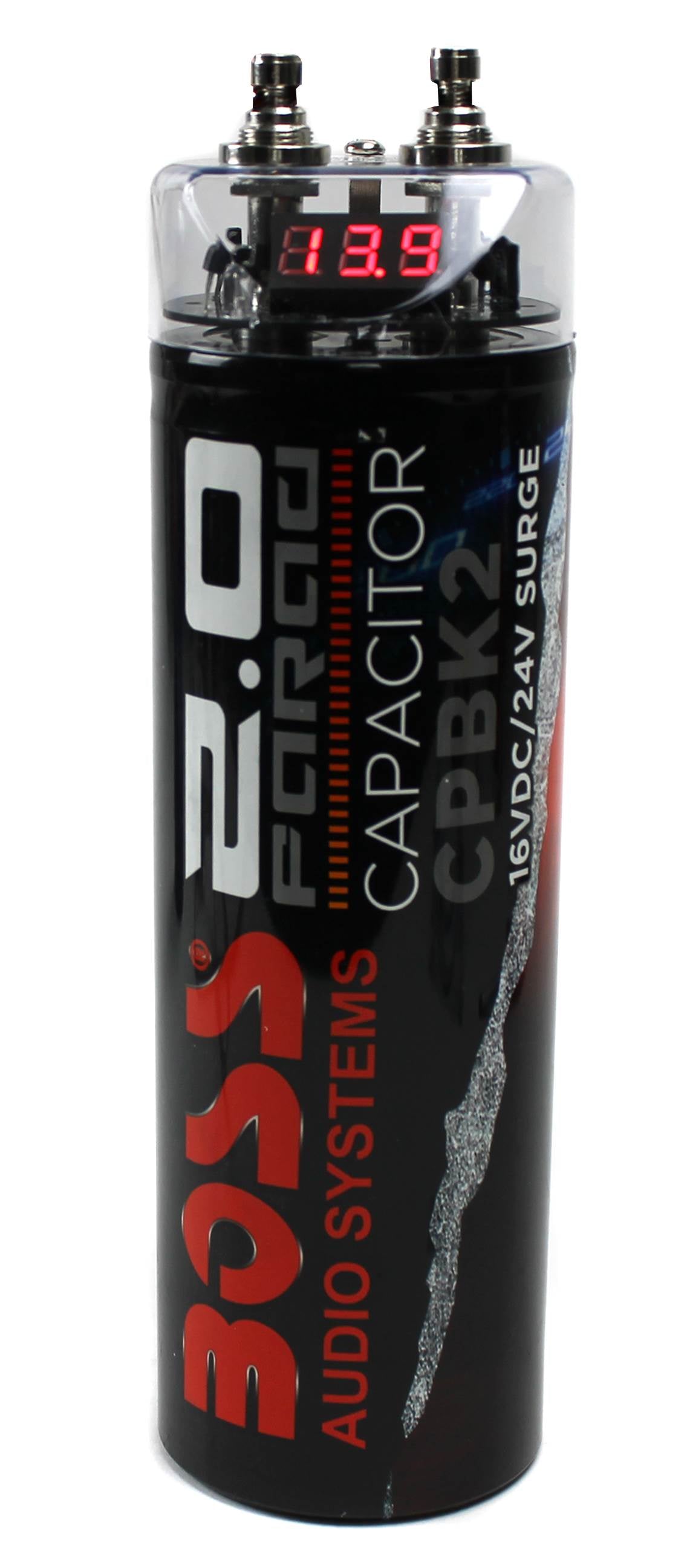

• **Capacitor*
• New **Boss CPBK2** 2 Farad Car Capacitor
• Equivalent Series Resistance (ESR): 0.00195 Ohms @ 120 Hz @ 25 Degrees C
• Low Level Input Voltage: 20 Volts
• Remote Terminal Screw
• Capacitance: 2 Farad, 2000000 Microfarad
• High Level Input Voltage: 24
• %Capacitance Tolerance: 10
• Finish Color: Black
• Dimensions: 10.3" x 3" x 3"
• Product Condition: Brand New
• Part Number: **CPBK2**
• 1 Year Manufacturer Warranty

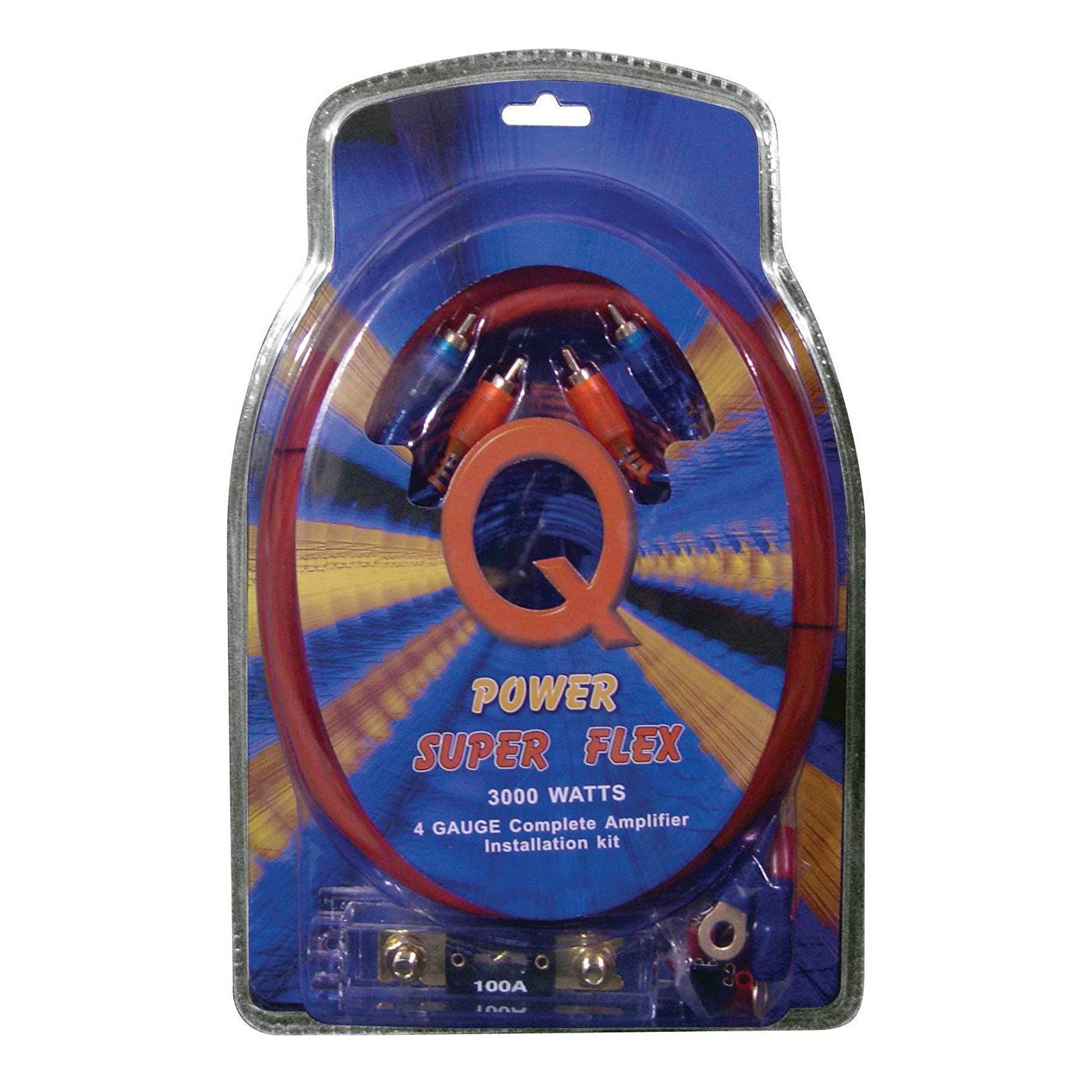

• **Amp Kit:**
• Super Flex amp kit
• Handles up to 3000 watts of power
• 4-gauge wiring
• Ready for complete amplifier installation
• Get your amplifier wired up and ready to go in no-time
• Kit includes:
• Deluxe high quality fuse holder
• Gold-plated ANL fuse (100 amps)
• 17 feet of 4-gauge Super Flex orange power cable
• 3 feet of 4-gauge Super Flex blue power cable
• 17 feet of 18-gauge blue turn-on wire
• 25 feet of 16-gauge Super Flex speaker wire
• 17 feet of deluxe RCA interconnect
• 3 grommets
• 5/16-inch gold plated ring terminal
• 1/4-inch gold plated ring terminal
• Number 10 gold-plated ring terminal
• 4 gold-plated speaker terminals
• 20, 4-inch wire ties
