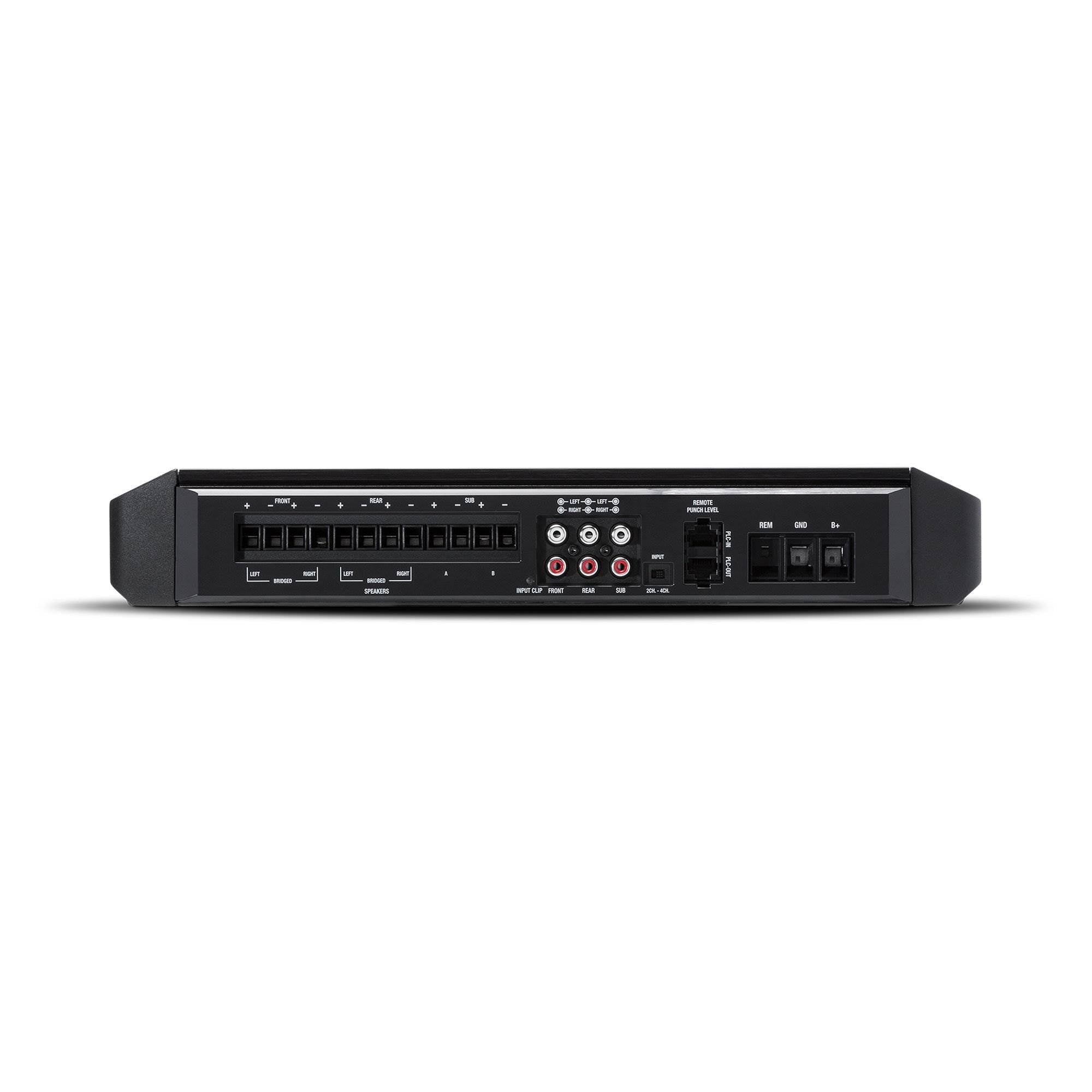

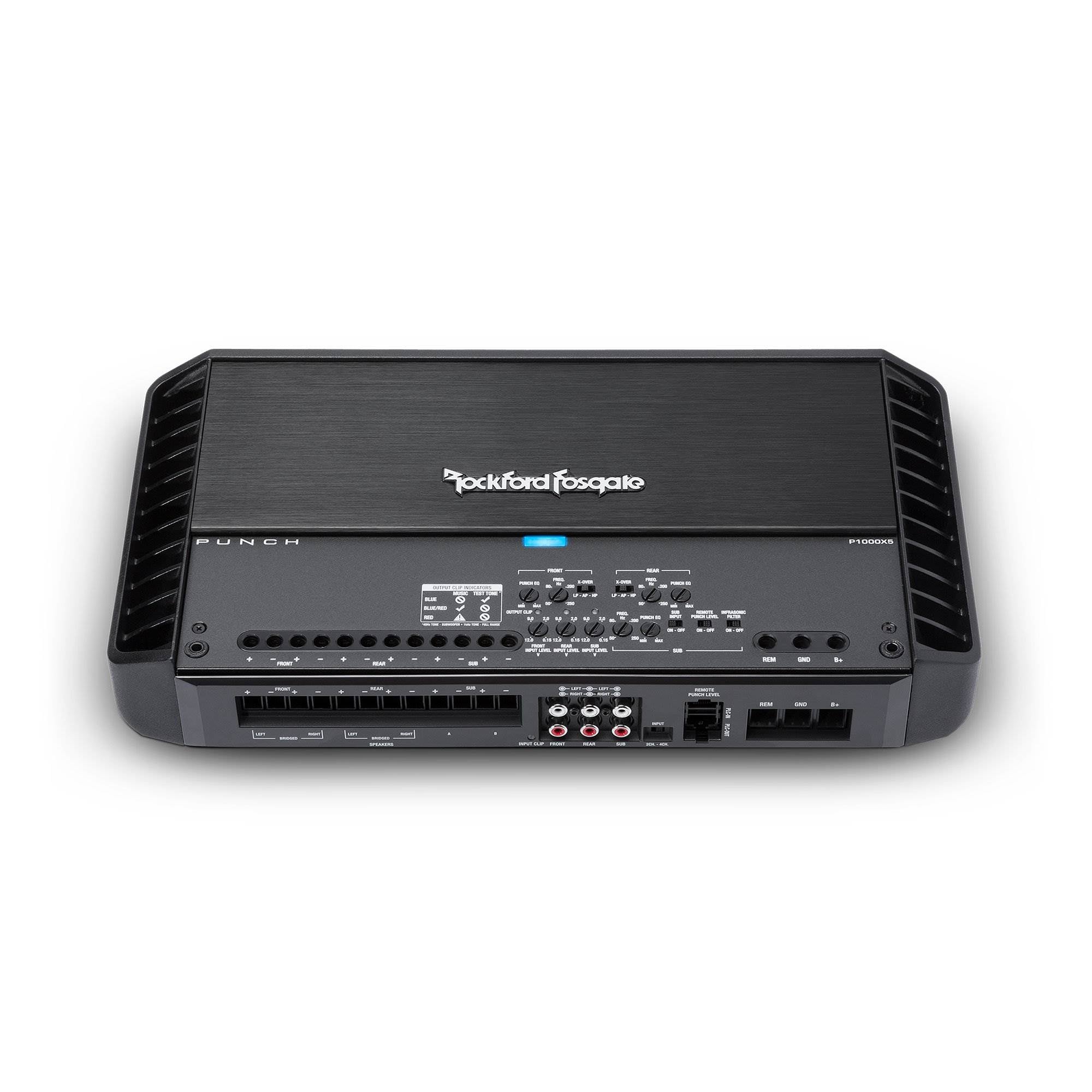

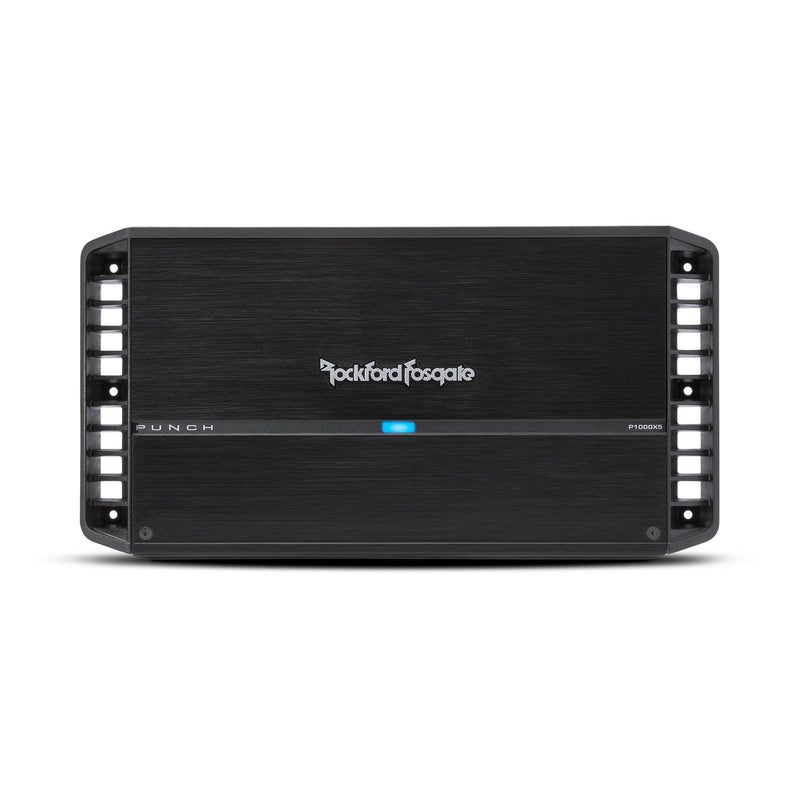

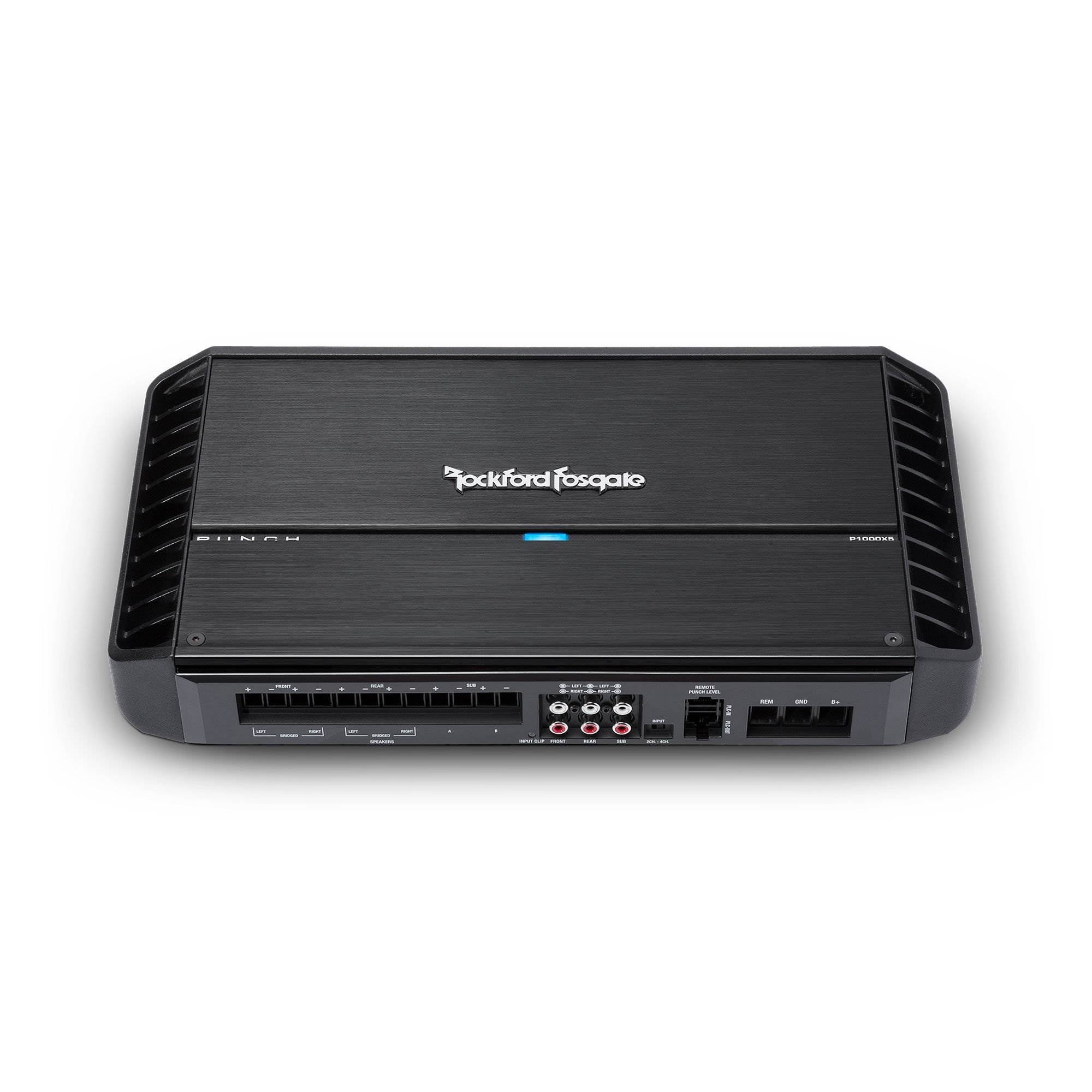

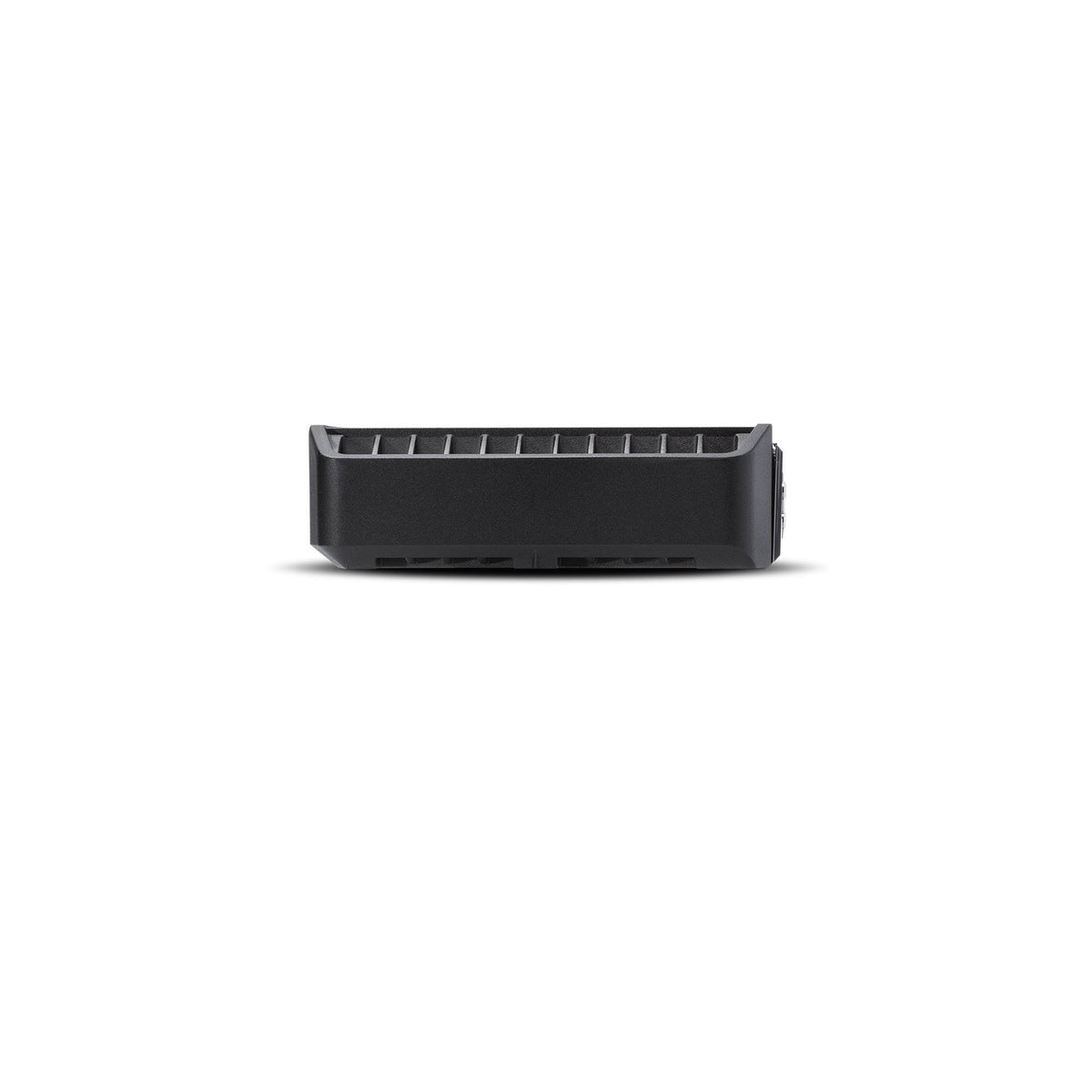

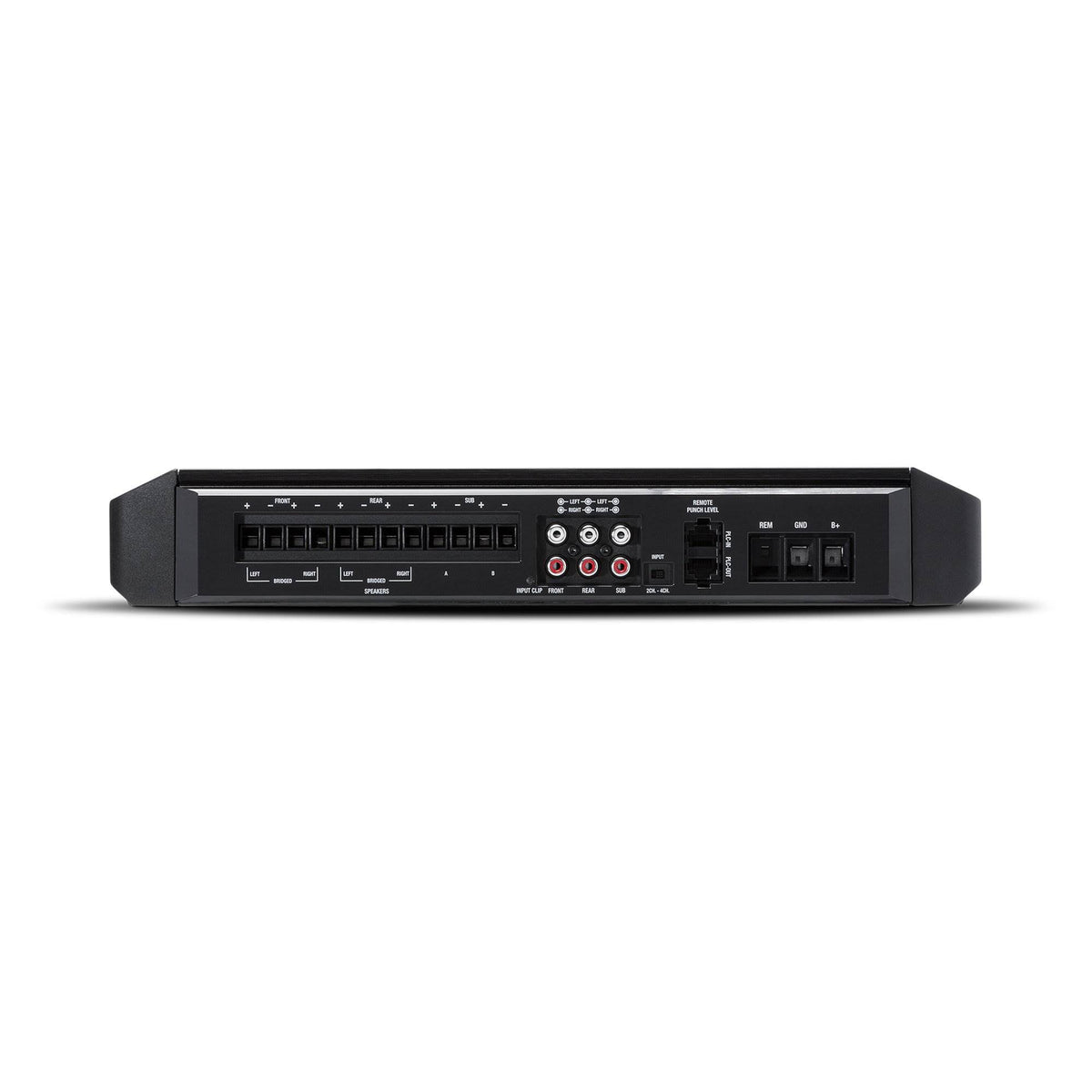

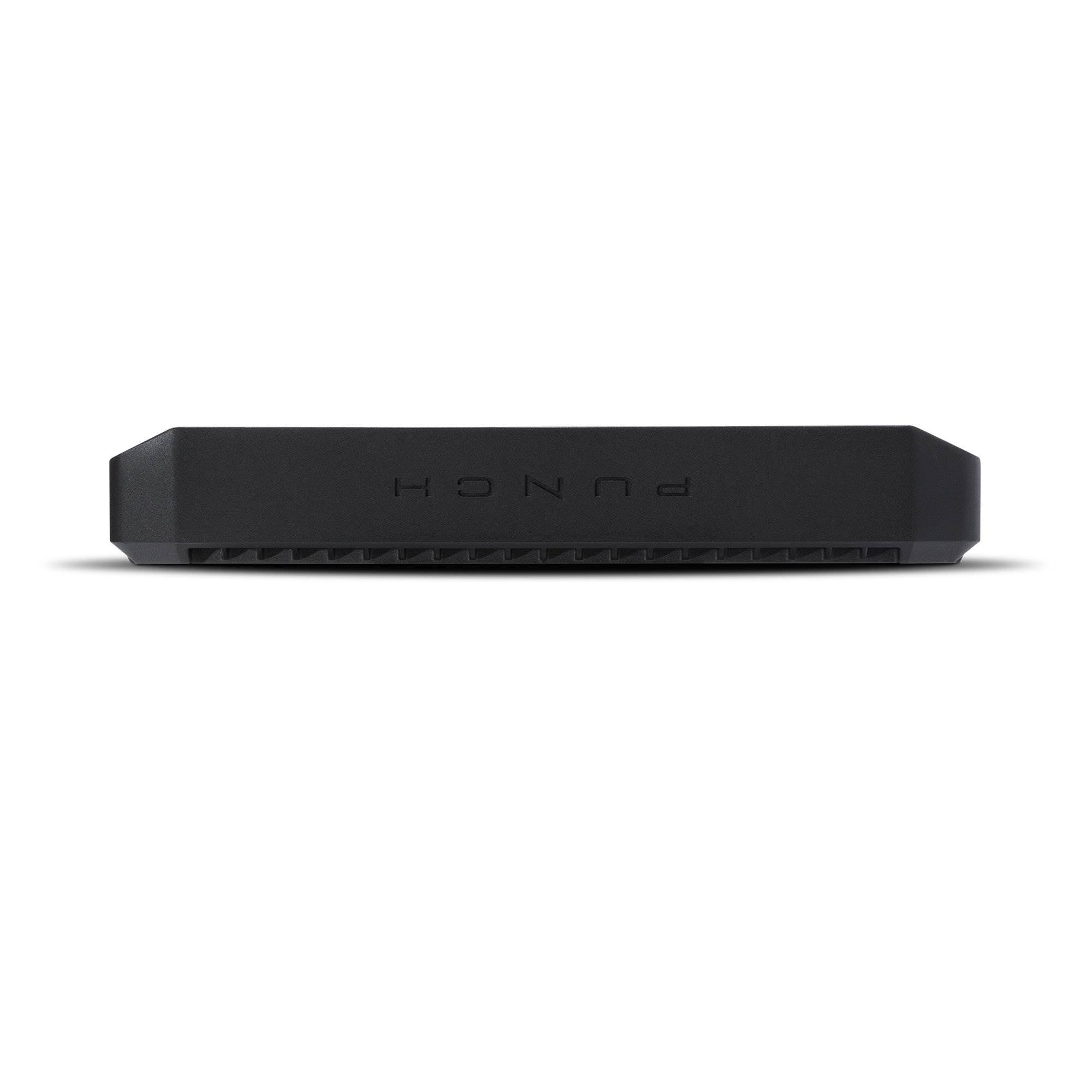

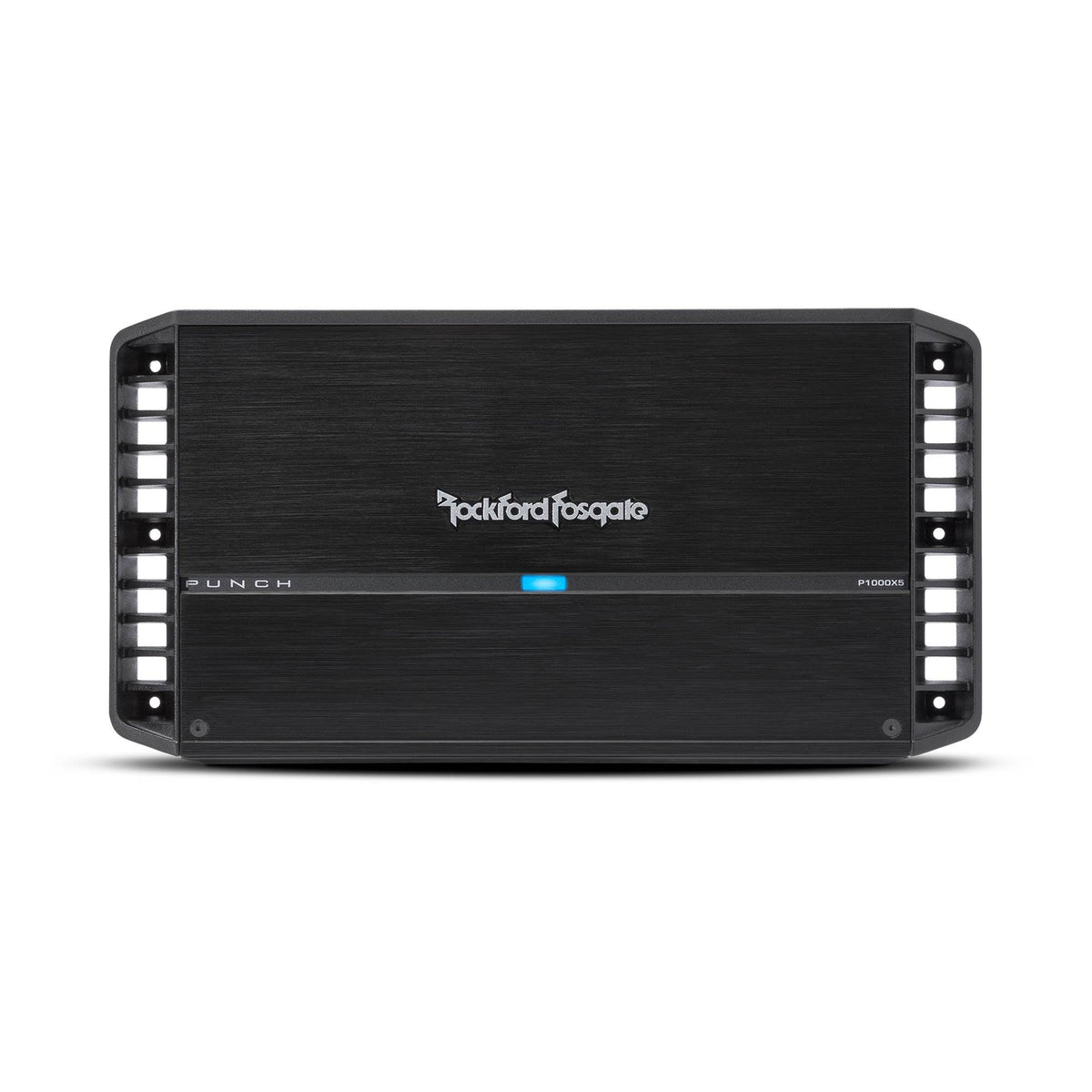

Rockford Fosgate Punch 1,000 Watt Class BD 5 Channel Car Amplifier Amp(Open Box)

####Item is open box, unharmed and in very good condition. All accessories or parts are included with the item.####

• Boost your car's sound with this 5-channel amplifier
• Bridgeable front and rear channels lets you run dash speakers, rear speakers, and, on the 5th channel, subwoofers
• Class BD amplifier that uses 1,000 watts of total rated power
• Handles high-level inputs with an auto turn-on circuit
• Protects against thermal, over-current, and short circuit failures so you can trust on your sound coming reliably and safely
• Get going quickly and easily with C.L.E.A.N. set-up circuit with in/out clip LEDs that help you match sources to their amp

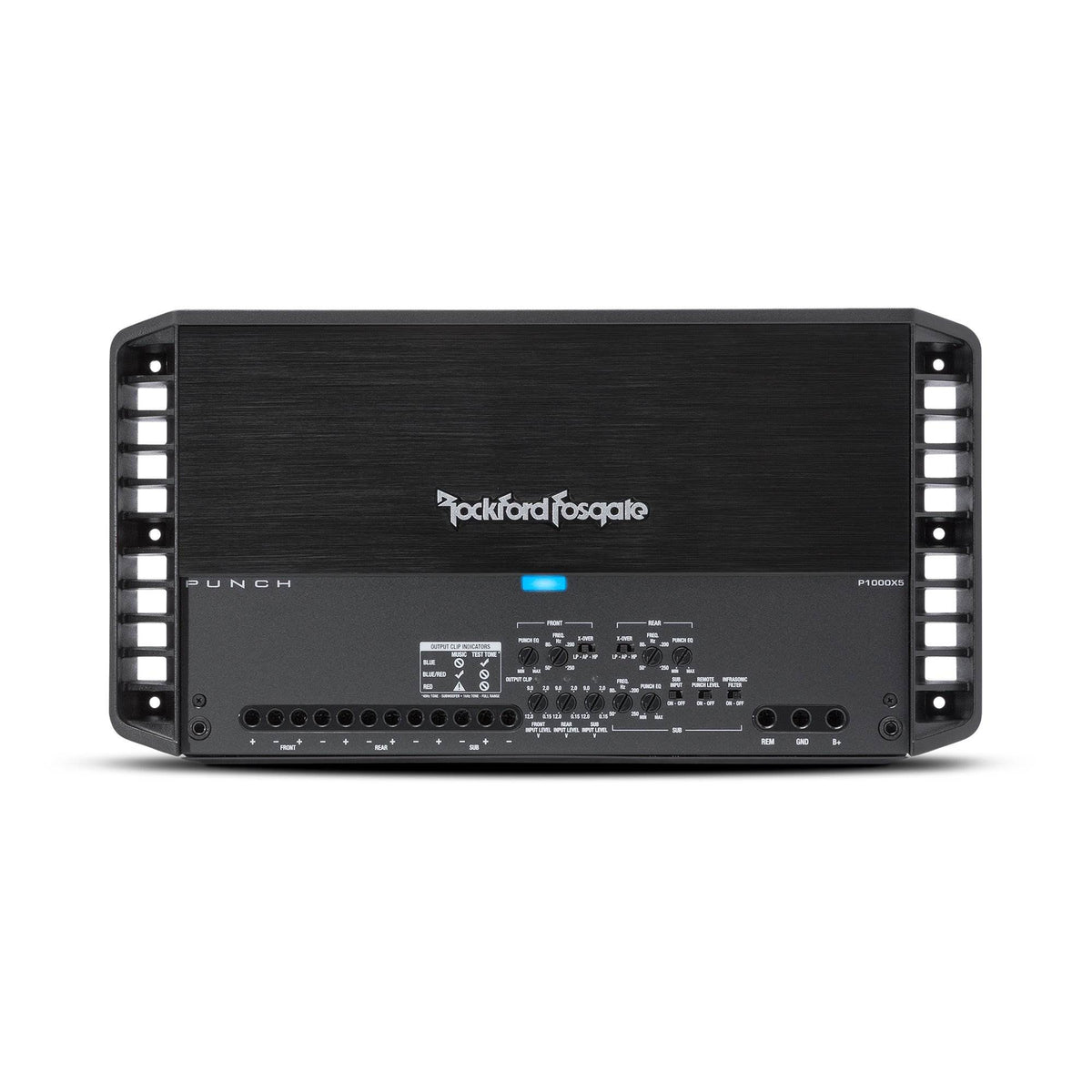

• Control your sound without the bulk with its stealth, top-mounted control panel
• Includes a cast aluminum heatsink that looks sleek and handles heat and power efficiently
• CEA-2006 and CE compliant
• Rated power:
• 75 watts x 4 + 150 watts x 1 @ 4-Ohm
• 125 watts x 4 + 300 watts x 1 @ 2-Ohm
• 500 watts @ 1-Ohm
• Dynamic power:
• 115 watts x 4 + 299 watts x 1 @ 4-Ohm
• 190 watts x 4 + 540 watts x 1 @ 2-Ohm
• 863 watts x 1 @ 1-Ohm
• Signal inputs:
• Input switch: Hi/low level input
• Input switch: 2/4 channel input
• Hi/Low level: 3 RCA pair
• Sub: Front/sub input switch
• Controls:
• Sub tone: 0dB to +18dB @45 Hz
• Front crossover: 50 Hz to 250 Hz high-pass @12dB/Octave
• Rear crossover: 50 Hz to 250 Hz high-pass @12dB/Octave
• Sub crossover: 50 Hz to 250 Hz low-pass
• Sub crossover: 28 Hz infrasonic filter @12dB/Octave
• Specifications:
• Front/Rear frequency response: 20 Hz to 20 kHz +/
• 3dB
• Sub frequency response: 20 Hz to 500 Hz +/
• 3dB
• Input sensitivity: 150 megavolts to 12 volts
• Circuit topology class: Class A/B + Class BD (sub)
• Front/Rear average efficiency: 66% @ 4-Ohm
• Sub channel average efficiency: 80% @ 4-Ohm
• Total harmonic distortion: <1.0%
• Channels: 5
• Power wire gauge: 4 AWG
• Speaker wire gauge: 12 AWG
• Power input/Speaker output connector: Block
• Cooling: Convection
• Average current draw: 75 amps
• Maximum current draw: 150 amps
• Operating voltage: 9 to 16 vehicle dynamic control (VDC)
• Part number: P1000X5
• Color: Black
• Dimensions (L x W x H): 15.03 x 7.76 x 2.38 inches
• Product Condition: Open Box – Like new
• Product Warranty: 60-day VMInnovations warranty
