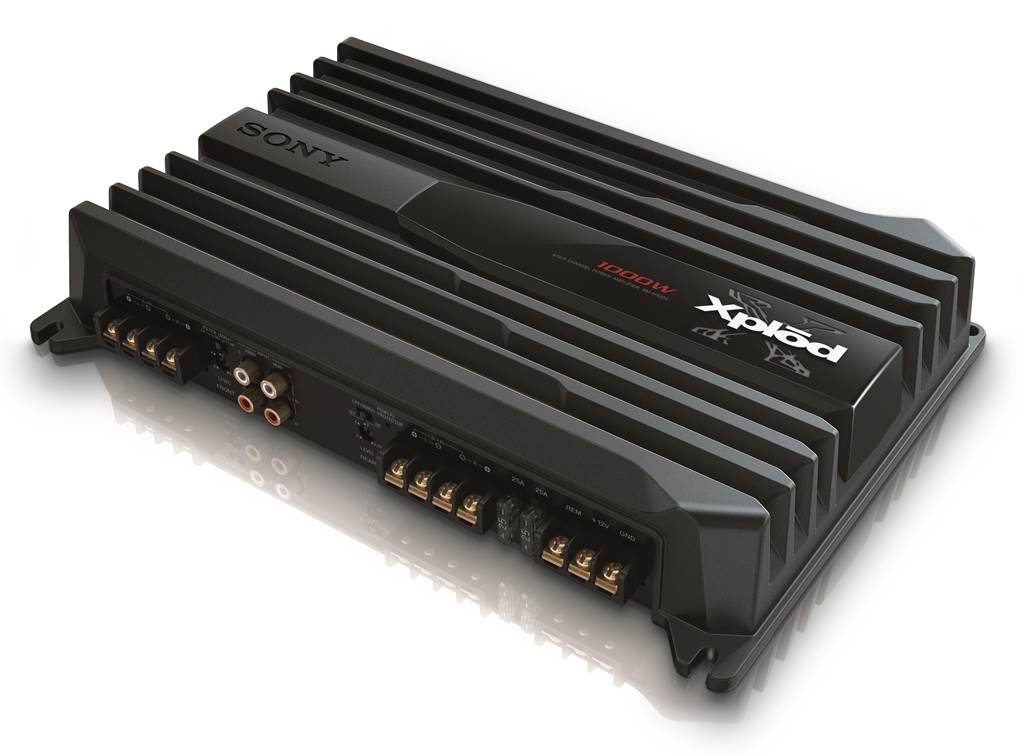

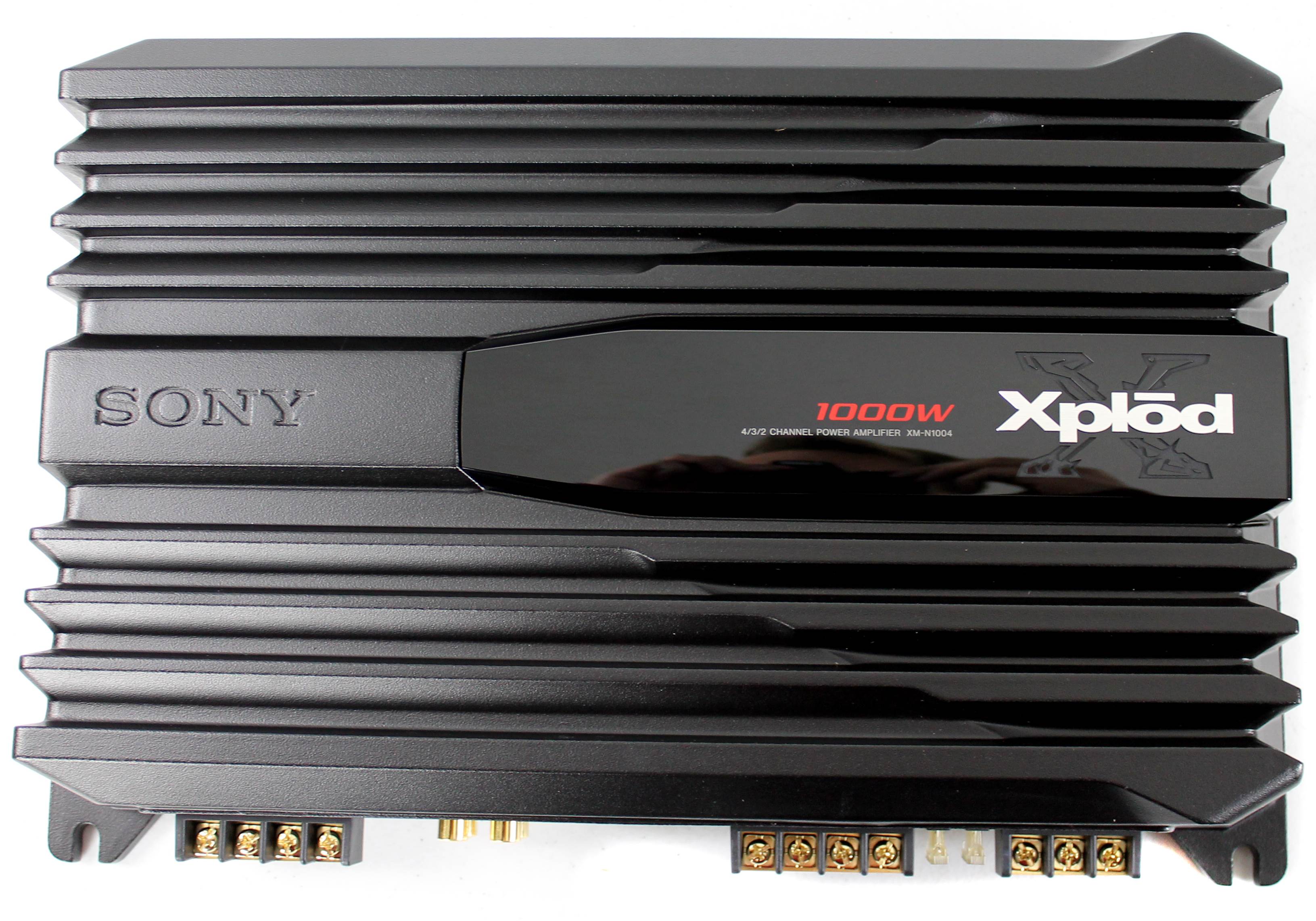

Sony XM-N1004 1000 Watt 4-Channel Class AB Car Audio Amplifier Amp - Open Box

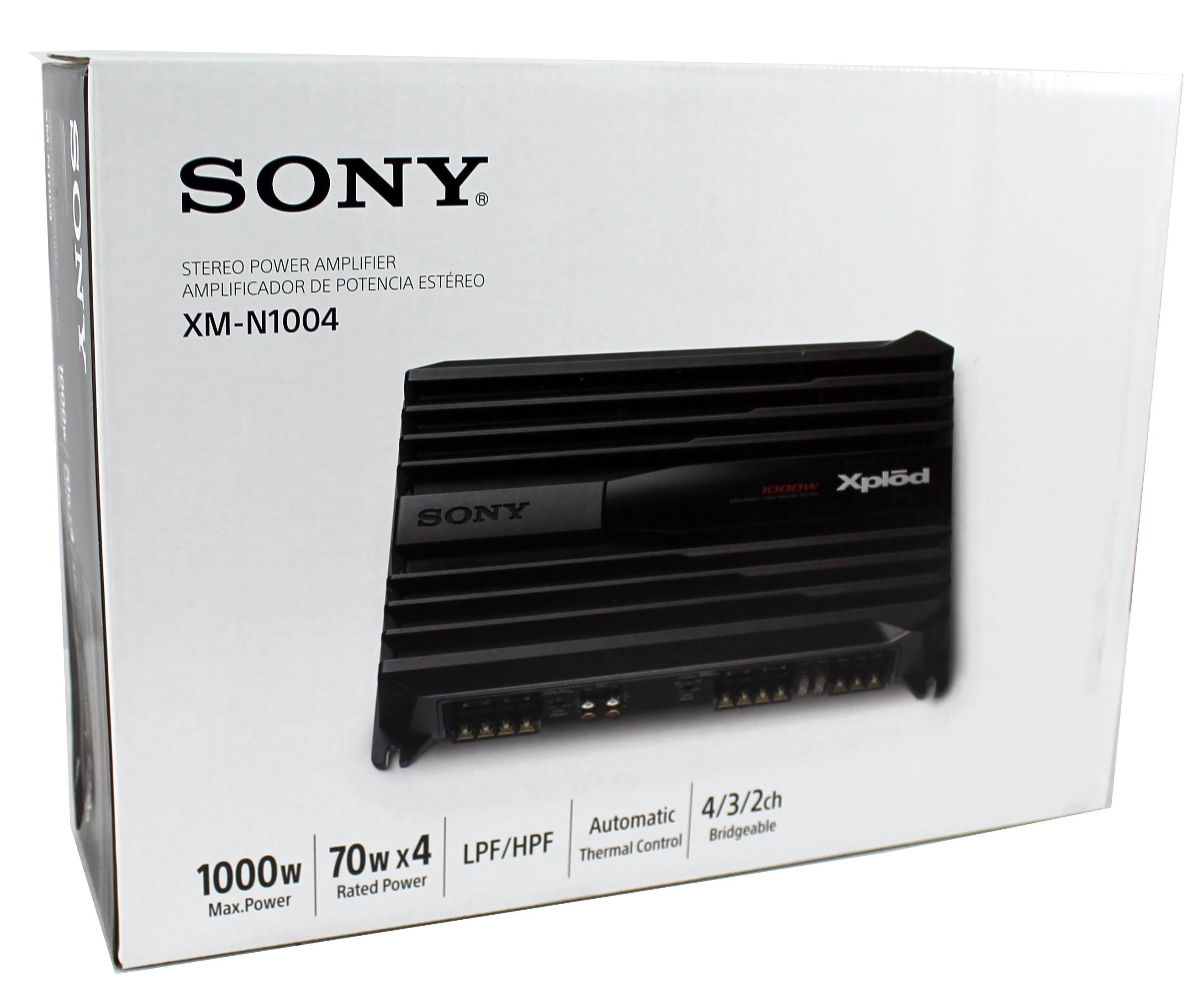

####This item is missing its original box, and manuals. Item will be packed and re boxed, and is in very good condition overall!#####

**We are an authorized Sony dealer**

The **Sony XMN1004** 4 channel car amplifier features a MAX power handling of 1000 watts and a RMS power handling of 70 watts per channel at 4 ohms impedance. Other features include the unique thermal control chassis is designed to circulate air and cool the amplifier for powerful sound output.

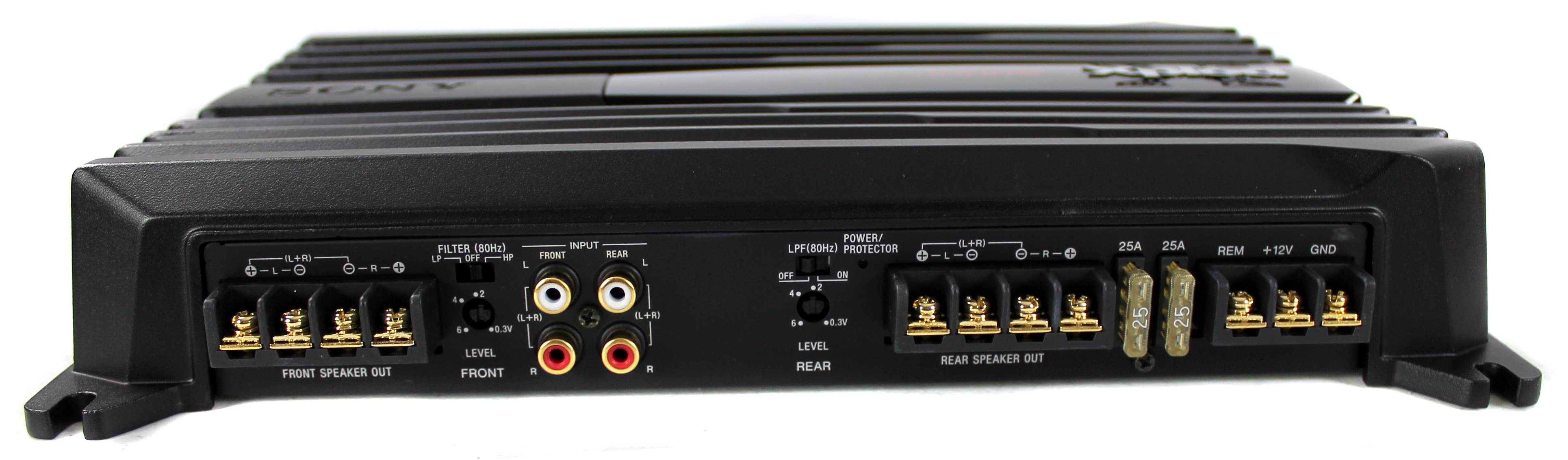

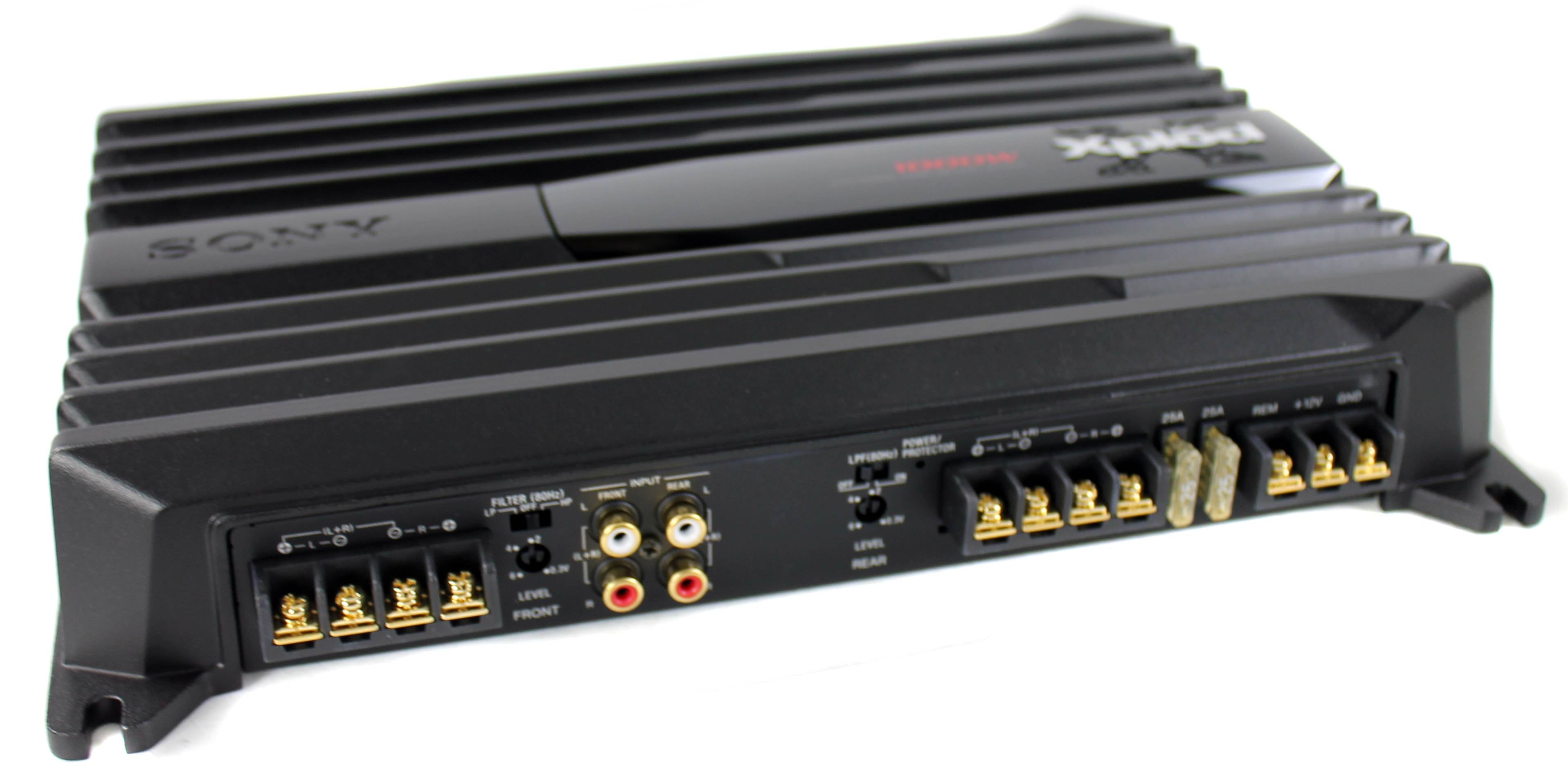

Single Sided Connections

Color : Graphite

MAX Power: 1000 Watts

Sony's Automatic Thermal Control circuit actually lowers the output levels to reduce amplifier temperature so your music continues to play. Components such as audio capacitors, power MOSFETs and choke coils are carefully selected for high quality sound reproduction as well as reliability.

• Automatic Thermal Control
• Features:
• New Sony XM N1004 1000 Watt 4 Channel Class AB Car Audio Amplifier Amp XMN1004

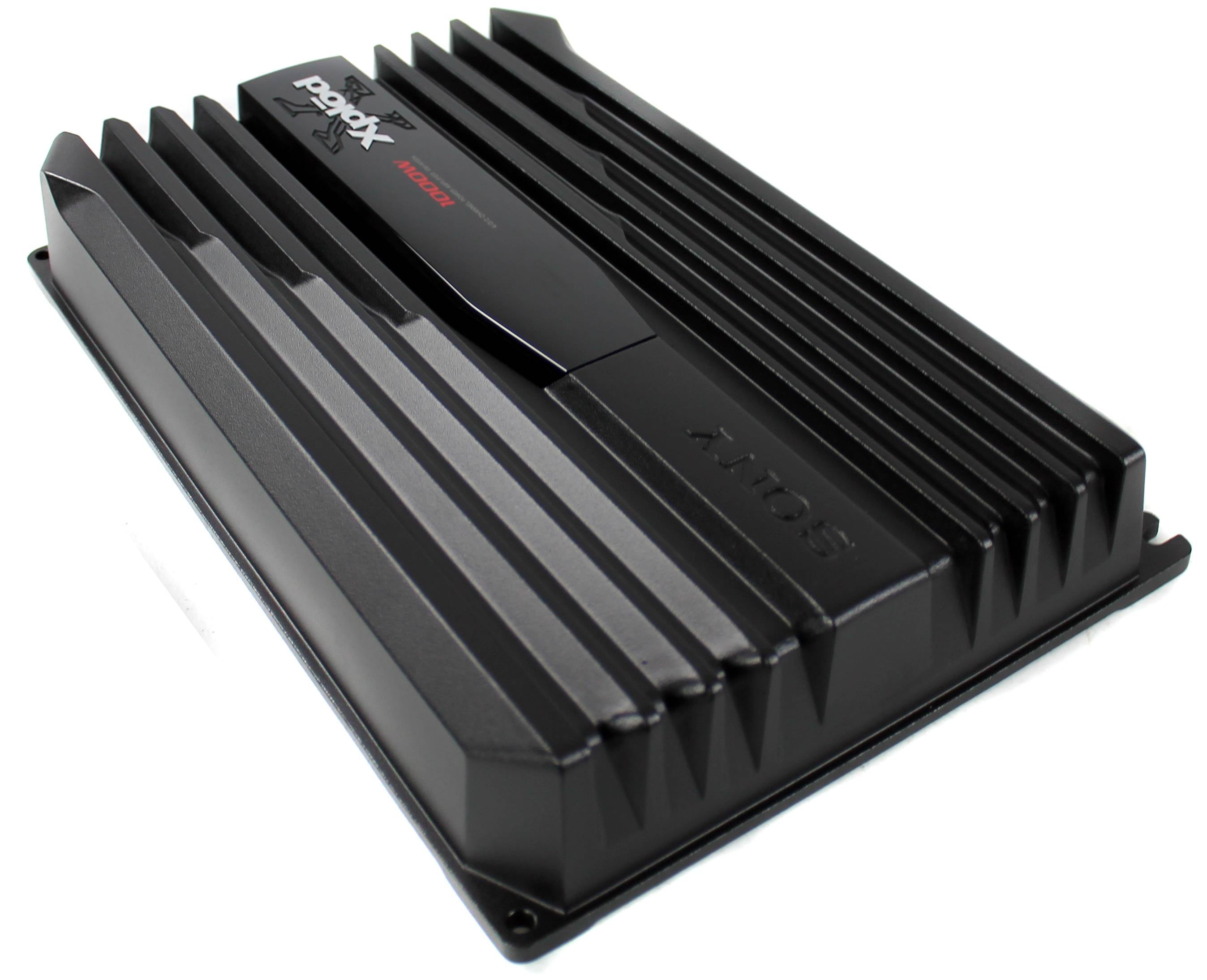

• Efficient Cooling Design
• High Quality Coponents
• Specifications:
• Single Sided Connections
• LPF / HPF Crossovers
• Audio Out : Speaker Terminals
• Inputs and Outputs
• Color : Graphite
• Level Control : 0.3 6.0V (RCA input)
• Audio Features
• Frequency Response : 5 Hz 50 Khz (+0/ 3 db)
• Signal to Noise Ratio (dB) : 93 dBA
• Signal Circuitry : Selectable HPF/LPF crossovers
• Rear crossover: 18dB/oct HPF/LPF @ 80 HZ
• Band : Front crossover: selectable 12dB/oct HPF/LPF @ 80 HZ
• Input Level : 0.3 6.0V (RCA input)
• Pulse Power Supply
• Power Supply : OTL (Output Transformerless) circuit
• Harmonic Distortion : 0.05% (1kHz @ 4 ohm)
• RCA Audio Input(s) : Pin Jacks: 0.3 6V
• Audio
• 4 8 Ohms mono
• Speaker Impedance : 2 8 Ohm stereo
• Power Ad Hoc : 70W per channel at 4 Ohms from 20Hz 20kHz with < 1% THD1
• Amplifier Section
• Internal Power Supply : OTL (Output Transformerless) circuit. Pulse Power Supply
• Input Voltage : 10.5 16V Power Supply Voltage
• 175W x 2 RMS (20Hz 20kHZ 1.0% THD+N, at 4 Ohms)
• 85W x 4 (20Hz 20kHz, 1% THD+N, 2 Ohms, 14.4V)
• Rated Output : 70W x 4 (20Hz 20kHz, 1% THD+N, 4 Ohms, 14.4V)1
• Output Power : Maximum Output: 170W x 4 (at 4 Ohm)
• Current Drain : At rated output: 36A (at 4 Ohms) Remote Input: 1 mA
• Power Requirements : 12V DC Car Battery (Negative Ground)
• Power
• Max power output : 1000W max power
• Input(s) : RCA Pin Jacks
• Output(s) : Speaker Terminals
• Line Level Input(s) : RCA pin jacks
• Audio In : RCA Pin Jacks
• Dimensions (Approx.) : 13 1/2" x 2 1/8" x 9 1/8" (342 x 55 x 232 mm)
• Condition: Open Box
• Item Weight: 6.8 lbs.
• Part Number: **XMN1004**
• 1 Year Manufacturer Warranty
