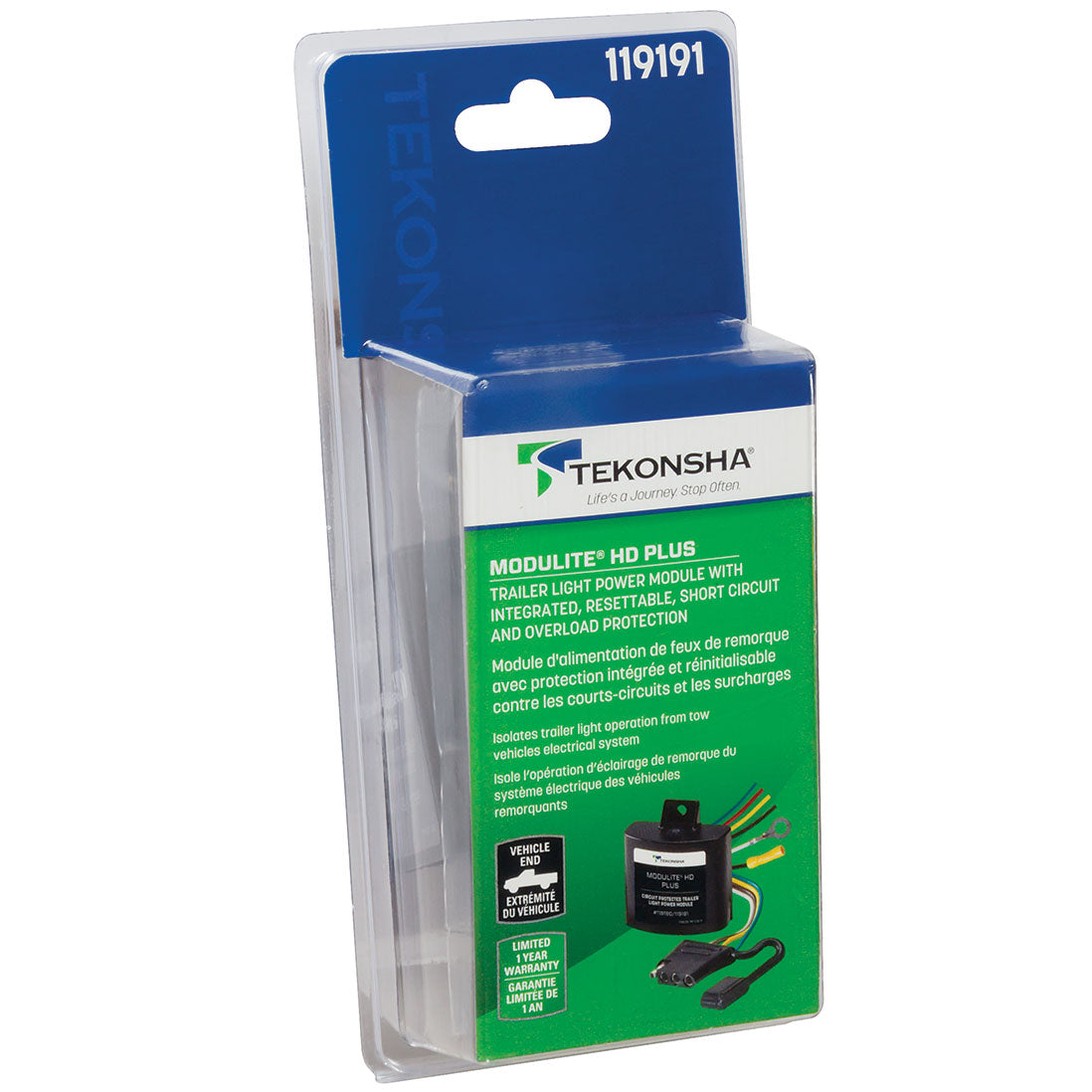

Tekonsha ModuLite HD Plus Trailer Light Module Kit w/ Circuit Protection (Used)

####Item has been opened and has signs of use; this could be scuffs or scratches from use, dirt and/or dust from use. The item is in otherwise good working condition. All parts or accessories will still be intact.####

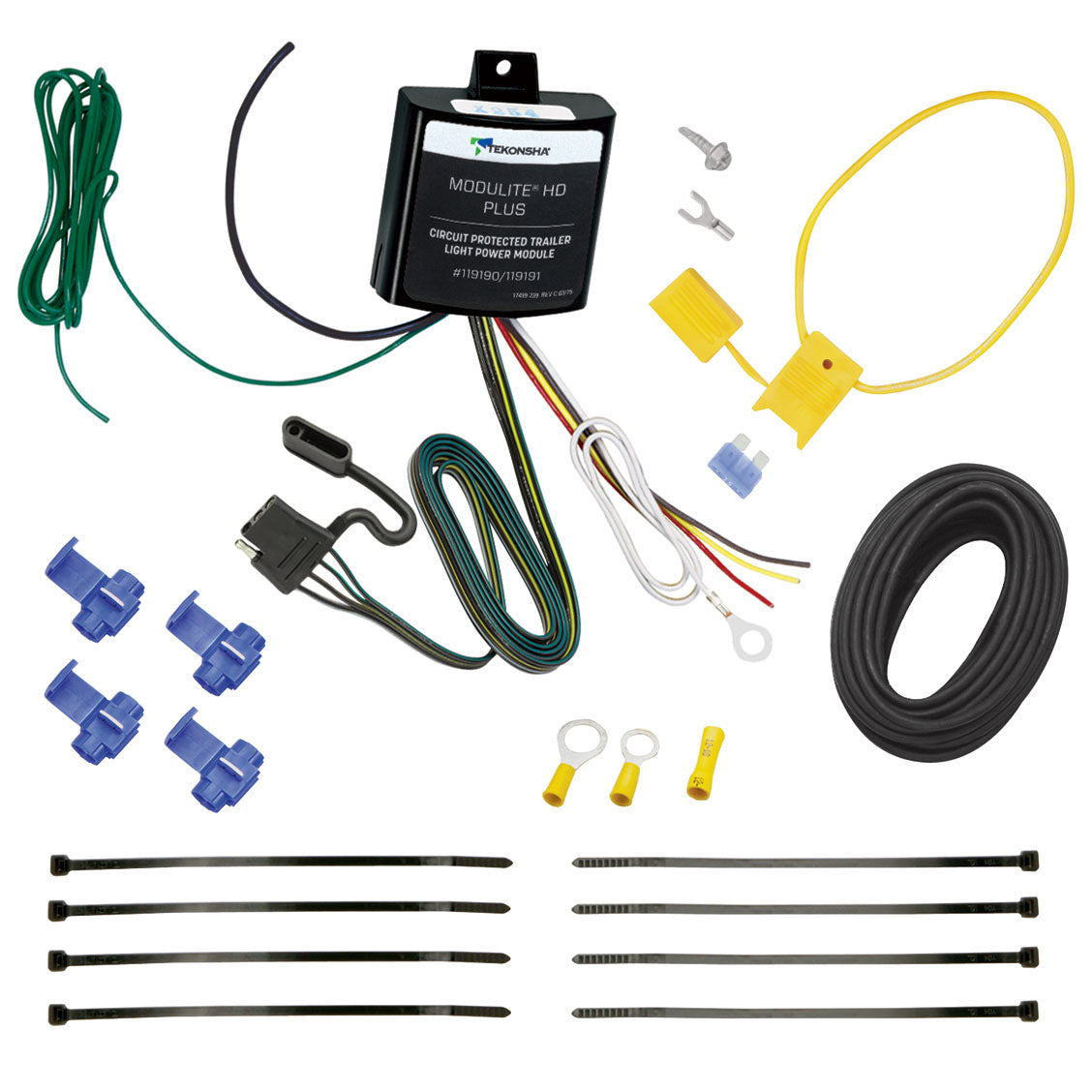

• Power the tail lights on your hitched trailer with this ModuLite trailer light power module; Includes an integrated circuit and overload protection module and an installation kit
• Rated for up to 4.2 amps for turn/stop lights and 7.5 amps for the taillight circuit
• Draws power directly from the vehicle battery and uses less than 5mA of the vehicle circuit for sensing to turn the trailer functions on and off
• Universal ModuLite designed for use on most vehicles, including hard-to-wire vehicles; Works with LED and incandescent bulbs on vehicles and trailers; Interprets/decodes multiplex signal inputs (i.e. Audi, BMW, Mercedes and VW); Won't work with vehicles that have low-side switches
• Can be used on 2-wire and 3-wire systems; Uses a 4-flat connector type
• Has integrated re-settable Short Circuit and Overload protection, to safeguard itself and the tow vehicle from shorts and installation wiring mishaps
• Designed not to send feedback thru the vehicle circuits
• Trailer brakes will override the hazard lamps when the brake is activated
• Advanced circuitry works in all standard applications as well as vehicles with ST and STT pulse width modulation (PWM) systems
• All solid-state components in potted encapsulation
• Includes integrated protective cover
• Color: Black
• Product Condition: Used – item has signs of wear
• Product Warranty: 30-day VMInnovations warranty
