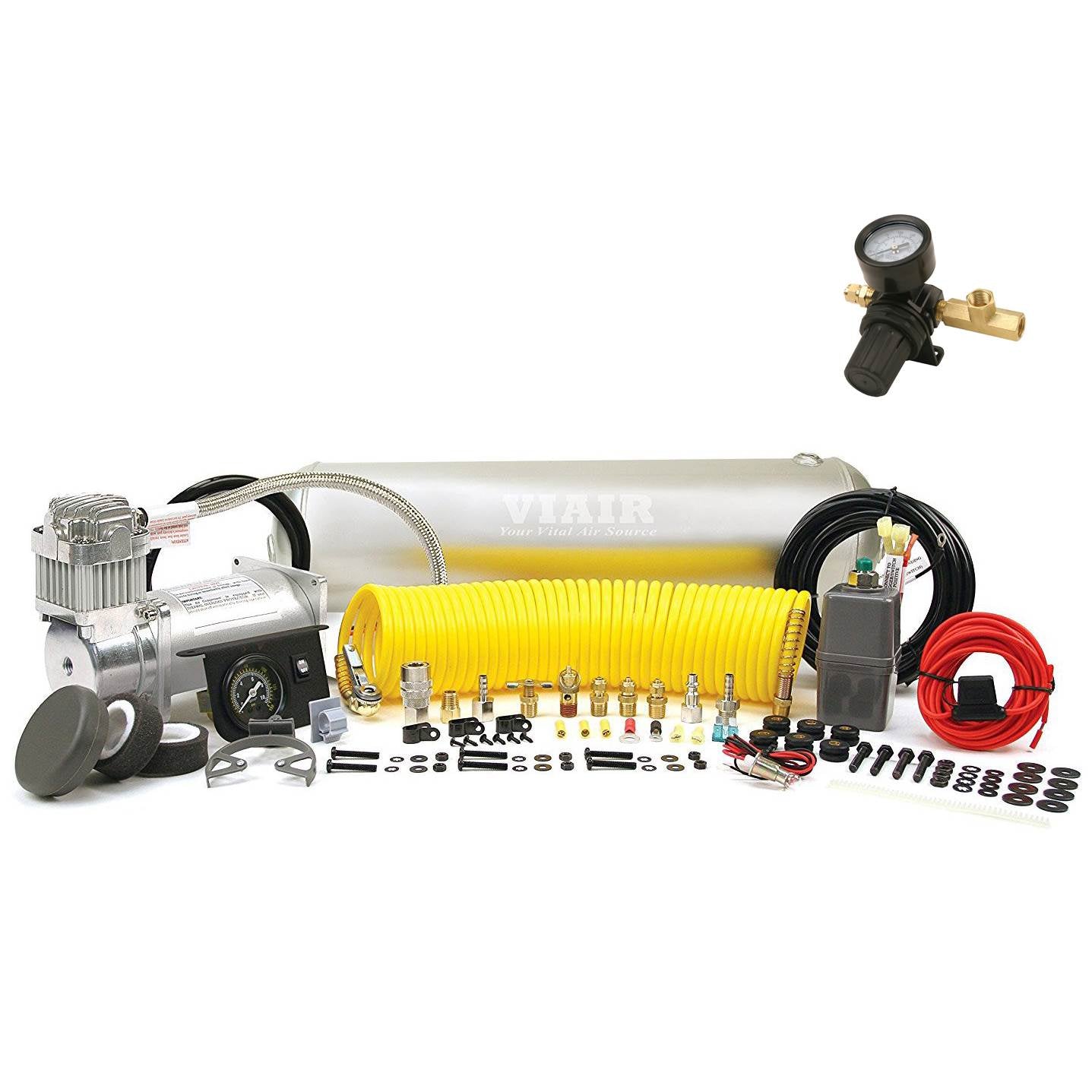

Viair Heavy Duty Onboard Air System Compressor & Gauge Tank Pressure Regulator

Keep your tires inflated and your ride safe when you keep the Viair Heavy Duty Onboard Air System onboard. This compressor is great for tires up to 35 inches big, small air tools, or even air horns and can be used continuously for up to 25 minutes or more.

This system features a 2.5 gallon air tank and 400C compressor. It has a 150 PSI maximum working pressure, 33% duty cycle, 2.54 CFM maximum flow, permanent magnetic motor, and includes all parts needed for tire maintenance and small pneumatic tools.

Included in this package is the Viair 0 220 PSI Gauge Air Tank Pressure Regulator. This regulator is super easy to read and allows you the ability to adjust inline pressure. It features a 0.25 inch NPT compression fitting, a T fitting, and 2 BSP fittings.

Used to regulate air pressure from an air tank to any pressure between 0 to 220 PSI, this regulator is most beneficial for installations that supply air to locking differentials and air tools. You can use it with your onboard air system or with other systems and tools.

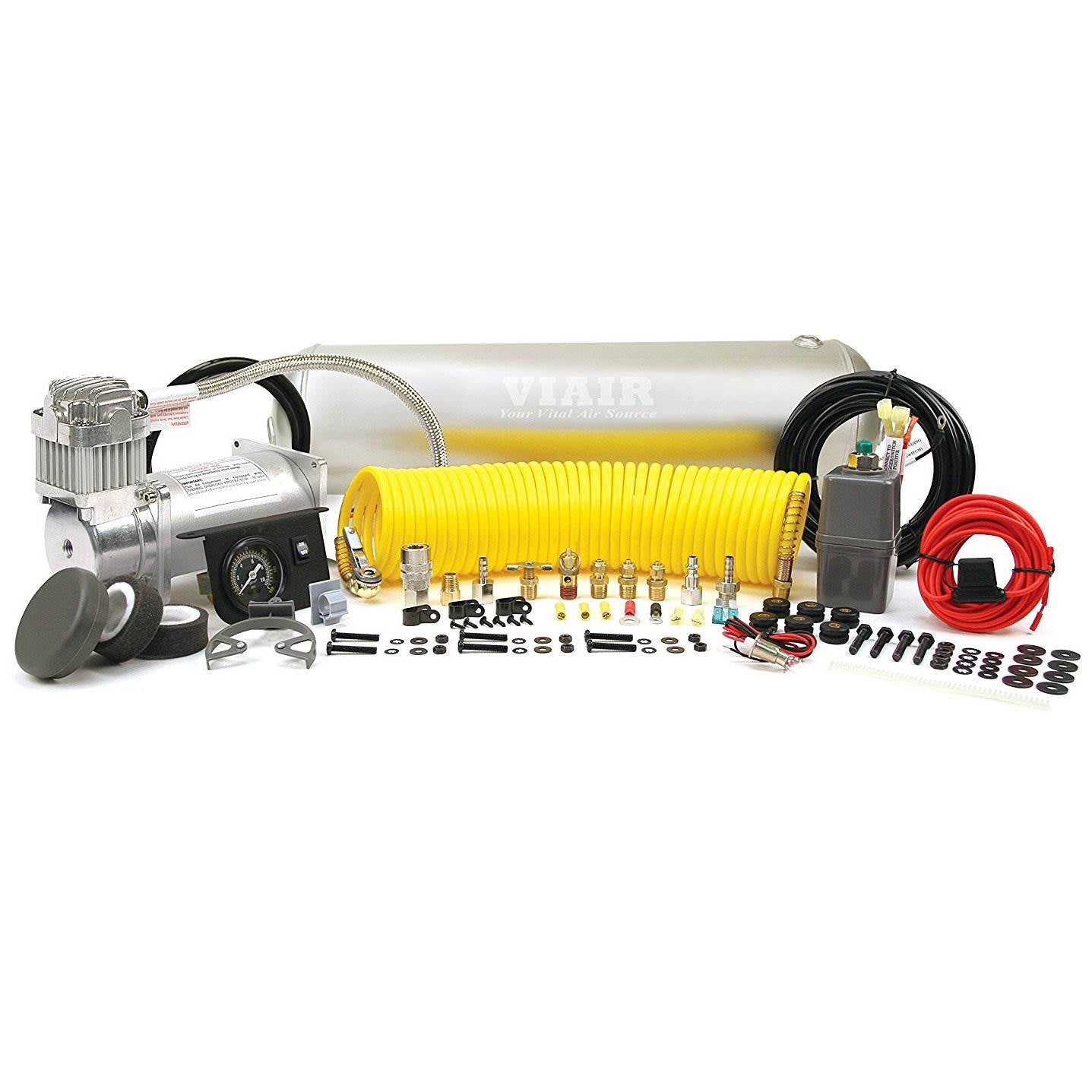

• Viair Heavy Duty Onboard Air System for up to 35 Inch Tires
• 2.5 gallon air tank and 400C compressor
• 150 PSI maximum working pressure and 33% duty cycle
• For inflating tires up to 35 inches
• Includes all parts needed for tire maintenance and small pneumatic tools
• Remote mount air filter assembly sealed compressor
• Dash panel gauge with on/off switch
• Pressure switch with relay (110 PSI on, 145 PSI off)
• Includes:
• 2.5 gallon air tank
• 400C compressor
• 2.54 CFM maximum flow

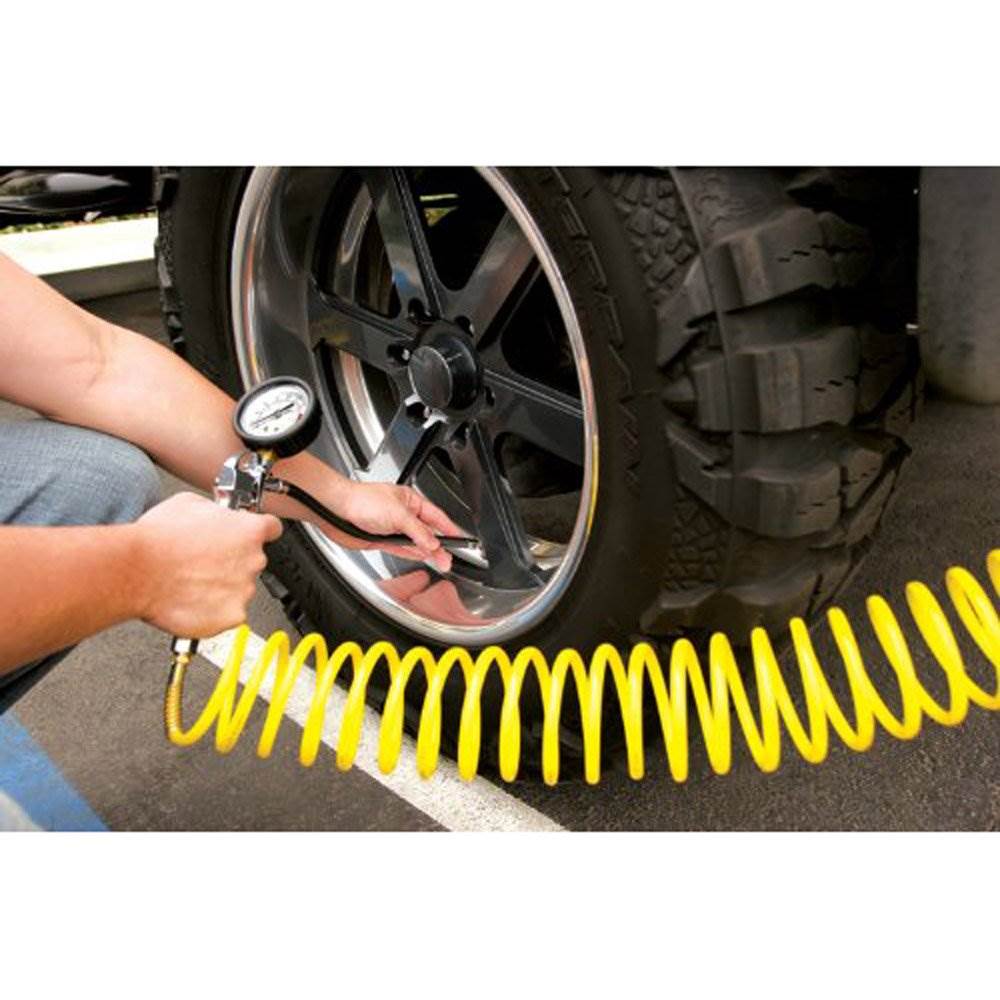

• 25 foot coil hose with tire chuck
• 0.25 inch quick connect stud (F)
• 0.25 inch quick connect coupler (F)
• 0.125 inch (F) to 0.25 inch (M)
• 0.25 inch 175 PSI safety valve
• 0.25 inch drain cock
• 3 0.25 inch compression fittings
• 20 foot 12 gauge wire with inline fuse holder
• 4 inch strip of continuous grommet material
• Accessory airline
• Electrical connections
• Specifications:
• Voltage: 12
• Motor: Permanent magnetic motor
• Duty cycle: 33% @ 100 PSI
• Maximum working pressure: 150 PSI
• Maximum amp draw: 28 amps
• Ingress protection rating: IP67
• Dimensions: 8.58 x 6.77 x 3.93 inches
• Part number: 10005
• Manufacturer warranty: 1-year warranty

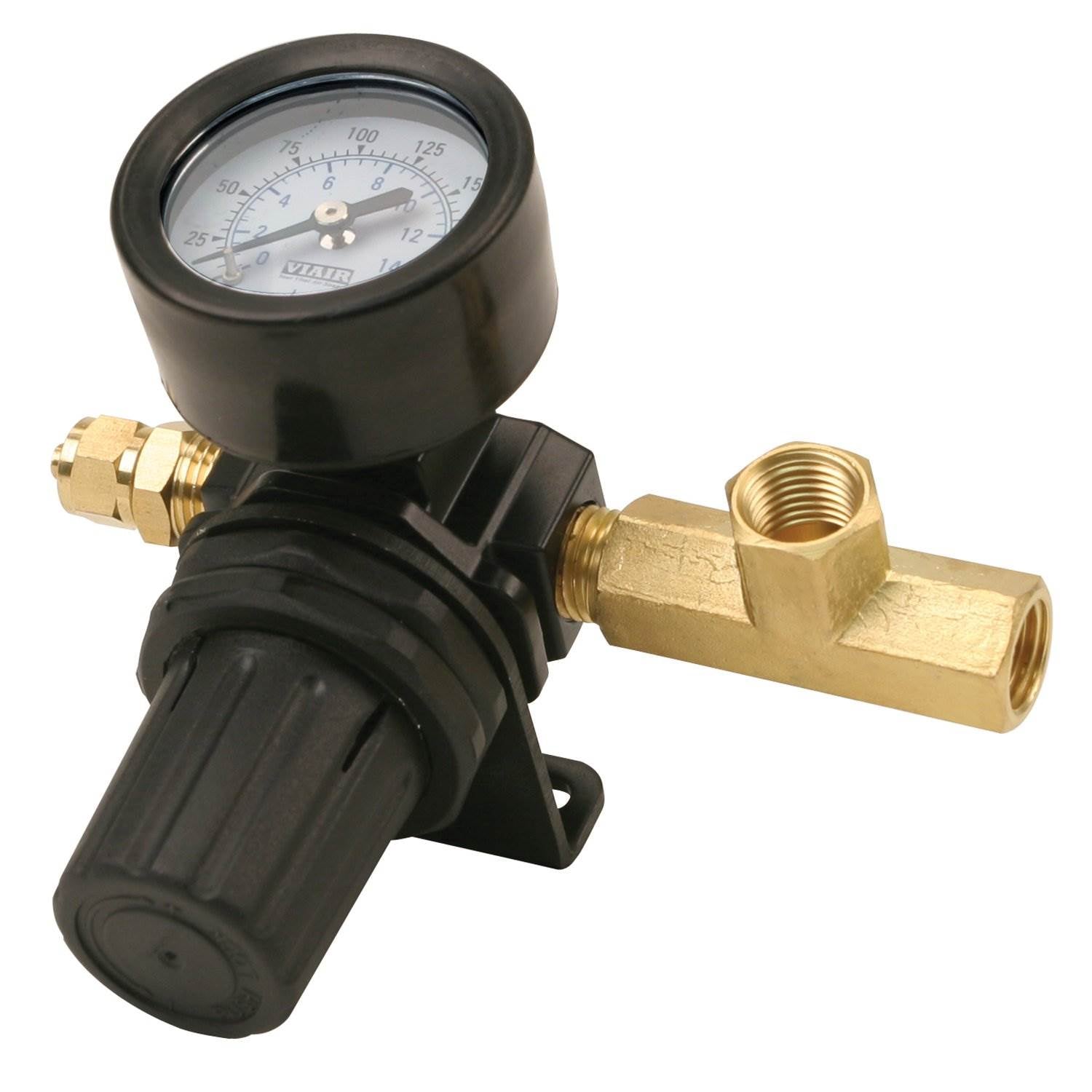

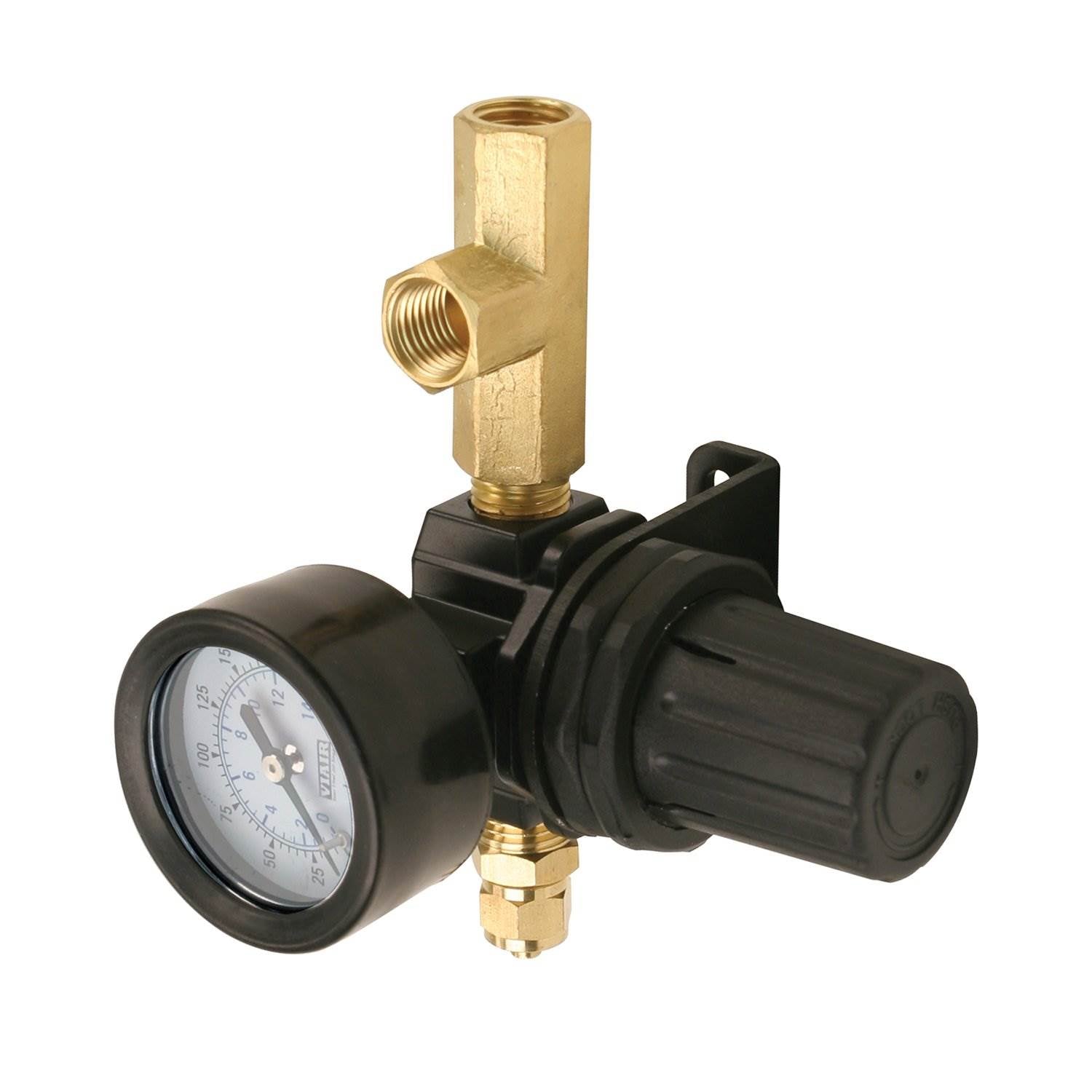

• Viair 0-220 PSI Gauge Air Tank Pressure Regulator
• Used to regulate air pressure from an air tank to any pressure between 0 to 220 PSI
• Useful for installations that supply air to locking differentials and air tools

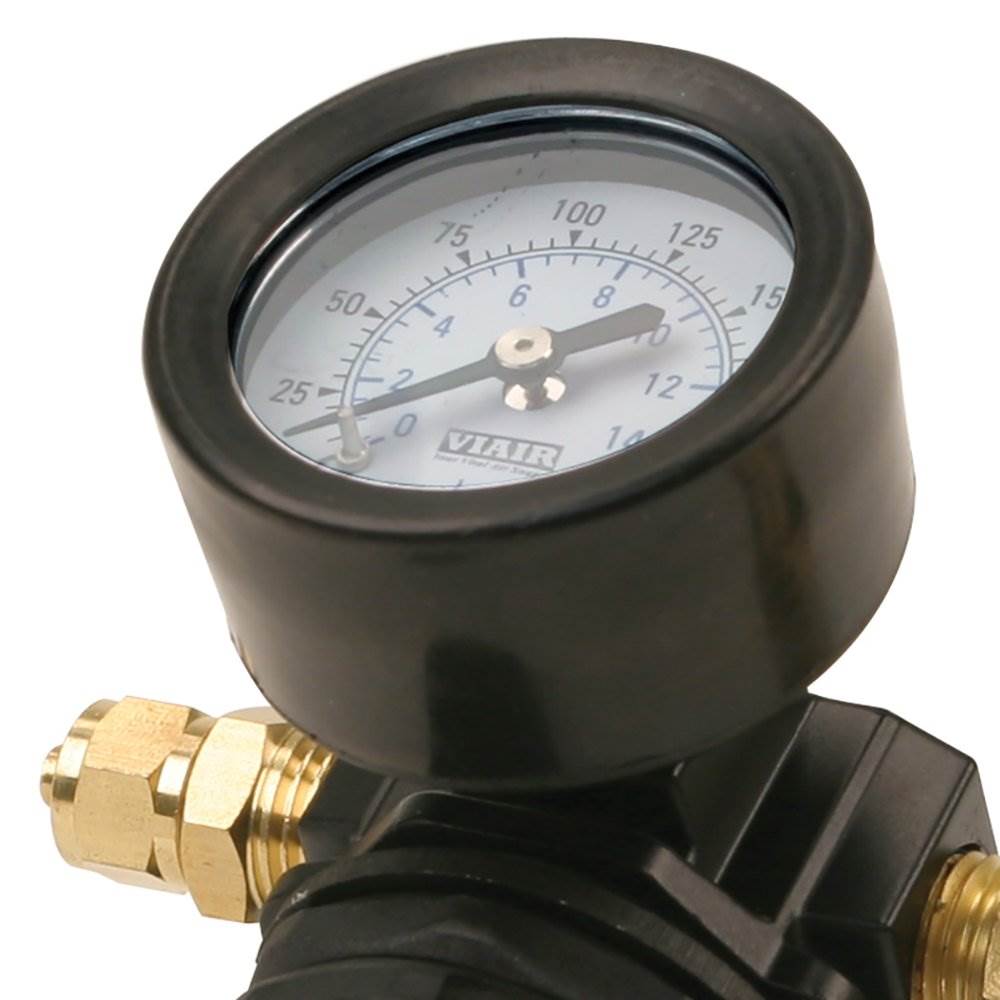

• Easy to read gauge that allows adjustment of inline pressure
• 0.25 inch NPT compression fitting for tank pressure side

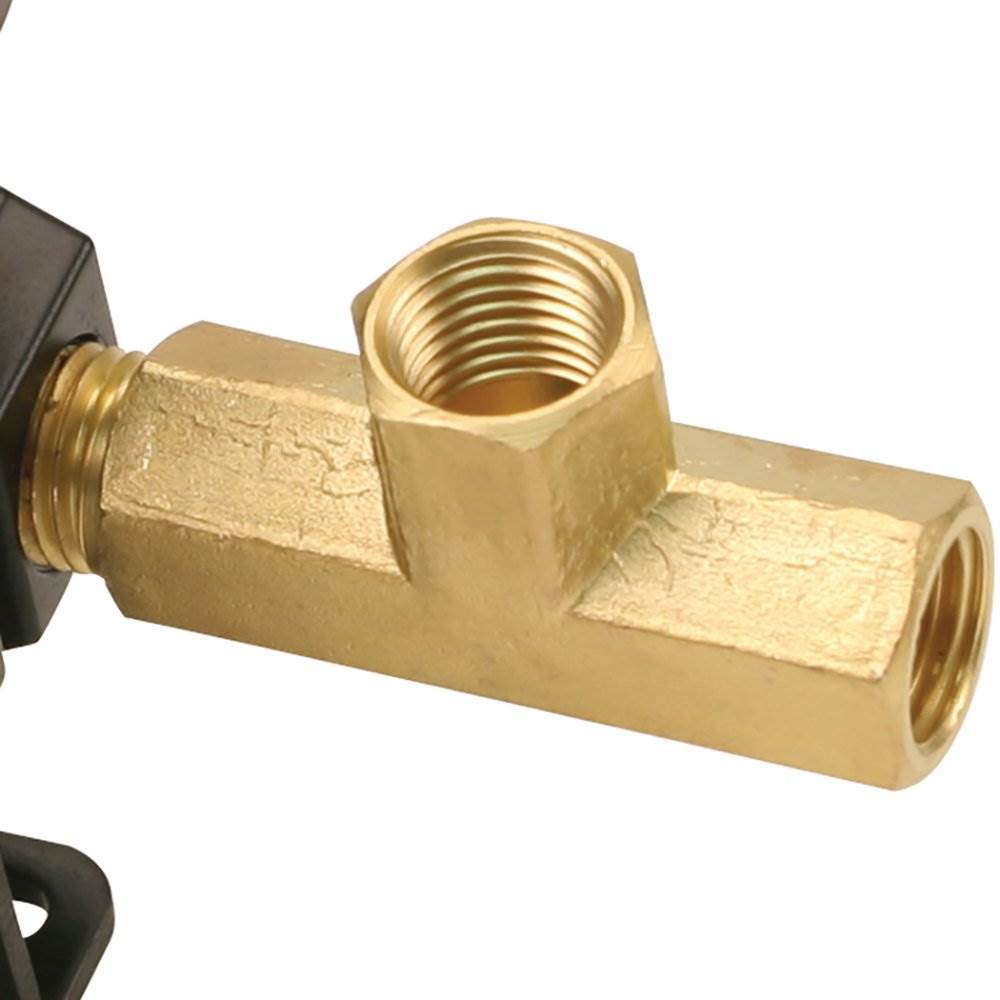

• T fitting that allows regulated pressure to be fed to 2 locations
• Specifications:
• 200 PSI pressure regulator
• 2, BSP fittings
• 0.25 inch NPT plug
• Compression fitting (0.25 inch air line)
• T fitting (dual 0.25 inch NPT air out)
• 0 to 220 PSI gauge
• Maximum CFM flow: 16 CFM
• Part number: 90150
• Manufacturer warranty: 1-year warranty
