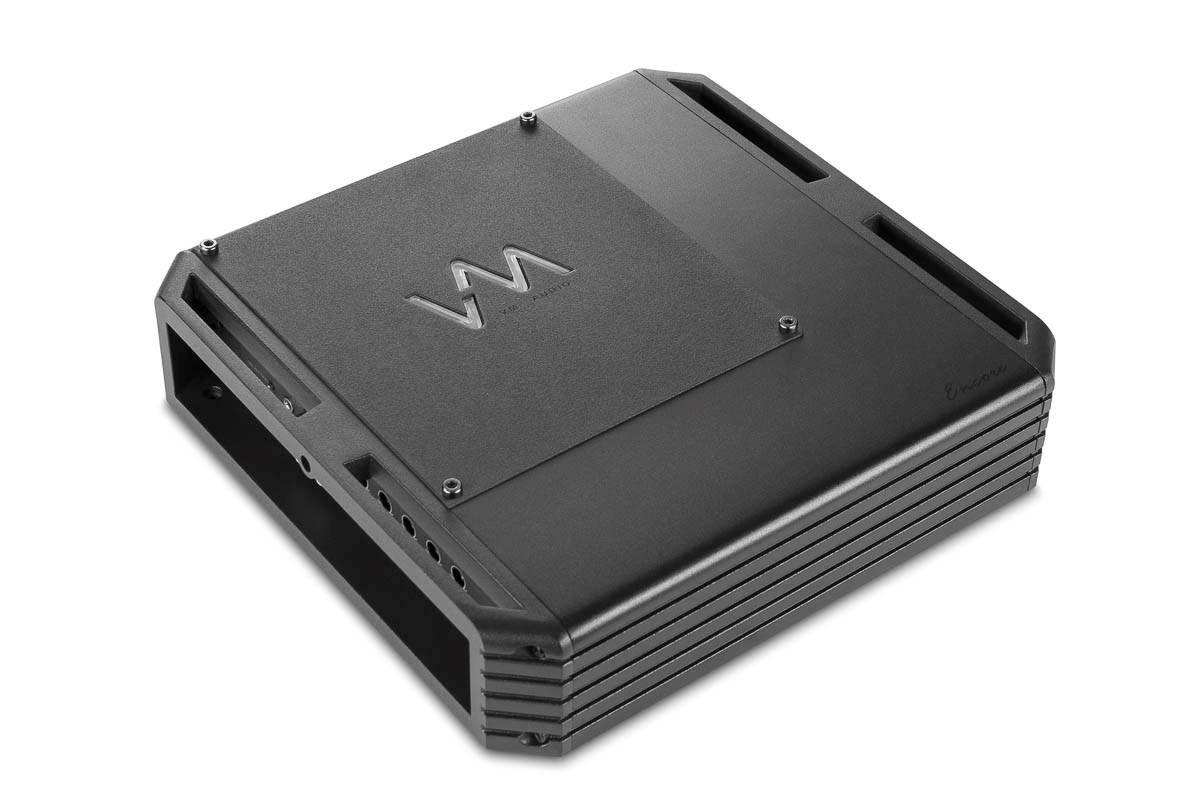

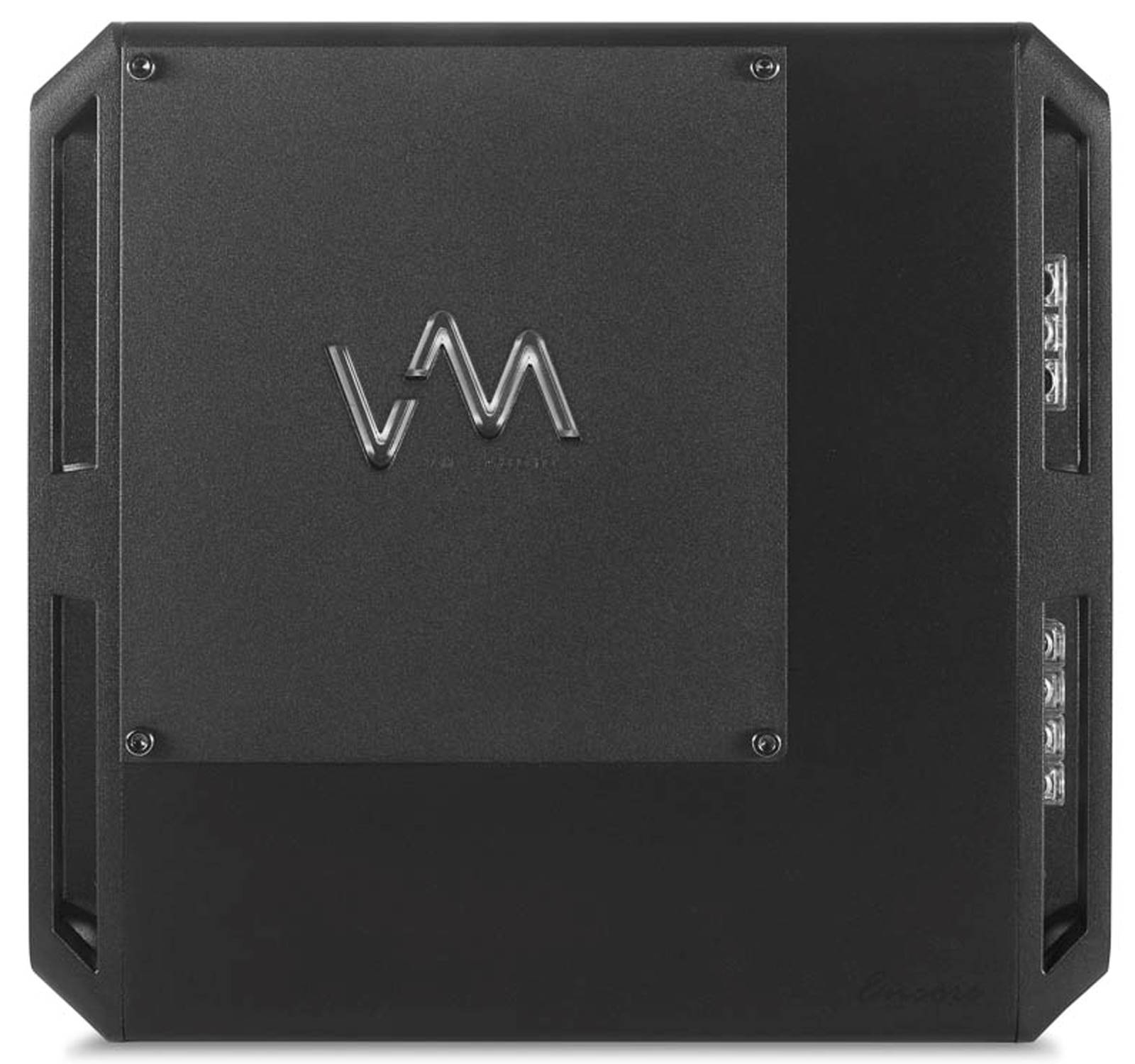

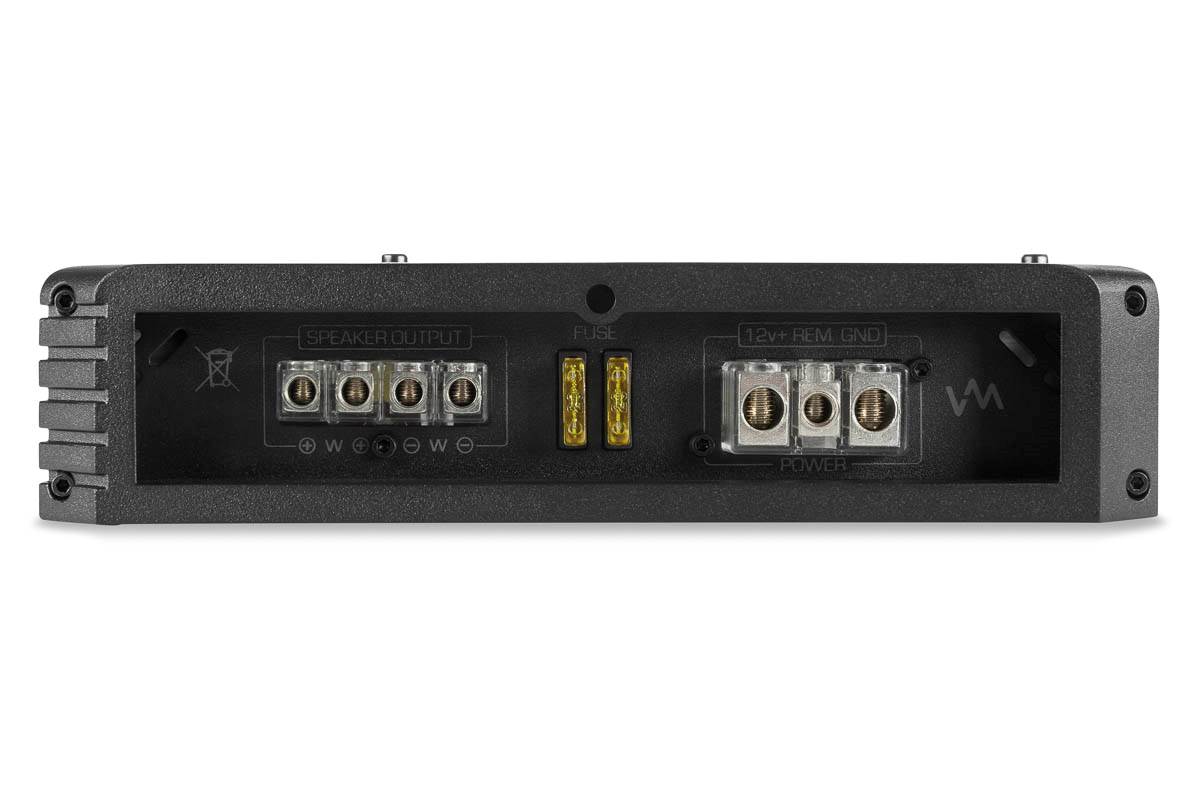

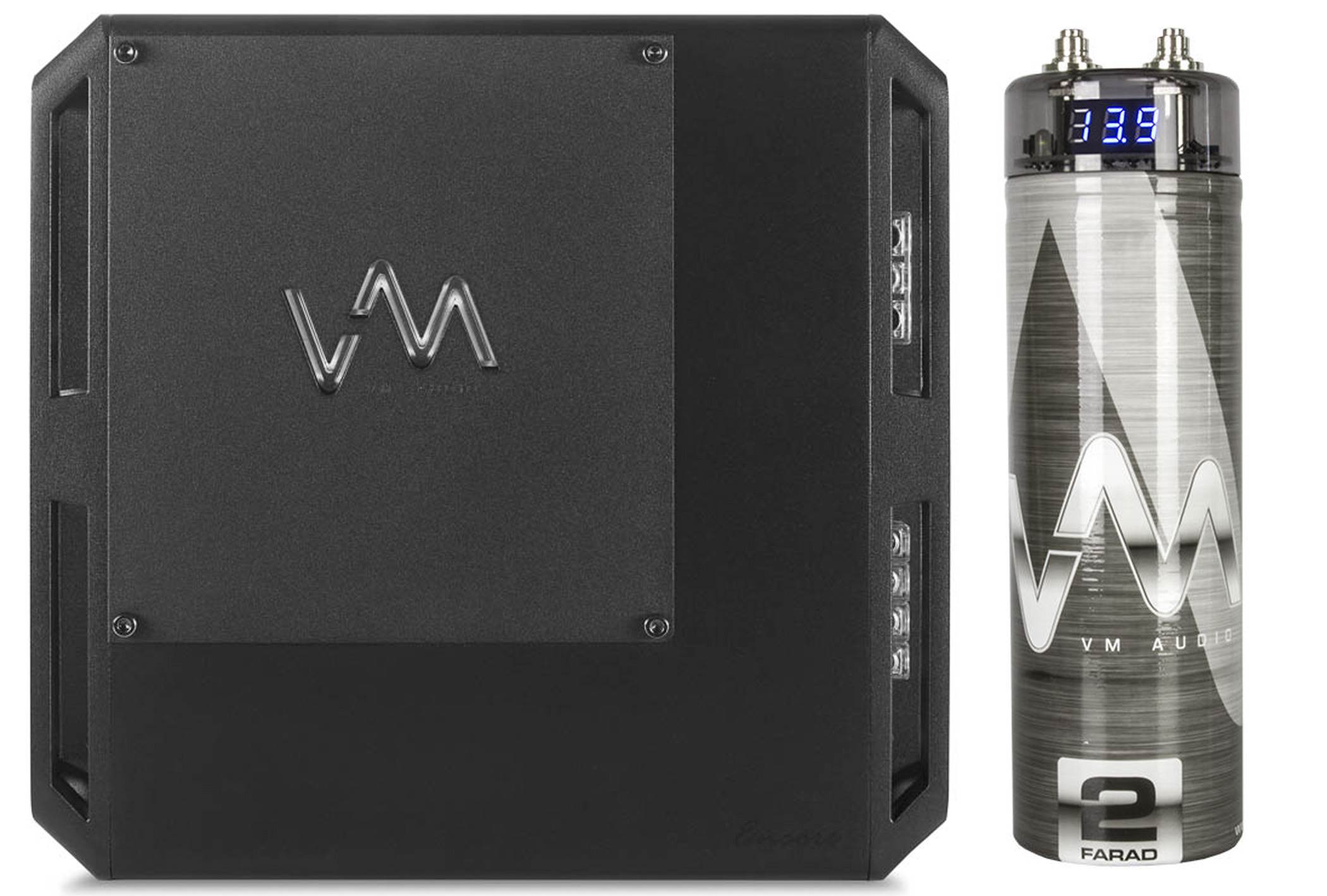

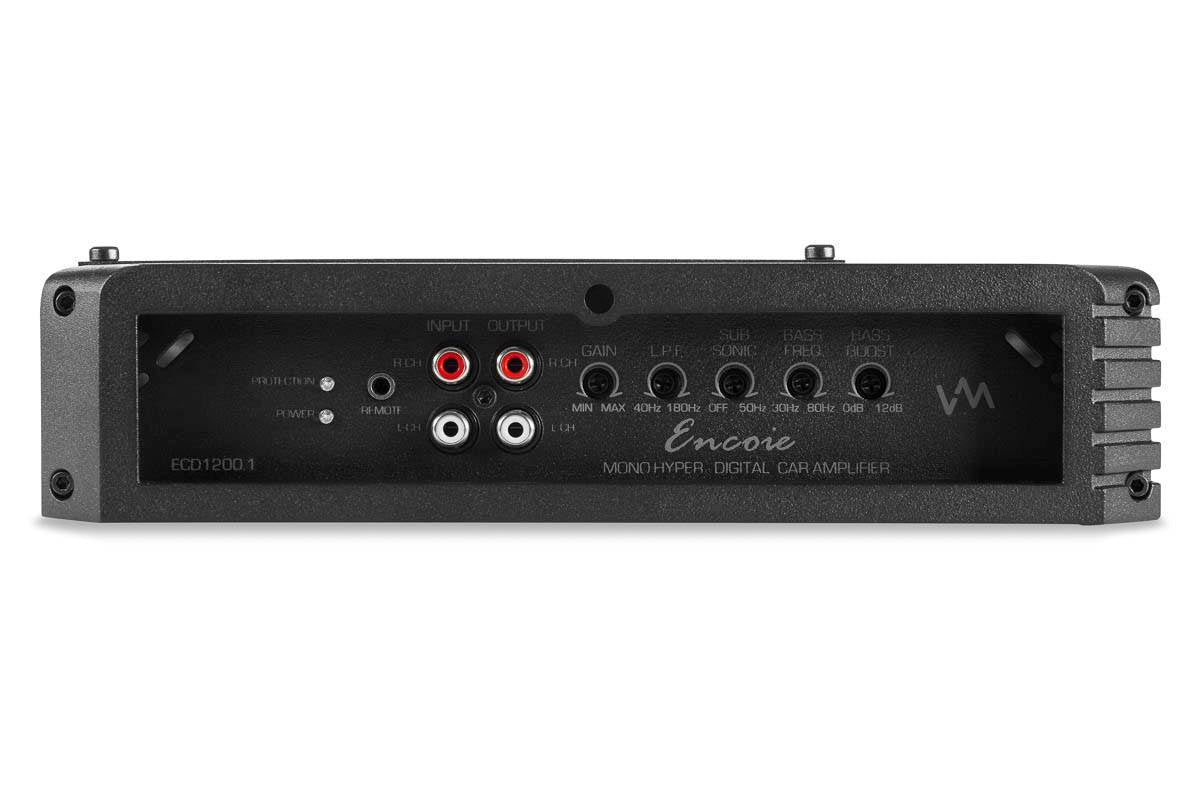

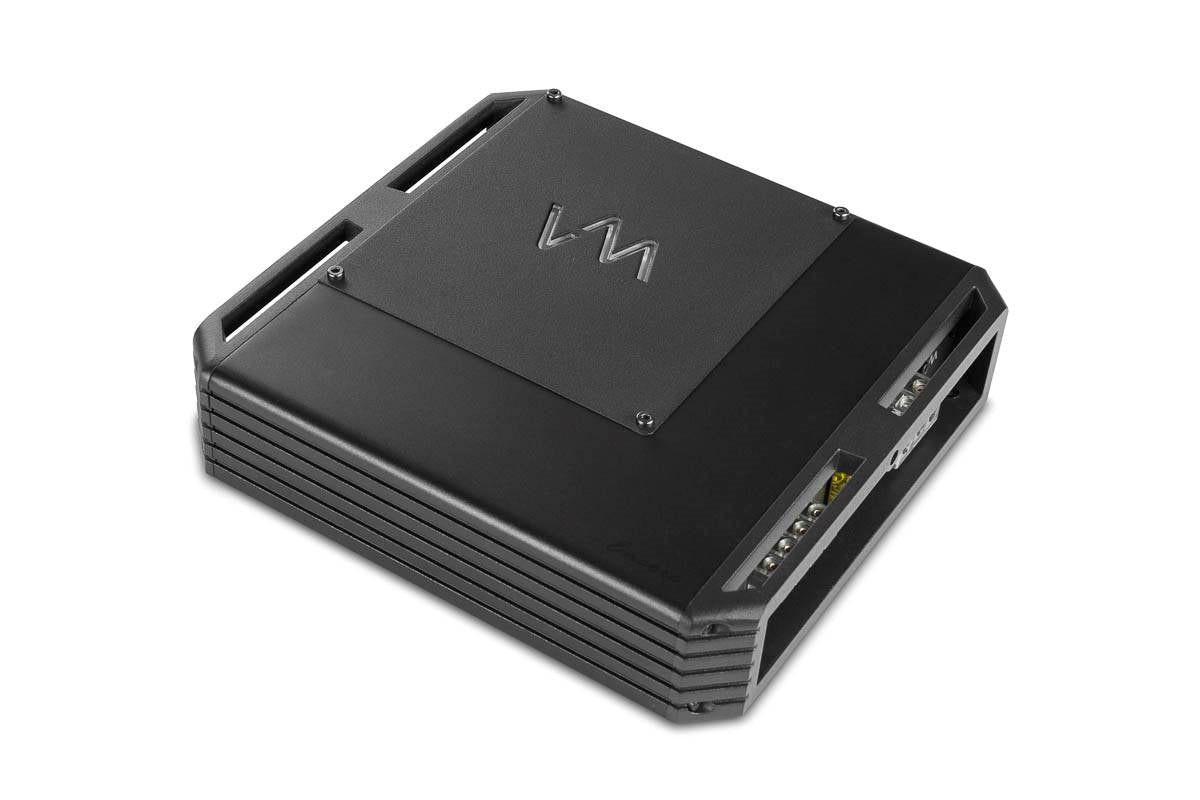

VM Audio ECD1200.1 Encore 1200W 1 Ohm Class D Digital Amp + 2.0 Farad Capacitor

**VM Audio ECD1200.1 CLASS D AMP SPECIFICATIONS**

RMS Power 4 Ohms: 300W x 1

RMS Power 2 Ohms: 600W x 1

RMS Power 1 Ohm: 1200W x 1

Frequency Response: 10Hz – 180Hz

Lowpass Crossover: 40Hz – 180Hz

Subsonic: 0Hz – 50Hz

Bass Boost Frequency: 30Hz – 80Hz

Fuse 20A x 2

Bass Boost: 0dB – 12dB

Input Voltage: 0.12V – 4.2V

Dimensions (L x W x H): 10” x 9.65” x 2.17”

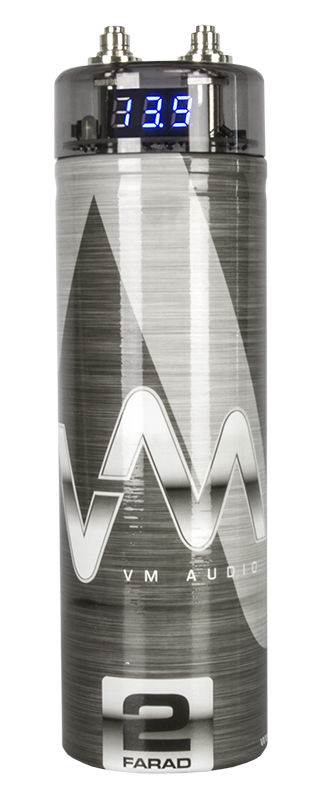

New VM Audio **SRCAP2.0 2 Farad Car Hybrid Digital Capacitor**

2 Farad High Energy Electrolytic Capacitor

2000W Stabilizing Amplifier Flow Capacity

High Strength Cylindrical Aluminum Housing

Nickel Plated Rust Resisting Post Connectors

Soft Turn On/Off Power Surge

Automatic On/Off Power Surge

Accurate 3 Digit Voltage Display

Bright Changing Status LED

Notification Safety Sound Alert

Digital Over Voltage Protection System

Mounting/Charging Accessories Included

Specifications:

Voltage: 16V Maximum / 20V Surge

Equivalent Series Resistance (ESR): <0.006 Ohm

Tolerance: +/ 10%

Charging /Discharging Resister: 1/4W / 1.2K Okm

Capacitor Type: Electrolytic

Terminals: Post Connectors

Dimensions:

Diameter: 3"

Length: 10.24"

Resistor, Mounting Brackets Included!

Product Condition: Brand New

Part Number: SRCAP2.0

1 Year Manufacturer Warranty

• VM Audio DIGITAL MONOBLOCK AMPLIFIER FEATURES
• Mono Power Subwoofer Car Amplifier Hyper Digital Class D
• Exclusive Robust High Cycle DC to DC PWM Power Conversion
• Four Stage Regulated Synergistic High Voltage Rail Performance
• Sophisticated Noise Free Single Star Ground System
• Strategic Side to Side Air Flow Thermal Cooling Chassis Ventilation
• Low Noise and Distortion Buffered Line Level Input Stage
• Ultra Low Distortion Multi Stage Dynamic Signal Processing¬
• Second Order Linkwitz Riley Active Crossover Filter Processing
• Efficient Low Heat High Power Switch Mode Amplifier Stage Circuitry
• SelfGuard Protection: Thermal, Short Circuit, Over Voltage and DC Offset
• Turn On Outflow Limiting Current (VM Audio exclusive)
• Unbalanced Line Level Stereo Inputs
• Direct Non Fading Line Level Stereo Outputs
• Adjustable Input Signal Gain Control
• Continuous Variable Lowpass Filter
• Active Ultra low Subsonic Lowpass Filter
• Dedicated Frequency Selection Bass Boost Control
• Continuous Variable Bass Boost Gain
• Versatile Remote Bass Control Adaptor Included
• Independent Power and Protection Status LED’s
• High Quality Nickel Plated Brass, Block Speaker & Power Terminals
