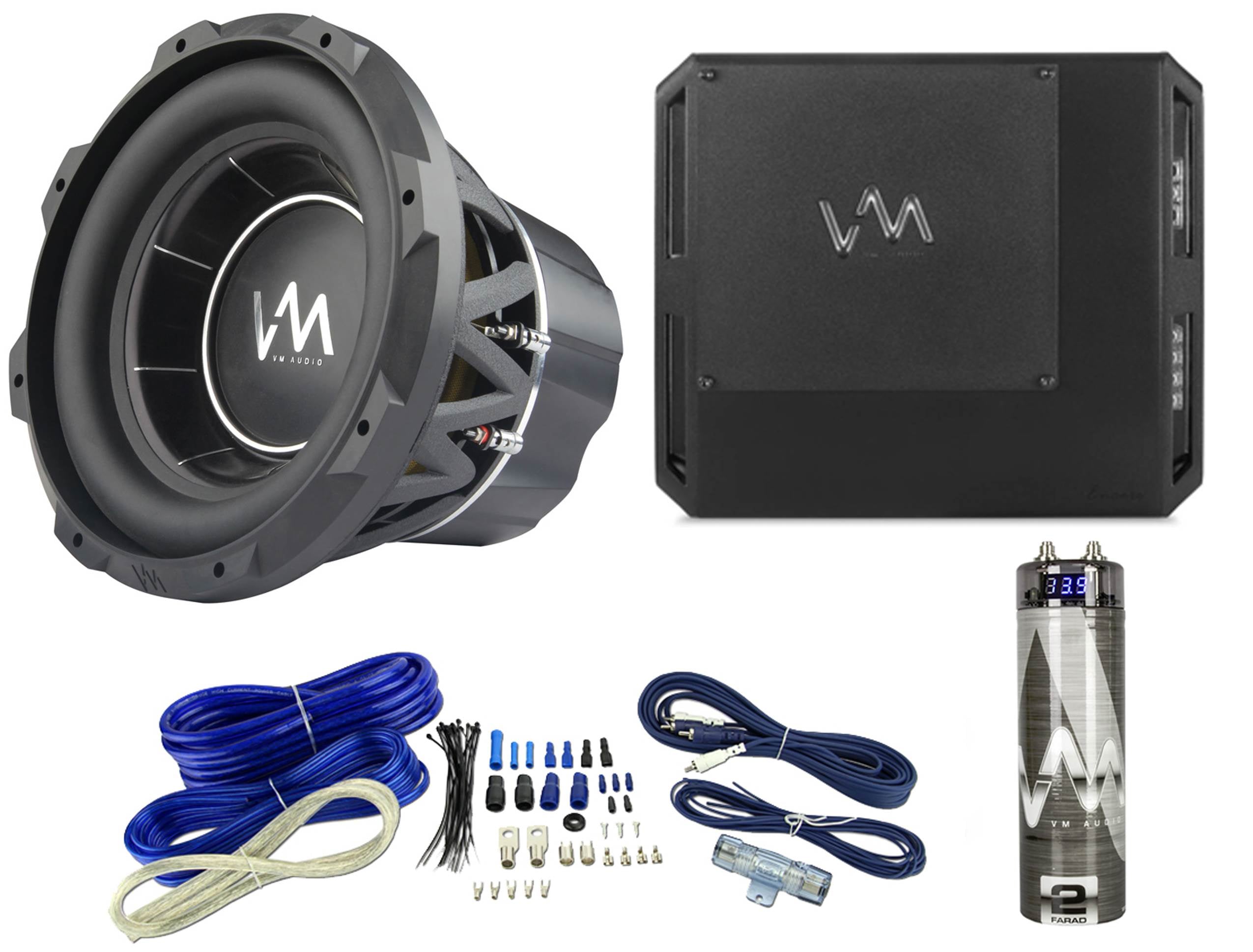

VM Audio ECW120 12" Encore Comp Sub + ECD1500.1 Class D Amplifier + Wiring + Cap

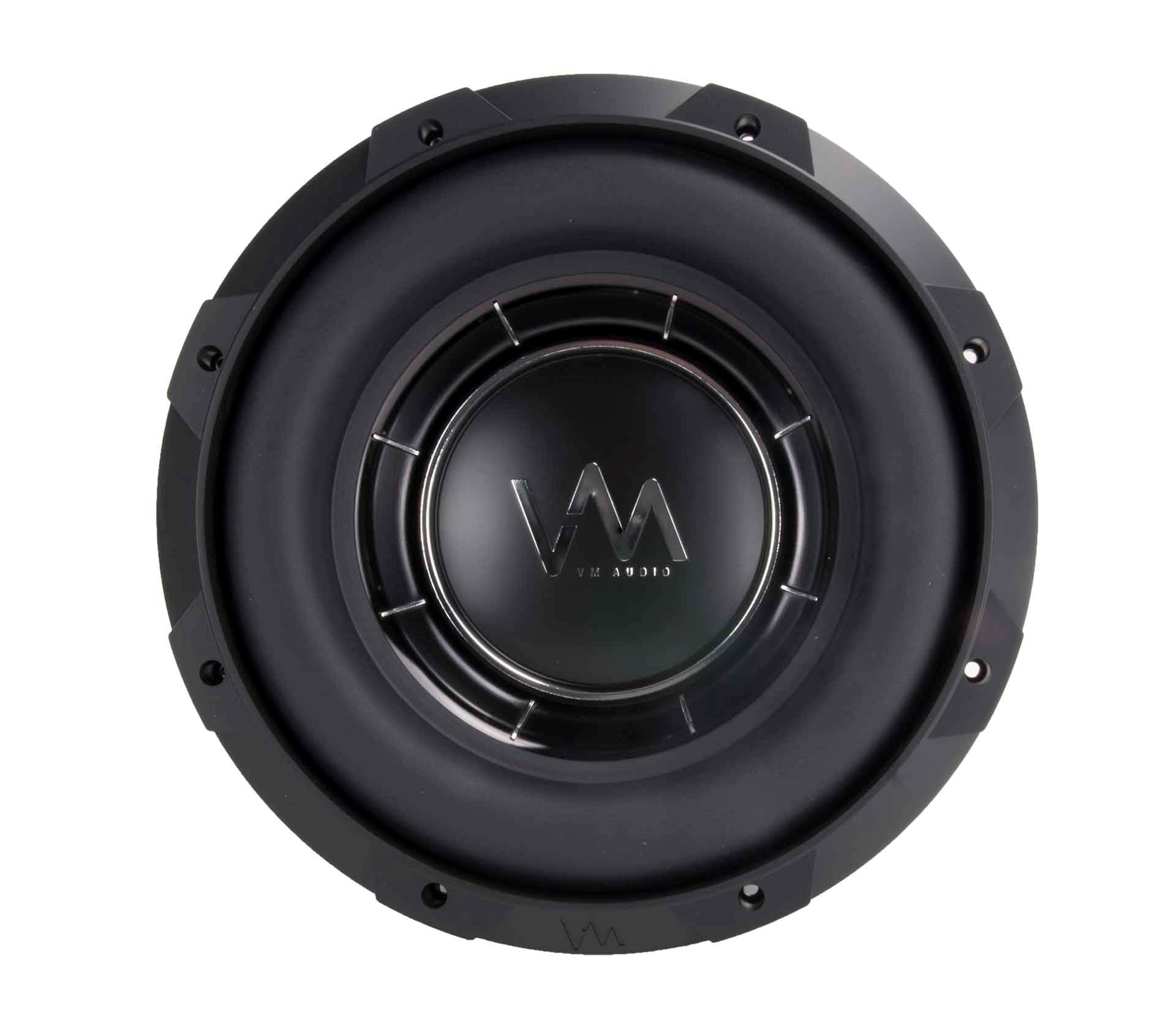

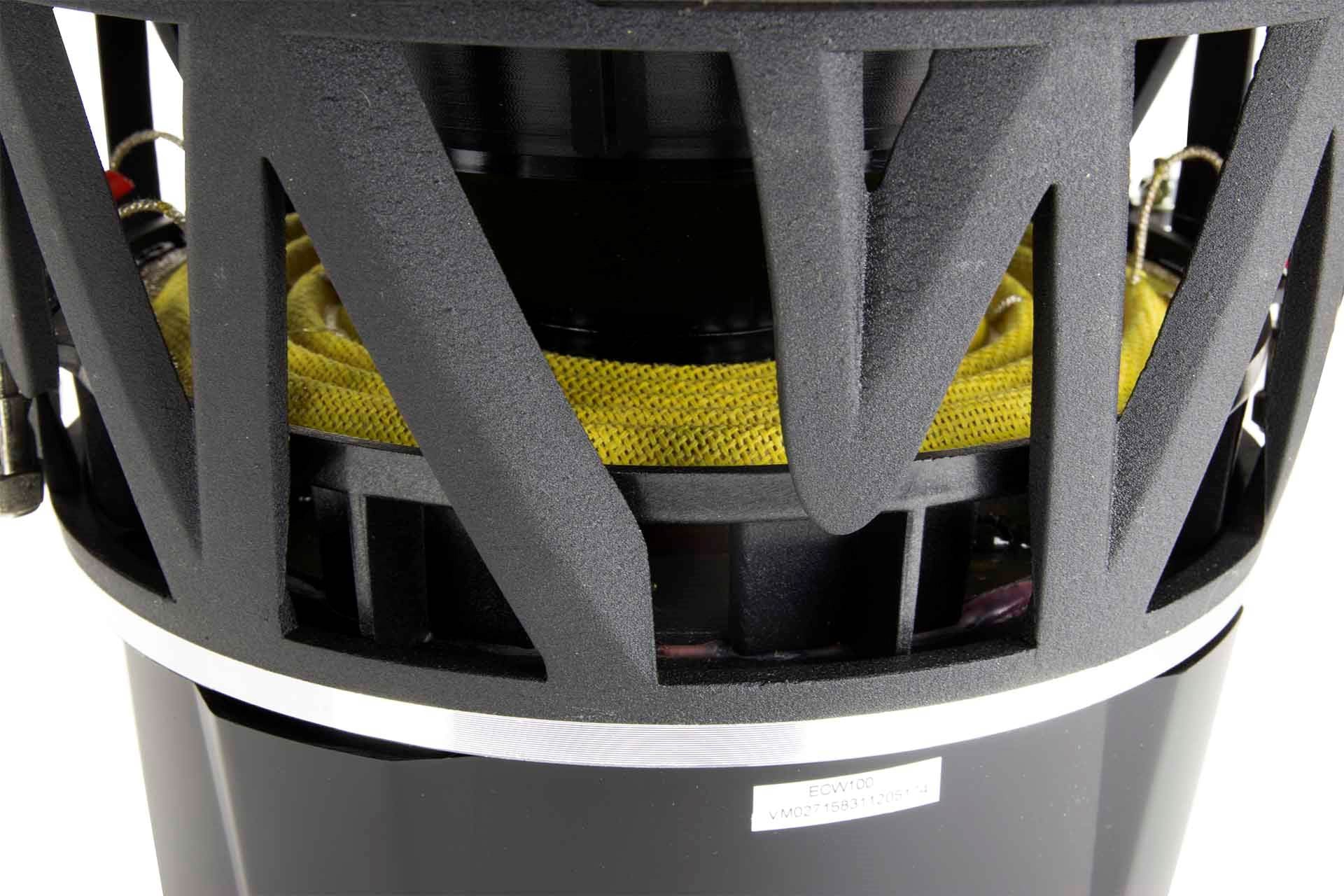

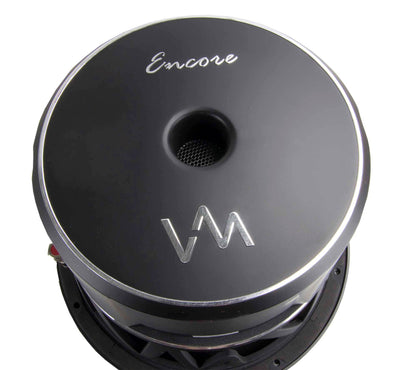

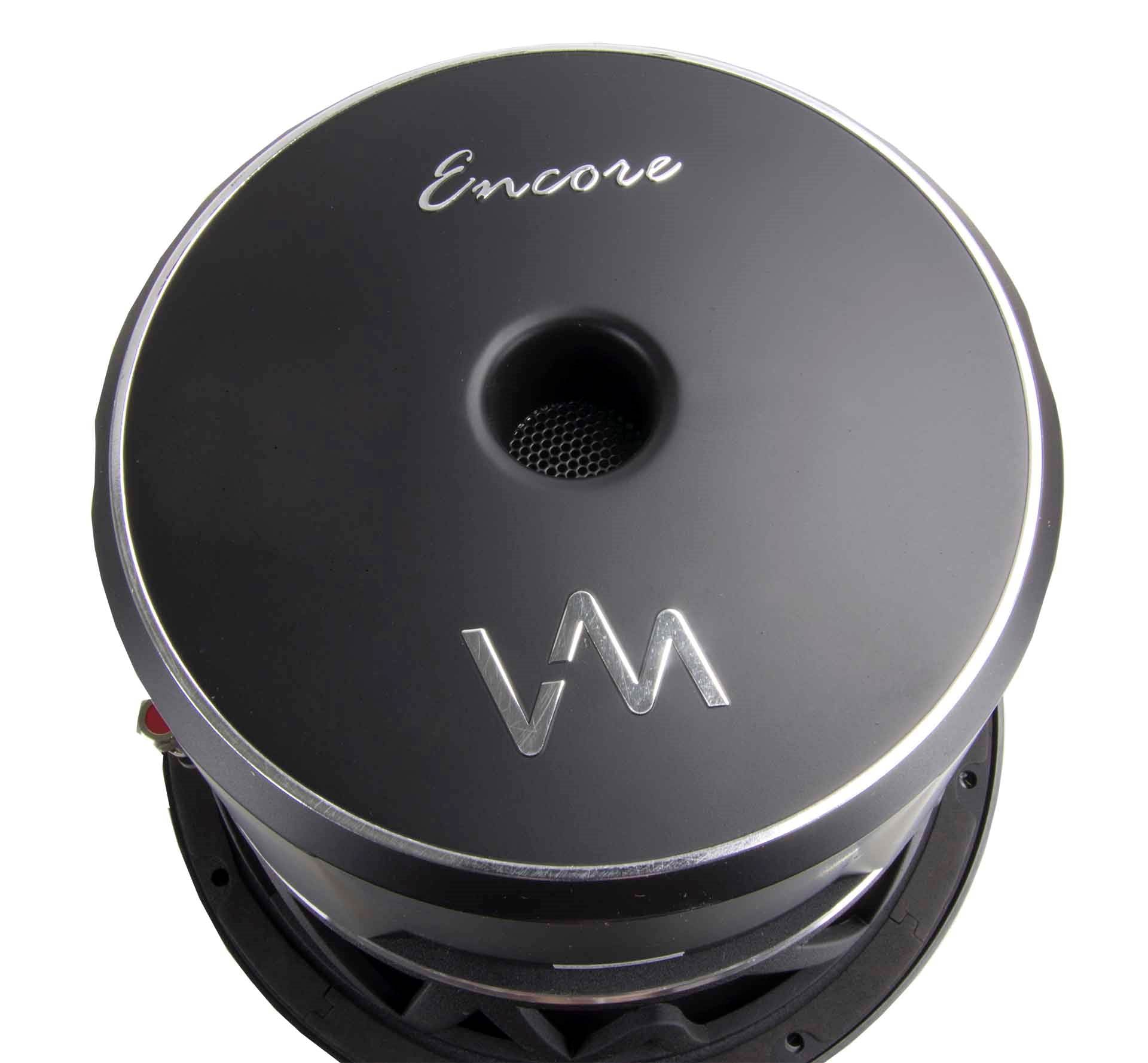

**VM Audio ECW120 12" High Excursion Competition Subwoofer**

Size: 12"

Nominal Impedance: Dual 4 Ohm

RMS Power: 1500W

Peak Power Handling: 3000W

Voice Coil Diameter: 3" (76.5mm)

Magnet Weight: 75oz * 2

Frequency Response: 23Hz 340Hz

Clone Material: Polypropylene

Surround Material: Butyl Rubber

Mounting Diameter: 11.14" (283mm)

Mounting Height: 8.19" (208mm)

Manufacturer warranty: 1 year

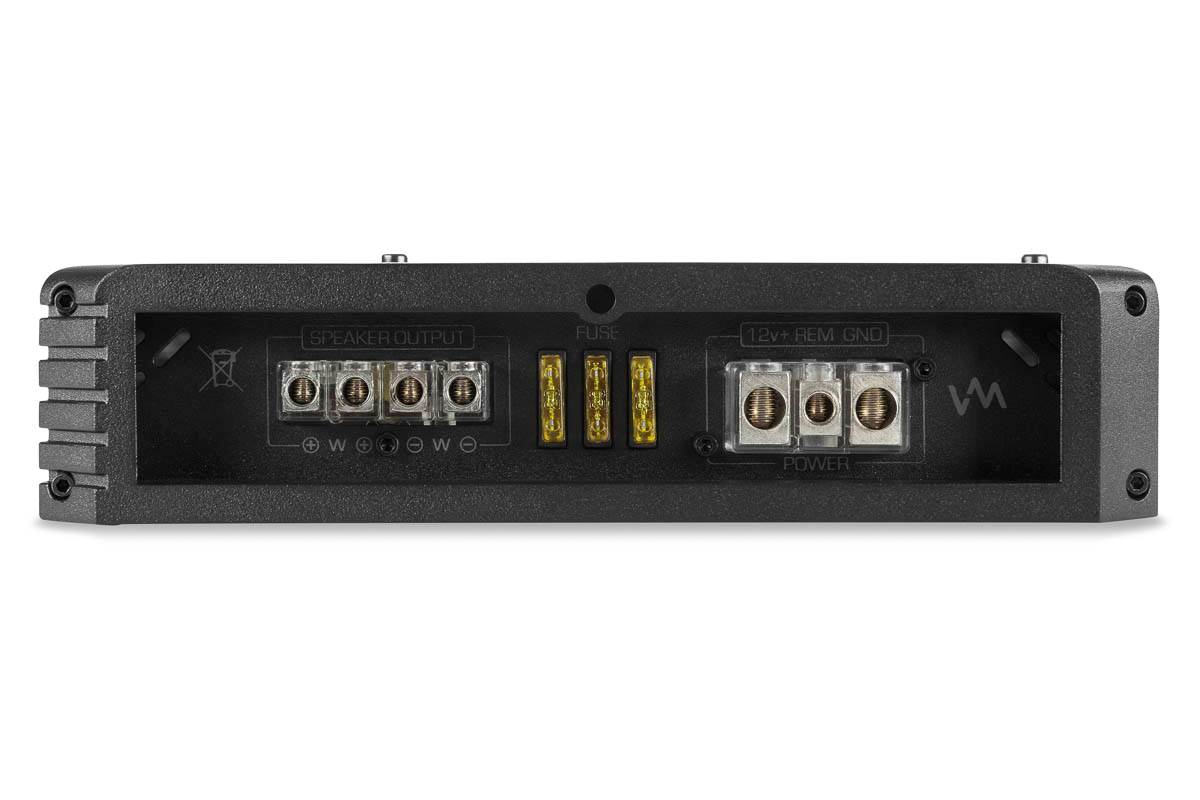

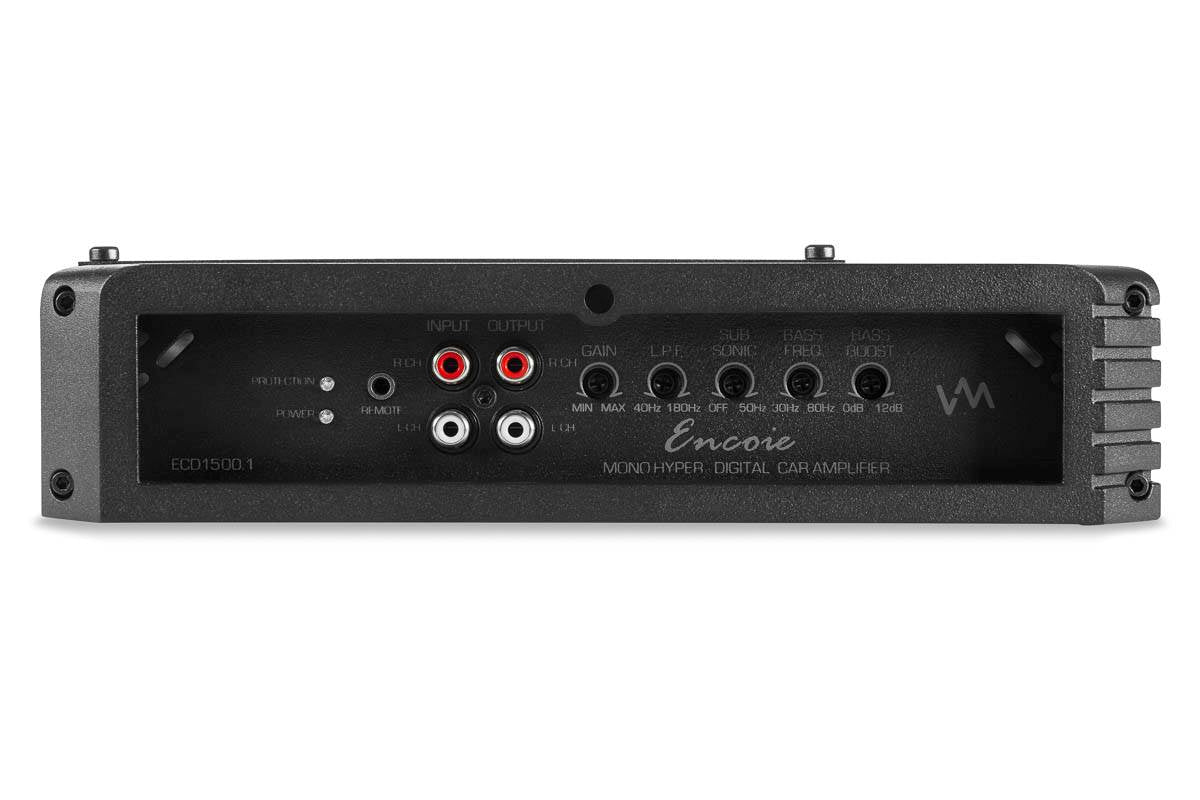

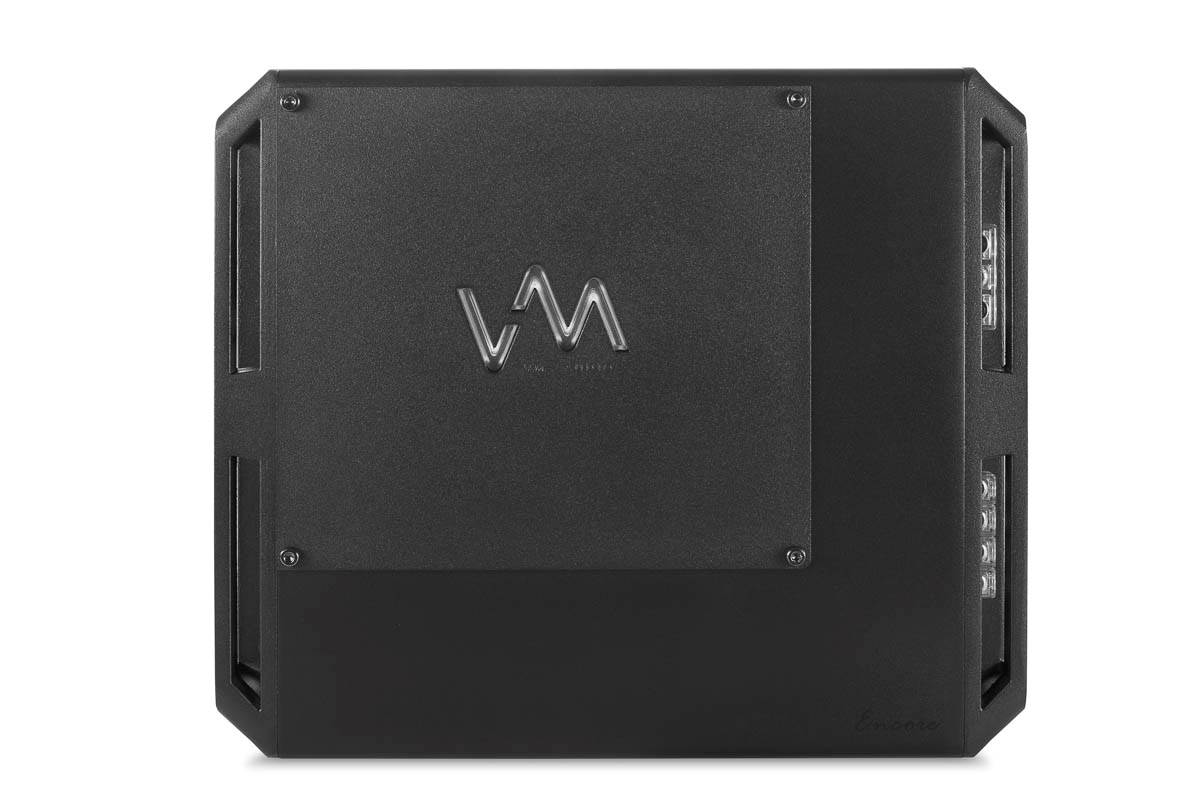

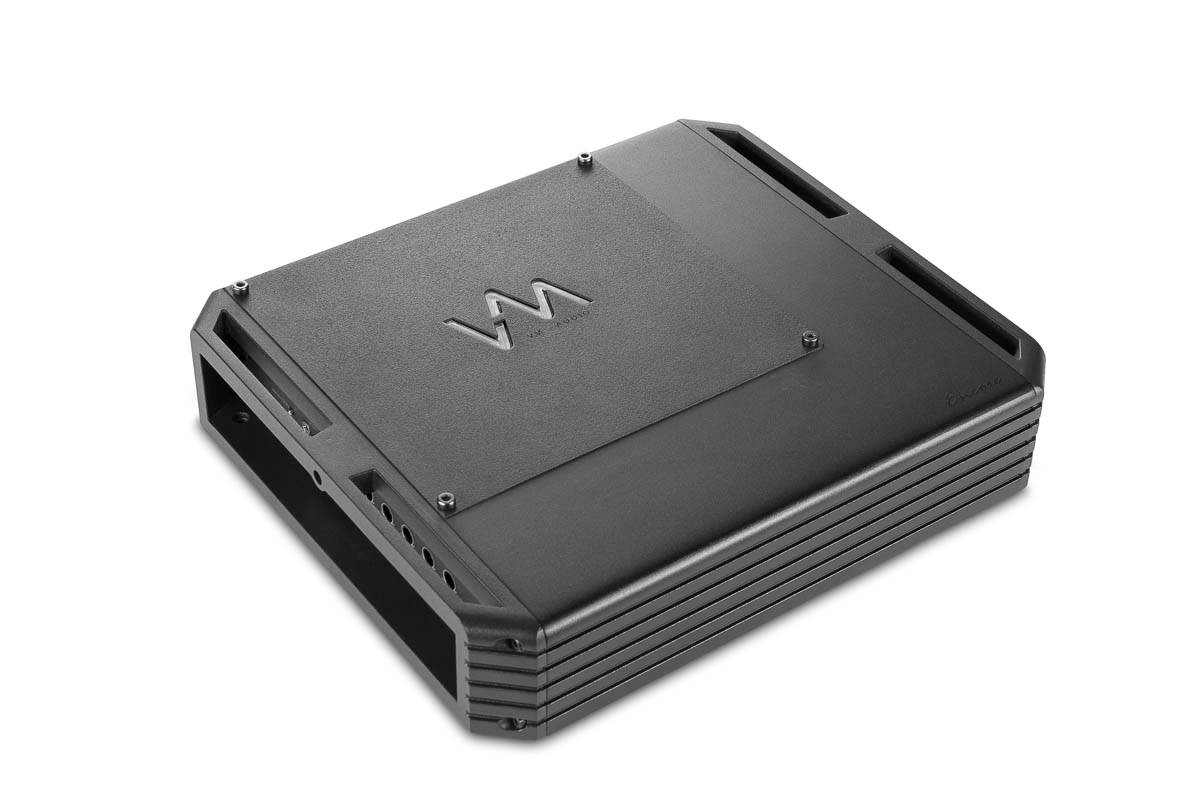

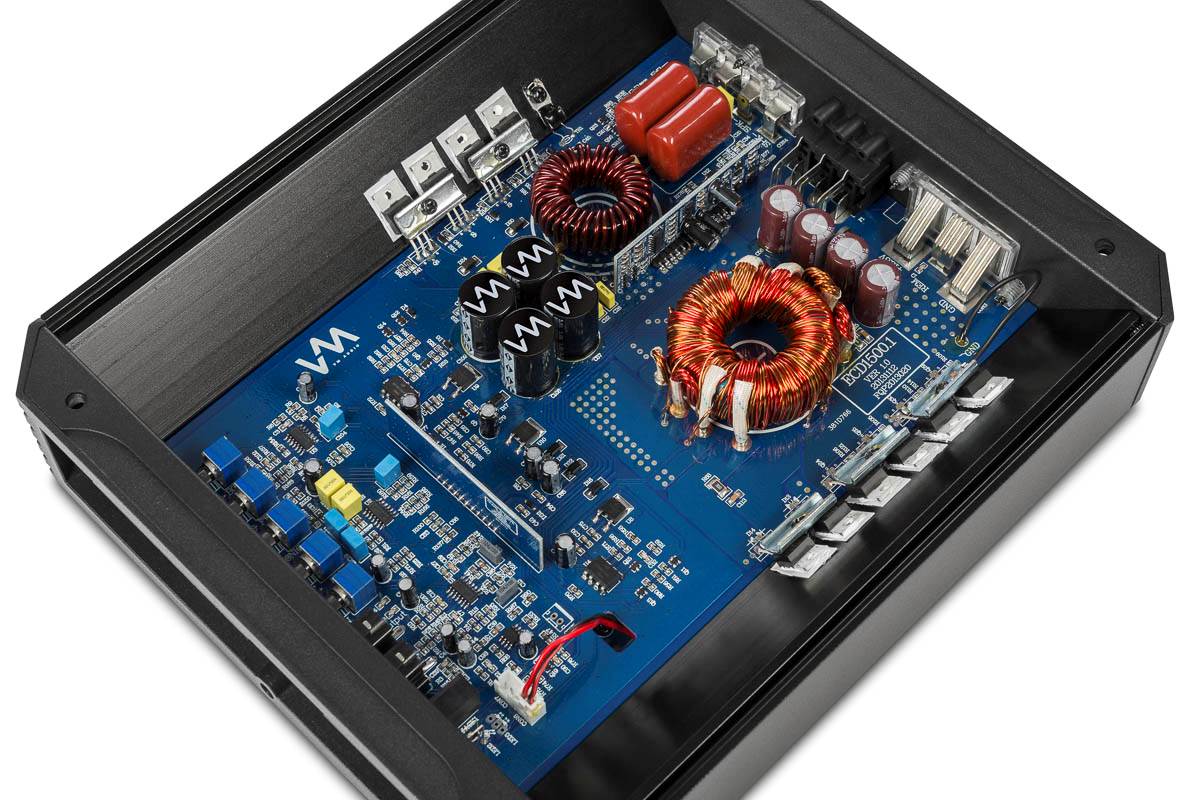

**VM Audio ECD1500.1 POWER AMPLIFIER SPECIFICATIONS**

RMS Power 4 Ohms: 375W x 1

RMS Power 2 Ohms: 750W x 1

RMS Power 1 Ohm: 1500W x 1

Frequency Response: 10Hz – 180Hz

Lowpass Crossover: 40Hz – 180Hz

Subsonic: 0Hz – 50Hz

Bass Boost Frequency: 30Hz – 80Hz

Bass Boost: 0dB – 12dB

Fuse 20A x 3

Input Voltage: 0.12V – 4.2V

Dimensions (L x W x H): 11.18” x 9.65” x 2.17”

Manufacturer warranty: 1 year

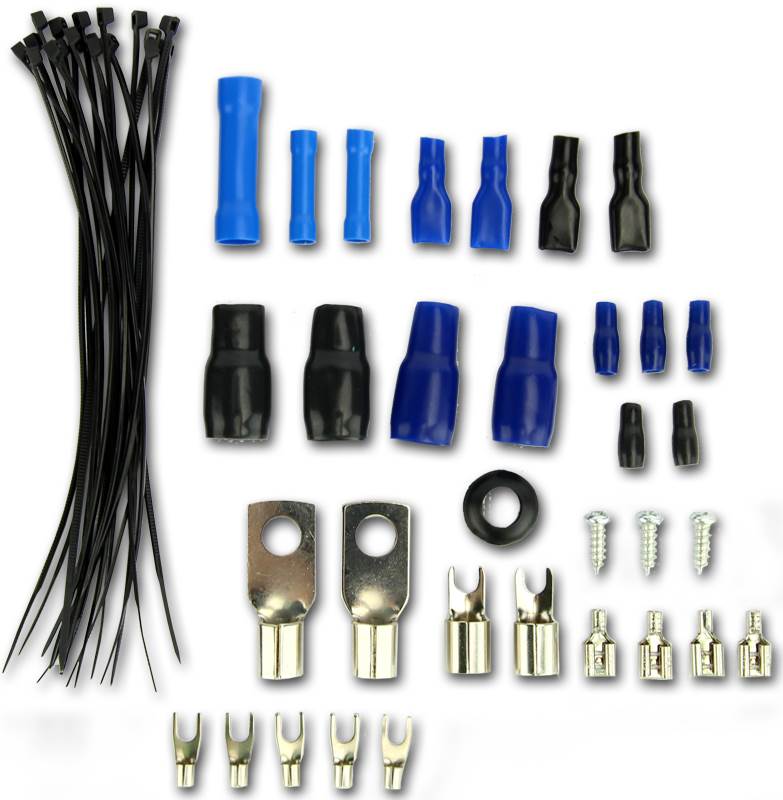

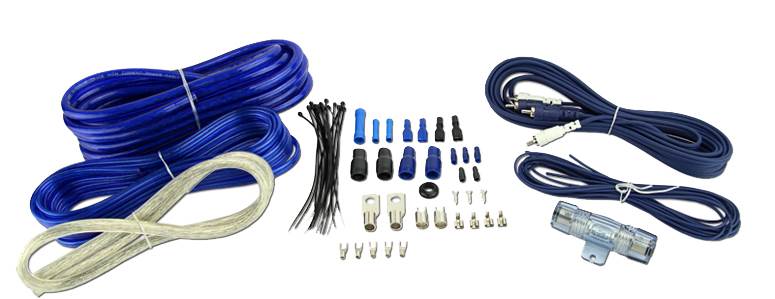

VM AUDIO 4 GAUGE WIRING KIT VM SRSK4B TECHNICAL SPECIFICATIONS

Type: 2 Channel

Amplifiers Supported: Single Amplifier

Power/Ground Wire Size: 4 Gauge

Strand Count: 315

Power Wire Length: 16Ft

Ground Wire Length: 3Ft

Speaker Wire Size: 12 Gauge

Speaker Wire Length: 20Ft

Remote Wire Size: 18 Gauge

Remote Wire Length: 15Ft

RCA Cable Length: 15Ft

Fuse Holder: AGU

Fuse Size: 60A

Wire Ties: 20

Spade Connectors: 2

Ring Connectors: 2

Ring Spade Terminals: 5

Butt Connectors: 3

Split Loom Tubing: Yes

Screws: 3

Fasten Connectors: 4

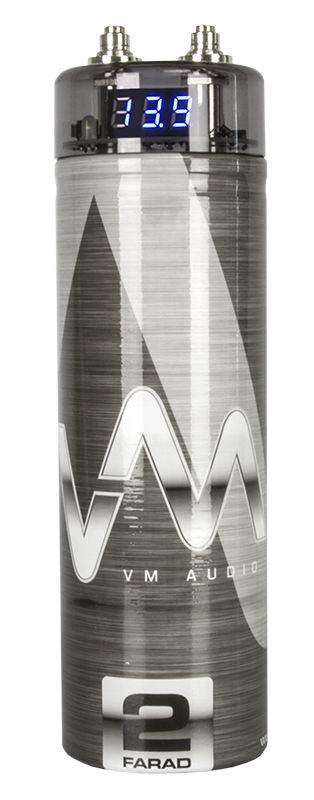

VM Audio SRCAP2.0 Digital Capacitor Specifictions

Type: Digital

Capacitance: 2 Farad

Maximum Handling: 2000W

Digital Meter Display: Yes

Maximum Input Wire Size: 4 Gauge

Maximum Output Wire Size: 4 Gauge

Illumination: Blue

Voltage : : 16V Maximum / 20V Surge

Connections: Nickel Plated Post Connect

Manufacturer warranty: 1 year

• Encore 12" 3000W High Excursion Subwoofer + Encore Amplifier
• The VM Audio Encore 12" high excursion subwoofer was designed by our professional team of engineers for exactly this type of consumer. Paired perfectly with this amplifier, this ten inch competition subwoofer will blow you away.
• Features like the linear flex spider ensure the clarity of the low frequency notes while the dynamic high magnitude cone increases the precision of this incredible subwoofer.
• Every aspect of the Encore series 10" subwoofer was built to preserve the integrity of the low frequencies in your music while still giving you the power you want to crank up the volume.
