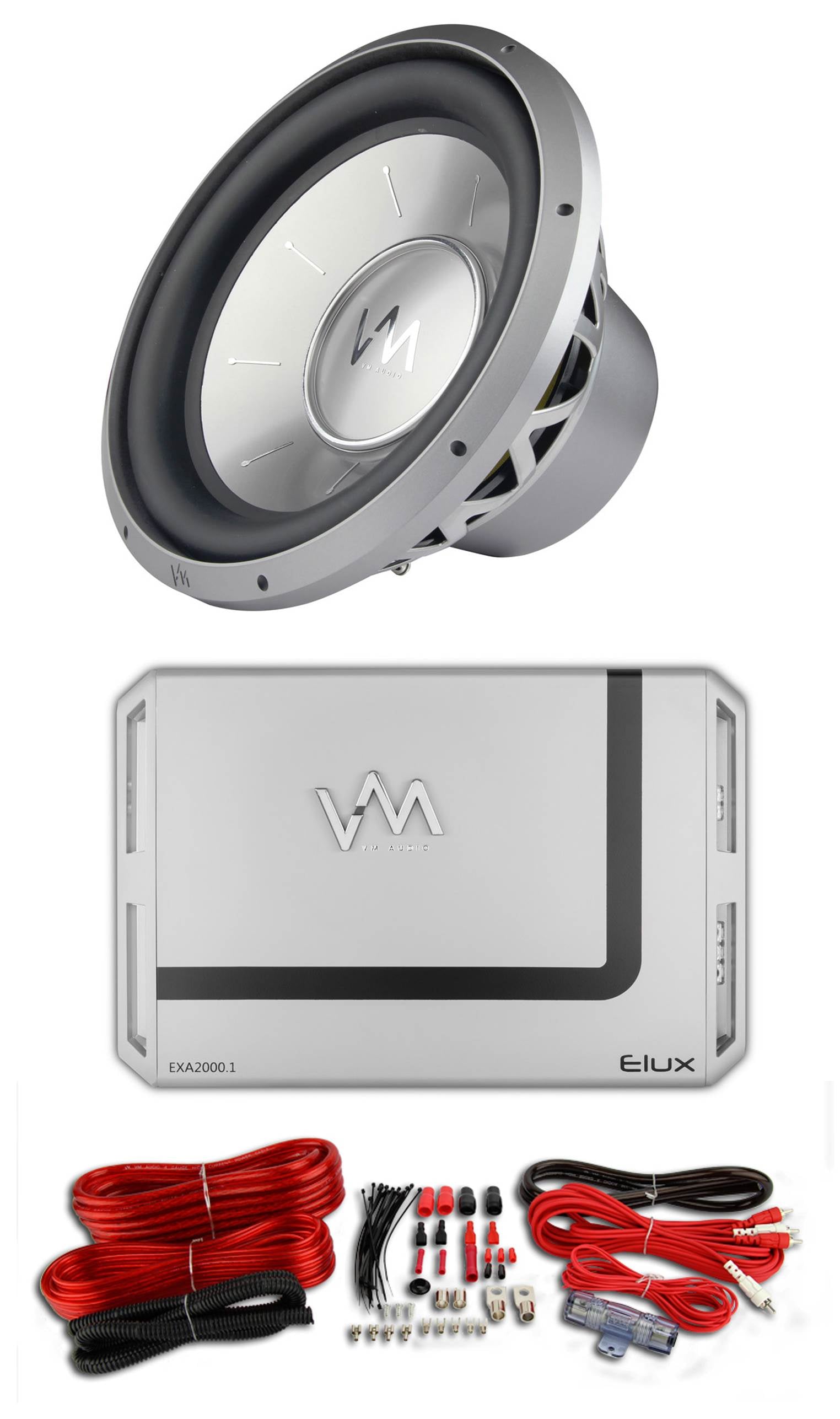

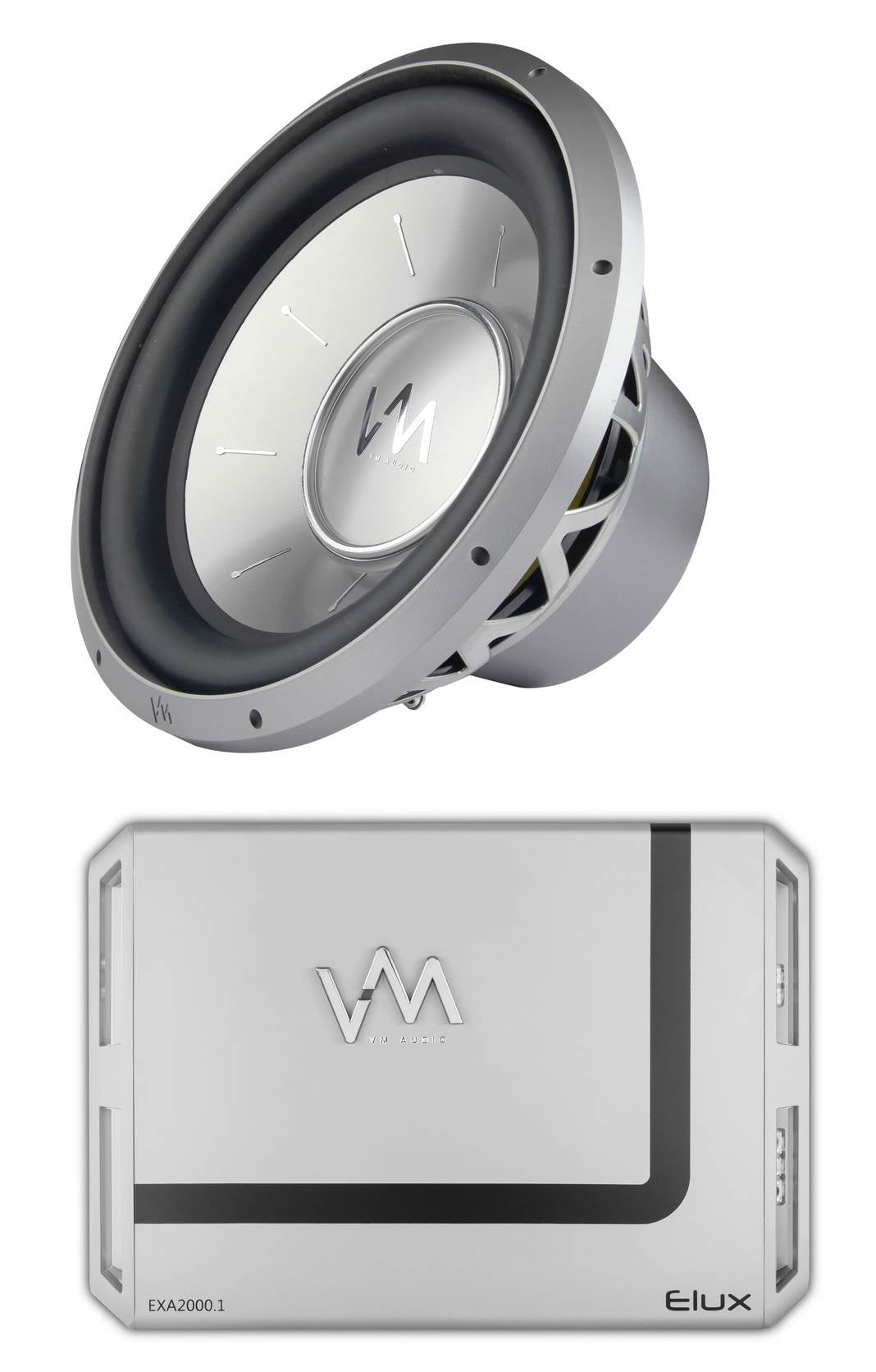

VM Audio EXW15 Elux 15" Competition Power Subwoofer Sub + VM 2000 Watt Amp Combo

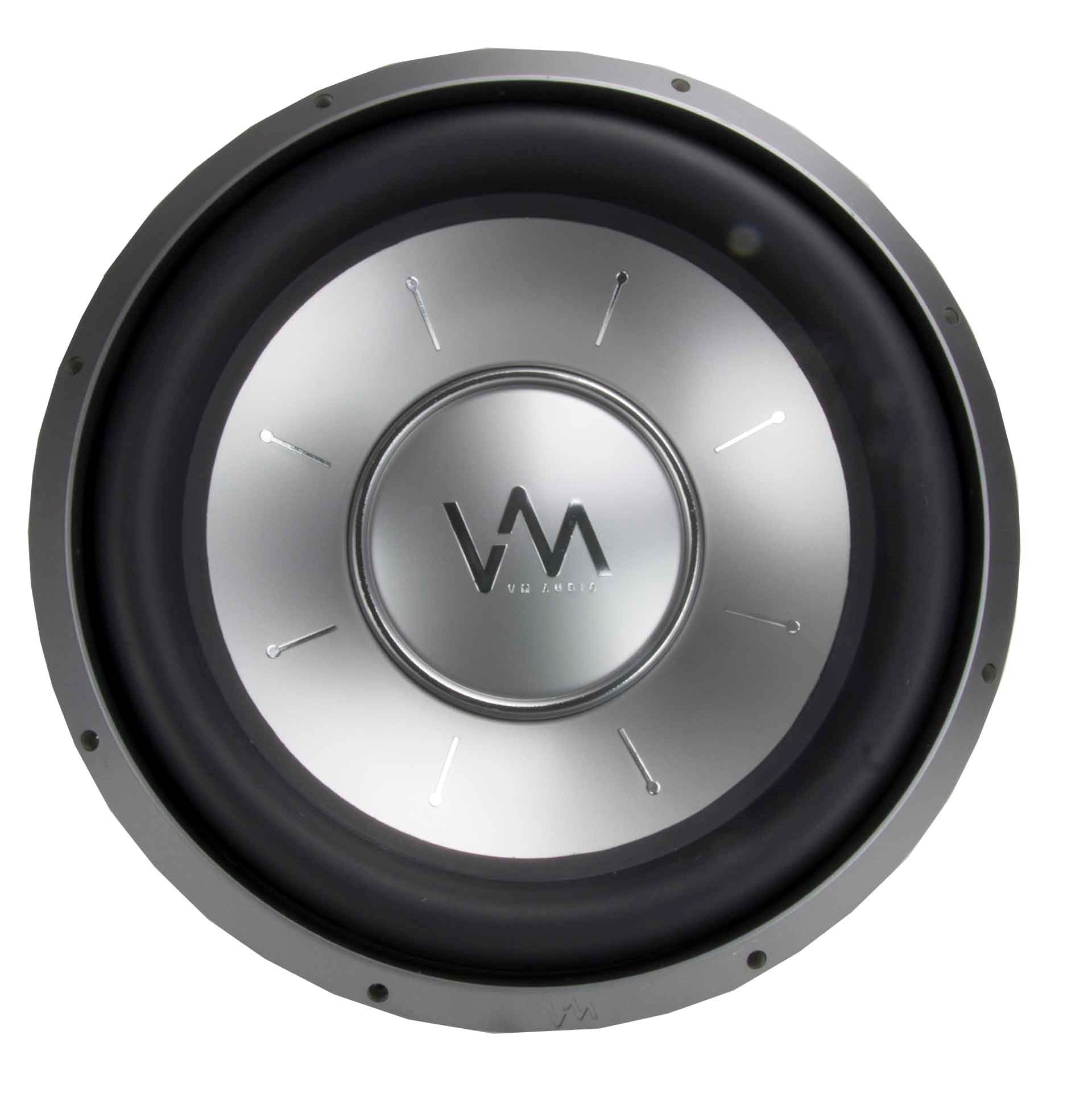

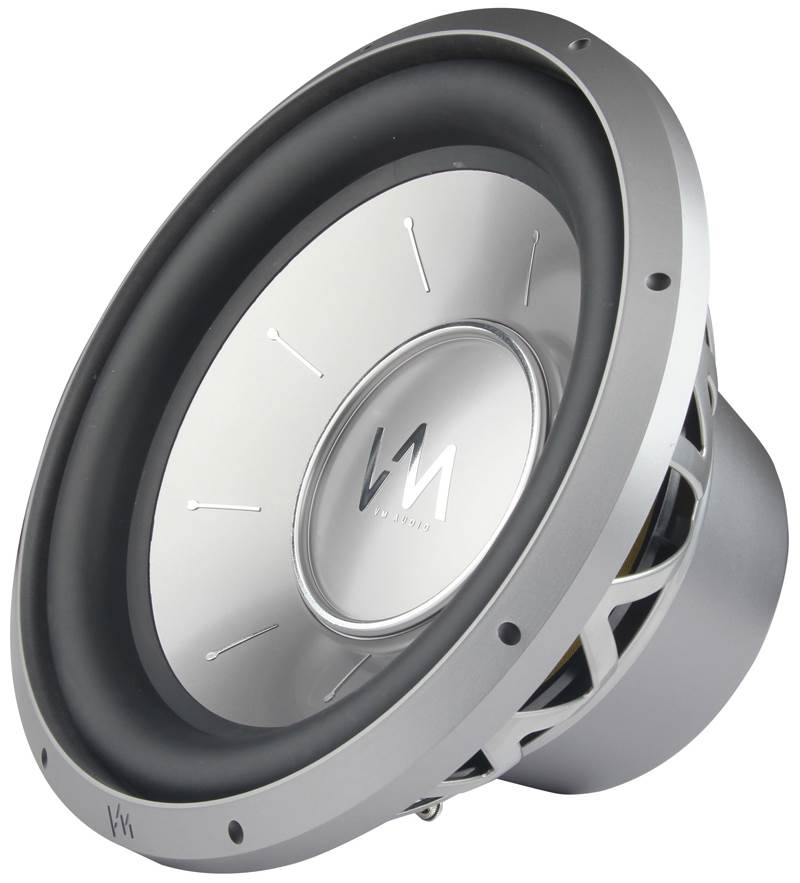

VM Audio Elux Series 15'' 2600W Competition Subwoofer

----------------------------------------

If you're looking for the kind of bass purity and intensity that sucks the air out of your chest and makes the hair inside your ears stand up then you can stop looking.

The VM Audio Elux Series 15" competition subwoofer was designed for those with a passion for pure and unmuddled low frequencies. We know you're going to push your audio equipment to its maximum potential and our expert audio engineering team designed our Elux series subwoofers to keep up.

Whether you're looking to turn some heads around town or if you're an audiophile yourself and want to get the kind of crystal clear bass that you need to enjoy your music to the fullest, the VM Audio Elux series 15" competition subwoofer is the pinnacle of bass performance, intelligent design and precision engineering.

- TOP-TIER BASS RESPONSIVENESS

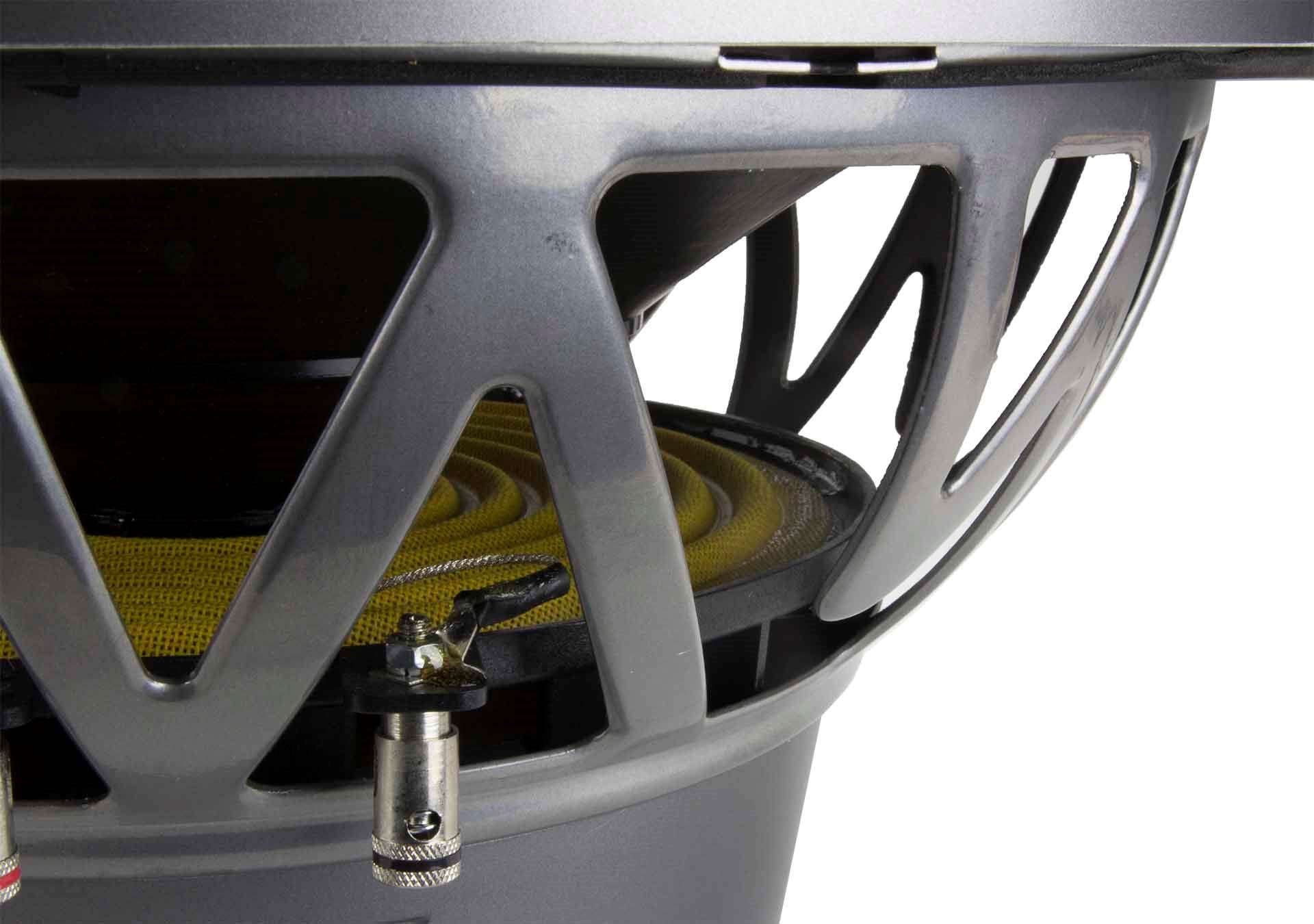

You need a subwoofer that can meet the demands of your favorite music. The Elux series 15" subwoofer uses a high-excursion mechanical suspension system, a large poly-cotton spider and light-weight IMPP cone to provide you with the clear, responsive bass that you need.

- BUILT FOR THE LONG-HAUL

You should be able to blast your music with the windows down or with the top back without having to worry about your speakers being affected by the weather. Our Elux series 15" subwoofer is built with a durable rubber surround, custom stamped steel basket and nickel-plated wire connections so that the unit will resist dust, moisture and rust.

- ADVANCED THERMAL MANAGEMENT

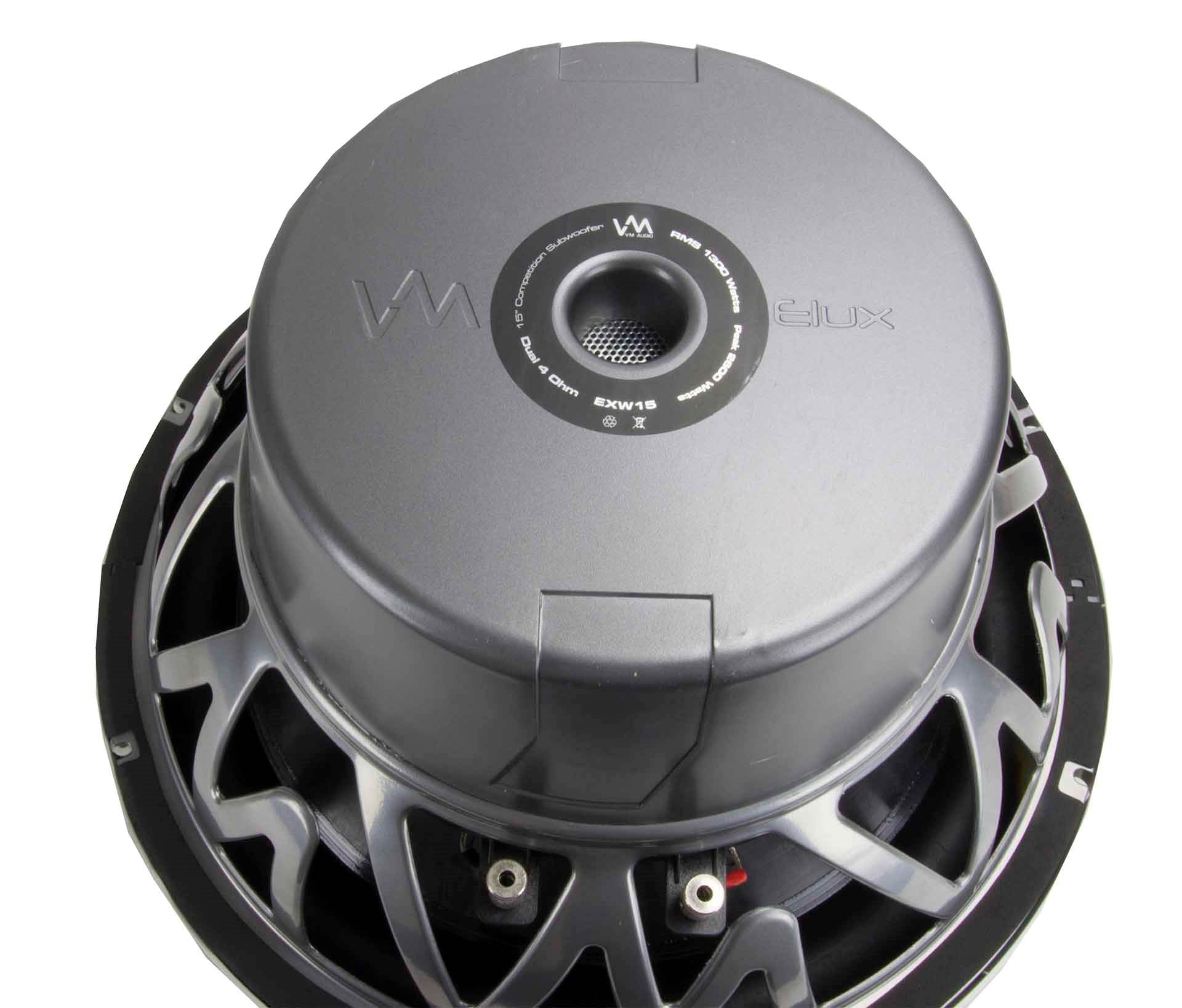

When you're pushing 2600 watts to your sub, things can heat up. That's why the VM Audio Elux series 15" sub features an extended thermal cooling vented pole piece motor structure for direct air exposure and an aerodynamic direct voice coil surface-cooling system with high surface area for fast cooling.

- INSTALLATION FLEXIBILITY

Whether you fall on the sealed or ported side of the subwoofer enclosure debate, the VM Audio Elux series 15" subwoofer can do either. With both dual and single impedance configurations, the EXW15 can do it all.

• **HIGHLIGHTS**
• RMS Power: 1300 Watts
• Peak Power: 2600 Watts
• Dual Voice Coil Low Frequency Subwoofers
• High Excursion Linear Mechanical Suspension System
• Tough, Weather Resistant Wide Rubber Surround
• Large, Linear-Flex Damping Controlled Poly Cotton Spider
• Vibraducer Feather Light IMPP Mass Cone
• High Strength, Custom Tooled Proprietary Stamp Steel Basket
• High Impact-Resistant One Piece Magnet Cover
• Aerodynamic, Direct Voice Coil Surface-Cooling System

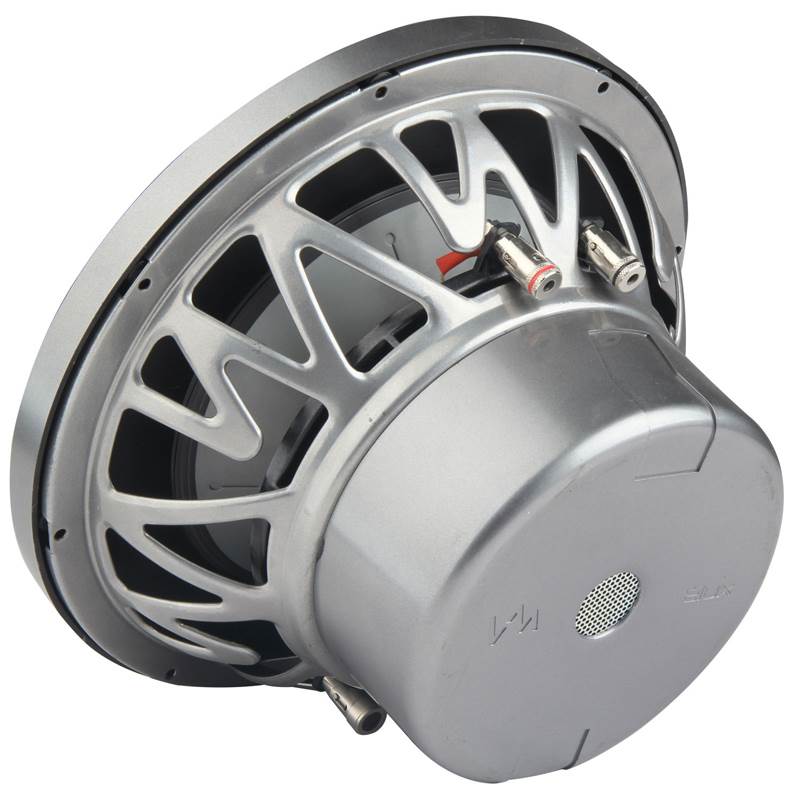

• Extended, Thermal Cooling Vented Pole Piece Motor Structure
• Heavy-Duty Nickel Plated Wire Connection Push Terminals
• Spider Woven High-Conducting Silver Tinsel Leads
• Mounting-Guiding Tall Beveled Color Matching Trim Ring
• Sealed or Ported Enclosure Performance
• Single 2ohm/8ohm or Dual 4ohm Impedance Configurations
• **TECHNICAL SPECIFICATIONS**
• Size: 15"
• Nominal Impedance: Dual 4 Ohm
• RMS Power: 1300W
• Peak Power Handling: 2600W
• Voice Coil Diameter:2.5" (60.6mm)
• Magnet Weight: 49.6oz * 2
• Frequency Response: 23Hz
• 340Hz
• Clone Material: Polypropylene
• Surround Material: Butyl Rubber
• Mounting Diameter: 13.54"(344mm)
• Mounting Height: 7.24" (184mm)
• Warranty: 1 Year
• **PARAMETERS**
• Free Air Resonance (Fs): 32 Hz
• Driver Compliance (Cms): 0.12 mm/N
• Moving Mass (Mms): 205 g
• Driver Total Q (Qts): 0.8
• Electrical Q (Qes): 1
• Mechanical Q (Qms): 4
• Equivalent Stiffness (Vas): 99 Ltr
• Effective Cone Area (Sd): 194 sq.cm
• Inductance 1kHz (Le): 2.4 mh
• Motor Force (BL): 17.1 T-M
• Efficiency (no): 0.26%
• Sensitivity (SPL @1W/1m): 91 dB
• D.C. Coil Resistance (Re): 7.2 ohm ea.

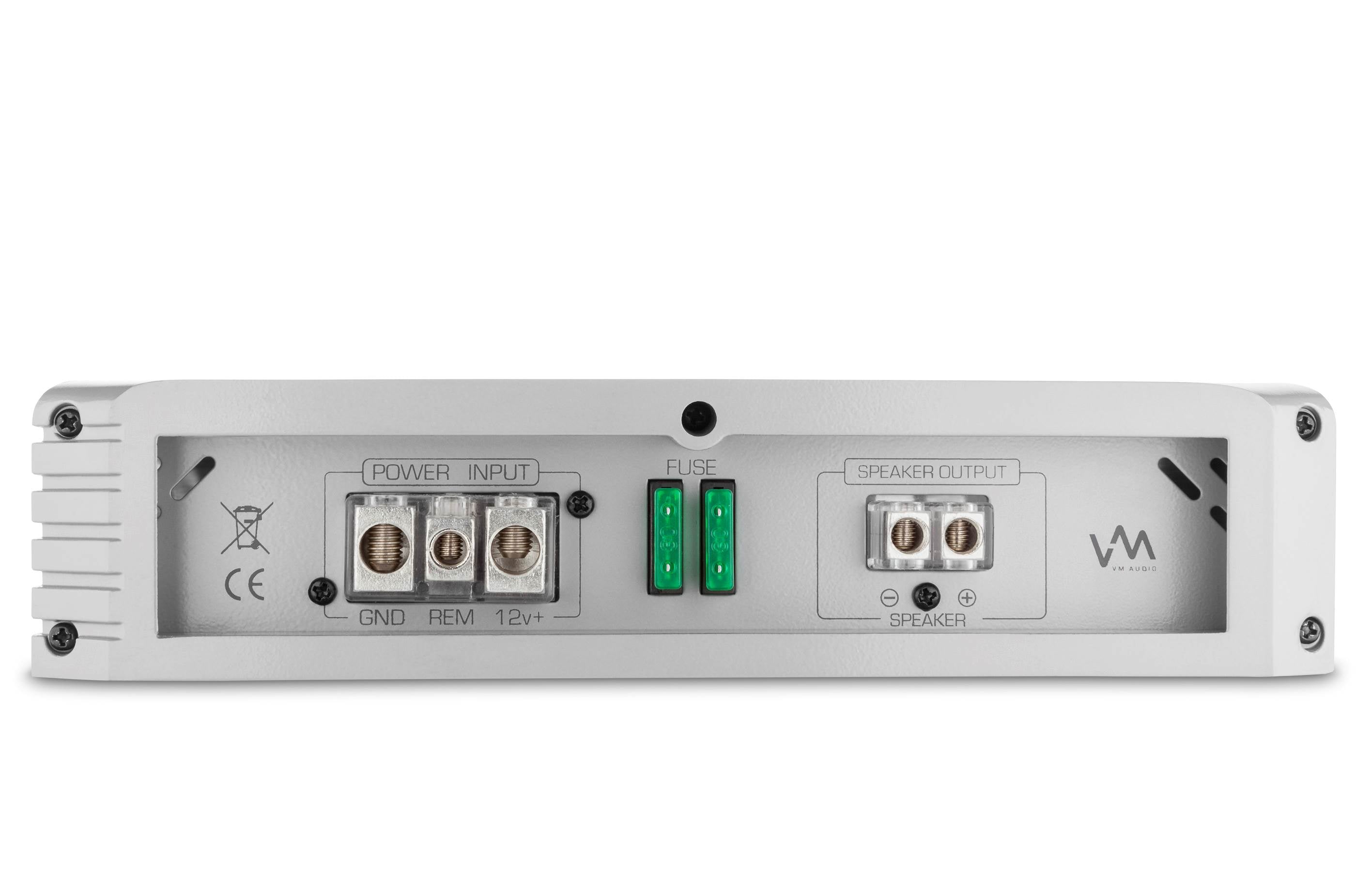

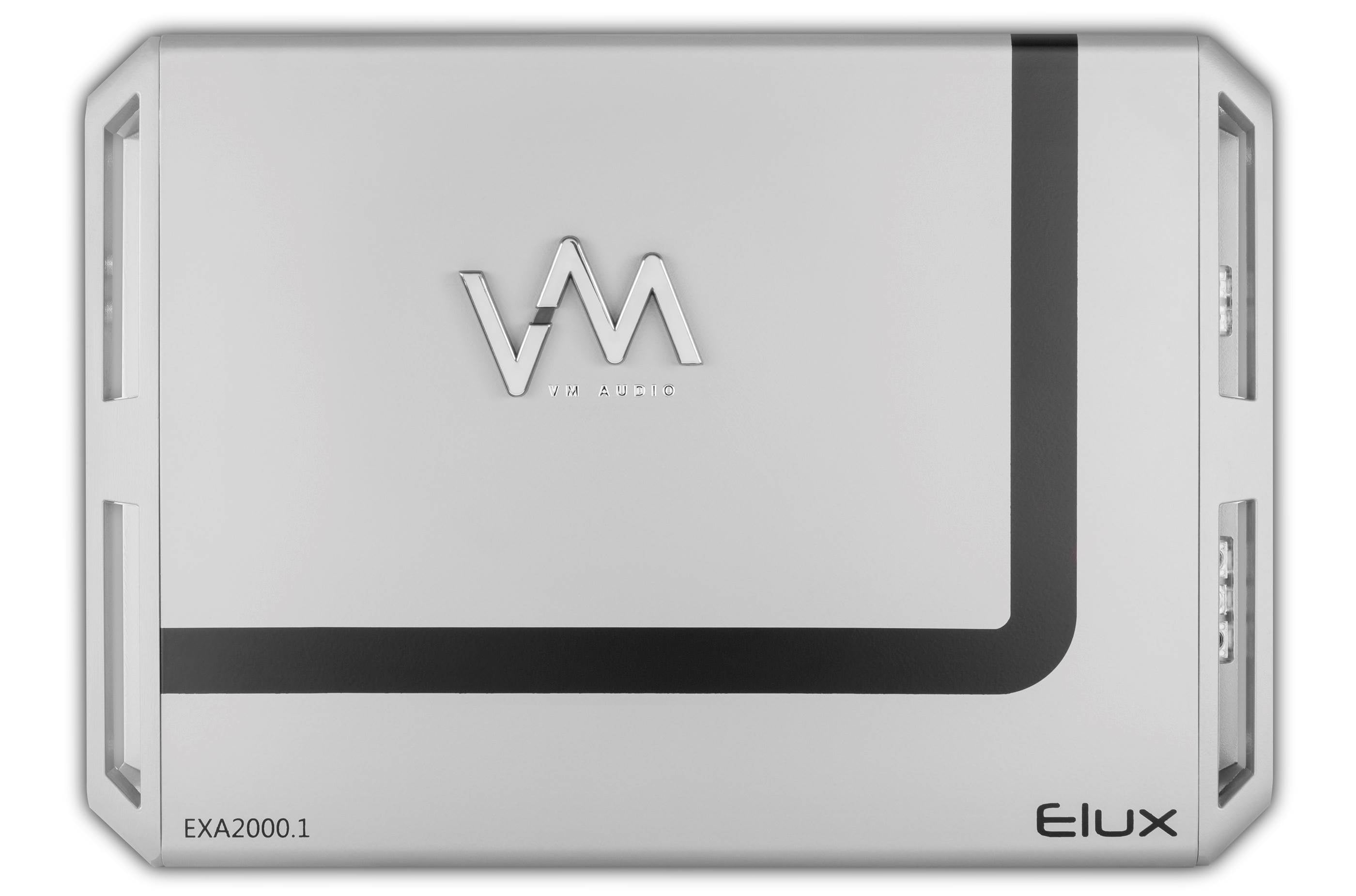

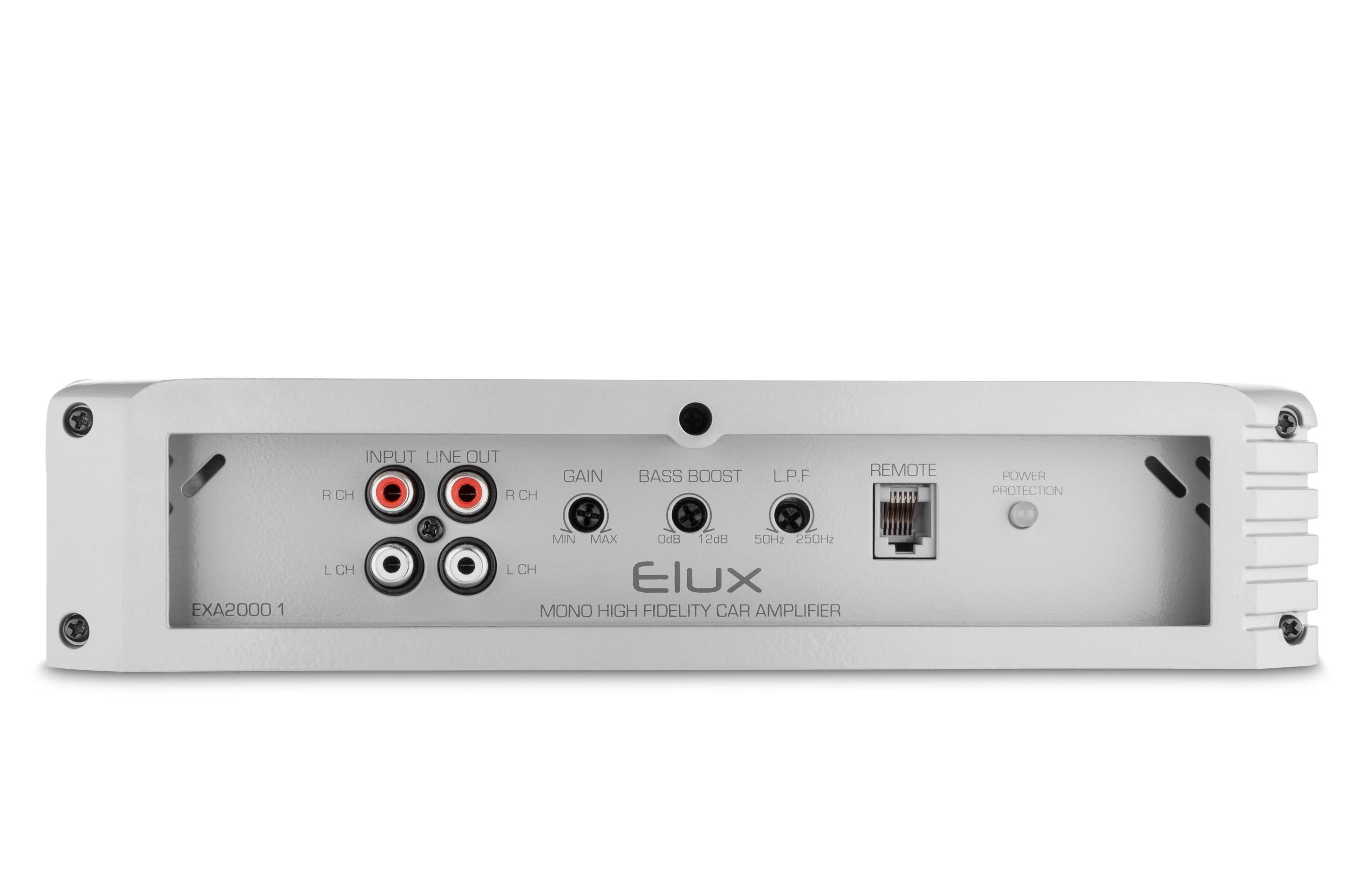

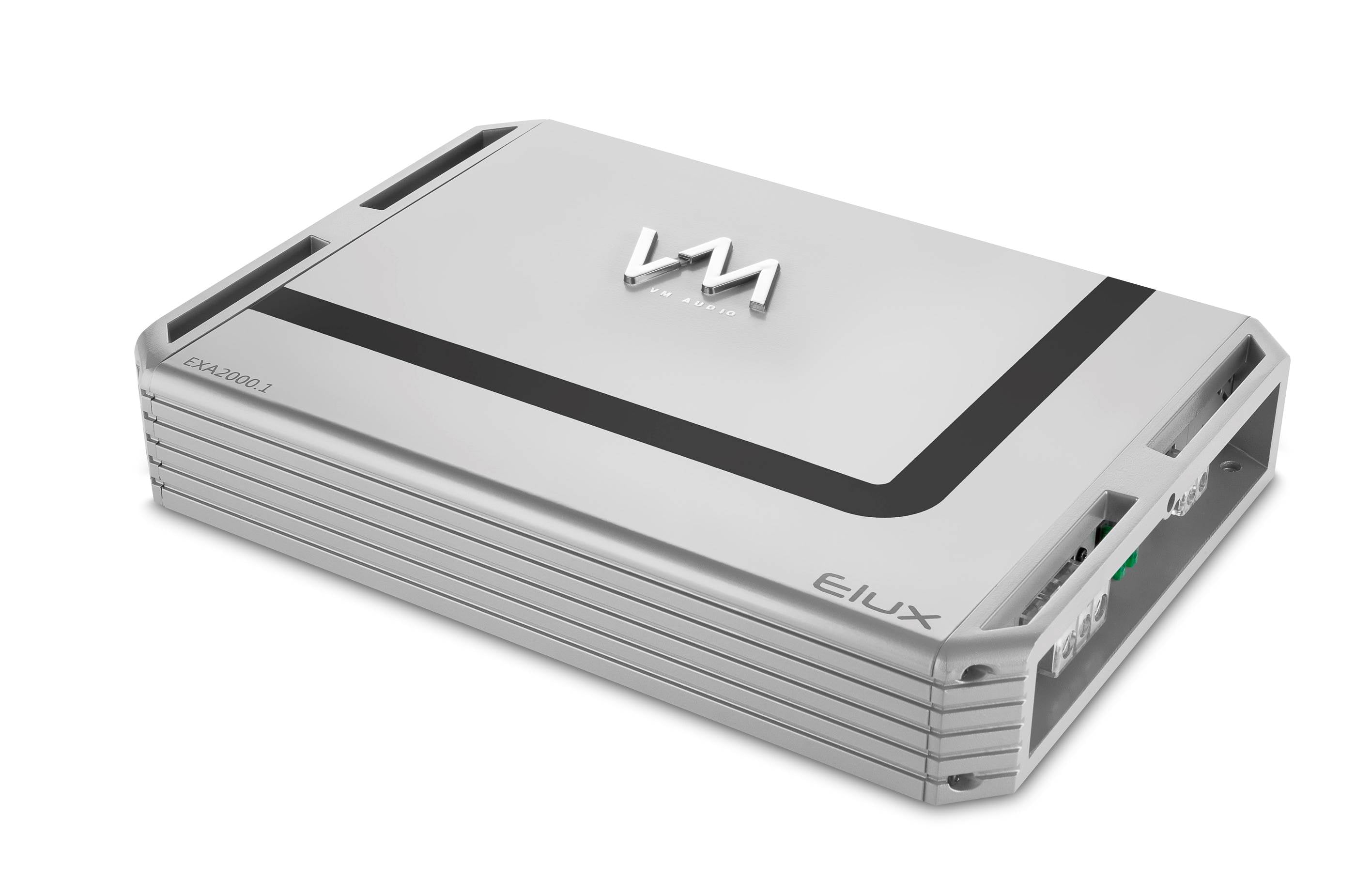

• VM Audio VM-EXA2000.1 Amplifier
• Power Amplifier
• Type: Mosfet
• Channels: 1
• Total Power 2000W
• RMS Power @ 4 Ohm: 1000Wx1
• Peak Power @ 2 Ohm: 2000Wx1
• Peak Power @ 4 Ohm Bridged: NA
• Minimum Impedance Unbridged: 2
• Minimum Impedance Bridged: NA
• Frequency Response: 10Hz-250kHz
• Single to Noise Ratio: 93dB
• Circuit Type: A/B
• Protection Circuit: 5 Way
• Low/Highpass Crossover: 50Hz-250Hz
• Preamp Outputs: 1 Pair
• Bass Boost: 0dB-12db
• Bass/Gain Remote: Yes
• Power Indicator: Yes
• Terminals: Nickel Plated
• Power /Ground Connection: 4 Gauge
• Input Voltage: 14.4V
• Fuse: 2x30A
• Dimensions: 13.54"L x 9.65" W x 2.17" H
• Warranty: 1 Year

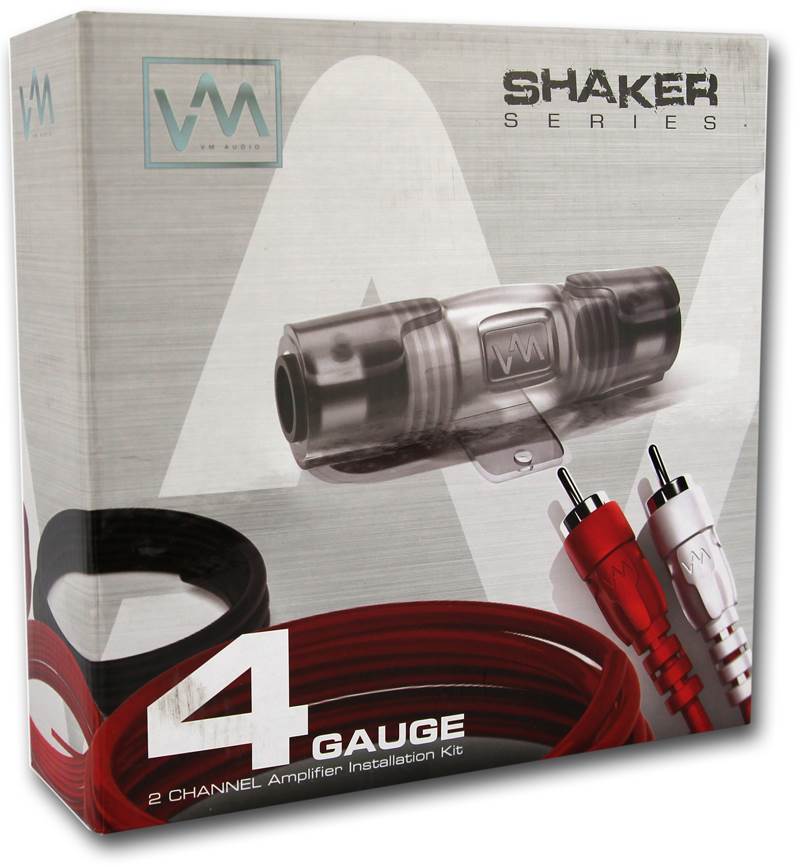

• 4 Gauge VM Audio Wiring Kit
• Amplifiers Supported: Single Amplifier
• Power/Ground Wire Size: 4 Gauge
• Strand Count: 315
• Power Wire Length: 16Ft
• Ground Wire Length: 3Ft
• Speaker Wire Size: 12 Gauge
• Speaker Wire Length: 20Ft
• Remote Wire Size: 18 Gauge
• Remote Wire Length: 15Ft
• RCA Cable Length: 15Ft
• Fuse Holder: AGU
• Fuse Size: 60A
• Wire Ties: 20
• Spade Connectors: 2
• Ring Connectors: 2
• Ring Spade Terminals: 5
• Butt Connectors: 3
• Split Loom Tubing: Yes
• Screws: 3
• Fasten Connectors: 4
