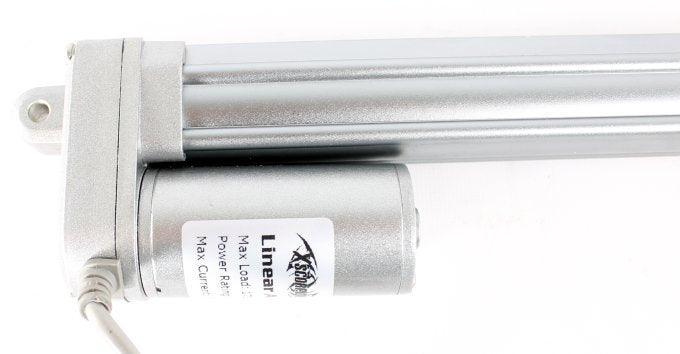

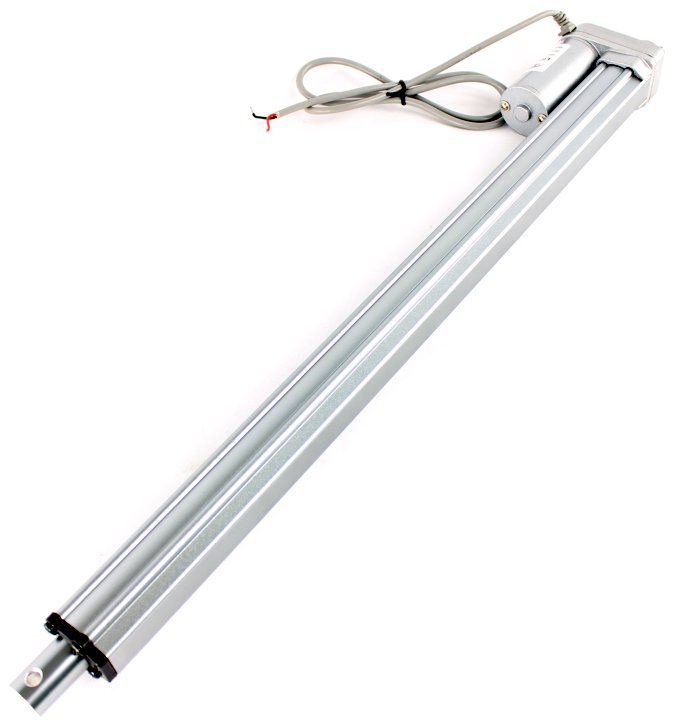

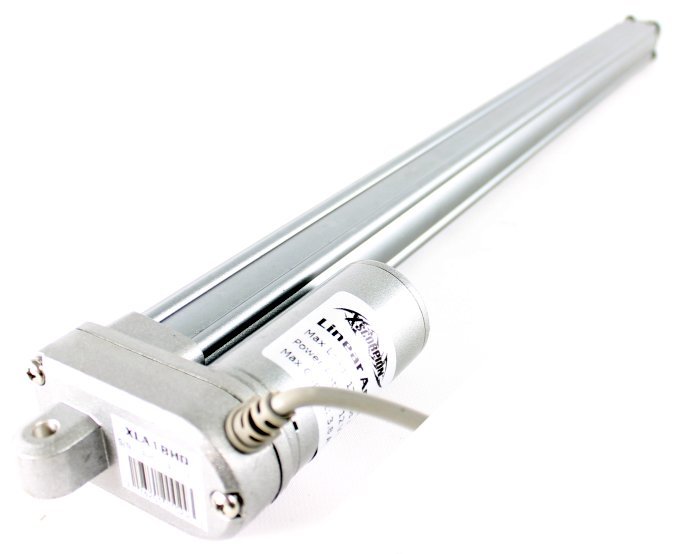

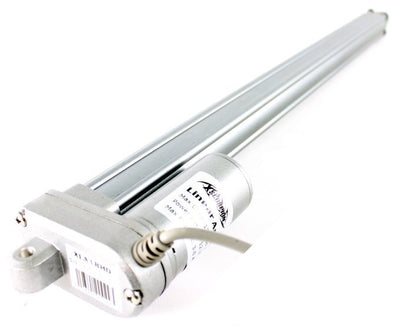

XSCORPION 12" Heavy Duty Linear Actuator 12 Volt 750 LB Max w/ Adjustable Stroke

The 12 Volt, Heavy Duty **12" Linear Actuator** is a proud member of the new XLA Series from XScorpion! Xscorpion 12 V linear actuators are the ultimate accessory for installing power operated hoods, trunks, tonneau covers, or any other heavy duty or delicate custom application. XScorpion's linear actuators offer quick operation even on the most stubborn of lifting jobs. The lightweight aluminum actuator case encloses high torque electric motors and heavy duty permanently sealed and lubricated actuator shafts, which ensure maximum performance without ugly hoses or greasy parts. The XScorpion's 12 Volt linear actuator durable drive assembly, means a long life of excellent performance and reliable operation!

The XScorpion Heavy Duty **12" Linear Actuator** provides great power and durability for all of your applications! Check out all the different uses this fantastic device serves below! XScorpion proudly provides the needed tools to accomplish all of your projects, and offers amazing value for their low prices! VMInnovations is an authorized XScorpion dealer that sells new, warranted products!

• XScorpion XLA Series Adjustable Stroke Heavy Duty **12" Linear Actuator**!
• 175 LB Dynamic (Push/Pull Capacity)
• 750 LB Static (Max Capacity)
• Built in Stop Switch
• Steal Acme Drive/Aluminum Outer Housing
• 3.8 Amps @ 12 Volt Maximum Current Draw at Full Load
• Clevis Style Mounting for Easy Installation
• Extremely Compact Design
• High Torque Motor
• Strength Rating: (175 lbs/ 79 kg)
• Stroke Length: 12"
• Collapsed Length: 16.3"
• Extended Length: 28.3"
• Useful Applications:
• Power Operated Hoods, Trunks and Amp Racks
• Automation Equipment
• Automatic Windows/Doors
• Automatic Cupboard
• Automatic Satellite Antenna
• Automatic Wheel Chair & Hospital Bed
• Entertainment Facilities & Equipment
• Household Appliances
• Automatic Drawing Table
• Home Care Facilities
• Patient Lifter
• Massage Chair
• Traffic Facilities
• Office Automation
• Automatic PC Desk
• & Much More!
• Specifications:
• Operating Voltage: 12V DC
• Operating Temperature Range: 25 to 60°C ( 14 to 149°F)
• Operating Speed (12V): 0.59" second @ No Load
• Operating Speed (12V): 0.39" second @ Max Load
• Dynamic Thrust (12V): 175 lbs Thrust
• Static Load: 750 lbs
• Current Drain (12V): 700mah operating No Load
• Current Drain (12V): 3500mah operating Max Load
• Max Current: 3.8 A
• Recommended Fuse: 5amp inline
• IP Grade: IP65 total dust protection, water resistant
• Part Number: XLA12HD
• 2 Year Warranty: (1 Year Manufacturer Warranty + 1 Year VMInnovations Warranty!)
