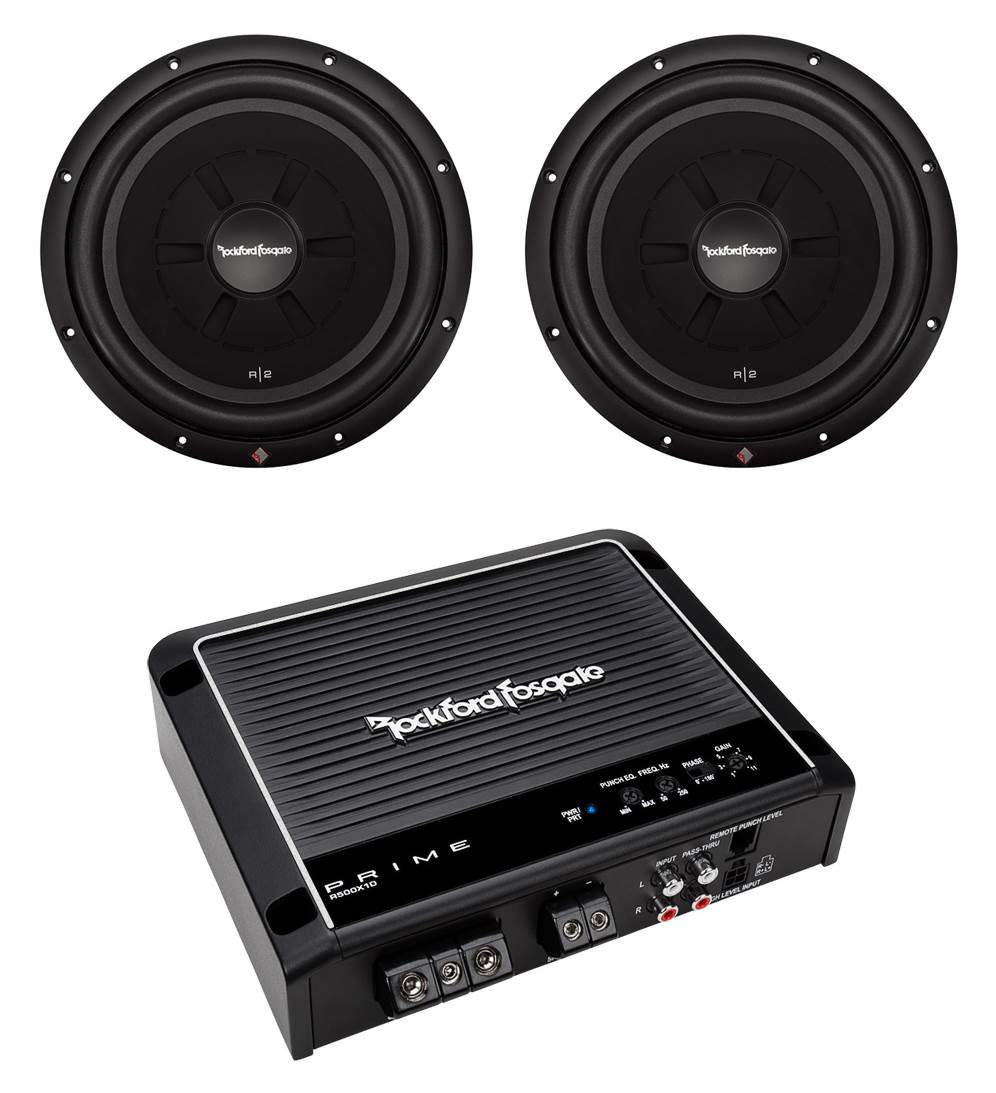

2) Rockford Fosgate R2SD4-12 12" Shallow Car Subwoofers+R500X1D Mono Amplifier

We are an Authorized ROCKFORD FOSGATE Dealer!

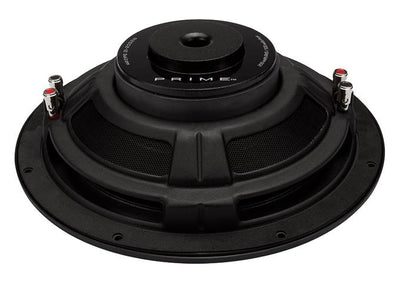

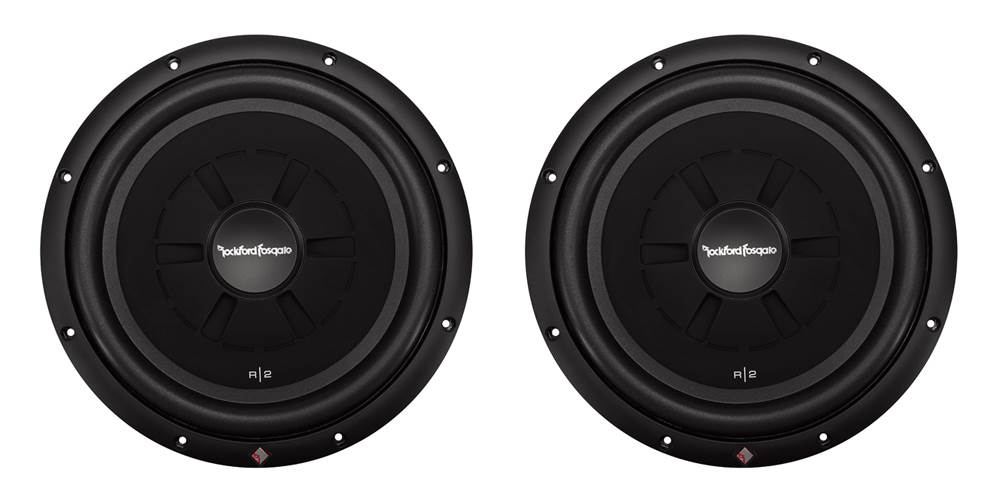

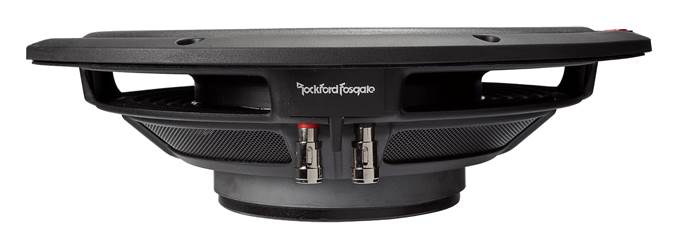

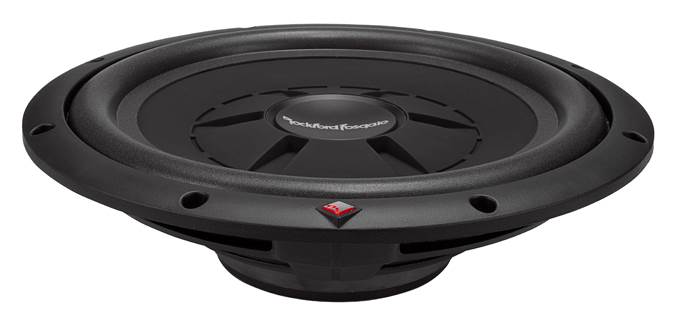

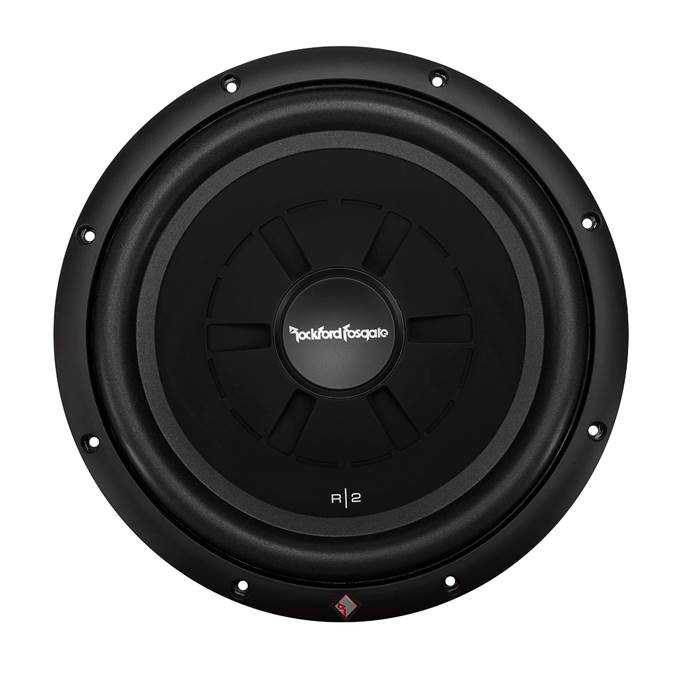

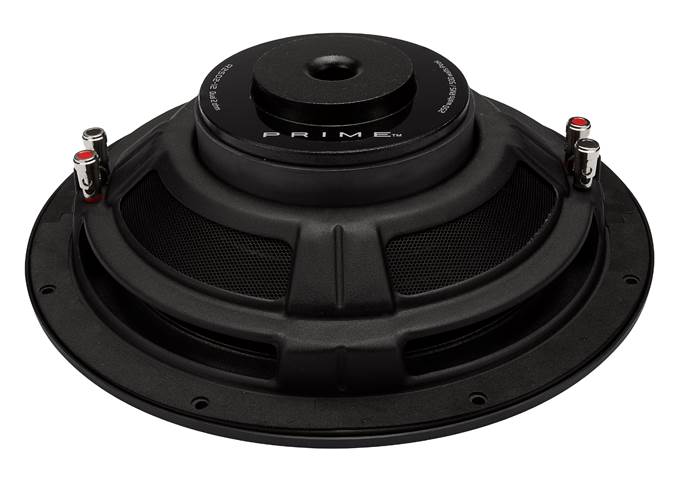

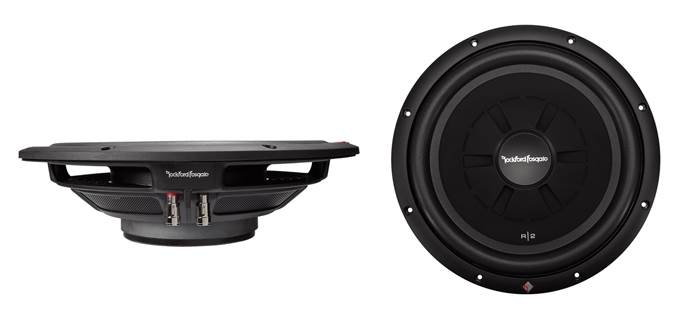

These TWO ROCKFORD FOSGATE **R2SD4 12** 12" 1000W Shallow Mount 4 Ohm DVC Prime Subwoofer are built to give you the bass you desire when space is limited. An elevated motor structure that reduces speaker depth allows it to fit into tight spaces. This subwoofer uses an anodized aluminum voice coil former that provides superior heat dissipation (up to 100° at max power levels). It has the capacity to handle power under continuous demand, conforming to CEA 2031 industry standards, and the stitched tinsel leads improve reliability and performance by reducing fatigue and possible shorting.

The R2SD4 12 also features: a mica injected polypropylene cone that provides clean and accurate bass, 12 gauge compression terminals, an integrated PVC trim ring, a liner spider with embedded 16 gauge tinsel leads, a StampCast basket with integrated spider venting that keeps the motor cool, and this sub is best suited for standard sealed enclosures. Receive large bass impact in small spaces with the ROCKFORD FOSGATE **R2SD4 12** 12" 1000W Shallow Mount 4 Ohm DVC Prime Subwoofers!

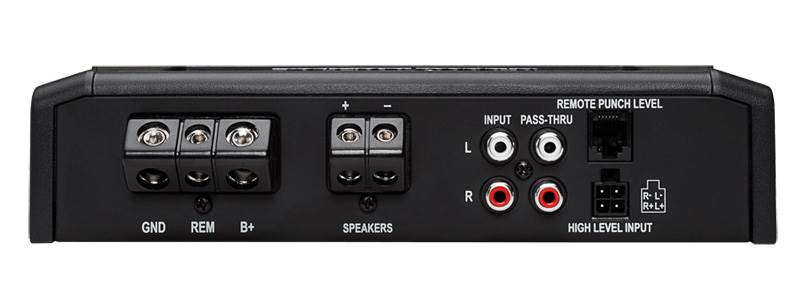

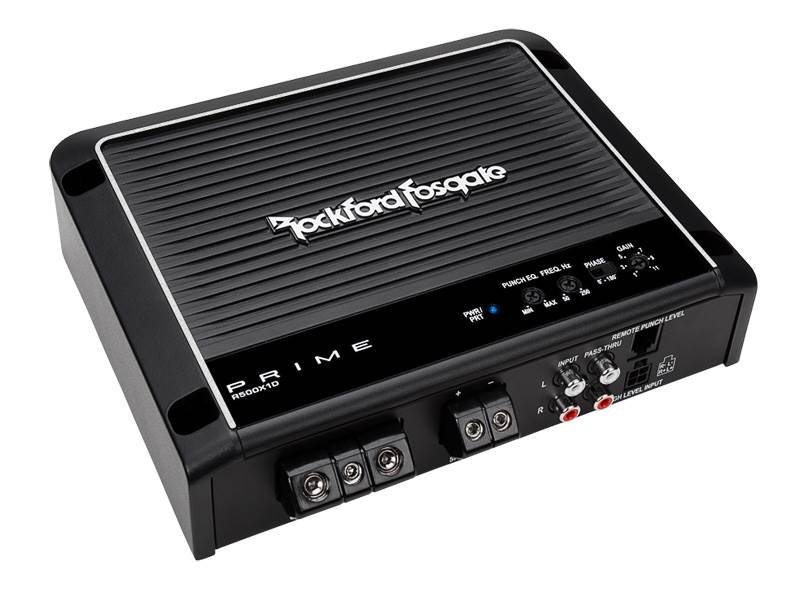

The Prime **Rockford Fosgate R500X1D** is a 500 watt mono amplifier using efficient Class D circuit topology. This amplifier is capable of running a 2 Ohm load and includes on board Punch Bass and remote Punch Level Control.

• **Subwoofers:**
• NEW ROCKFORD FOSGATE **R2SD4 12** 12" 1000W Shallow Mount 4 Ohm DVC Prime Subwoofers
• Power Handling (Max): 500 Watts per sub (1000 Watts per pair)
• Power Handling (RMS): 250 Watts per sub (500 Watts per pair)
• Features:
• 12 gauge compression terminals
• Integrated PVC trim ring
• Liner spider with embedded 16 gauge tinsel leads
• Anodized aluminum voice coil former
• StampCast basket with integrated spider venting
• Mica injected polypropylene cone
• Shallow motor assembly
• Optimized for sealed enclosures
• CEA 2031 Compliant
• Specifications:
• Size: 12 Inches

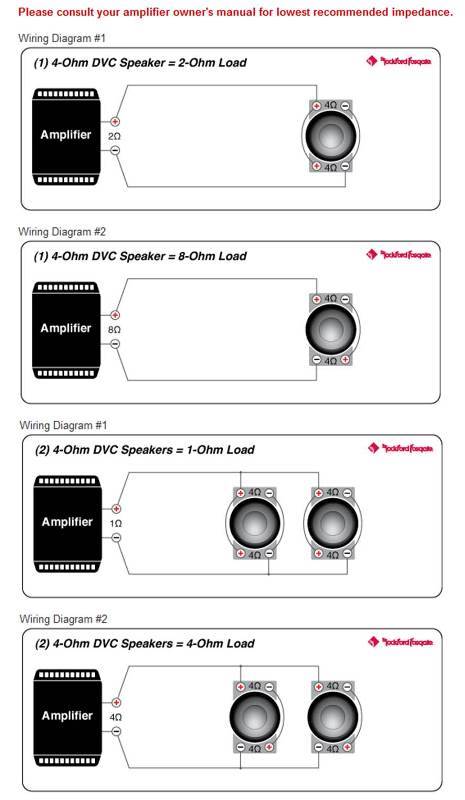

• Nominal Impedance: Dual 4 Ohm
• Voice Coil Diameter: 2.0" (50mm)
• Magnet Weight: 51 oz. (1.45kg)
• Speaker Connector: Dual 12 Gauge Compression
• Fs (Hz): 30.3
• Re: 6.80 Ohms
• Le: 4.2mH
• Qms: 7.00
• Qes: 0.72
• Qts: 0.65
• Vas: 65.4 (Liters)
• Sd: 534.8 (cm2)
• Xmax: 10.0mm
• Sound Pressure Level (SPL): 85 (dB at 1w/1m)
• Cutout Diameter: 11.25 Inches (285 mm)
• Mounting Depth: 3.602 Inches (91.5 mm)
• Woofer Displacement: 0.039 Cubic Feet (1.10 Liters)
• Weight: 23 lbs (shipping)
• Condition: BRAND NEW!
• Part Number: **R2SD4 12**
• Warranty: 2 years (1 Year Manufacturer + 1 Year VMInnovations Warranty)
• **Amplifier:**
• New Rockford Fosgate R500X1D 500 Watt Mono D Car Amplifier
• Rated Power:
• 250 Watts x 1 @ 4 Ohms
• 500 Watts x 1 @ 2 Ohms
• Dynamic Power:
• 333 Watts x 1 @ 4 Ohms 0° Res
• 647 Watts x 1 @ 2 Ohms 0° Res
• Class D
• MOSFET power supply
• Cast aluminum heatsink
• Over current protection
• Short circuit protection
• Muted turn on
• 12dB/octave Butterworth crossover
• RCA pass thru outputs
• On board Punch EQ with +18dB boost @ 45Hz.
• High level inputs
• 0°/180° Phase Switch
• Real time output and power supply thermal sensing
• Remote Bass Control Included!
• 4 Gauge power/ground connectors
• CEA 2006 Compliant
• Product Condition: Brand New
• Item Weight: 6 lbs.
• Part Number: **R500X1D**
• 1 Year Manufacturer Warranty
