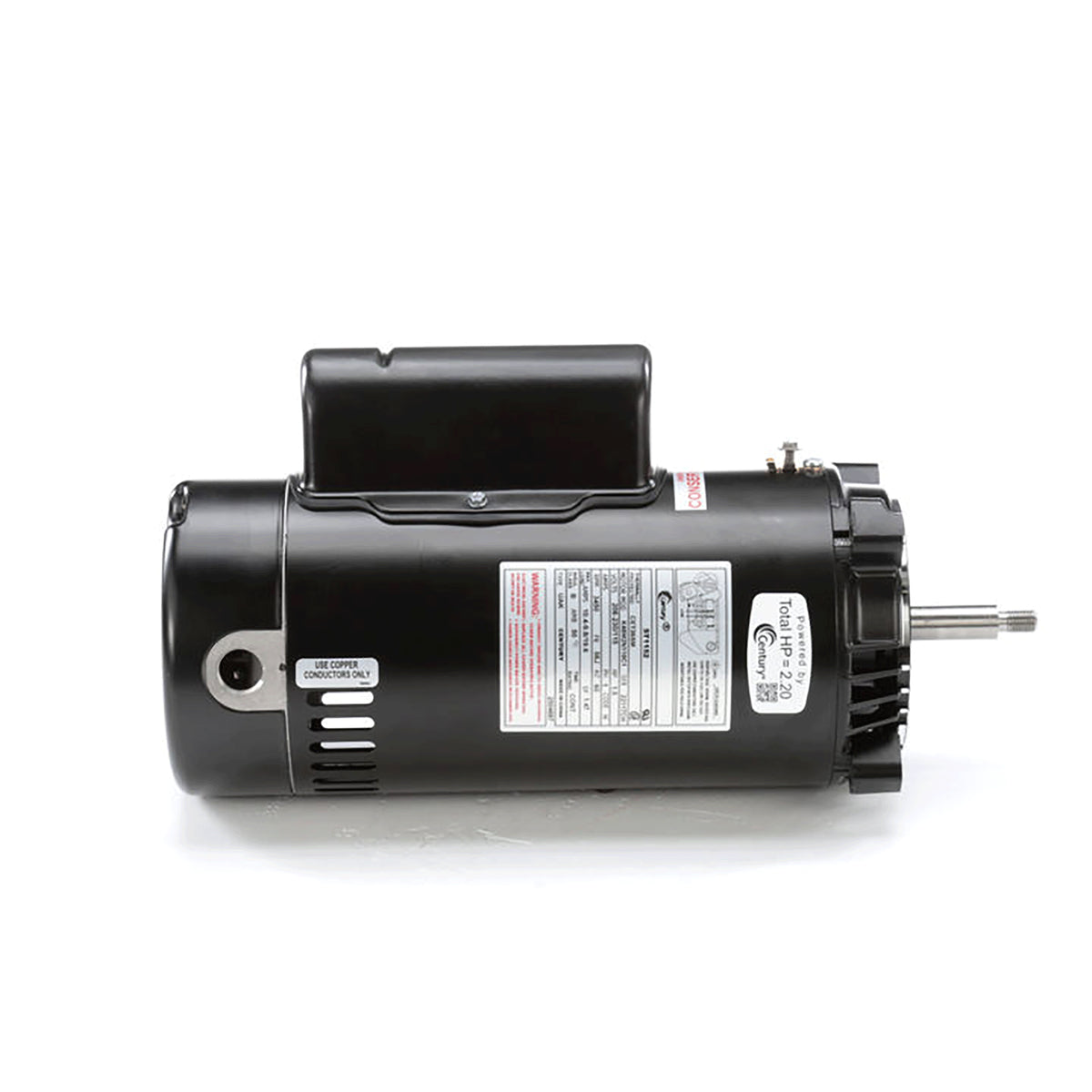

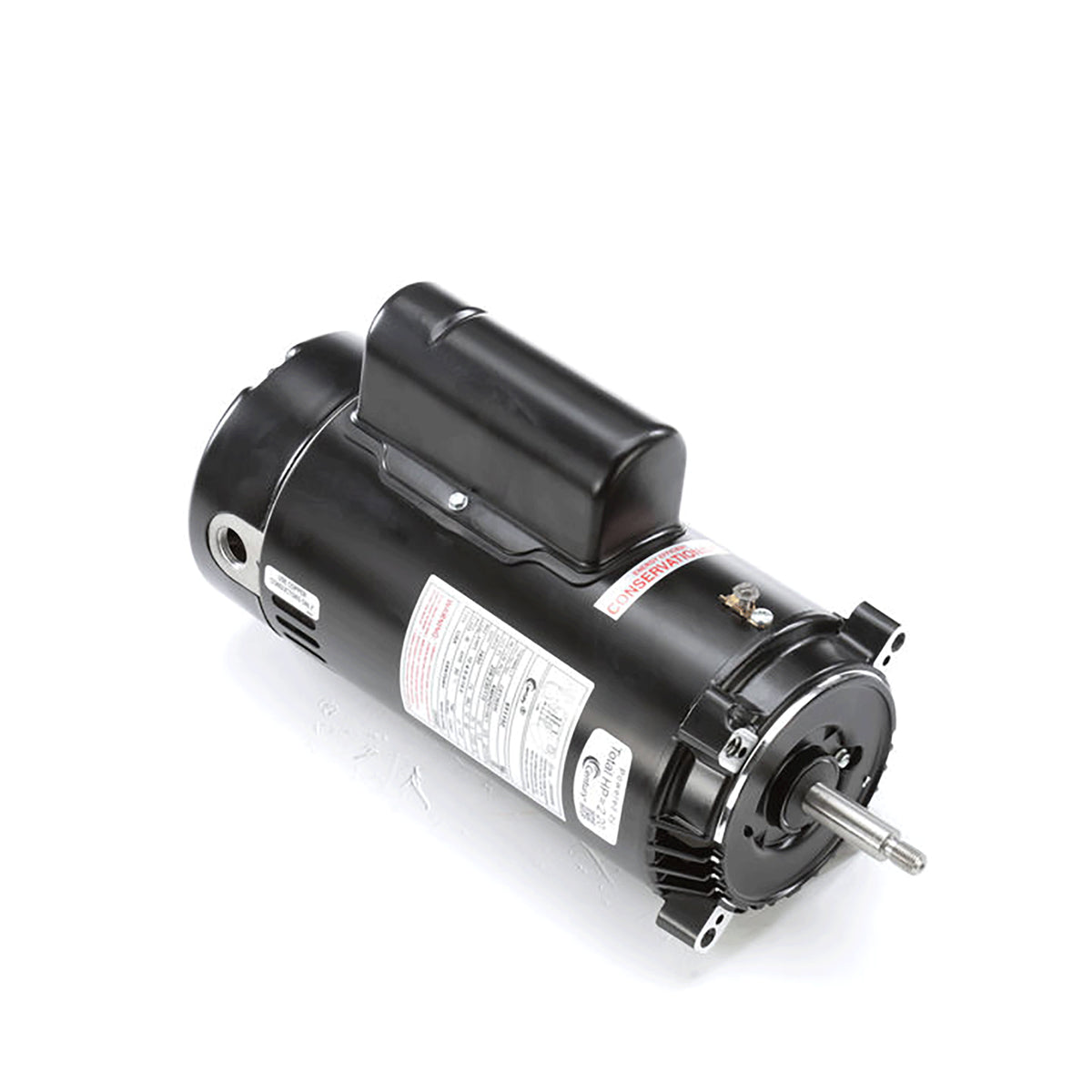

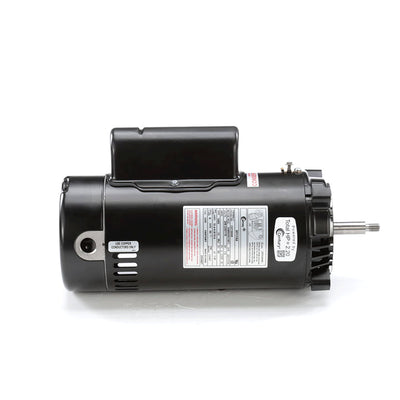

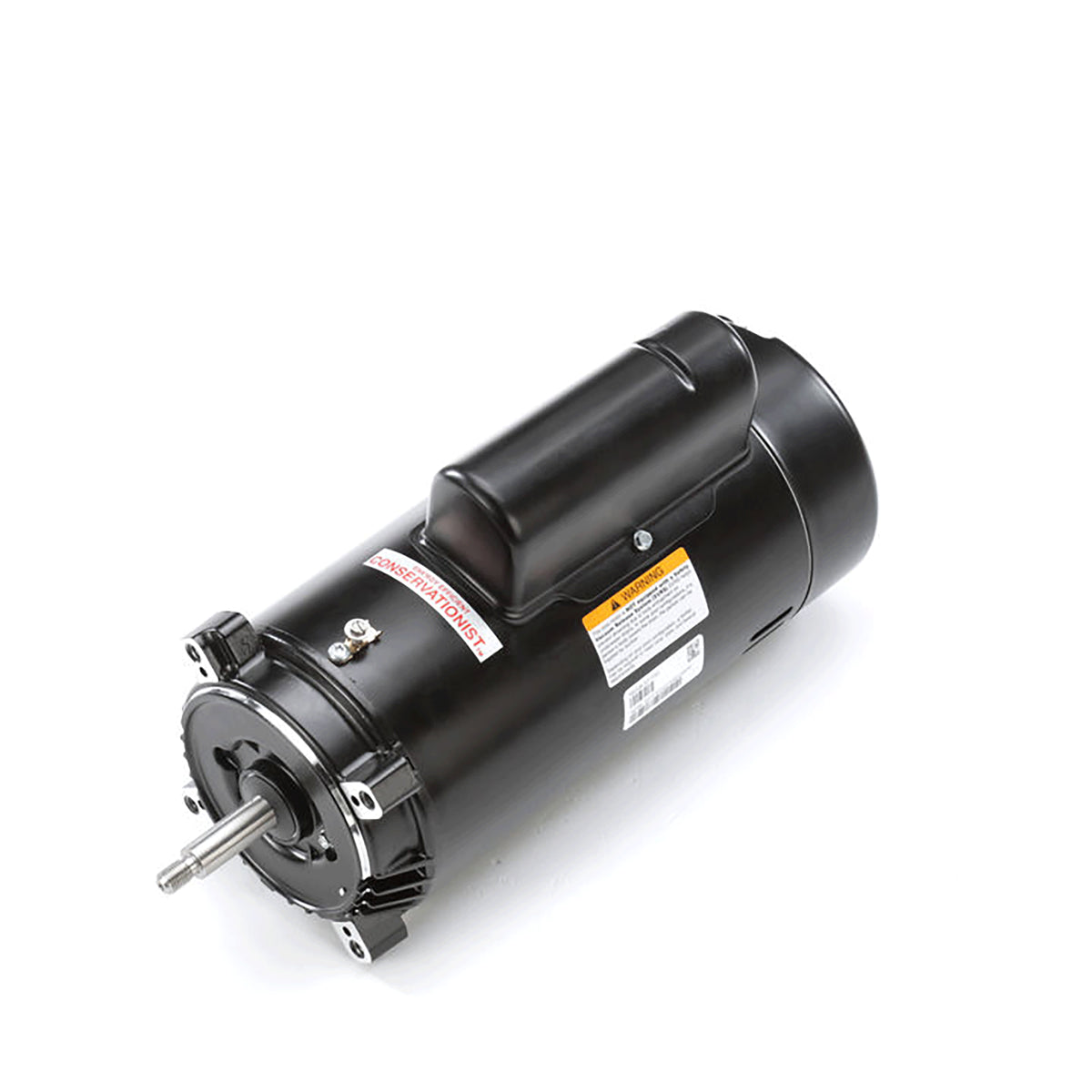

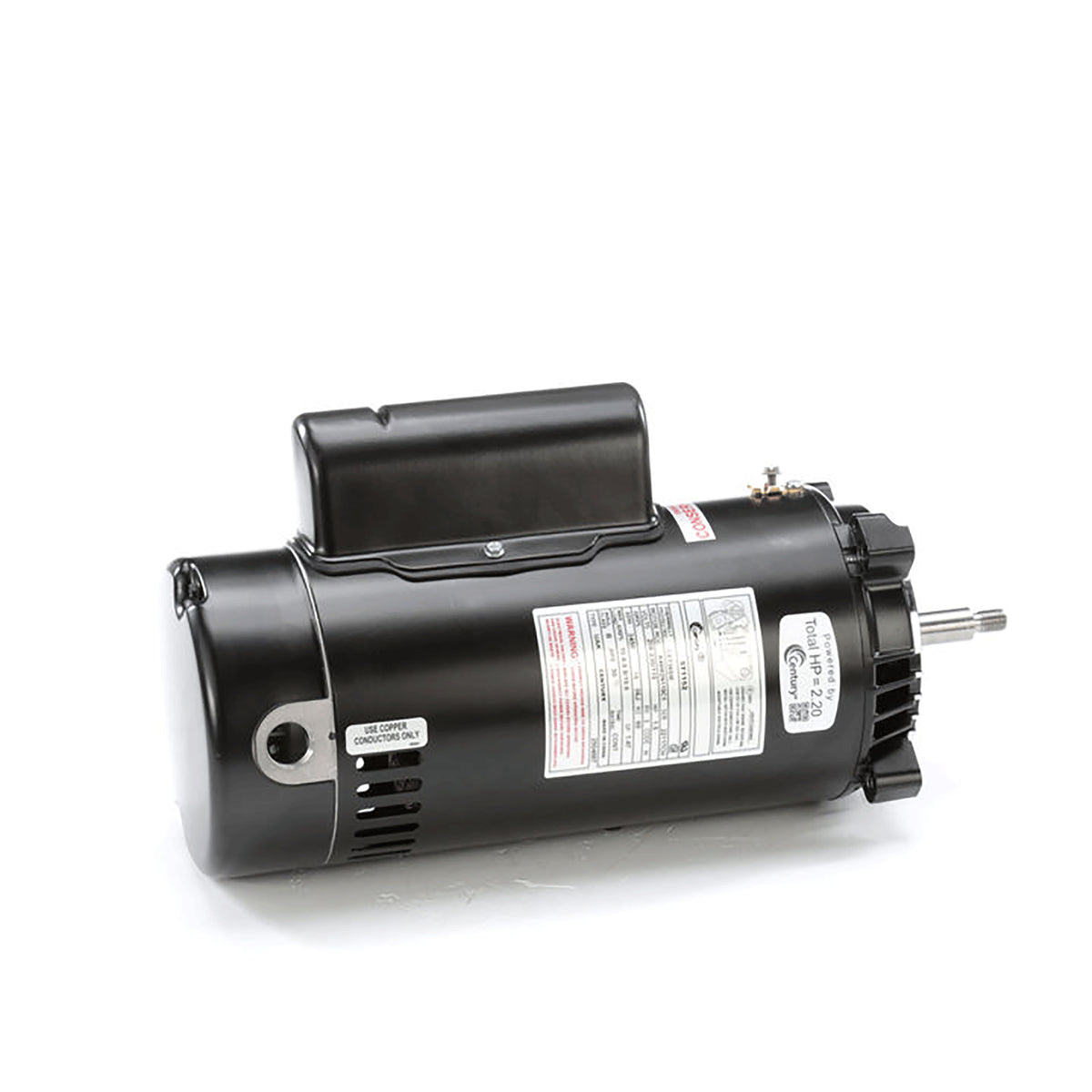

A.O. Smith Century ST1152 Full Rated 1.5 HP 3450RPM Single Speed Pool Pump Motor

When your old pool pump motor calls it quit, have a replacement A.O. Smith 1.5-HP 3450 RPM Single-Speed Pool Pump Motor ready to swap in so you can get back enjoying your relaxing day on the water.

This 1.5-horsepower full-rated replacement motor for above and in-ground swimming pool pumps has a threaded shaft and fits most pumps that require a square flange motor. It operates on both 115 and 208-230-volts and has a 3450 RPM. The motor features a 1.5 service factor, an automatic surge protector, capacitor start, and an open drip-proof housing for cooler operation. The ST1152 pool pump motor is compatible with pump series models like Sta-Rite Dura-Glas, Dura-Glas II, Max-E-Glas, Max-E-Glas II, Dyna-Glas, and Max-E-Pro, Hayward Max-Flow II, Pentair Whisper-Flo, Challenger, Ultra-Flow, Pinnacle, and Anthony AR2.

A.O. Smith Century offers the very best in US-manufactured electric motors. With a comprehensive line of electric motors for commercial, industrial, and residential pump and general purpose applications, century is a highly recognized brand in the leisure water industry for its breadth of product offering, quality, and reliability.

• Full-rated 1.5-horsepower 3450 RPM square-flange replacement pool pump motor
• For use with above and in-ground swimming pools
• Part Number: ST1152
• 115/208-230-volt power; open drip-proof housing ensures cooler operation and extends the life of your motor
• Compatible pumps include: Sta-Rite Dura-Glas, Dura-Glas II, Max-E-Glas, Max-E-Glas II, Dyna-Glas, Max-E-Pro, Hayward Max-Flow II, Pentair Whisper-Flo, Challenger, Ultra-Flow, Pinnacle, and Anthony AR2 series
• Specifications:
• Product type: Pool pump motor
• Service factor: 1.5
• Voltage: 115/208-230 volts
• Horsepower: 1.5 HP
• RPM: 3450
• Amperage: 19.6/10.4-9.8 amps
• Hertz: 60
• Surge protector: Automatic
• Start type: Capacitor
• Insulation: Class B
• Motor phase: Single-speed
• Rotation: CCW pump end
• Bearing type: Sealed ball bearings
• Max load: 150-volt: 19.6 amps; 208-230-volt: 10.4-9.8 amps
• Flange type: Square
• Shaft type: Threaded 303 stainless steel
• Motor frame size: 56J
• Motor housing: Open drip-proof
• Pool type: Above-ground, in-ground
• Material: Stainless steel
• Color: Black
• Dimensions (L x W x H): 15 x 9.5 x 9.5 inches
• Weight: 32 pounds
