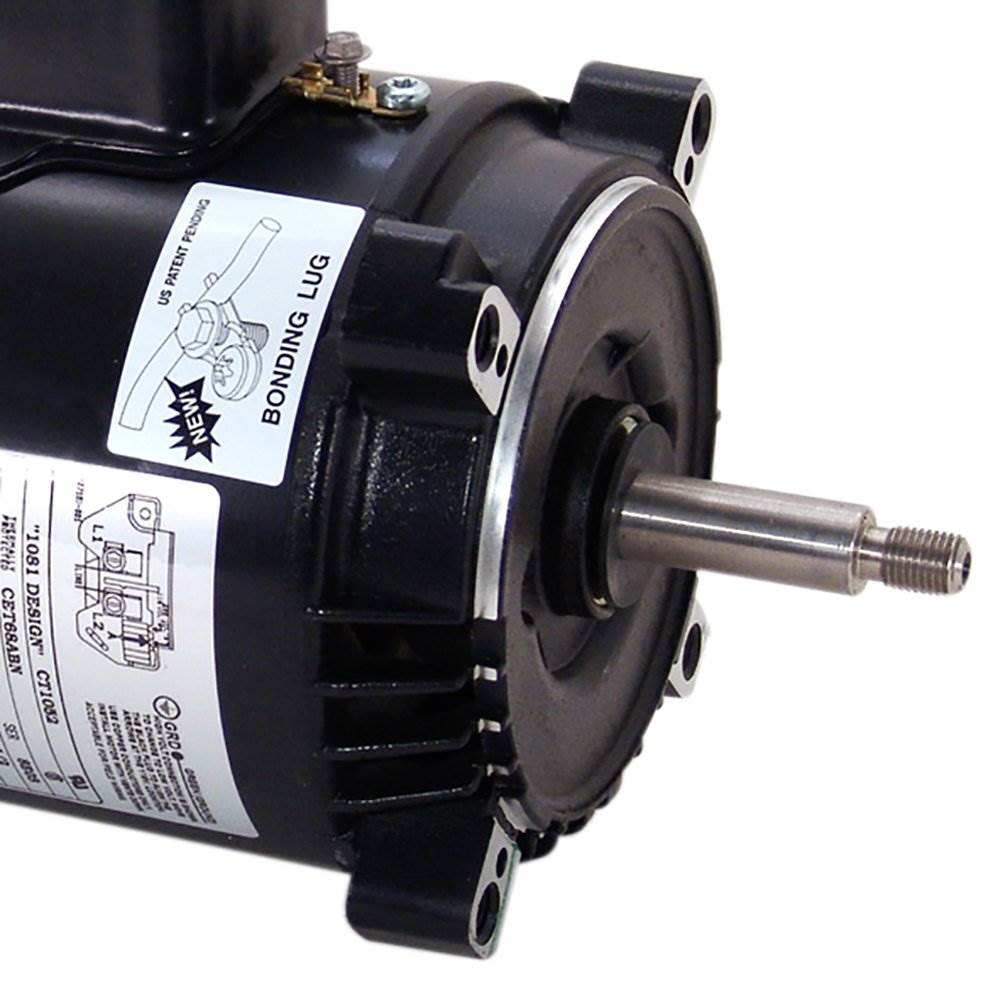

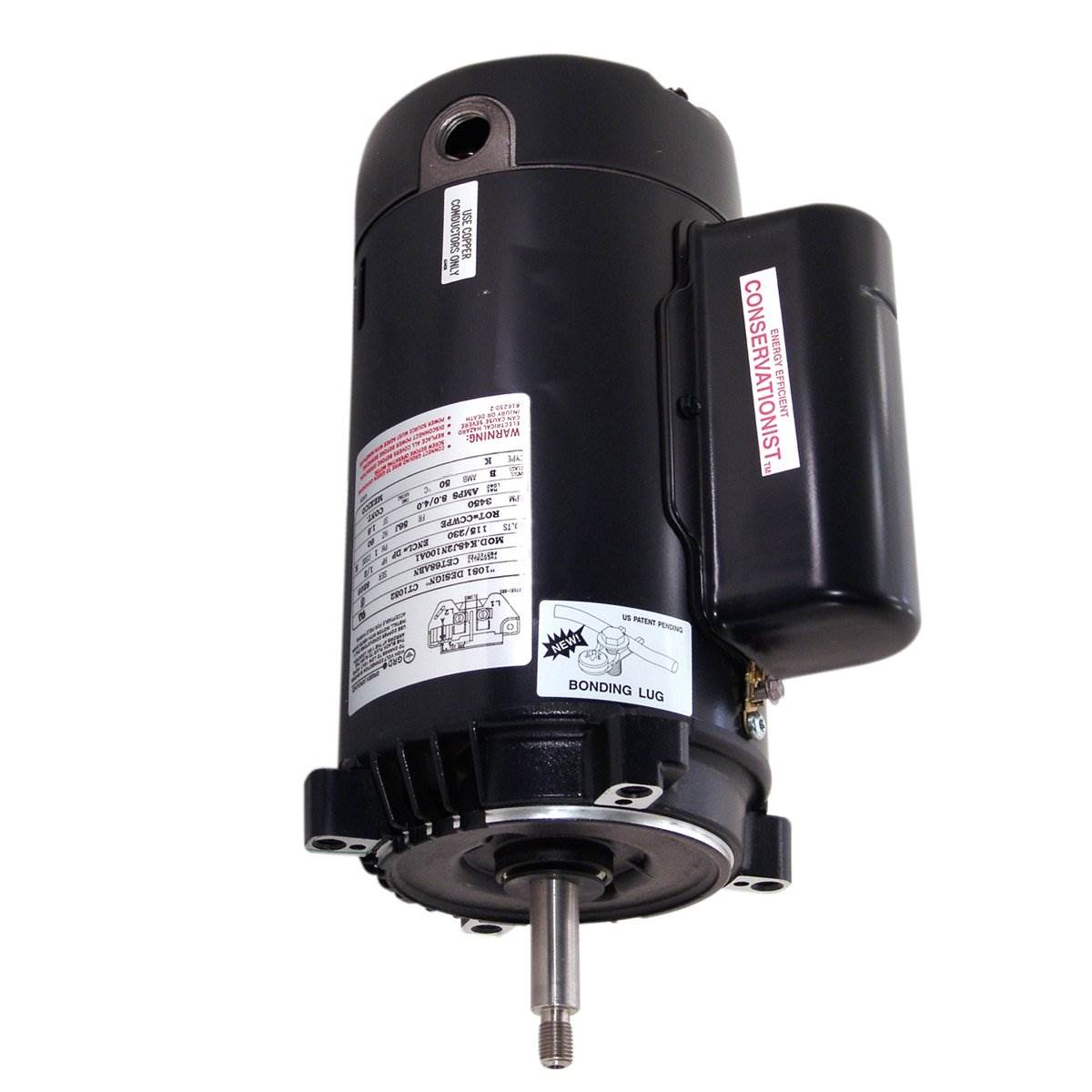

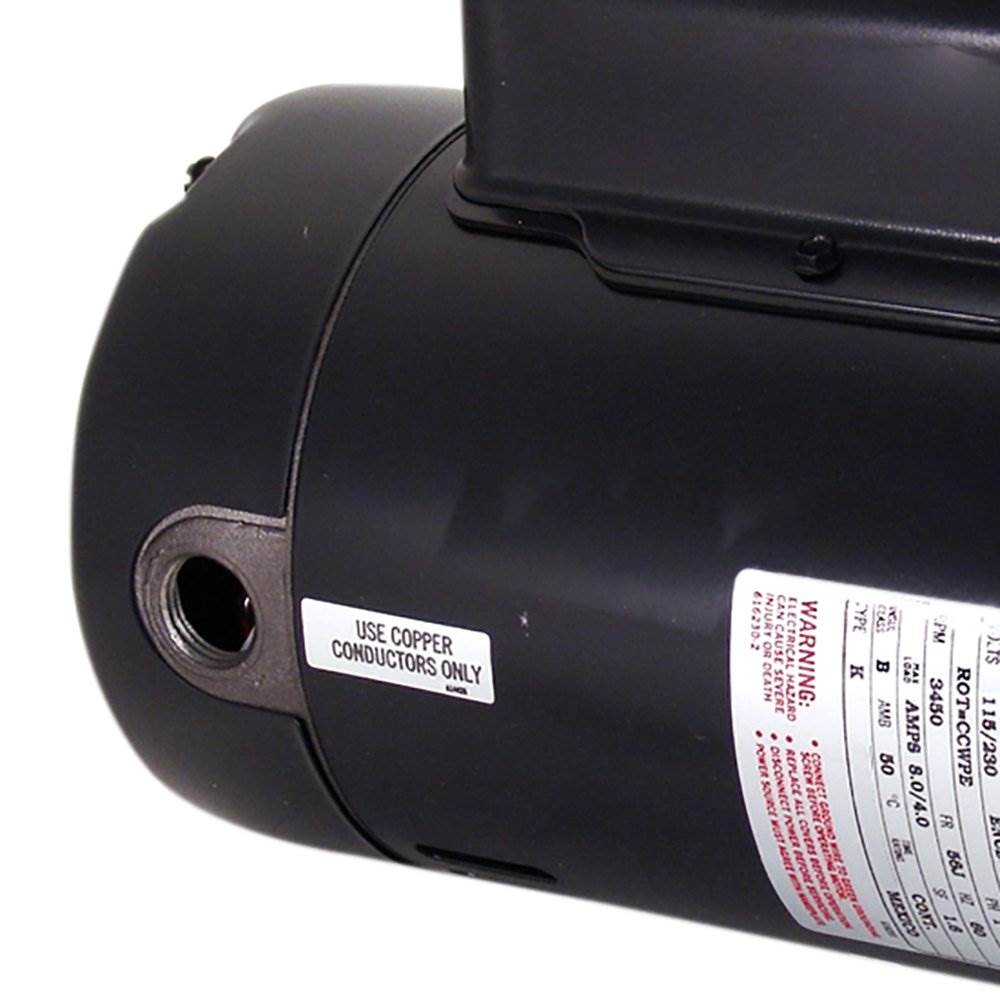

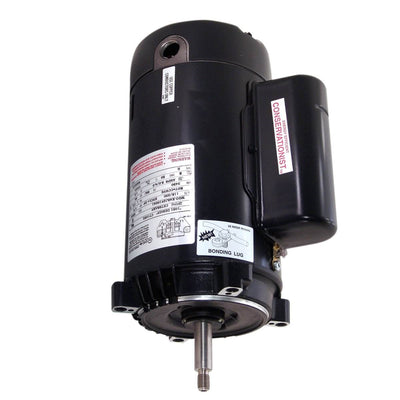

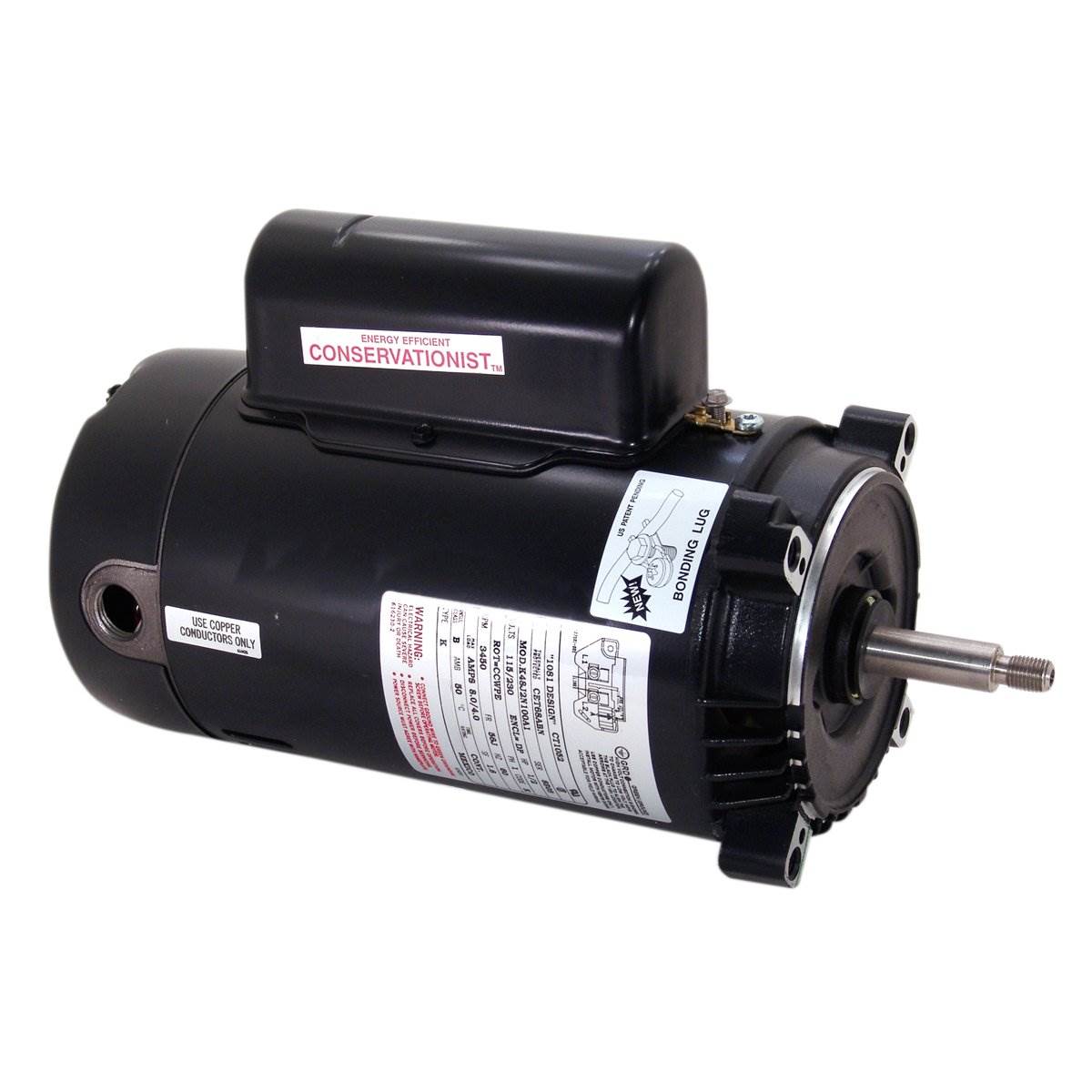

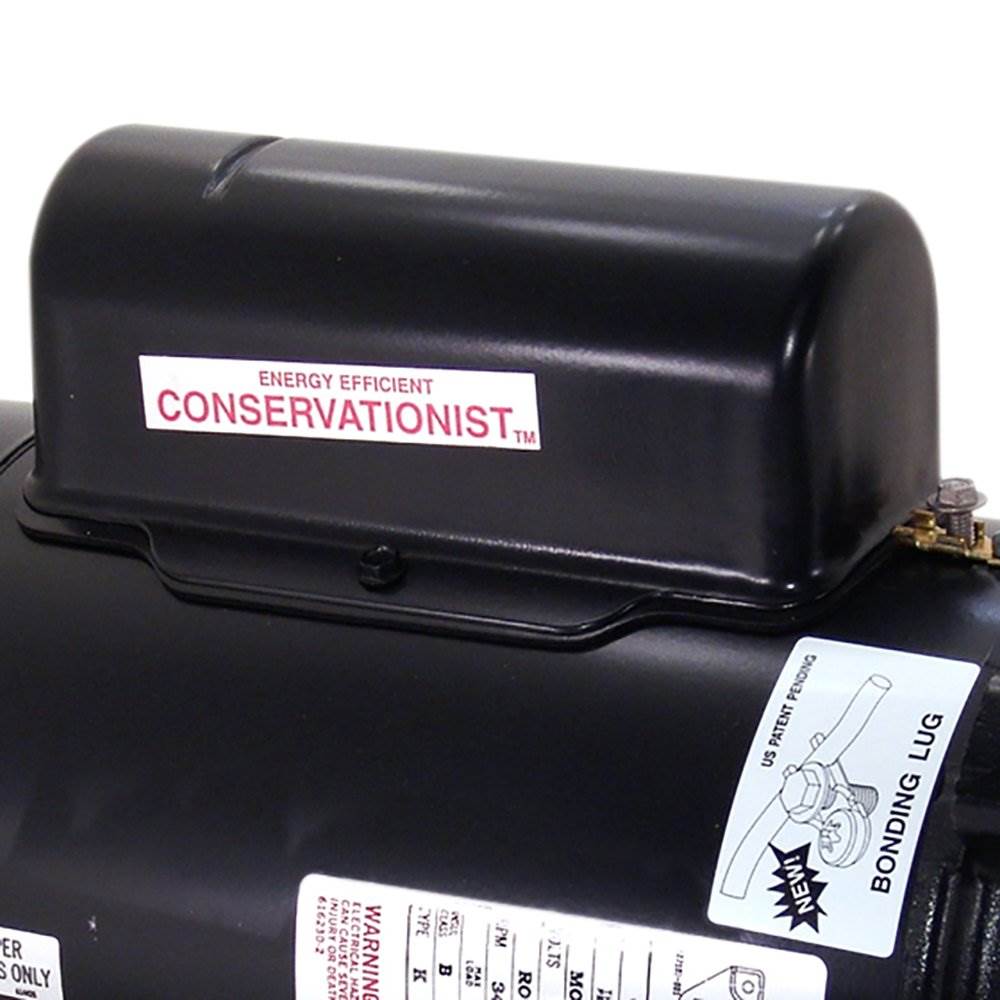

A.O. Smith Century Up-Rated 2.5 HP 3,450 RPM 1 Speed Pool Pump Motor (For Parts)

####This item is refurbished, used, does not function properly, and should be used for parts only. There may also be slight damage to the item and there is no guarantee of usability. Item is sold as-is with NO warranty.####

• Up-rated 2.5-horsepower 3,450 RPM 56J round-flange replacement pool and hot tub pump motor
• For use with above and in-ground swimming pools and hot tubs
• Part Number: UST1252
• 115/208-230-volt power; open drip-proof housing ensures cooler operation and extends the life of your motor
• Compatible pumps include: Hayward Super, Hayward Super II, Hayward Northstar, Hayward Max-Flow, Jacuzzi Magnum, and Pentair Pinnacle series
• Not California Title 20 Compliant
• Specifications:
• Product type: Pool pump motor
• Service factor: 1.1
• Voltage: 208-230 volts
• Horsepower: 2.5 HP
• RPM: 3,450
• Amperage: 12.6-11.4 amps
• Hertz: 60
• Surge protector: Automatic
• Ambient temperature: 122 degrees Fahrenheit
• Start type: Capacitor
• Insulation: Class B
• Motor phase: Single-speed
• Rotation: CCW pump end
• Bearing type: Sealed ball bearings
• Max load: 208-230-volt: 12.6-11.4 amps
• Flange type: Round
• Shaft type: Threaded 303 stainless steel
• Motor frame size: 56J
• Motor housing: Open drip-proof
• Pool type: Above-ground, in-ground
• Material: Stainless steel
• Color: Black
• Dimensions (L x W x H): 16 x 8.5 x 6.5 inches
• Weight: 34 pounds
• Product Condition: For Parts – Item does not function properly
• **NO warranty, item sold as-is**
