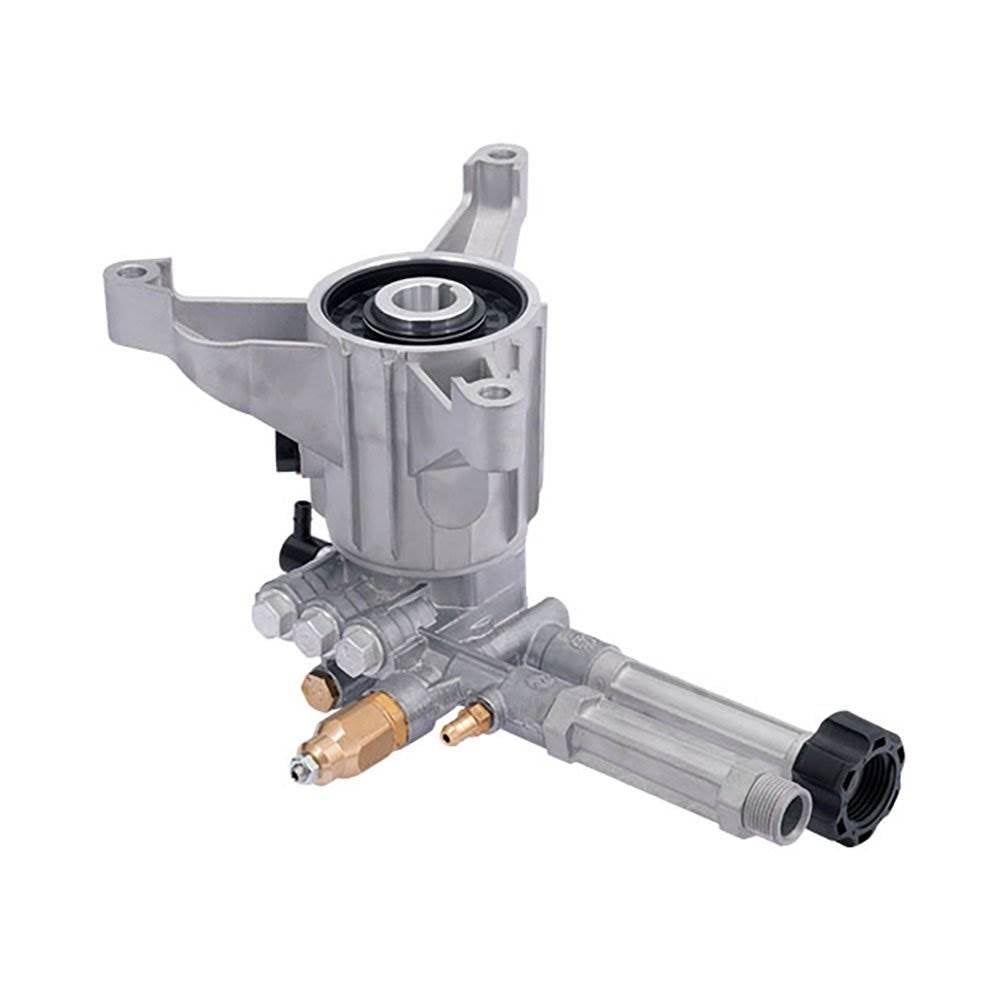

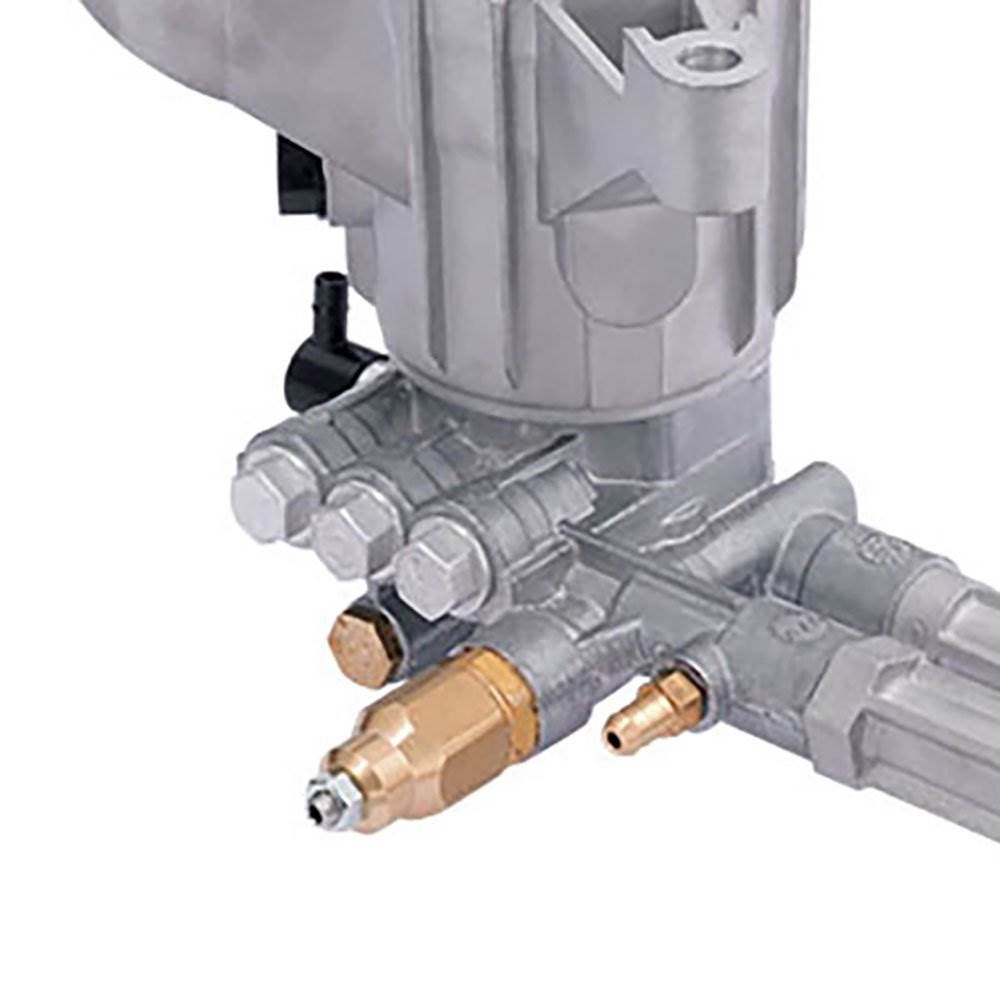

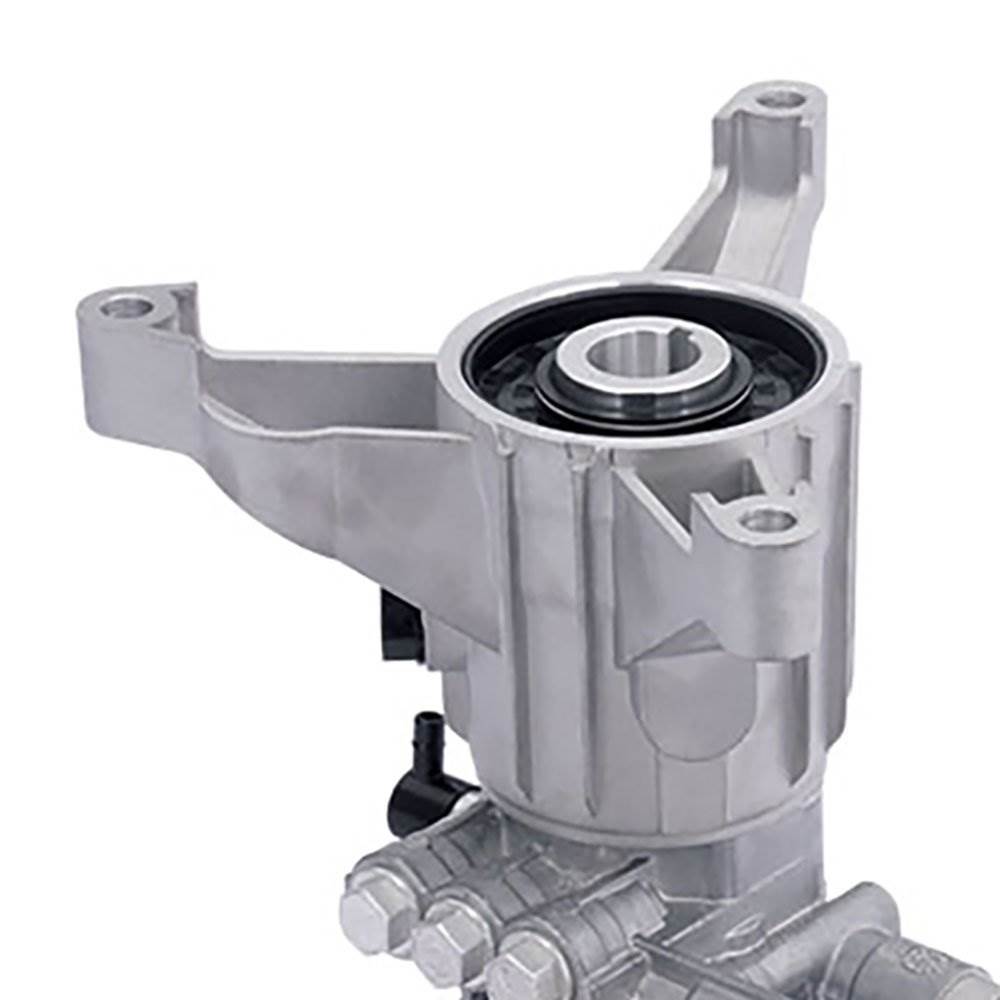

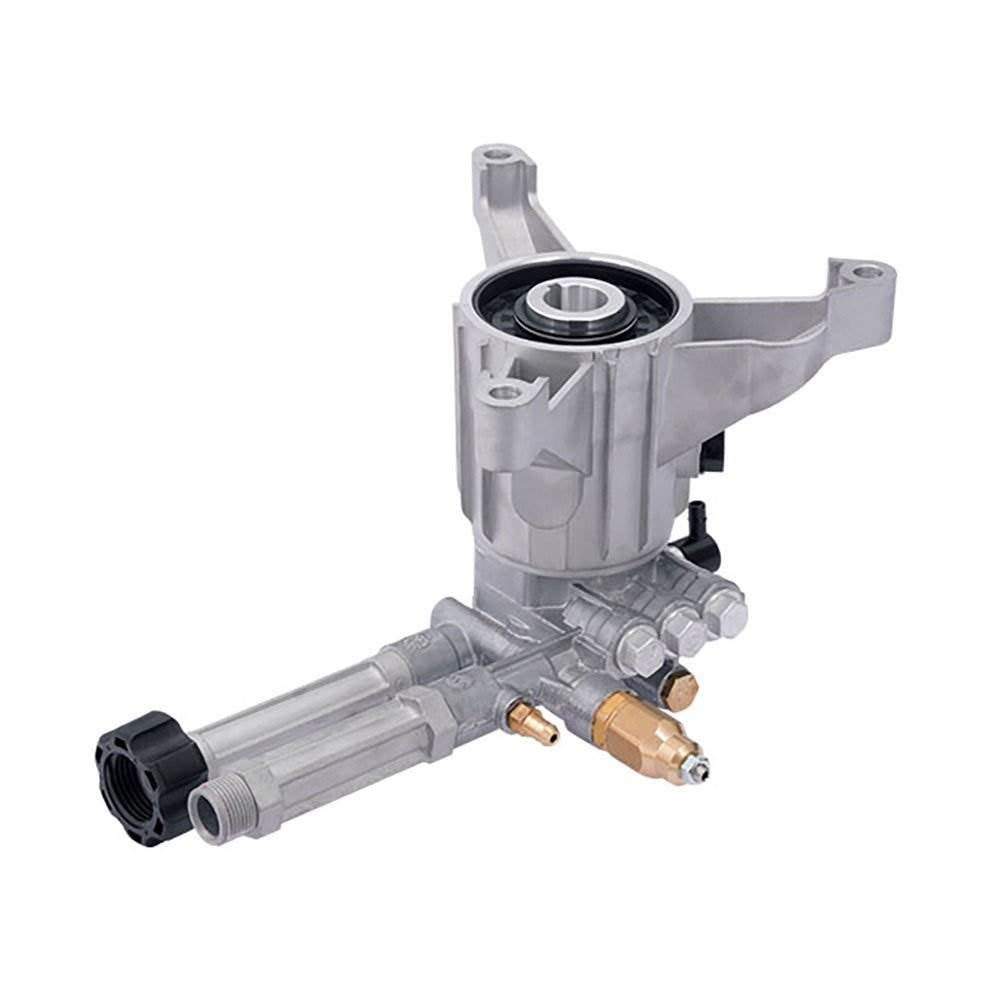

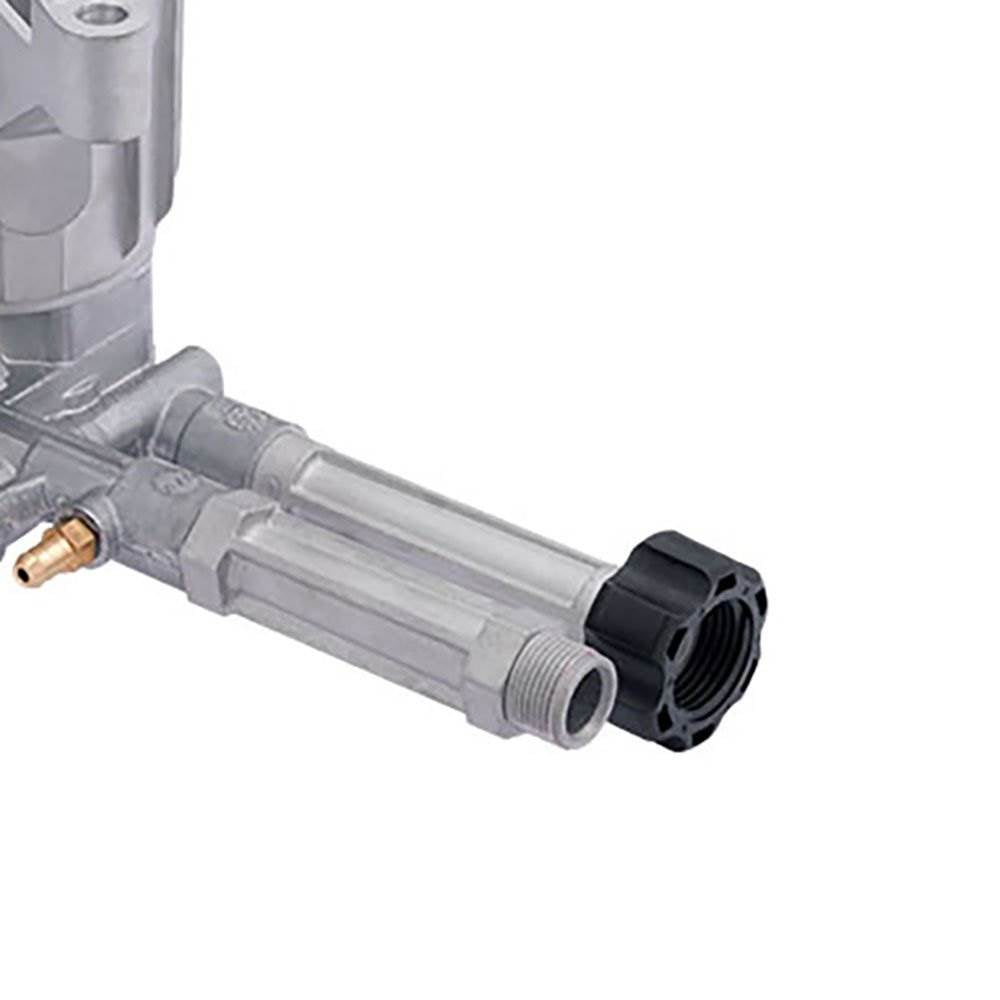

AR North America 2600 PSI Vertical Axial Radial Pressure Washer Pump (For Parts)

####This item is either refurbished, or used, does not function properly, or does not function at all and should be used for parts only. There may also be slight damage to the item and there is no guarantee of usability. Item is sold as-is with NO warranty.####

• This S version of the vertical flange plunger pump for pressure washers has upgraded grade valves
• Axial radial design with with Easy Start Valve (EZ), thermal relief valve, and integral regulating valve
• With a 3-piston alternating volumetric build, the pump can be coupled to a variety of motors
• Features an optional system for detergent suction
• Constructed out of strong die-cast aluminum alloy with steel and brass parts
• Tempered steel pistons driven by a swash plate mechanism
• Features 2 bearing systems in support of the pistons and pump shaft
• Sealing system features a double gasket
• For more efficiency, the intake valves were placed above the pistons
• Specifications:
• Max GPM: 2.2 GPM
• Max L/minute: 8.3
• Max PSI: 2,600 PSI
• MaxBar: 173
• Power EBHP: 3.9
• Bore diameter: 12 mm
• Stroke: 9.7 mm
• Crankshaft ID stamp: 1
• Inlet: 0.75-inch GHA
• Outlet: 22 mm x 1.4 M
• Max temperature: 140 F
• Oil capacity: 2.2 ounces
• RPM: 3400 RPM
• Shaft size: 7/8 inches
• Shaft version: D
• Shaft type: Hollow
• Weight: 7.7 pounds
• Product Condition: For Parts – Item does not function properly, or at all
• **NO warranty, item sold as-is**
