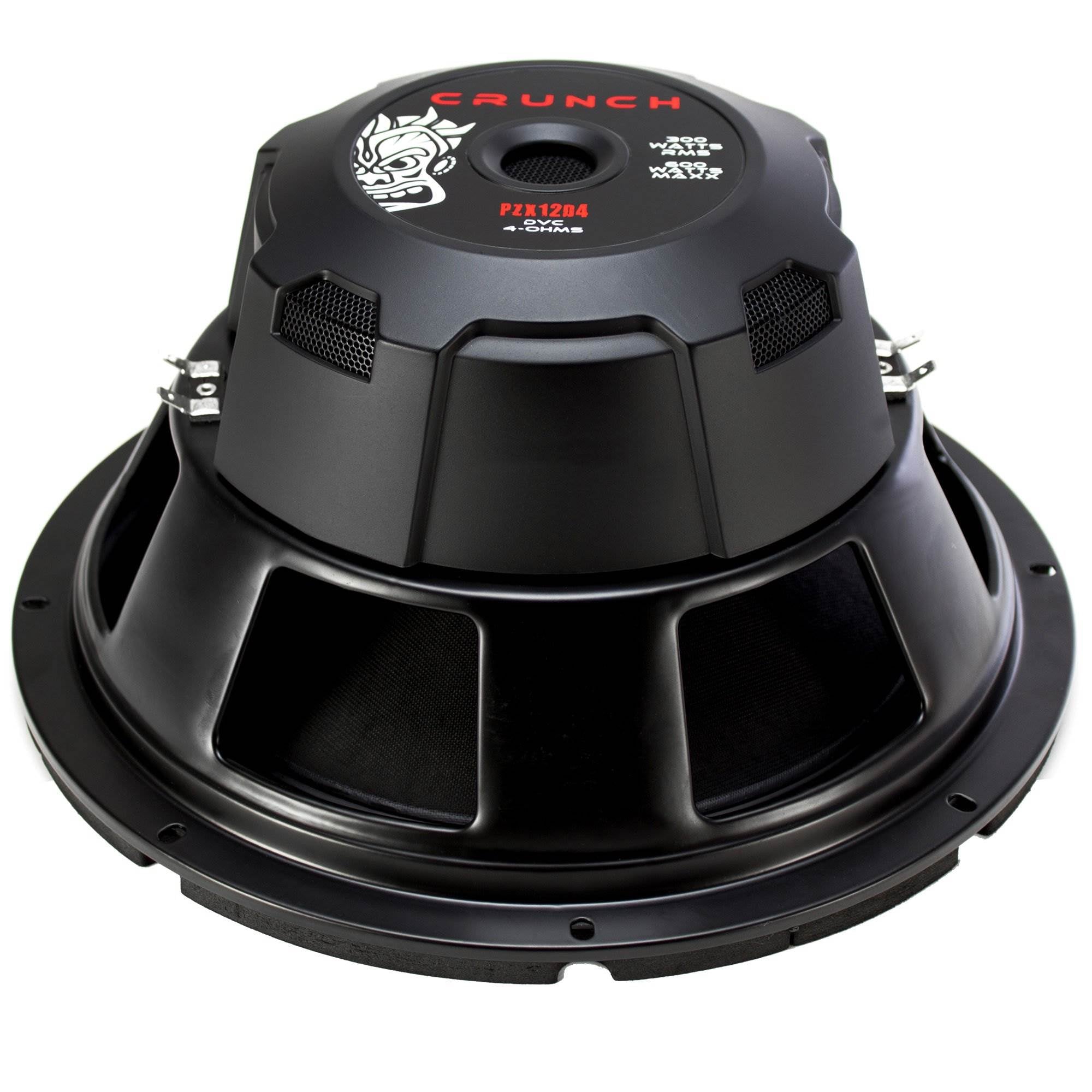

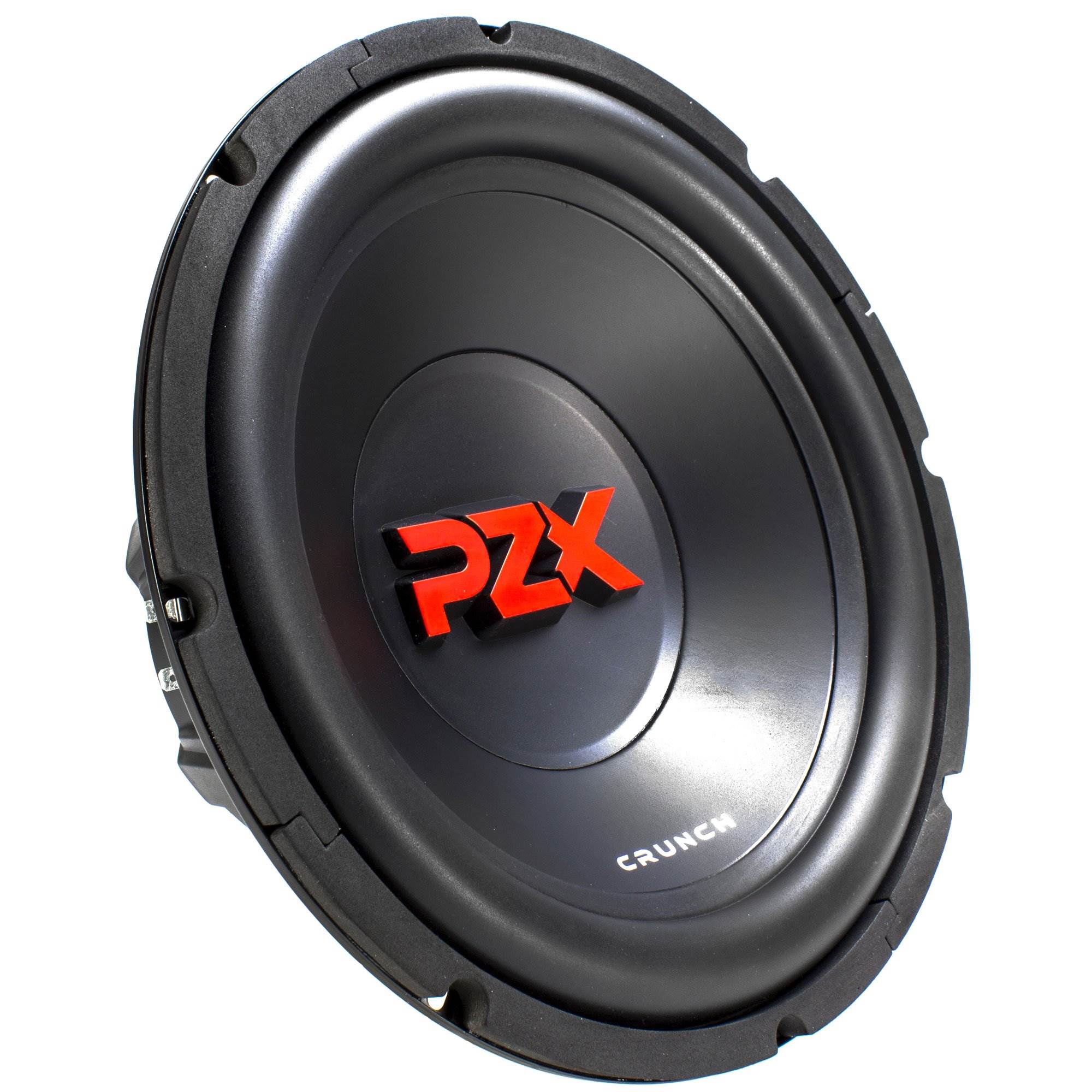

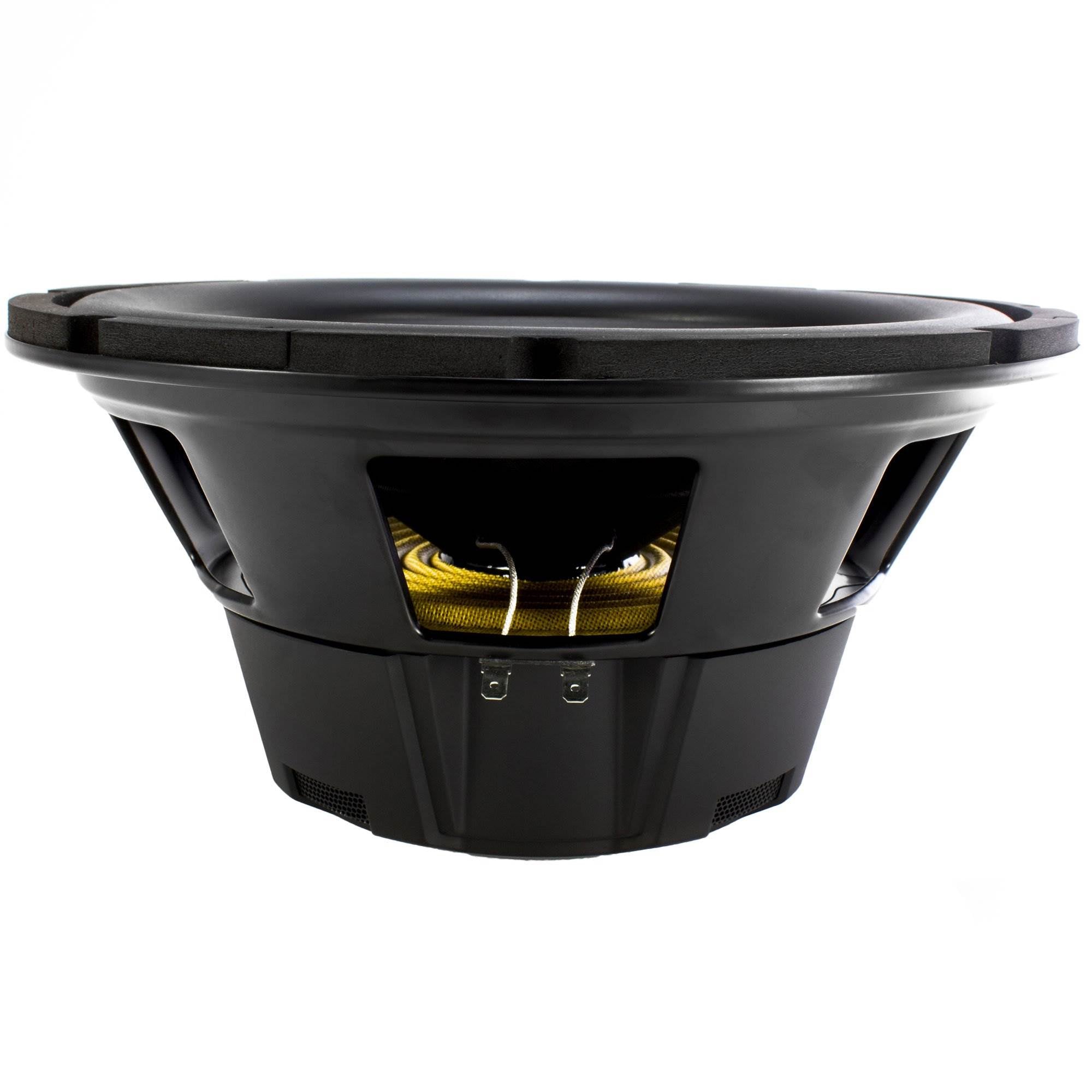

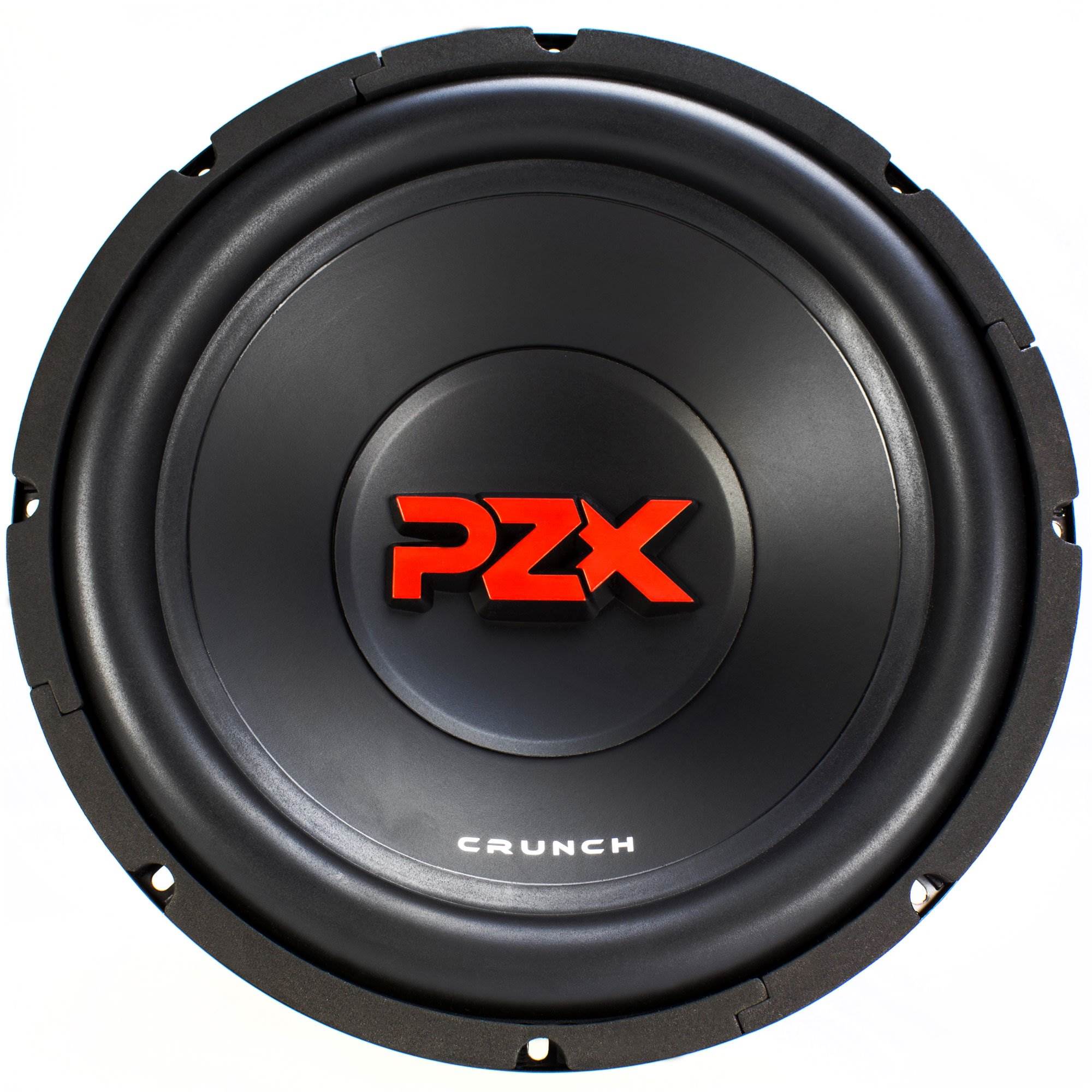

Crunch 600W 12" PZX Series Dual 4 Ohm 88 dB Voice Coil Car Subwoofer | PZX12D4

The Crunch 600 Watt 12 Inch PZX Series Subwoofer is a powerhouse sub that will rock your sound system. This package includes 1 subwoofer.

This 12 inch round car subwoofer runs on 300 watts of RMS power handling and 600 watts of peak power handling. The design features a stamped steel basket frame with minimal harmonics, 1.5 inch voice coil made with copper to keep the sub cool, a vented aluminum dissipates heat quickly in high SPL situations for a long life, and a resin reinforced cotton spider.

• Single 12 inch round car subwoofer
• 300 watts of RMS power handling and 600 watts of peak power handling
• Stamped steel basket frame with minimal harmonics
• 1.5 inch voice coil made with copper to keep sub cool
• Vented aluminum dissipates heat quickly in high SPL situations for a long life

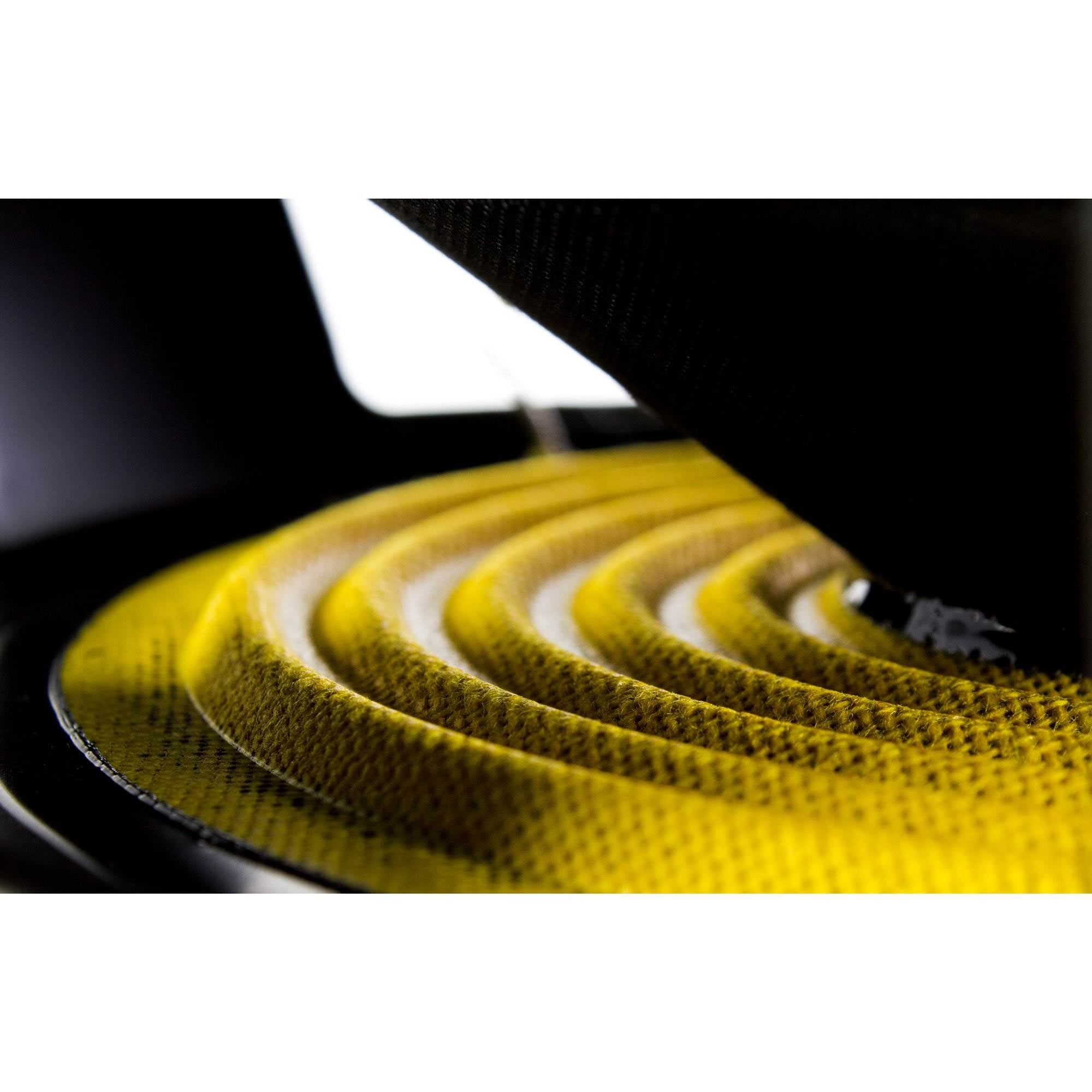

• Resin reinforced cotton spider
• UV resistant foam surround with immeasurable distortions
• Injection molded polypropylene cone creates a deep bass
• Over coil venting
• Ferrite magnet creates a strong magnetic field
• Reinforced molded ABS adds a clean cover to the back of the subwoofer
• Push on terminals use spade connector or solder directly
• Dual voice coils
• Similar to HFX12D4
• Specifications:
• Impedance: 4 ohms
• Sensitivity: 88 dB
• Mechanical Q: 5.03 QMS
• Electrical Q: 0.621 QES
• Total speaker Q: 0.553 QTS
• Equivalent compliance VAS: 120.426 liters
• DC resistance: 2x4 RE
• Xmax: 9 mm
• Outside diameter: 12.19 inches
• Mounting depth: 5.58 inches
• Mounting height with gasket: 6.25 inches from gasket to magnet cover
• Dimensions: 14.75 x 14.75 x 8.38 inches
• Weight: 8 pounds
• Manufacturer warranty: 1-year warranty
