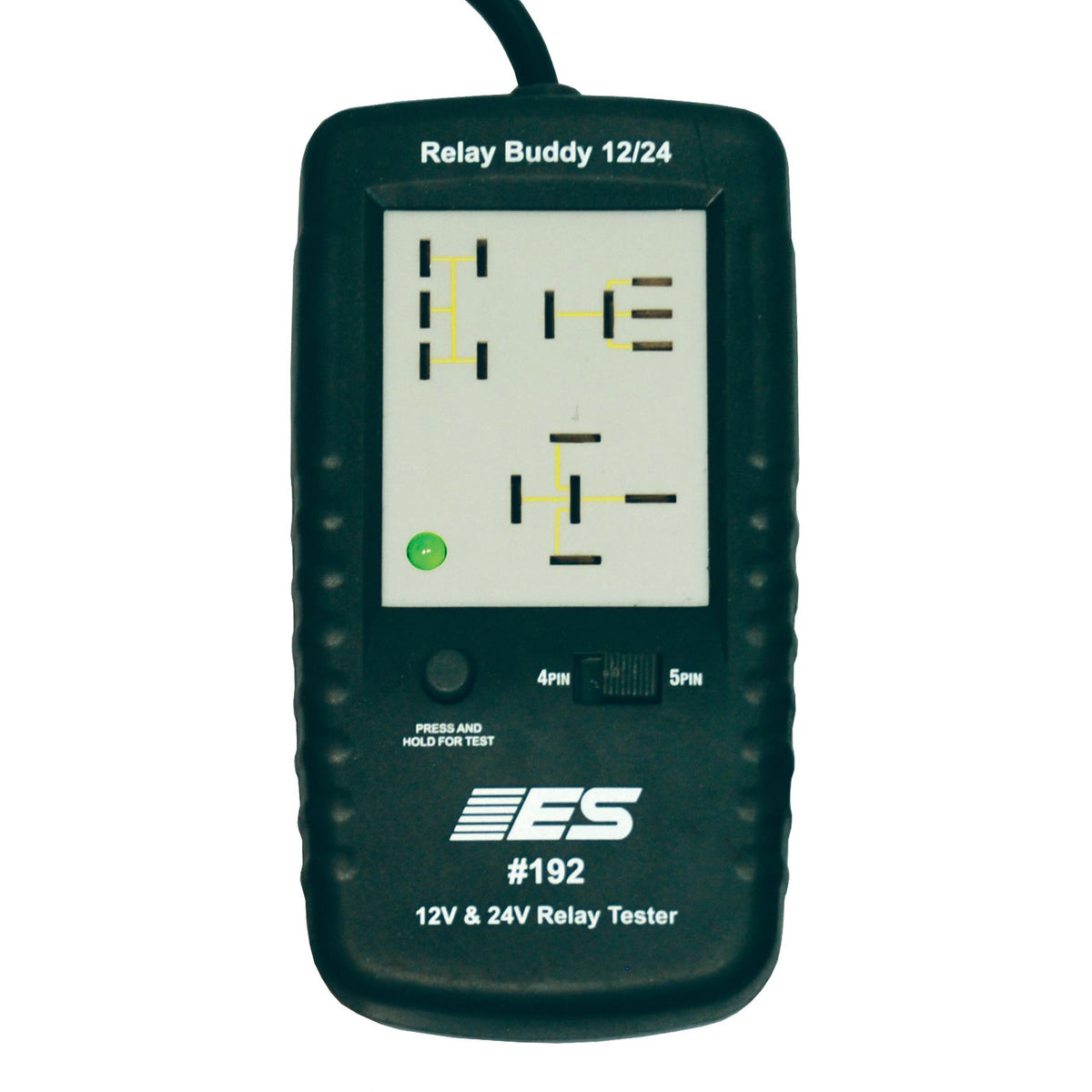

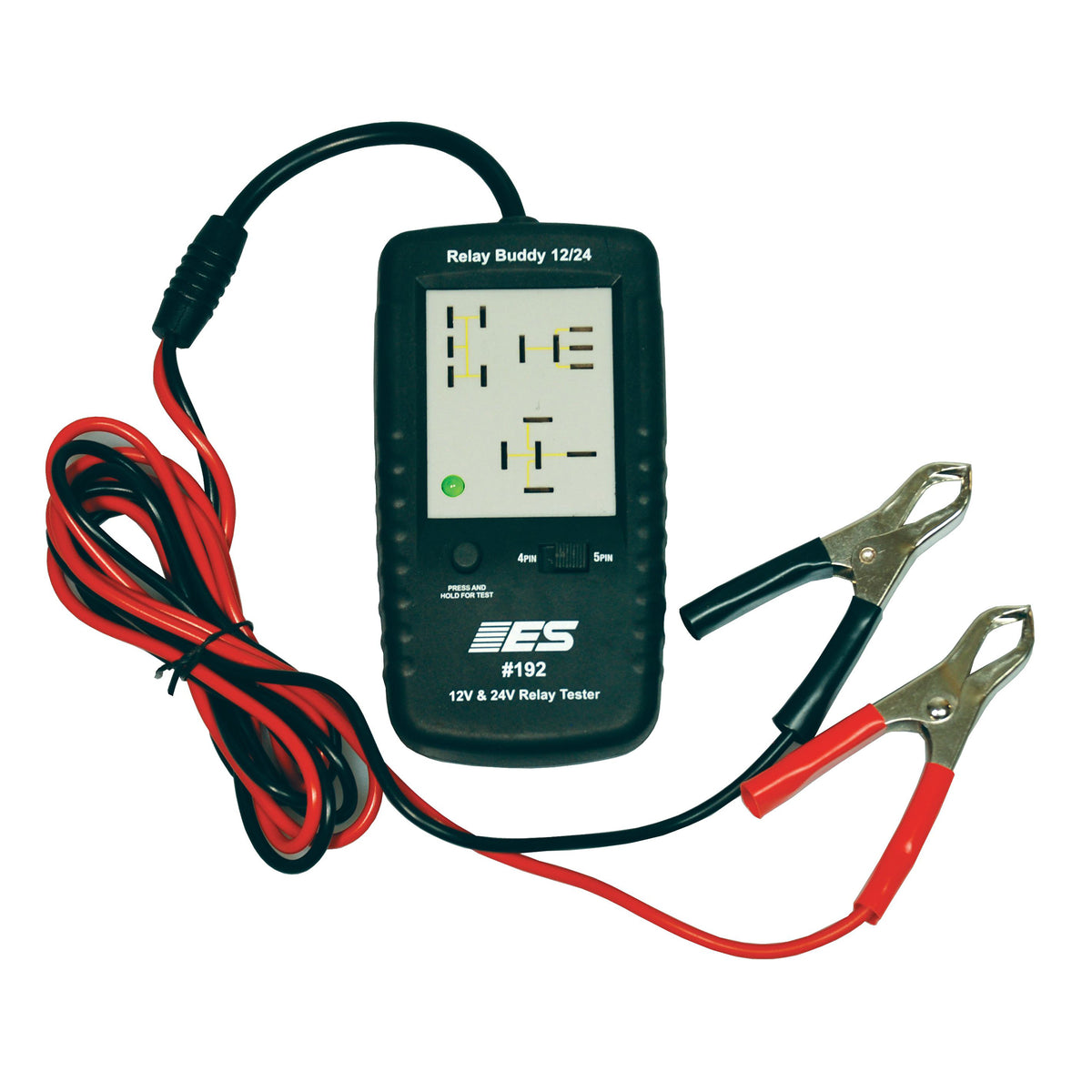

Ensuring your vehicle's automotive relays are functioning properly, the Electronic Specialties 192 12- and 24-Volt Diagnostic Relay Buddy quickly tests and helps solve problems with your relay coils and switches.
Designed to work with 12-volt and 24-volt relays and settable to 4-pin and 5-pin arrangements, the tester works with the most common relays to ensure proper operation in your vehicle. The diagnostic tool examines the general health and functioning of relay switches, contacts, and coils, applying a signal to the relay coil and testing the proper functioning of the contacts for a comprehensive test. If everything is correct, the tool flashes a green LED light. If a problem emerges, the red LED indicator pulses once, twice, or 3 times, providing a specific trouble code that will help you quickly diagnose potential issues. For your convenience, the codes are printed directly on the back of the tool.
Bring your vehicle back to 100-percent and ensure proper functioning with the 192 12- and 24-Volt Diagnostic Relay Buddy from Electronic Specialties.
- Electronic relay diagnostic tester allows you to check the most common automotive relays to ensure proper operation
- Tests 12-volt and 24-volt relays and offers 3 different trouble codes to help you discern what the problem might be
- Flashes a red LED light once, twice, or 3 times to indicate the code; Read the codes on the convenient guide on the tool's back
- Checks the control side of the relay by applying a signal to the relay coil and testing the proper functioning of relay contacts
- Allows you to examine the general health and functioning of relay switches, contacts, and coils
- Switch contacts are loaded to detect excessive resistance; If everything is good, green LED indicator flashes
- Voltage: Works with 12-volt and 24-volt relays
- Pins: Settable to 4-pin and 5-pin relays
- No battery needed; Utilizes vehicle battery for power
- Material: Plastic
- Color: Black
- Dimensions (L x W x H): 5 x 2.50 x 1.25 inches
- Weight: 1 pound
- Manufacturer warranty: 1-year warranty
