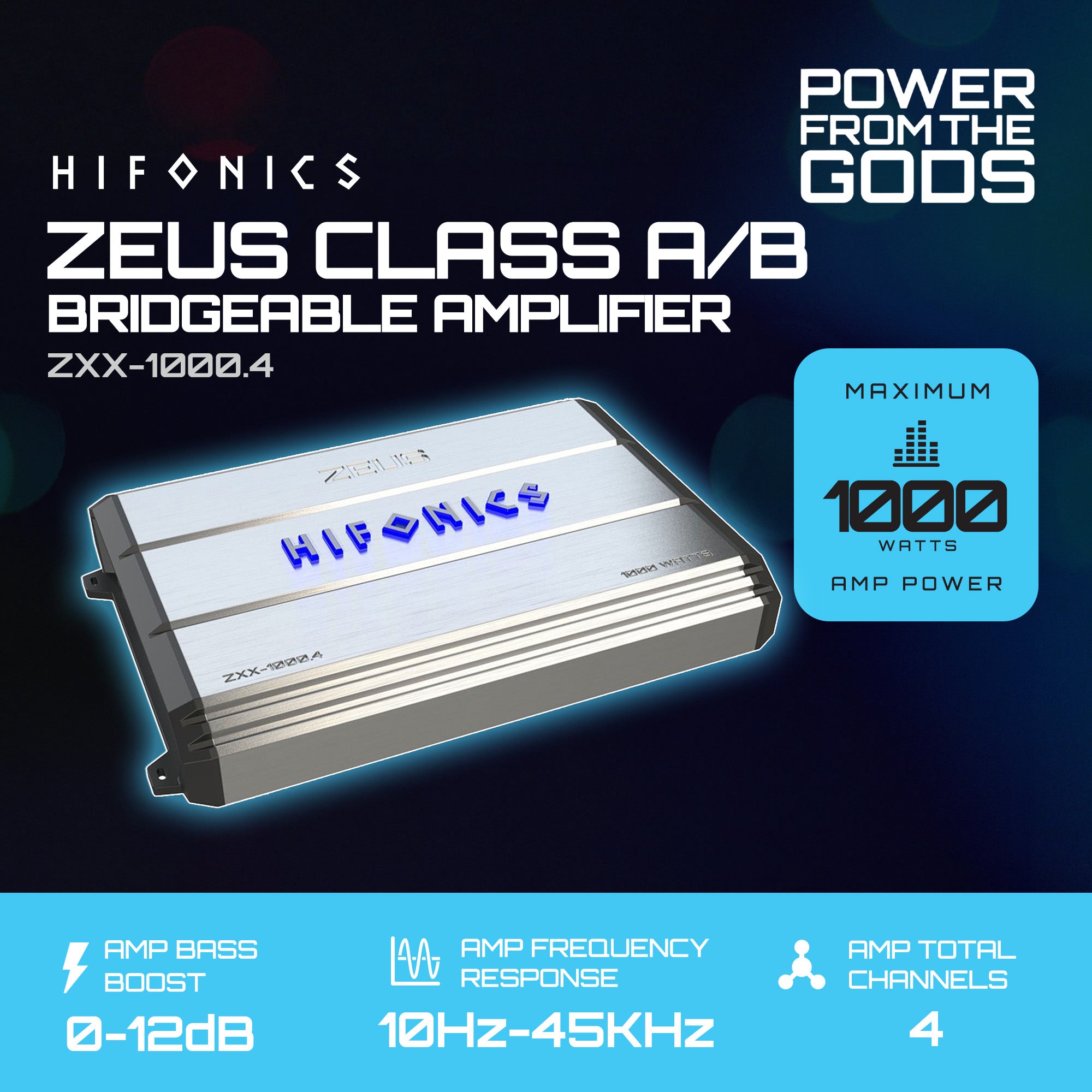

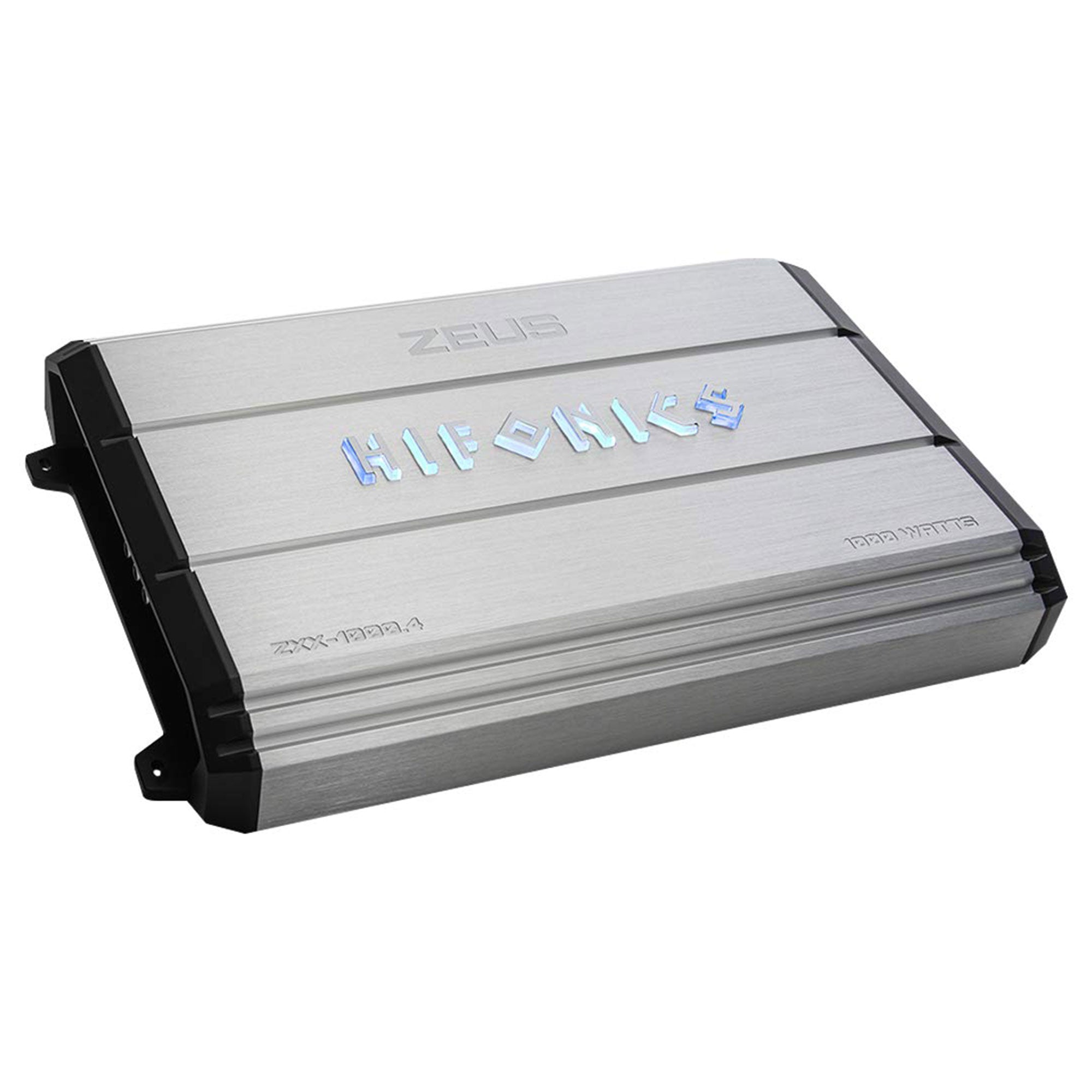

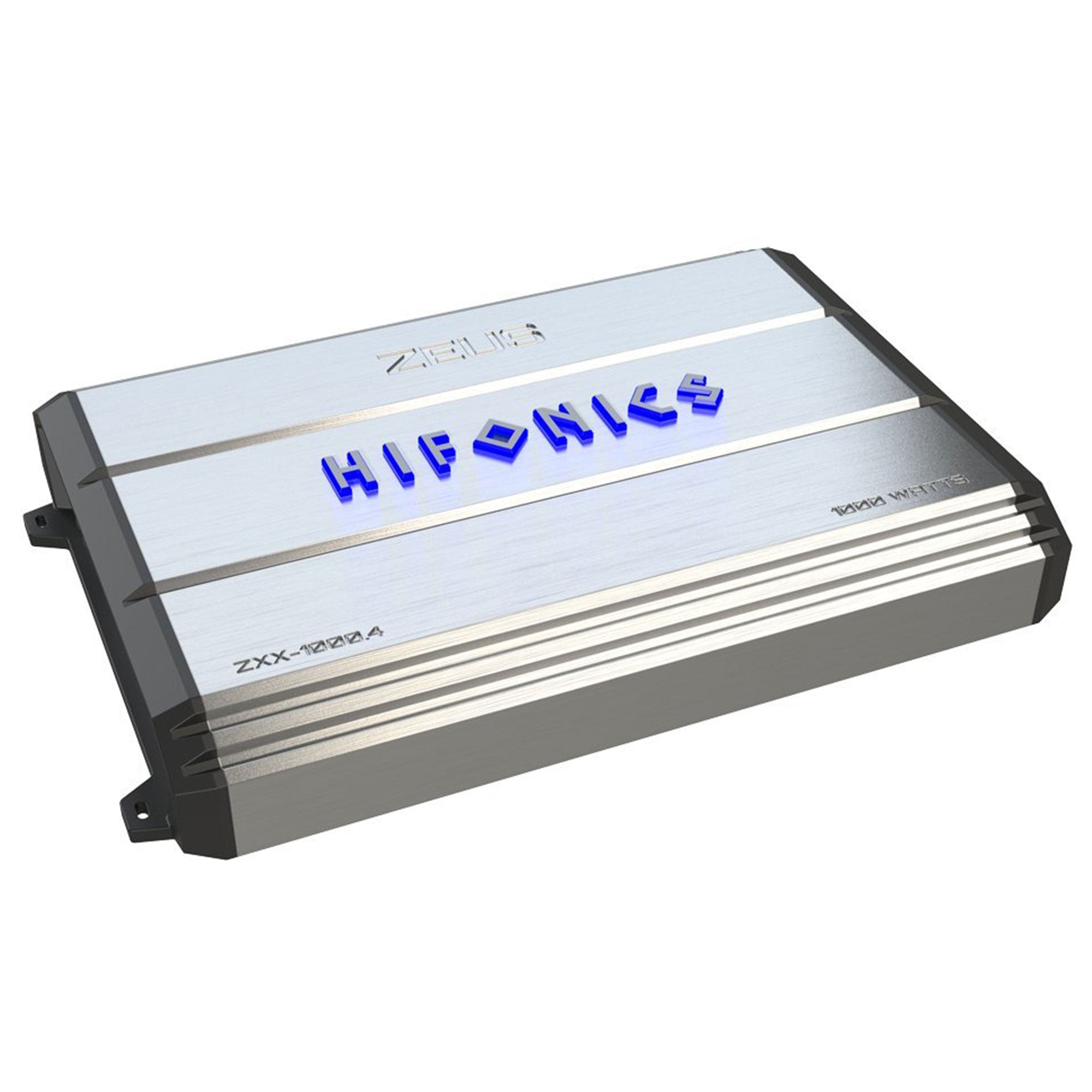

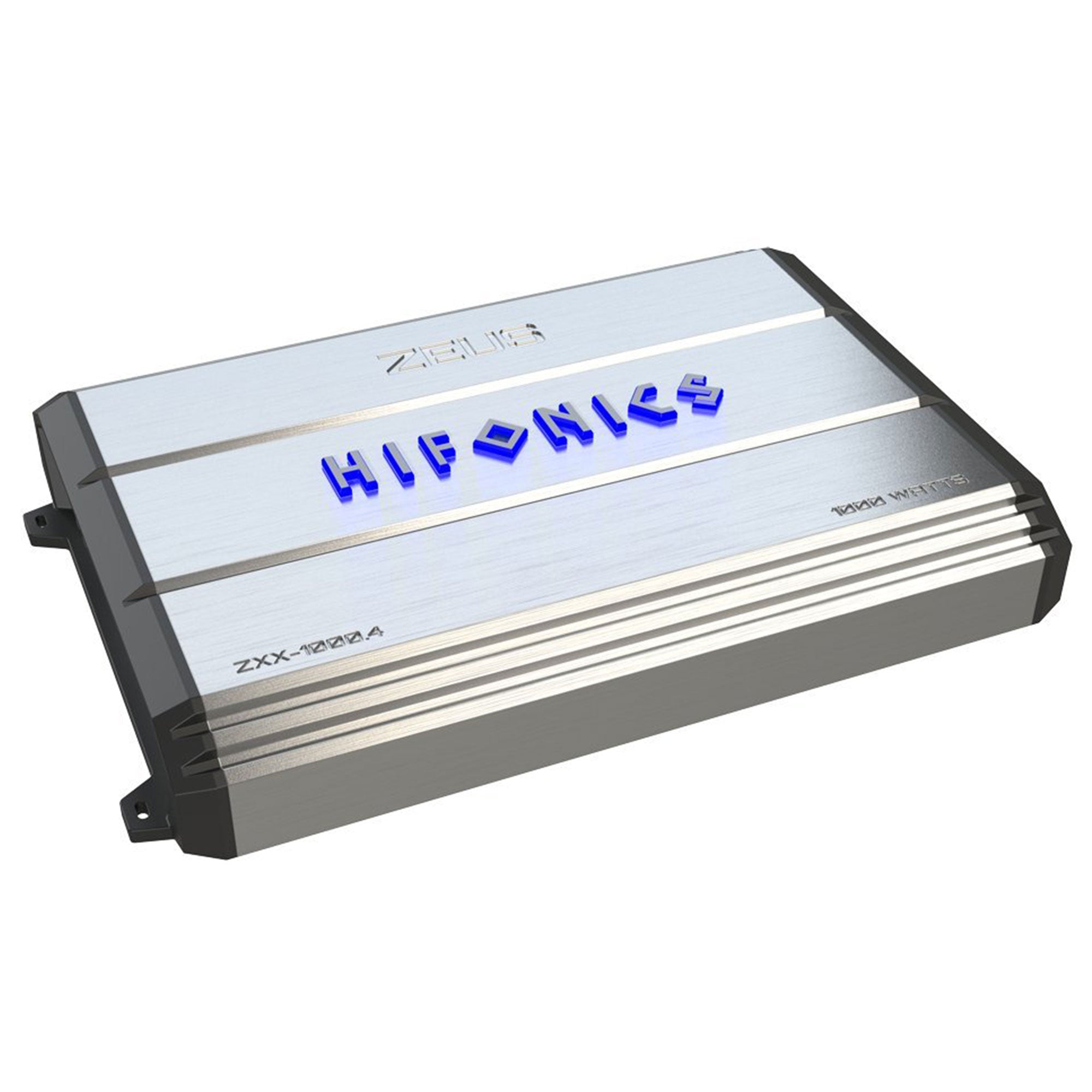

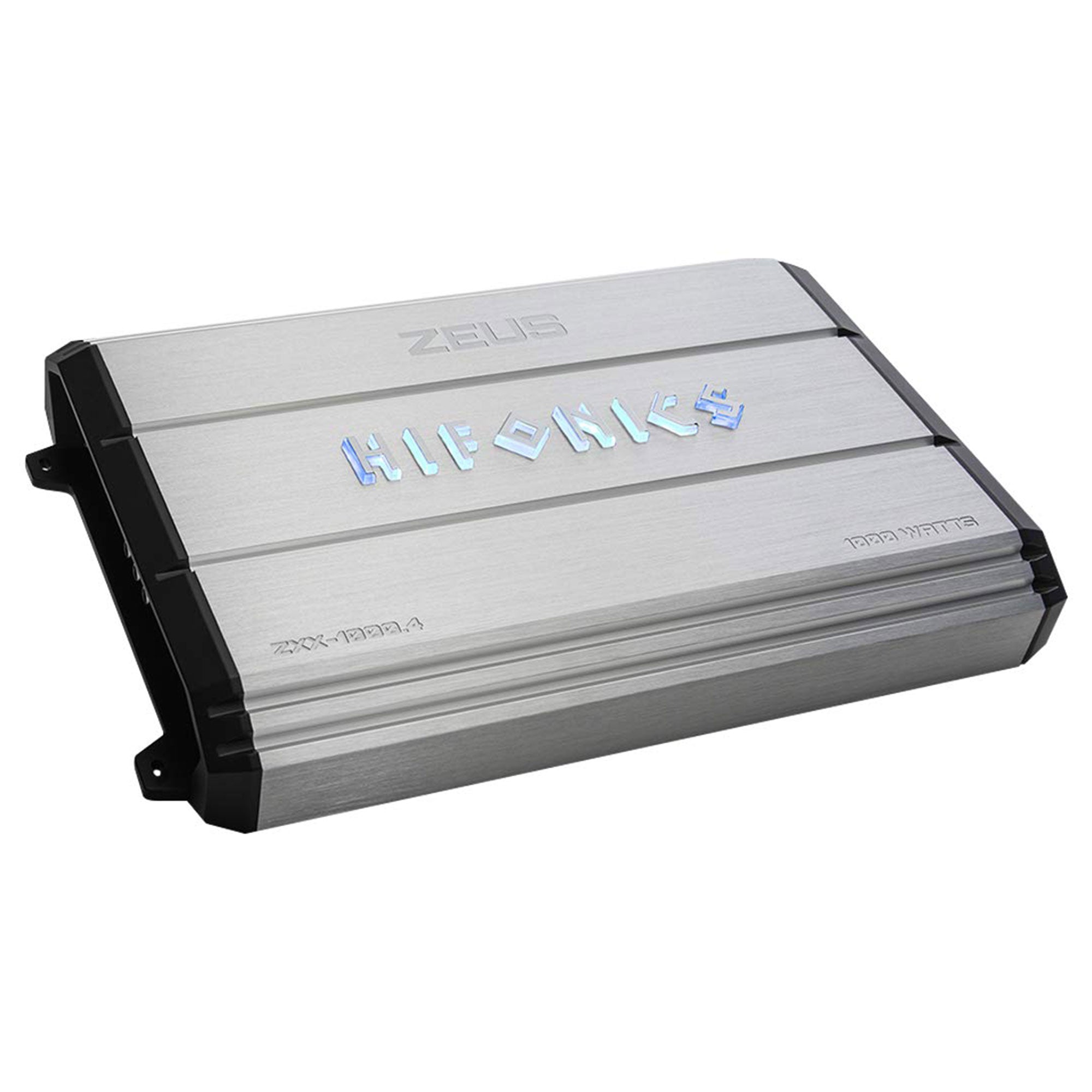

Hifonics ZXX-1000.4 1000 Watt 4 Channel Class A/B Bridgeable Car Amp Amplifier

The Hifonics Zeus ZXX 1000.4 is a 1000 watt 4 channel amplifier that gives your speakers and subwoofers the added oomph that they need.

With flexible operation modes, you can customize the setup so it works for you. For example, you can hook up to 4 speakers, 2 speakers and a subwoofer, or it can be bridged to run 2 speakers or subwoofers. This amplifier can grow with your car audio setup.

Step up the power and get better sound quality from your speakers and subwoofers with the Hifonics Zeus amplifier.

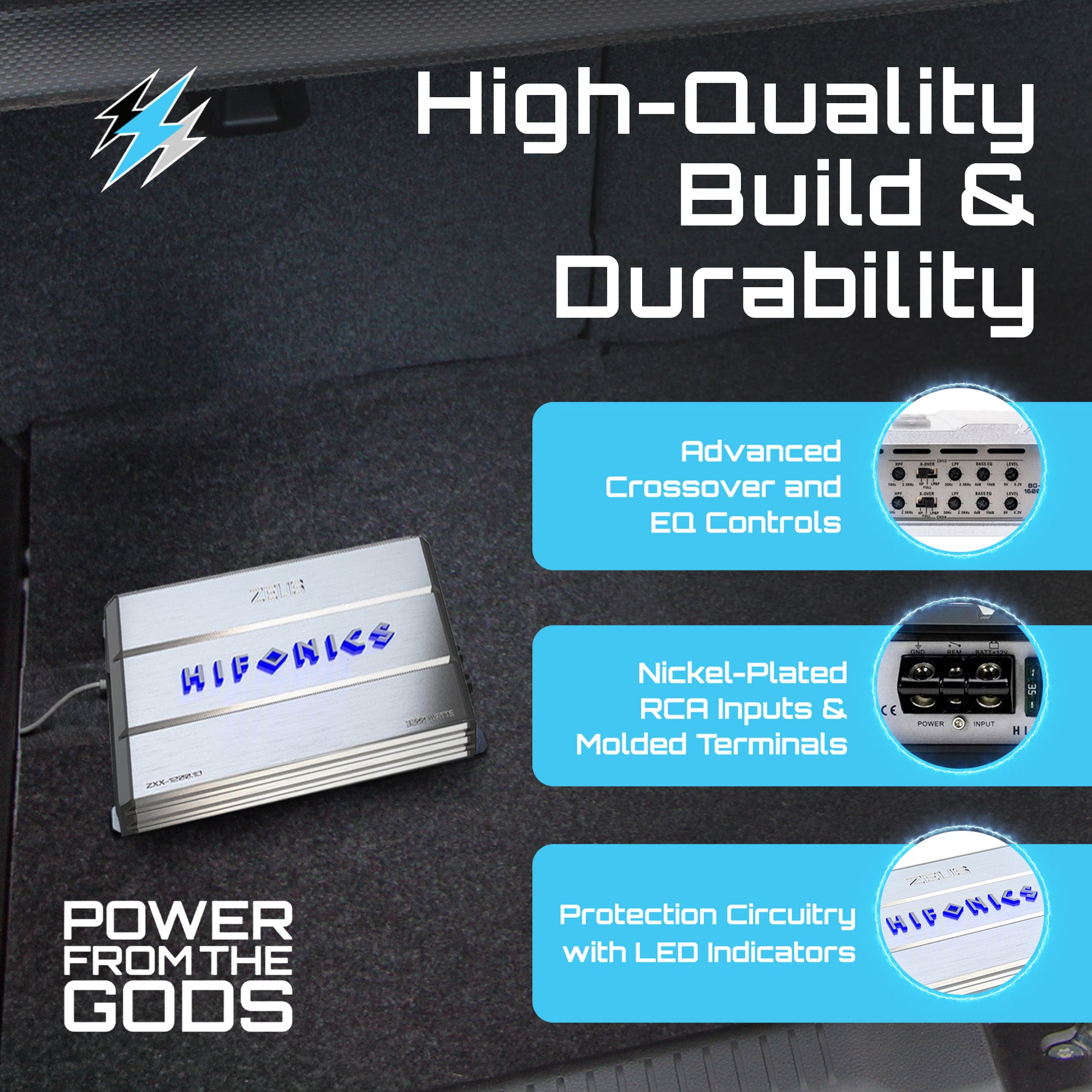

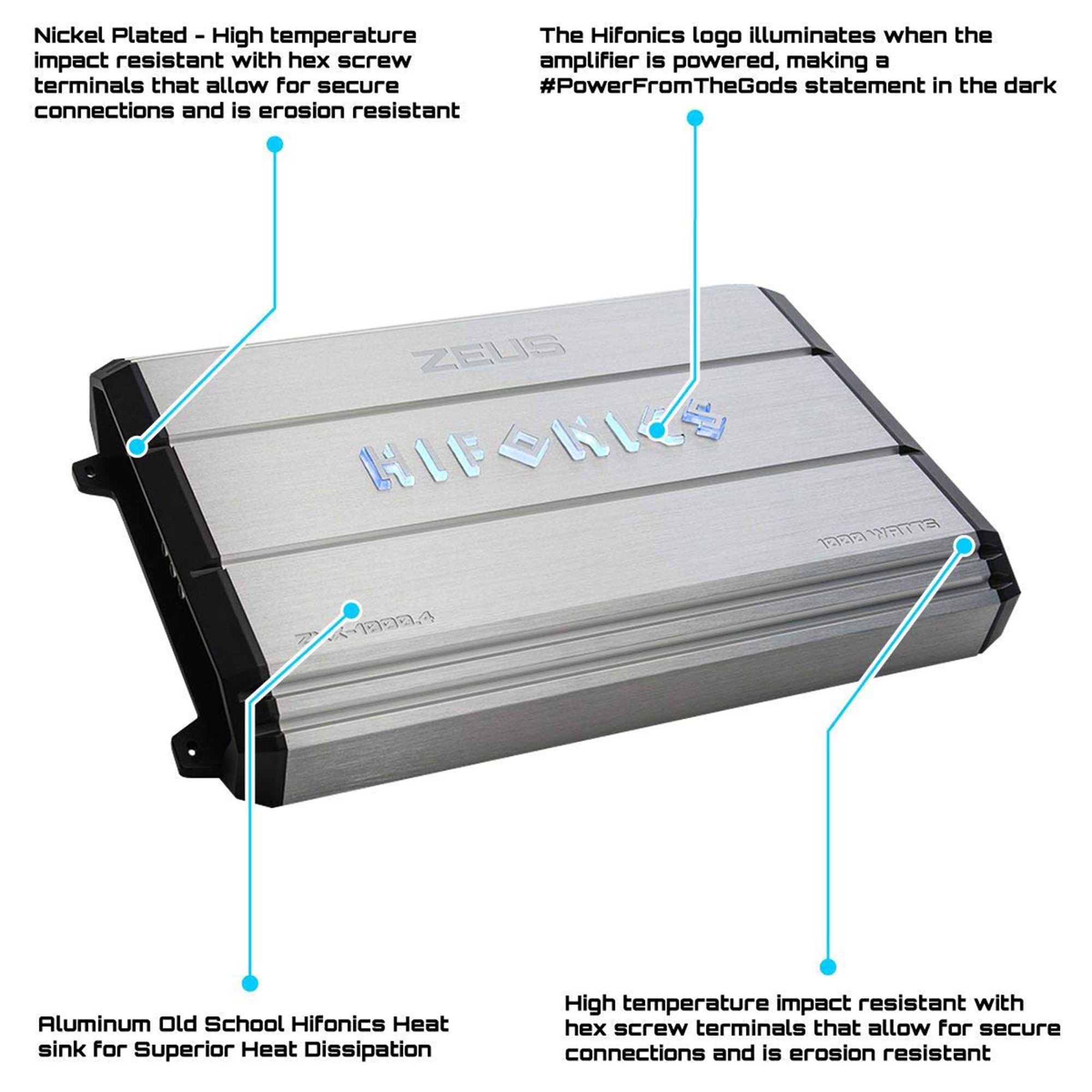

• Nickel plated inputs are high temperature impact resistant with hex screw terminals that allow for secure connections and are erosion resistant
• Maximum low voltage comes into the amplifier circuit with minimal distortion
• Power at 2 Ohms: 4 x 250 watts
• Bass boost: 0~12dB
• Low pass crossover 12dB per octave: 30Hz 250Hz
• High pass crossover 12dB per octave: 60Hz 1.2KHz
• Crossover type: Variable electronic
• Frequency response: 10Hz 45KHz
• Signal to noise ratio: >90dB
• Variable Voltage: 6 volt 0.2 volt
• Class: A/B
• Specifications:
• Hifonics logo illuminates when the amplifier is powered

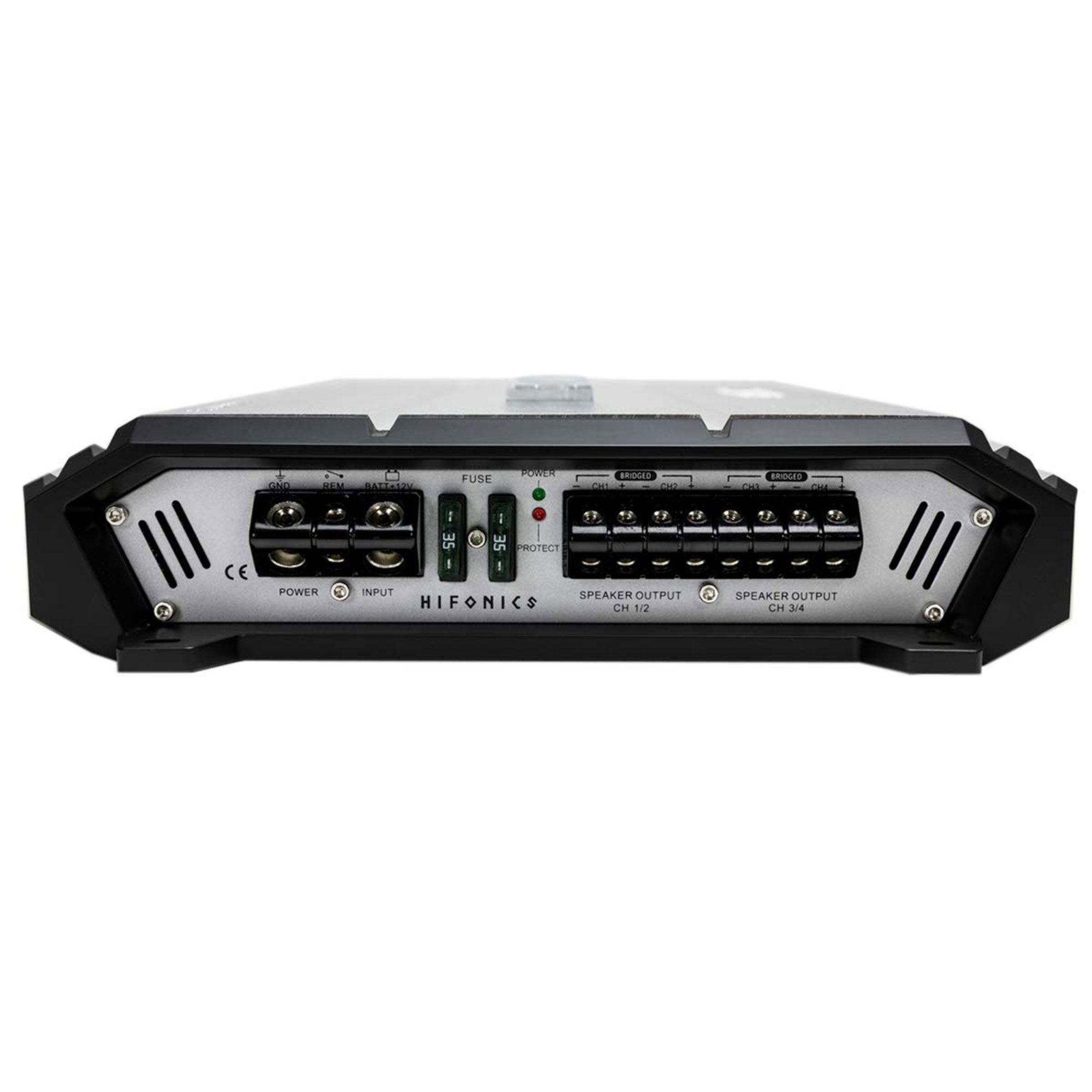

• Diagnostic indicators monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel
• Molded secure connections for all system wires and angled for ease of access for installation
• RCA outputs to daisy chain multiple amplifier to eliminate additional signal cables from the source unit
• Dual coil pulse width modulated power supply keeps voltage constant through the ultra fi output devices
• Old school aluminum Hifonics heat sink for superior heat dissipation

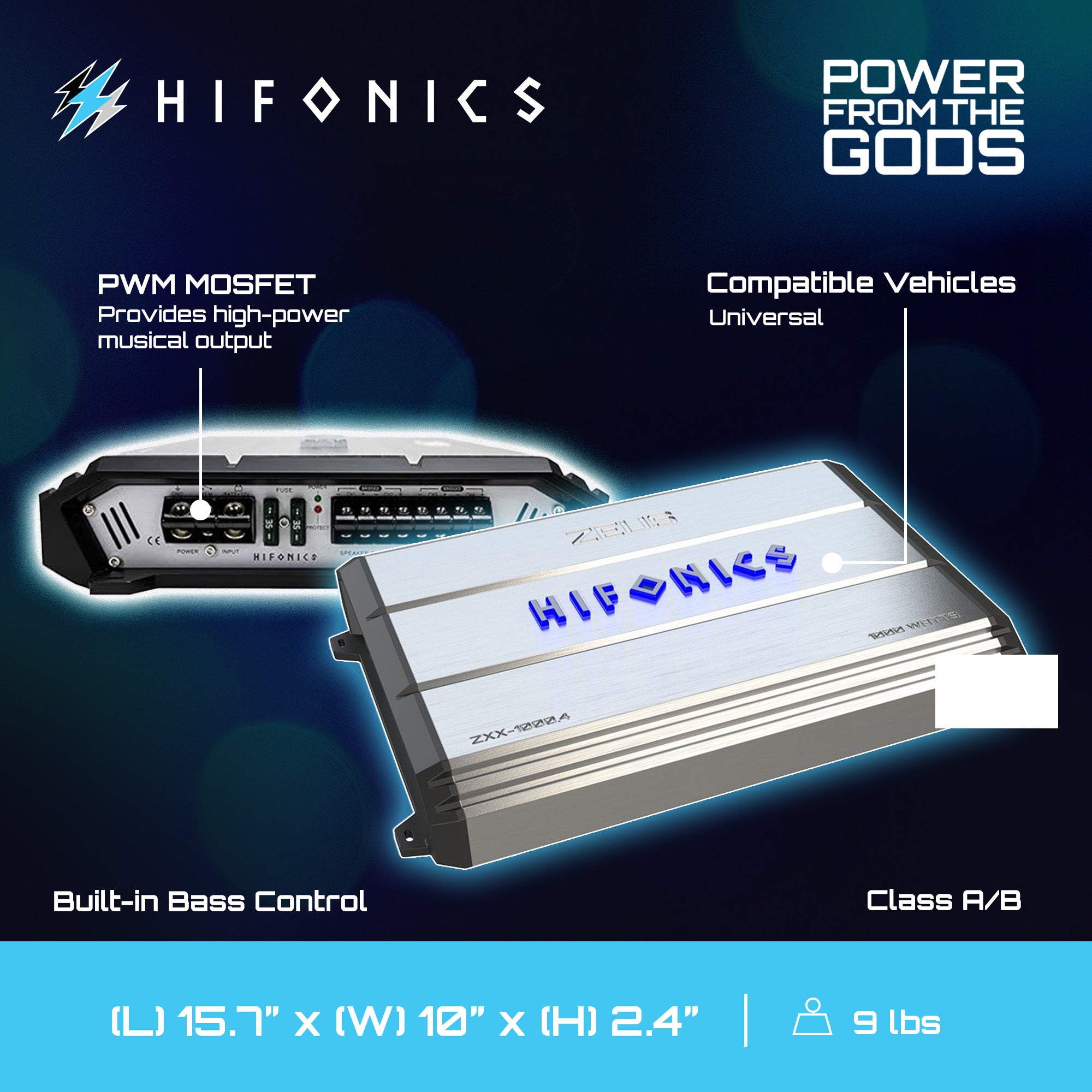

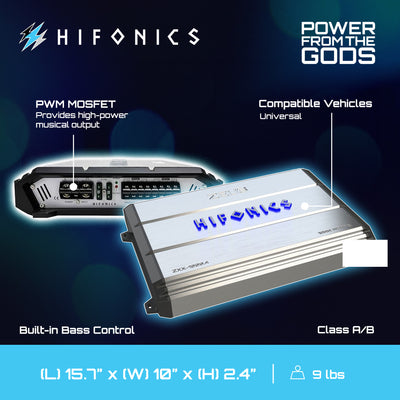

• PWM MOSFET power supply gives stable power through the PC board with minimal heat generation
• Class A/B designed to be high sound quality with minimal distortion
• Flexible installation of 2, 3, or 4 channel modes allows this amplifier to run in two channel or bridged mono mode.

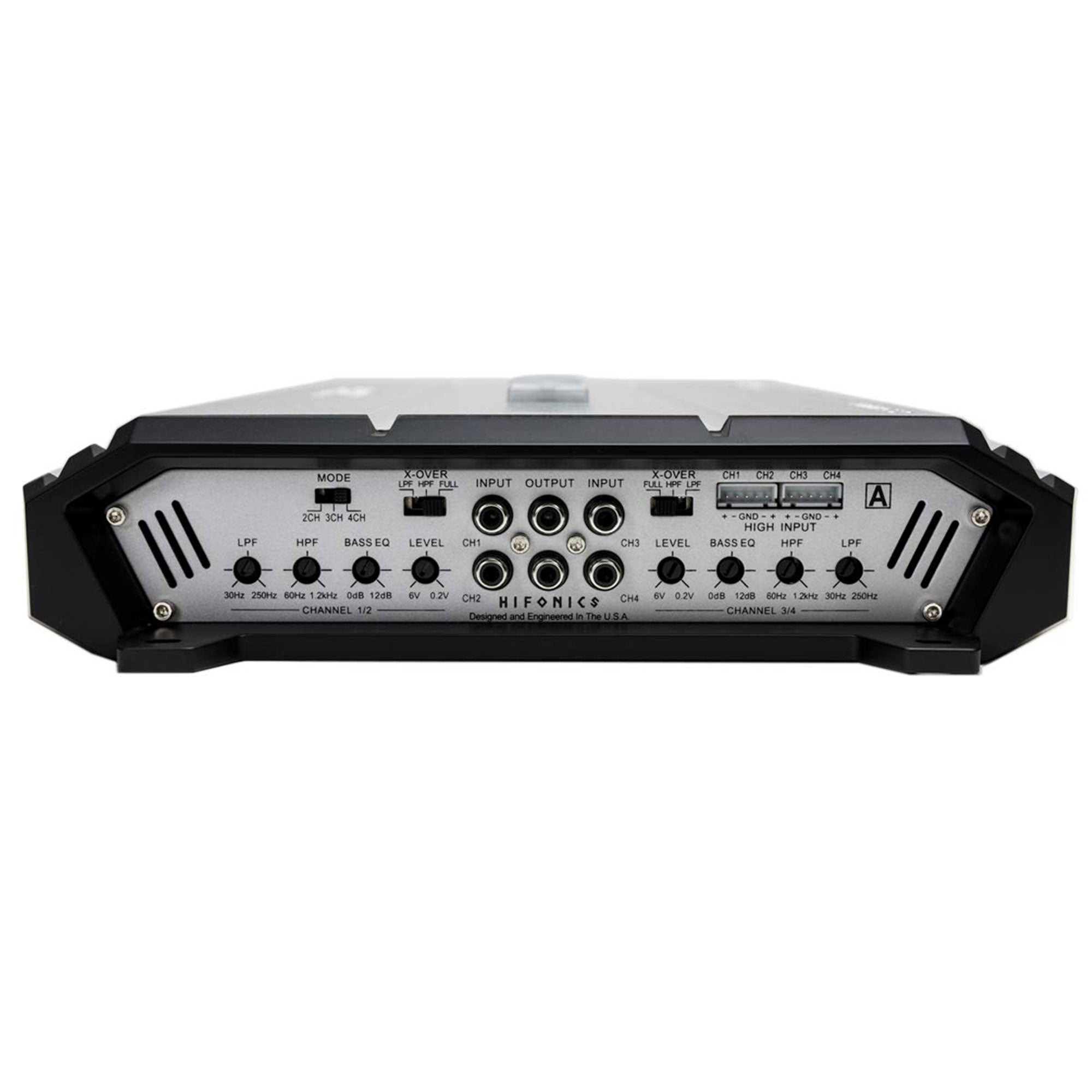

• Low level RCA inputs and outputs for highest sound quality connection
• Power at 4 Ohms: 4 x 125 watts
• Bridged at 4 Ohms: 2 x 500 watts
• Audio input and output: RCA Jack
• Manufacturer warranty: 1-year warranty
• Weight: 9 pounds
• Dimensions: 15.7 x 2.4 x 10 inches

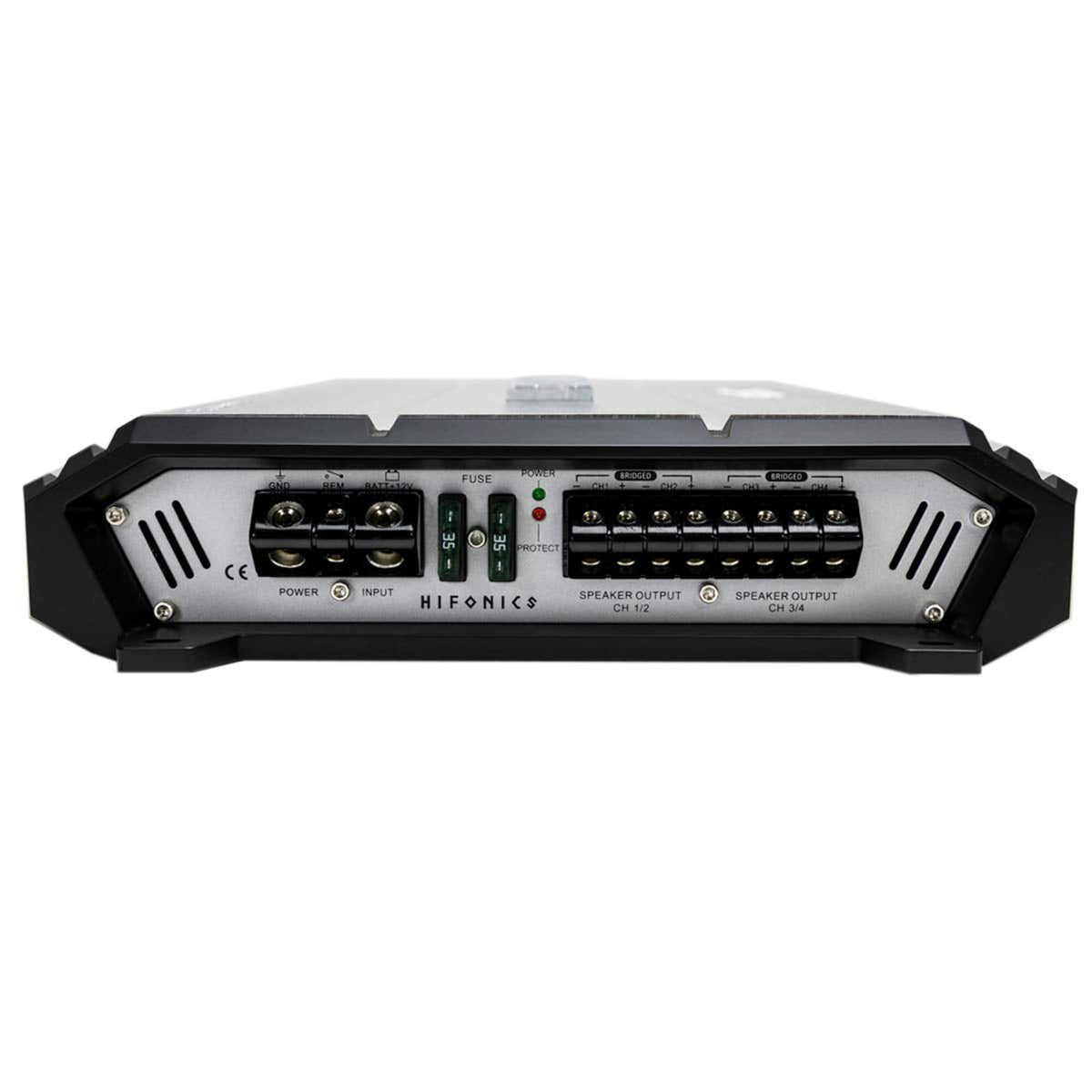

• Fusing: 35 amps x 3
• Speaker terminal wire gauge: 14 gauge
• Power terminal 12V/GND: 4 gauge
• Total channels: 4
