MaxLine 300 Foot 3/4 Inch Compressed Air Tubing Kit w/ Regulator and Jumper Hose

Connect your plumbing systems with the MaxLine Compressed Air Tubing Kit with Regulator and Jumper Hose.

This air compressor tubing is constructed with an aluminum core surrounded by an inner and outer layer of polyethylene. This tubing can be mounted on wall surfaces, in-wall, or buried underground. Say goodbye to clutter with this industrial air-compressed system, for it doesn't require any glue, soldering, or crimping.

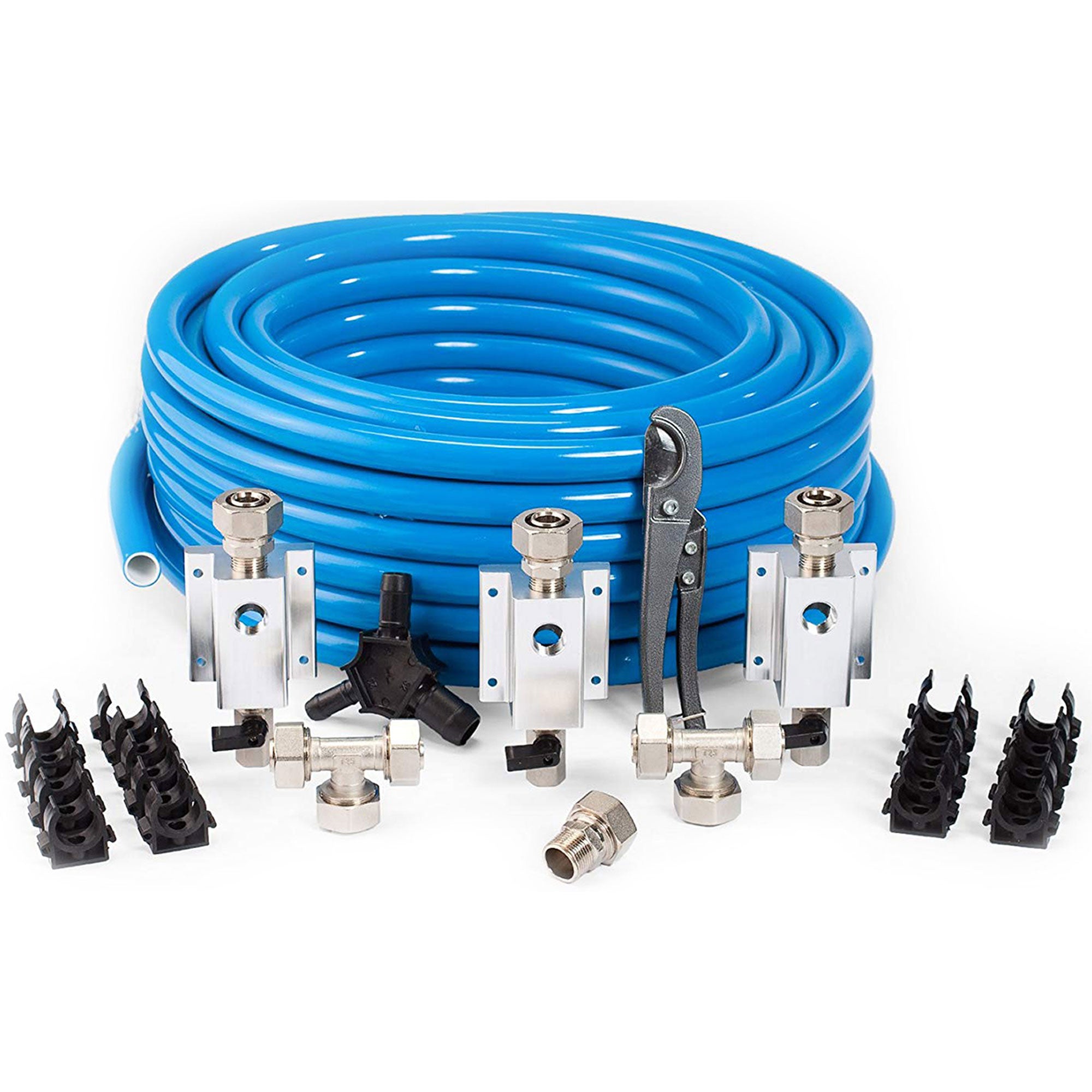

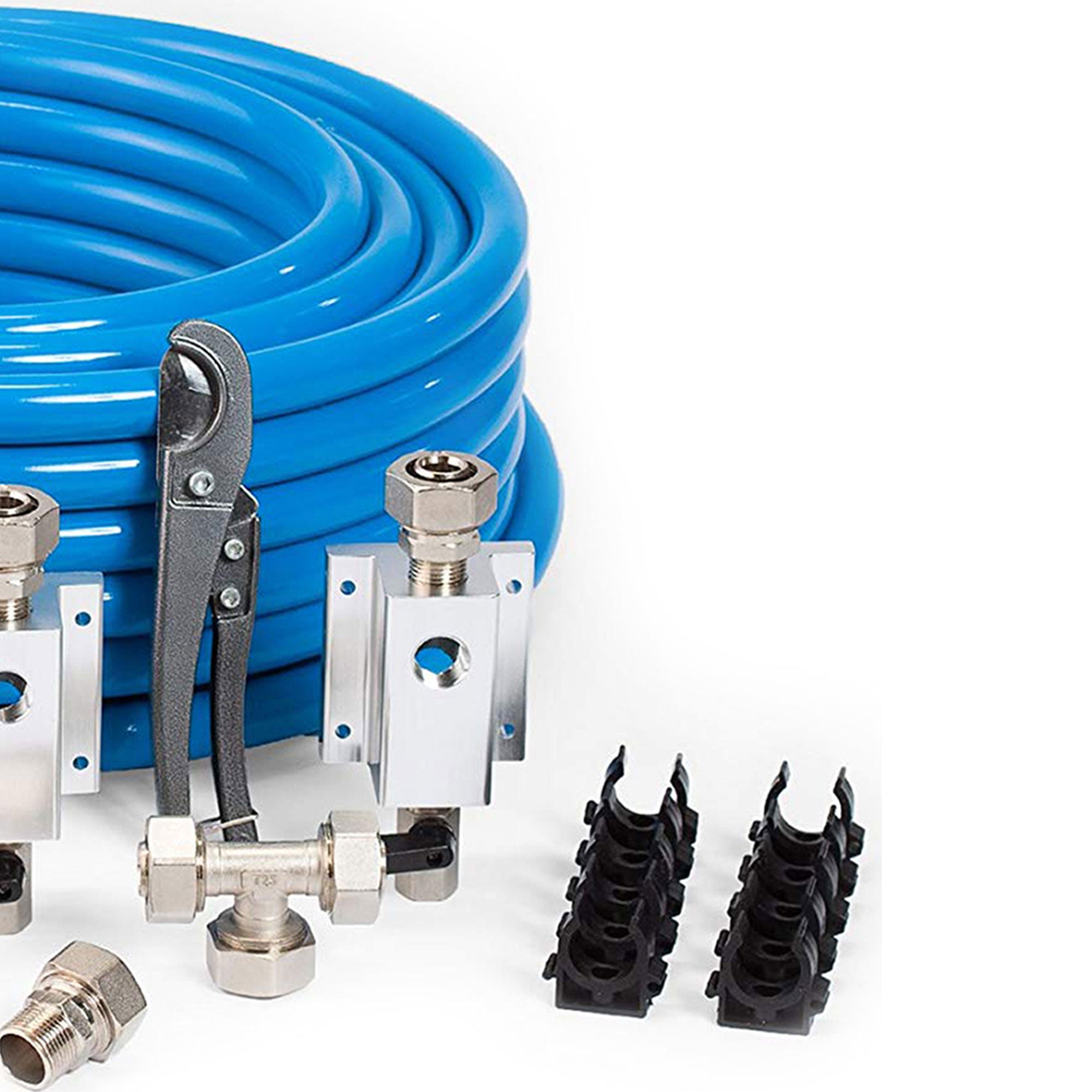

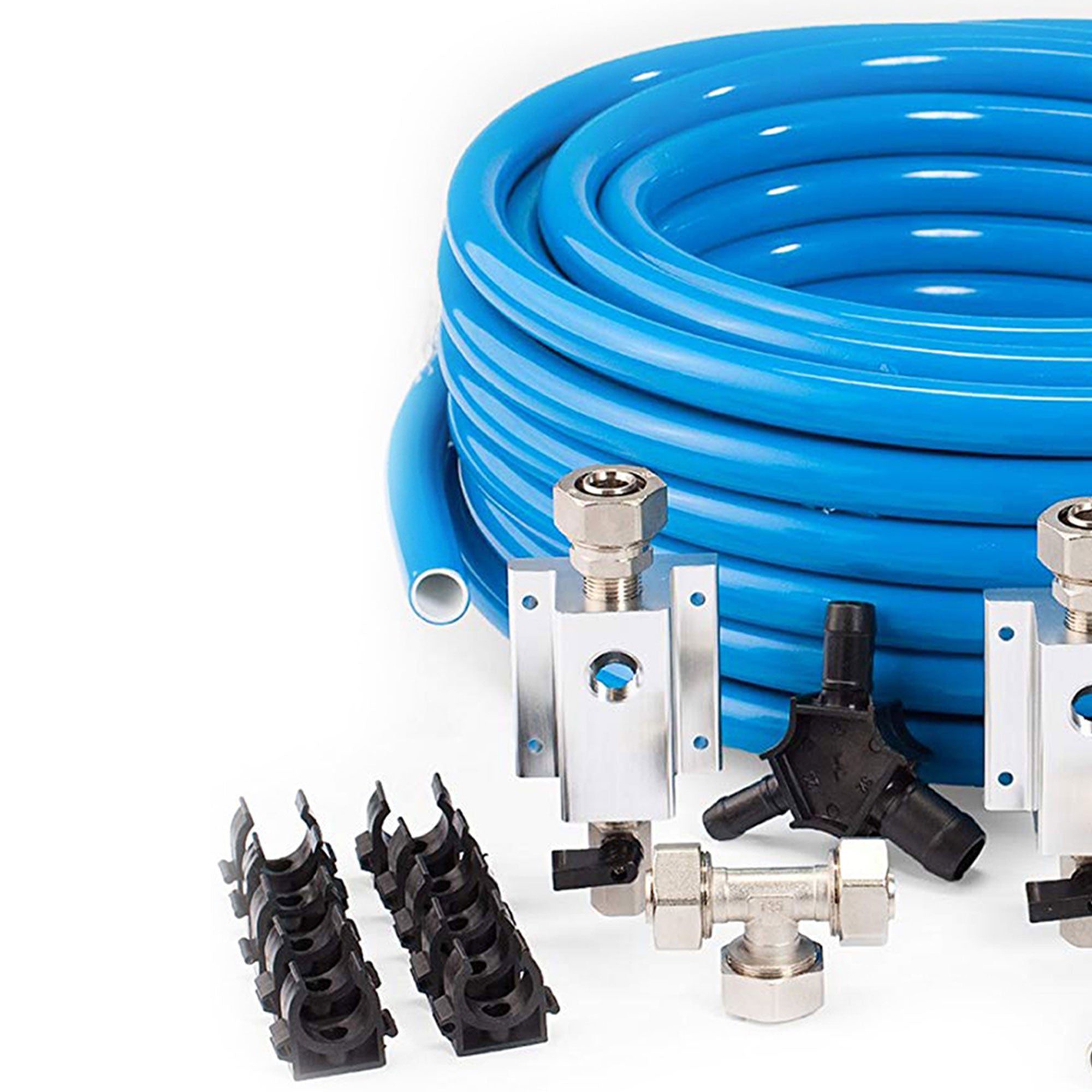

Kit includes 300 feet of 3/4-Inch tubing, (3) air outlet kits, (2) tee fittings, 3/4-inch straight fitting, (20) mounting pipe clips, debar, and cutter tool.

This general-purpose 5-micron filter protects air compressor tools by removing harmful solid particles and liquid contaminants from your machine while the regulator allows the pressure adjustment of your compressed air system. These regulators are constructed of heavy-duty zinc die-cast bodies to give you a lifetime of use.

The jumper hose connects your compressor to the piping system and prevents vibration from transferring from the compressor to the pipes. This jumper hose features a 0.75-inch NPT rigid male at 1 end, and a 0.75-inch female at 1 end that swivel brass fittings.

Get your plumbing set up with the MaxLine Compressed Air Tubing Kit with Regulator and Hose.

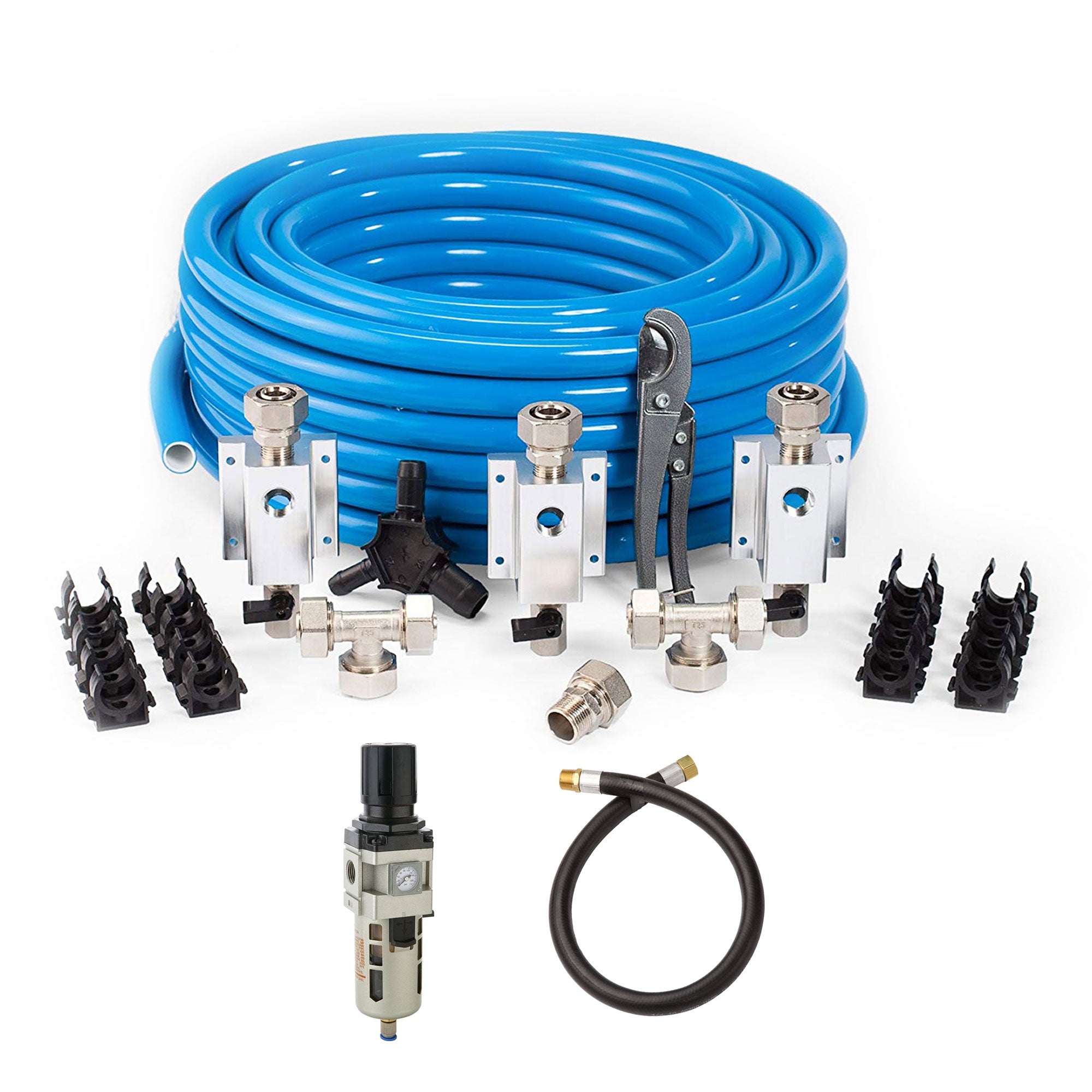

• This tubing bundle comes with 3 sets of items: the air compressed tubing kit, a regulator, and a jumper hose
• Semi-flexible tubing that uses compression fittings for leakproof performance
• Designed for efficient installation in diverse settings, from small shops and farms to large manufacturing facilities
• Combination filter that features a space-saving design and combines both operations into 1 unit
• Great for absorbing unwanted vibration from your compressed air system
• RapidAir M7580 (1 Pack)
• Constructed with an aluminum core surrounded by an inner and outer layer of polyethylene
• Can be mounted on wall surfaces, in-wall, or buried underground or concrete
• Includes: 300 feet of 0.75-inch tubing, (3) air outlet kits, (2) tee fittings, 3/4-inch straight fitting, (20) mounting pipe clips, debar, and cutter tool
• Coupler size: 0.75 inches
• Max PSI: 200 at 70 degrees Fahrenheit
• Dimensions (L): 300 feet
• Weight: ‎50 pounds
• Product Warranty: 1-year warranty
• Quantity: 1

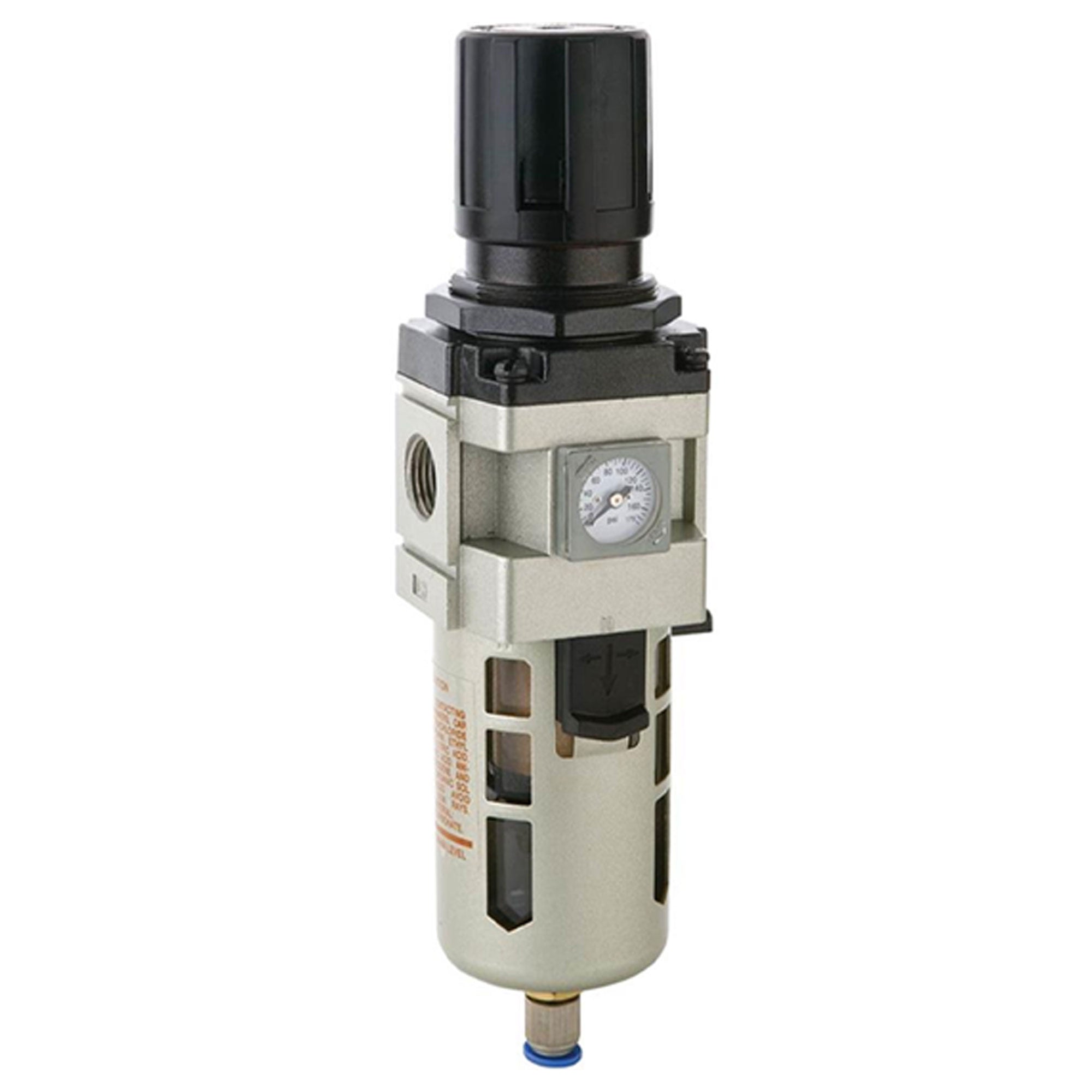

• RapidAir K93217 (1 Pack)
• Combination filter that features a space-saving design and combines both operations into 1 unit
• Protect your family and loved ones safe with this regulator filtering out harmful substances
• Micron filter protects air compressor tools by removing harmful solid particles and liquid contaminants from your machine
• Flow direction is also reversible by simply relocating the gauge to the opposite side
• Maximum inlet pressure is 175 PSI, operating range 0-150 PSI
• Includes mounting bracket and square embedded pressure gauge
• Manual drain and metal bowl guard
• Features 5-micron filter to remove harmful solid particles and liquid contaminants
• Flow direction is reversible by relocating gauge to the opposite side
• Flow rate: 300 CFM
• Outlet and inlet size: 0.75-inch
• Material: Zinc die-cast
• Dimensions (L x W x H): 3.25 x 3.75 x 12 inches
• Weight: 2.91 pounds
• Product Warranty: 1-year warranty
• Part Number: K93217
• Quantity: 1

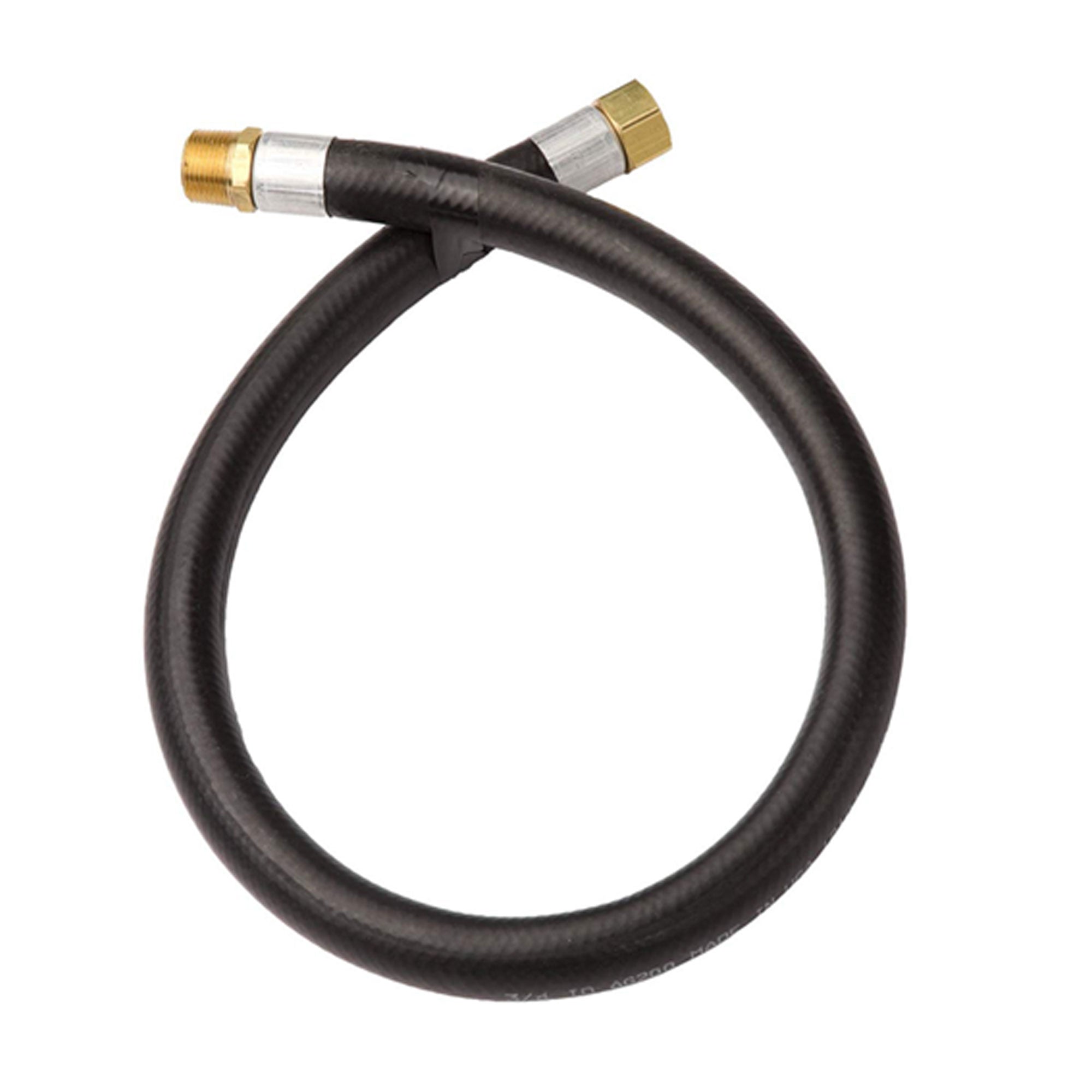

• RapidAir F0215 (1 Pack)
• Great for absorbing unwanted vibration from your compressed air system
• Connects your compressor to the piping system and prevents the compressor vibration from transferring
• Features a 0.75-inch NPT rigid male at 1 end and a 0.75-inch female at 1 end that swivel brass fittings
• This jumper hose is rated at 200 PS and measures 3 feet in length
• This jumper hose has been designed to work with M7500, M7580, or any 0.75-inch Rapidair Hose System
• The maximum pressure that the hose is able to withstand is 200 pounds per square inch
• Max PSI: 200 PSI
• Swivels: Yes
• Coupler size: 3/4-inch
• Dimensions (L x W x H) : 36 x 1.25 x 1.25 inches
• Weight: 1.3 Pounds
• Product Warranty: 1-year warranty
• Part Number: F0215
• Quantity: 1
