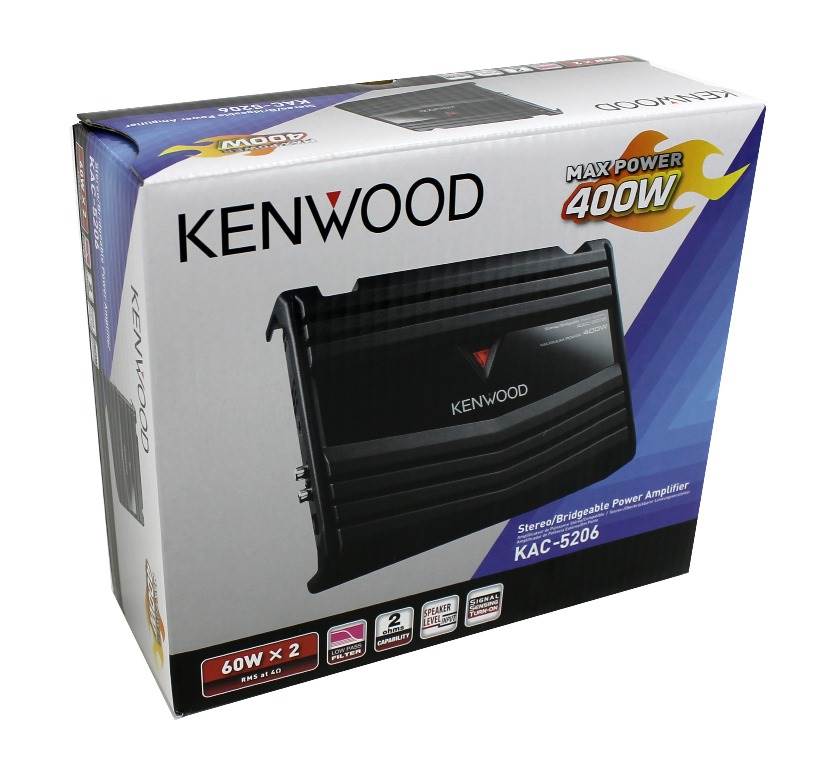

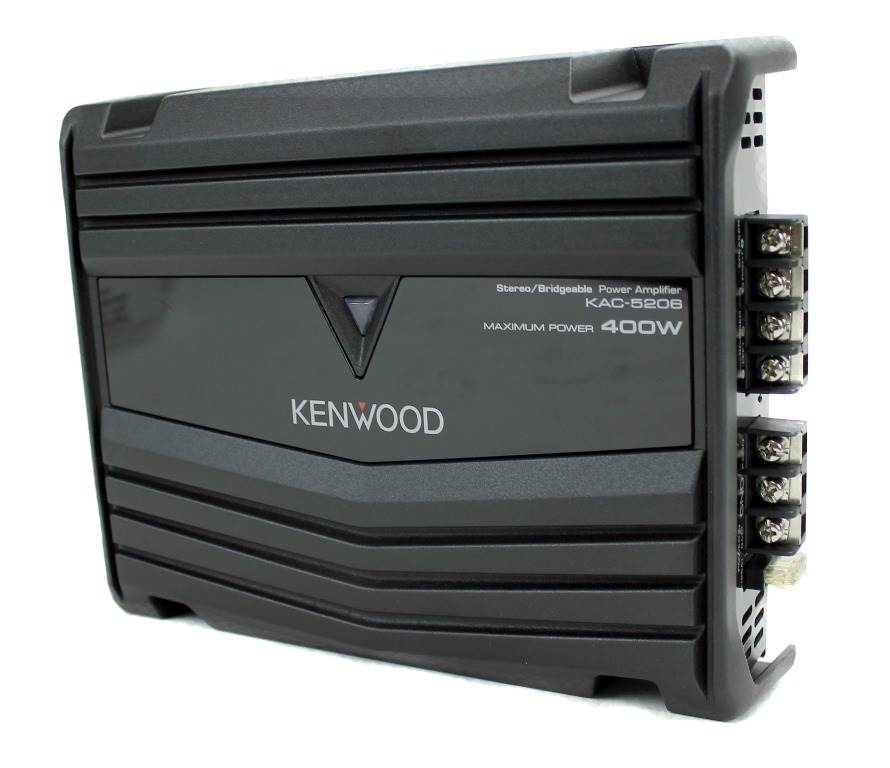

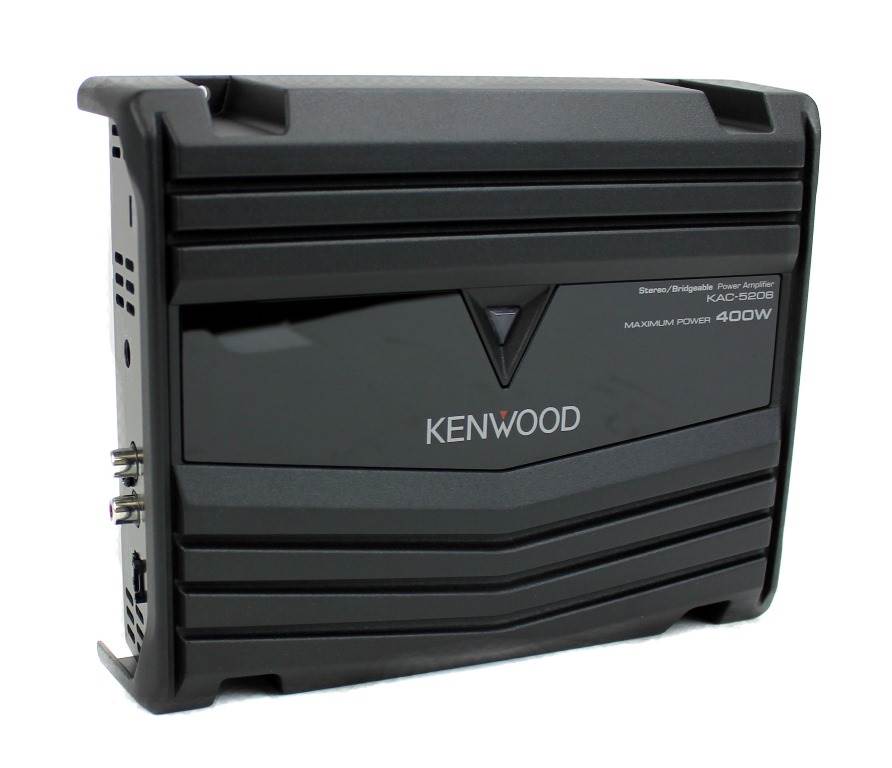

New Kenwood KAC-5206 400 Watt 2-Channel Class AB Car Audio Amplifier Amp Stereo

The Kenwood KAC-5206 is a great amplifier for your vehicle's audio system. This 2-channel class AB car audio amplifier features a MAX power of 400 watts and a RMS power of 60 watts at 4 ohms 2-channel, 75 watts at 2 ohms 2-channel or bridged 150 watts at 1-channel. Other features include the power MOSFET switching power supply, cast aluminum heat sink design and is CEA-2006 compliant. This class AB amplifier will hit frequencies from 5Hz-50kHz.

- 2 Ohms Load Capability

- Speaker Level Input

- Signal Sensing Turn-on

1 Year Warranty

• New Kenwood KAC-5206 400 Watt 2-Channel Class AB Car Audio Amplifier Amp Stereo
• Rated Power:
• 60Watts RMS x 2-ch (4 Ohms)
• 75Watts RMS x 2-ch (2 Ohms)
• 150Watts RMS x 1-ch (Bridged 4 Ohms)
• MAX POWER:
• 400Watts
• Amplifier Type: Class AB
• 2 Ohms Load Capability
• Speaker Level Input
• Signal Sensing Turn-on
• Power MOS-FET Switching Power Supply
• Cast Aluminum Heat Sink Design
• Triangle Indicator
• Signal to Noise Ratio: 95dB (Reference: Rated Power into 4Ohms at 14.4V)
• Frequency Response: 5Hz-50kHz (+0dB, -3dB)
• Input Impedance: 10k ohm
• Speaker Impedance: 4O (2O to 8O allowable)
• Bridged connection 4O to 8O allowable
• Low-Pass Filter: Built in Low-Pass Filter (80Hz, -18dB/oct)

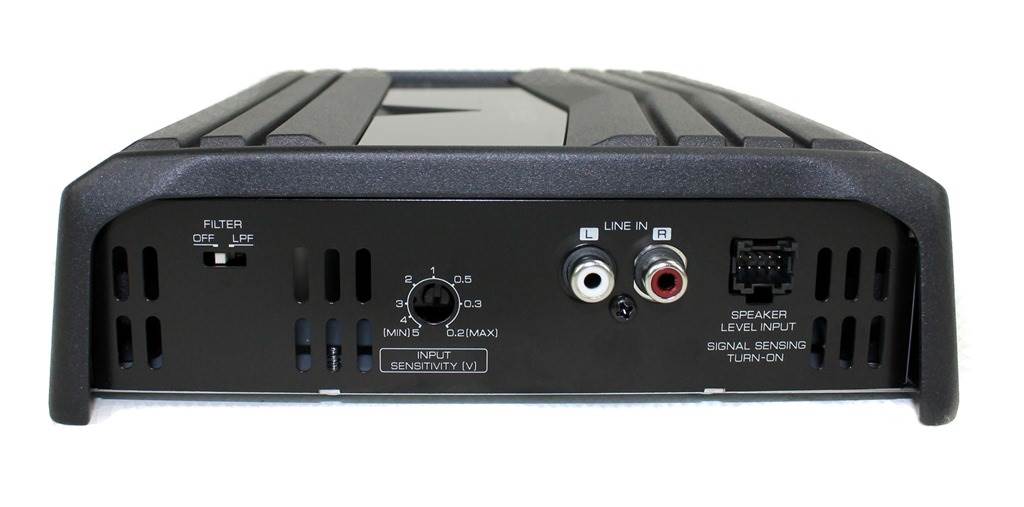

• RCA Input Sensitivity: 0.2[V]
• 5.0 [V]
• Speaker Level Input Sensitivity: 4.0[V]
• 12.0 [V]

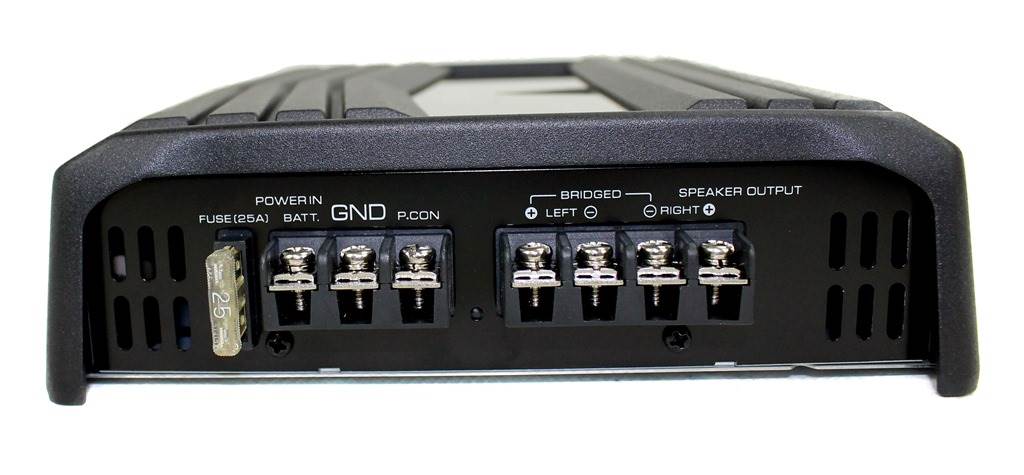

• Battery & Ground: Screw Type Terminal Block (Ni) (M4)
• Speaker Output: Screw Type Terminal Block (Ni) (M4)
• Line In: RCA (Ni)
• Speaker Input: JST Connector
• Operating Voltage: 14.4V(11-16V allowable) [V]
• Current Consumption: 13 [A]
• CEA-2006 Compliant
• Dimensions(WxHxD): 8-7/8 inch x 2-3/16 inch x 7-1/16 inch
• Condition: Brand New!
• Item Weight: 3.25 lbs.
• Part Number: **KAC-5206**
• 1 Year VMInnovations Warranty
