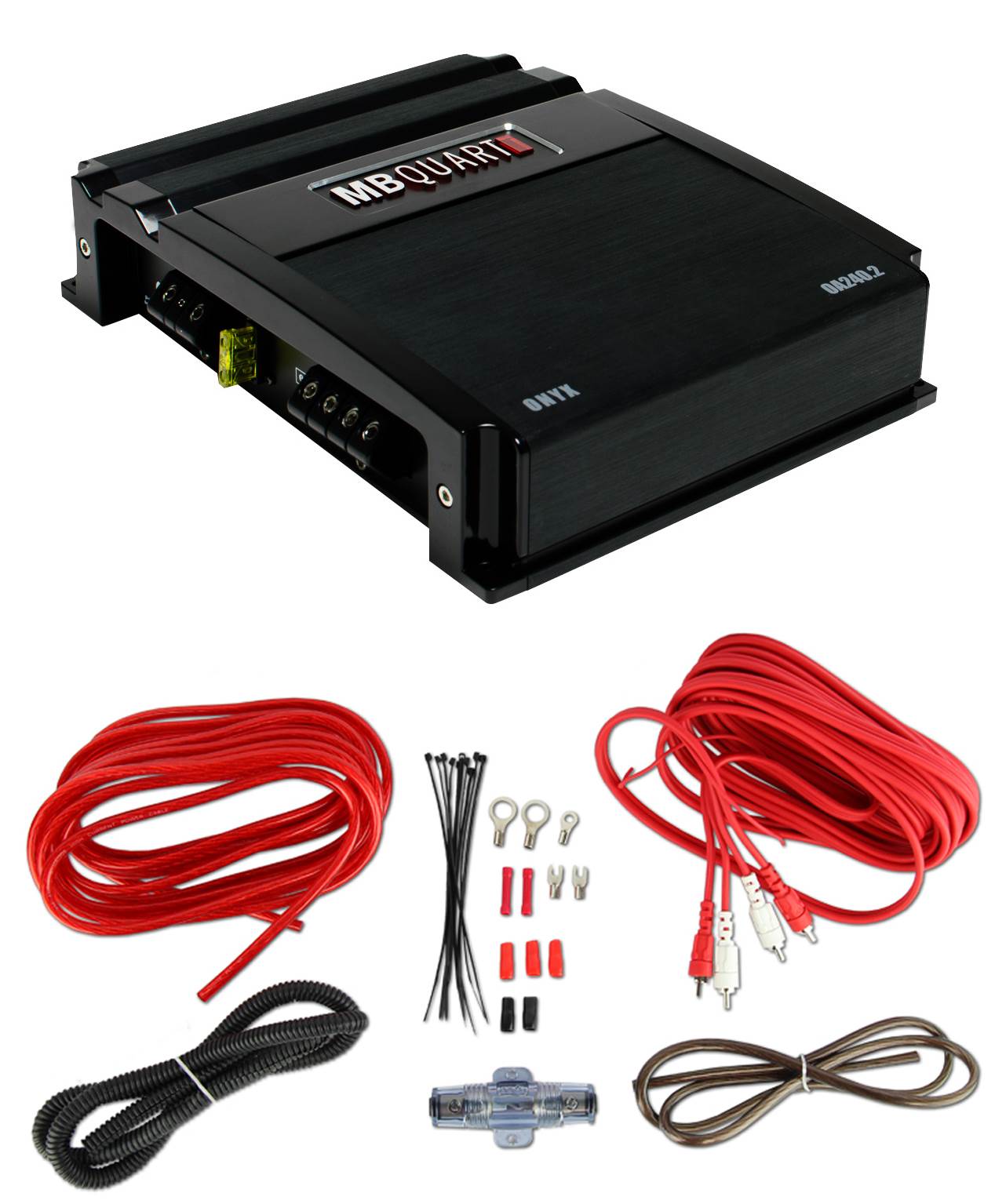

New MB Quart OA240.2 240 Watt 2-Channel Car Audio Amplifier Stereo+8 Ga Amp Kit

**We are an authorized MB Quart dealer**

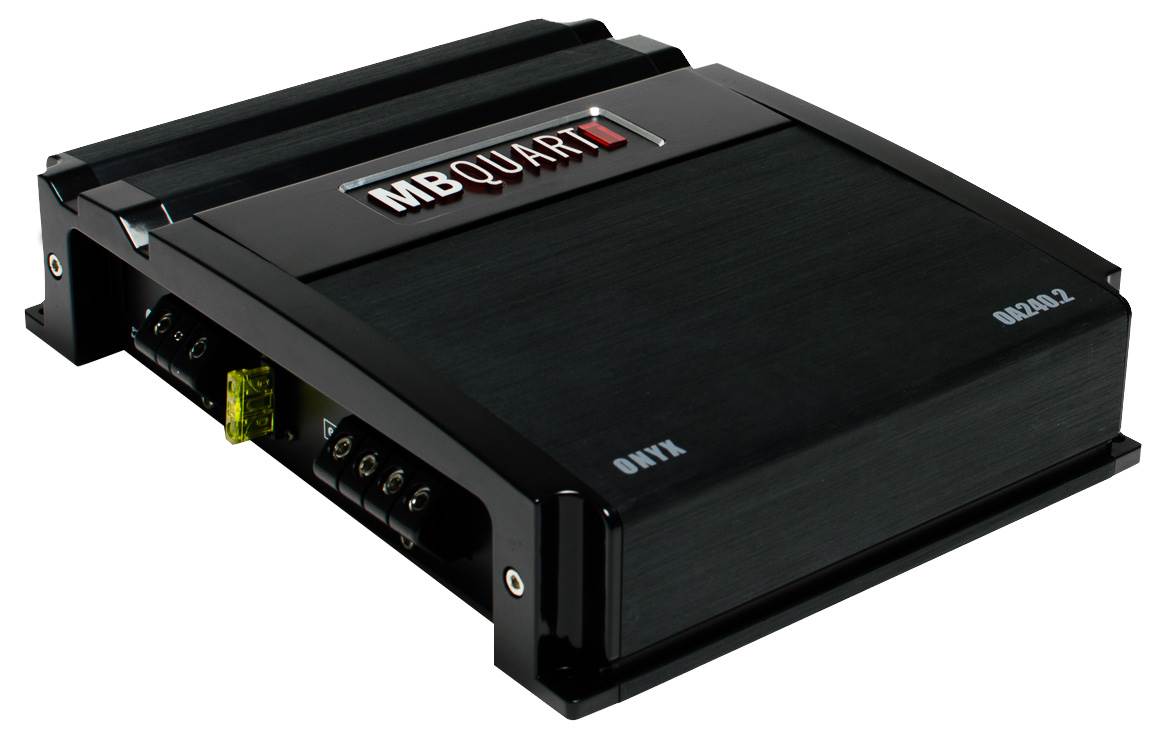

The MB Quart OA240.2 Onyx amplifier is the perfect first step for building a high end audio system. Low noise input section with the pre amplifier utilizing Q Stasis and FLUID FET output devices to make big power while remaining very musical. The Onyx amplifiers have built in equalization to fine tune the system with Low Pass, High Pass and Level Control.

The highly engineered Q Stasis pre amplifier stage is designed to keep incoming noise from source units at nearly immeasurable levels, dramatically improving sound quality. Multi channel Onyx amplifiers utilize Class SQ circuit topology. Matched with the Q Stasis preamp stage the sonic accuracy and clarity exceeds standard Class A/B amplifiers. MB Quart output devices, FLUID FETS, are painstakingly selected for their ability to efficiently produce power and mimic the sound quality of the highest end home amplifiers.

RMS Power: 240W Bridged at 4 ohms

Class SQ

On Board Equalization

• **Amplifier:**
• New MB Quart OA240.2 240 Watt 2 Channel Car Audio Power Amplifier Amp Stereo
• Max Power:
• 4 ohms: 60 watts x 2 chan.
• 2 ohms: 120 watts x 2 chan.
• Bridged, 4 ohms: 240 watts x 1 chan.
• FLUID FETS MOSFET
• LED power (green) and protect (red) indicators
• Variable Bass Boost (0 to +12 dB bass boost)
• Built in system diagnostics
• 2/1 Channel operation
• Preamp RCA outputs
• 3 way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty Black Onyx aluminum alloy heat sink

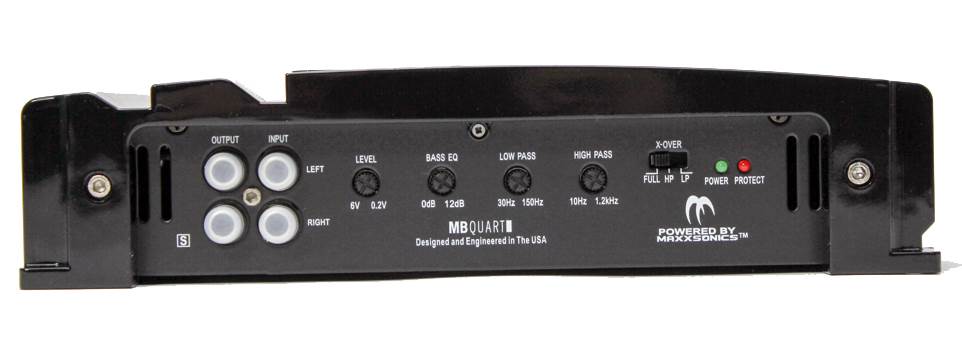

• Variable high pass filter: 10 1,200 Hz 24 dB/octave
• Variable low pass filter: 30 150 Hz 24 dB/octave
• Frequency Response: 10 45,000 Hz
• Input sensitivity: Level: 200mV 6V
• Condition: Brand New!
• Item Weight: 5 lbs.
• Part Number: **OA240.2**
• 1 Year Manufacturer Warranty
• **Amp Kit:**

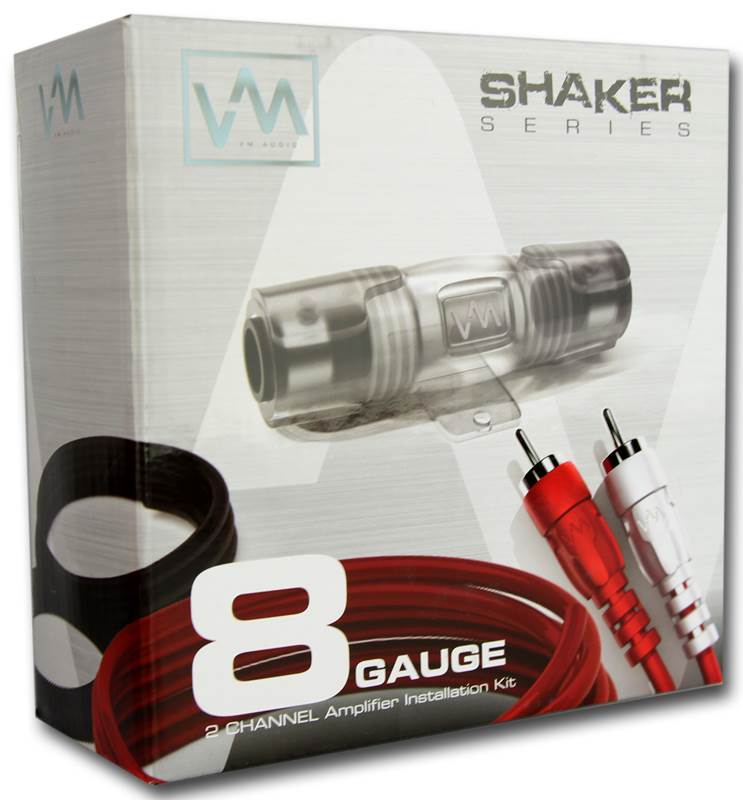

• New VM Audio SRPK8R 8 Gauge Amplifier Complete Wiring Kit
• Maximum of 2000 watts
• Complete amplifier wiring kit with cables, connectors and accessories
• 8 Gauge high current power cables with 315 multi stranded bare copper
• 8 Gauge high current ground cables with 315 multi stranded bare copper
• 18 Gauge remote turn on wire with solid red insulation jacket
• 12 Gauge high density two conductor copper speaker wire with clear red insulation jacket
• E.M.I isolated RCA audio cables with maximum surface contact connection and exclusive VM audio barrel grip
• Nickel plated, high impact resistant 60 AGU fuse holder with exclusive 8 Gauge maximum wire to surface current flow directivity
• 4 Gauge nickel plated power/ground solder less ring crimp terminals
• 4 Gauge nickel plated power/ground solder less spade crimp terminals
• Quick connect nickel plated crimp speaker wire connector
• Element protection power cable loom jacket
• High quality insulated solder less crimp butt terminals
• Durable high strength nylon tie wraps

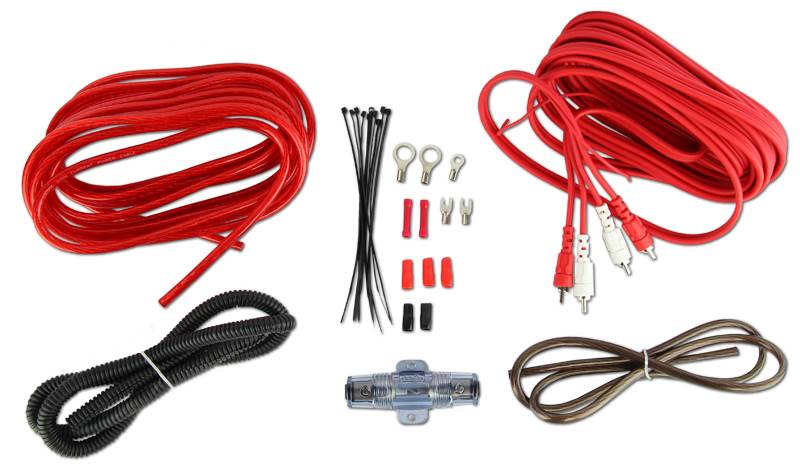

• Kit includes:
• 16 Ft red 8 gauge power wire
• 3 ft black 8 gauge ground wire
• 15 ft high performance RCA wire
• 4 Gauge In line AGU fuse holder
• 60 Amp AGU fuse
• 15 ft 18 Gauge Remote wire
• 20 ft 12 gauge Speaker wire
• 20) 6" wire ties
• 2) spade connectors
• 2) ring connectors
• 3) screws
• 3) butt connectors
• 4) fasten connectors
• 5) spade connectors
• Cable firewall black rubber grommets
• Product Condition: Brand New
• Part Number: SRPK8R
• 1 Year Manufacturer Warranty
