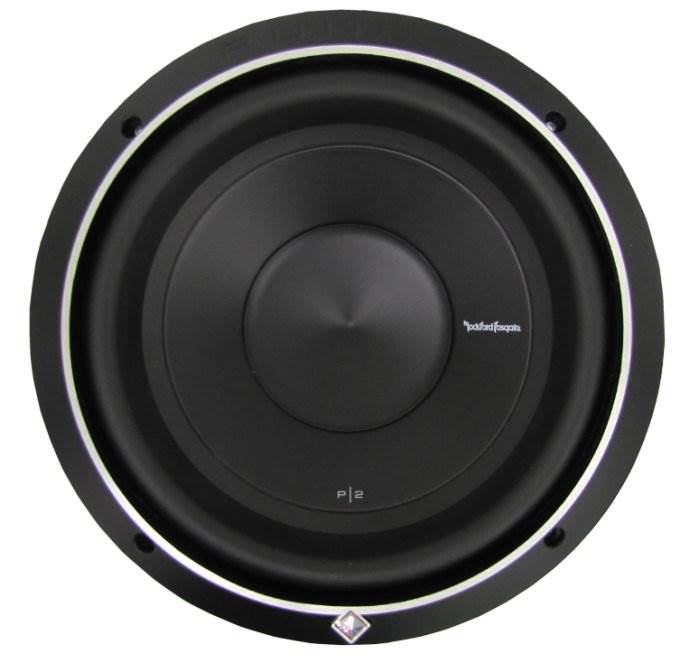

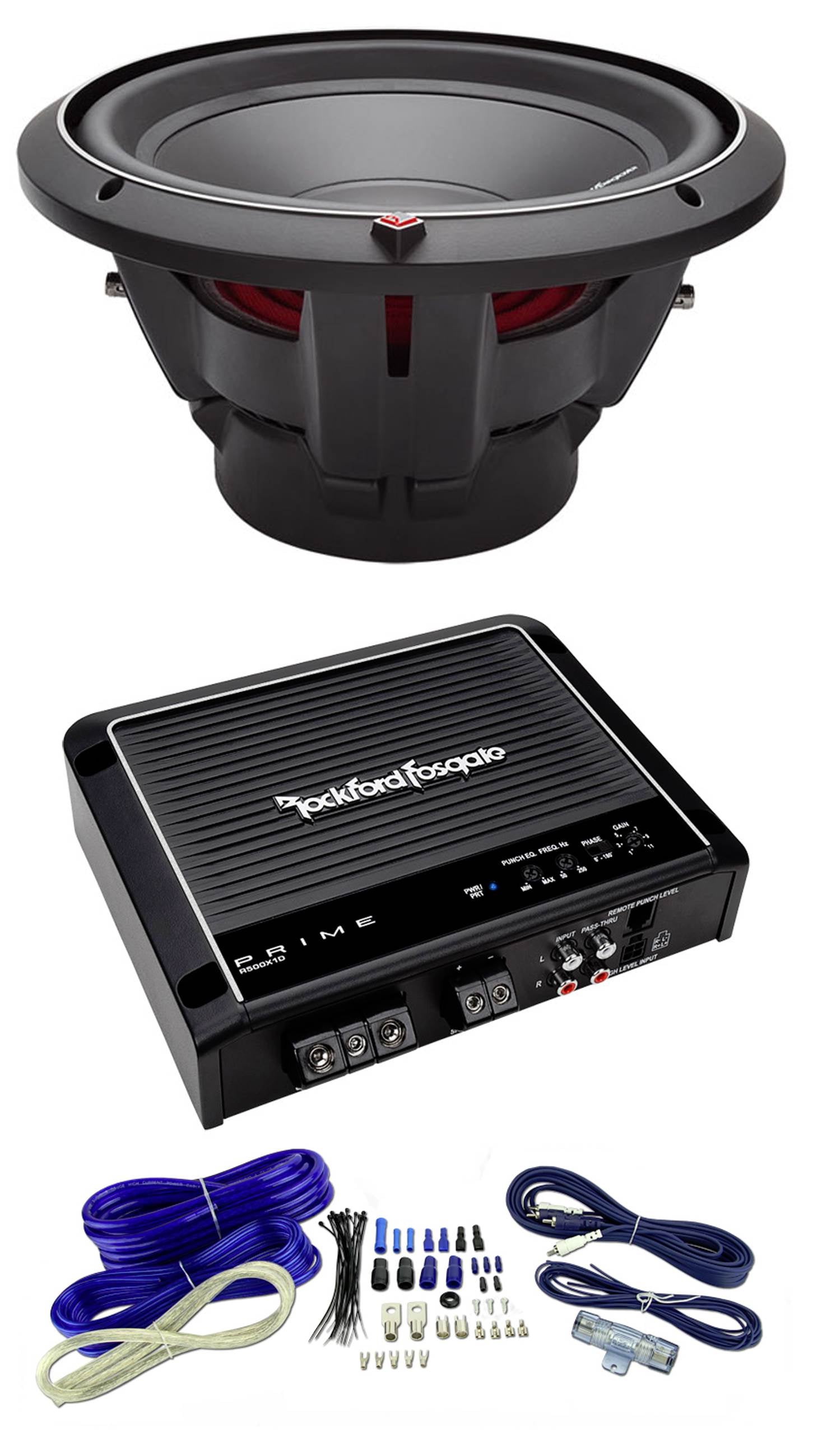

NEW ROCKFORD FOSGATE P2D4-12 12" t Dual 4-Ohm Car Audio Sub + R500X1D Amplifier

The **Rockford Fosgate P2D4 12** Subwoofer offers "The Punch" you desire with 800 Watts of MAX power and 400 Watts of RMS power. Also featured are Kevlar fiber reinforced paper cones that deliver bass impact you can feel, VAST technology to increase surface cone area up to 25%, a Flex Fit Basket that allows for fine tuning of the subwoofer's mounting position, an Anodized Aluminum Voice Coil Former that provides superior heat dissipation (up to 100° at full power levels), and Stitched Tinsel Leads to increase reliability while reducing fatigue and possible shorting. This subwoofer performs best in standard sealed and vented enclosures and a diamond cut cast aluminum trim ring is included. Receive the "The Punch" you desire with the Rockford Fosgate P2D4 12 Subwoofer!

**We are an Authorized Rockford Fosgate Dealer!**

Read the Owner's Manual [here][1]

View the Specifications [here][2]

[1]: https://www.rockfordfosgate.com/rftech/library/2011/5_Subwoofers/4020118 0_P2Subs MAN_Rev2.pdf

[2]: https://www.rockfordfosgate.com/rftech/library/2011/5_Subwoofers/RFPB_P2D4 12 TS_RevD.pdf

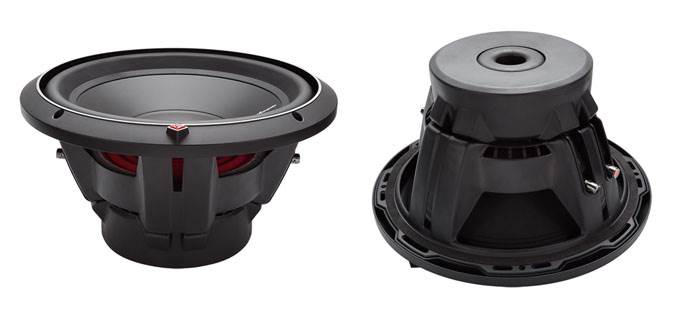

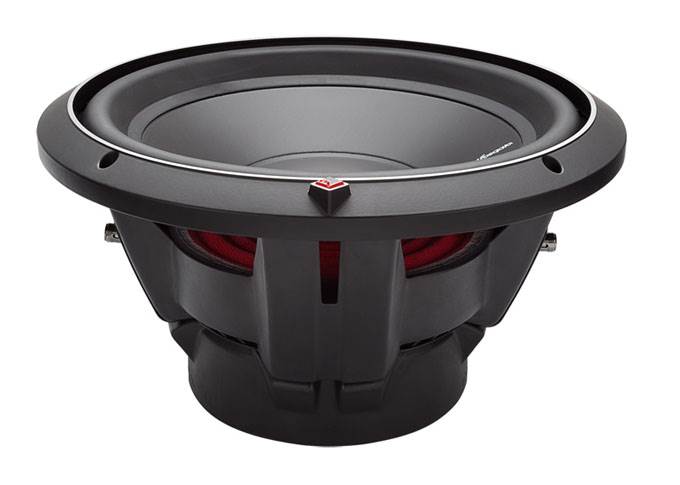

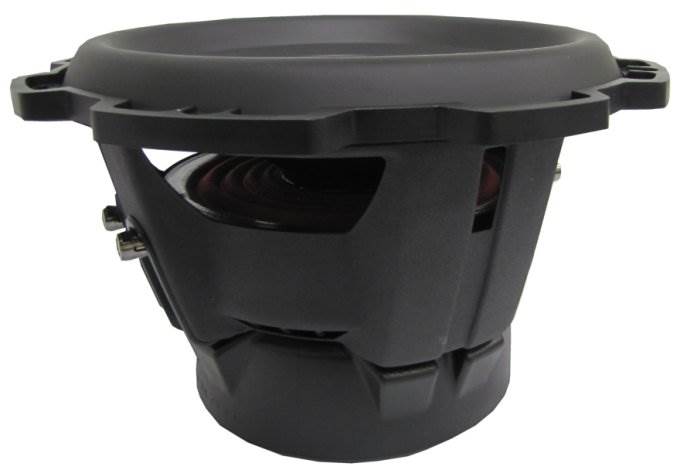

• BRAND NEW **ROCKFORD FOSGATE P2D4 12** 12" 800 Watt Car Subwoofer
• MAX Power Handling: 800 Watts
• RMS Power Handling: 400 Watts
• Dual linear spider with embedded 16 AWG tinsel leads
• Custom 10 AWG nickel plated push terminals
• Extended pole piece and bumped vented backplate
• High temp voice coil with spun laced Nomex® re inforcement collar
• Protective PVC textured magnet cover
• Kevlar fiber reinforced paper cone
• StampCast basket with integrated spider venting

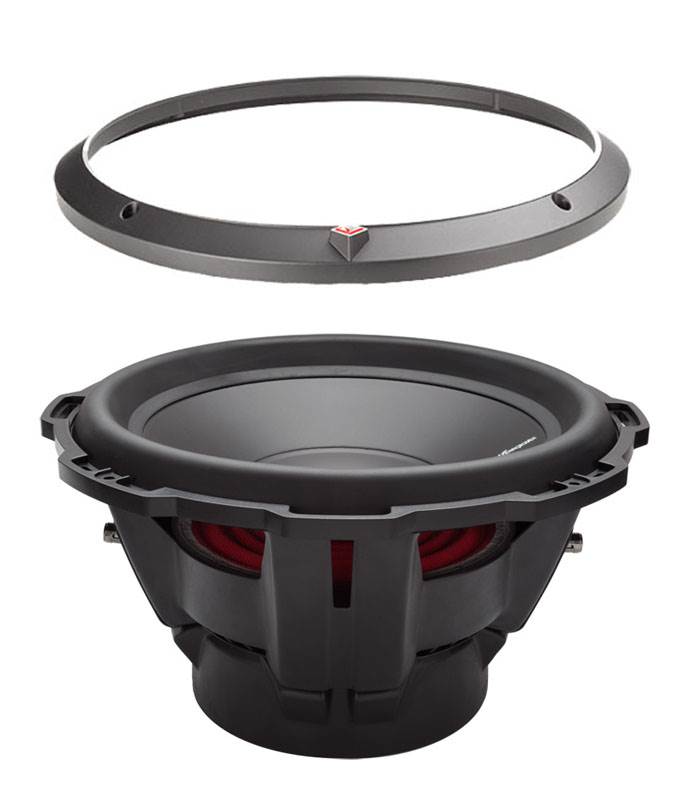

• Diamond cut cast aluminum trim ring
• **Specifications:**
• Size: 12 Inch
• 2.25" (4 Layer) Voice Coil

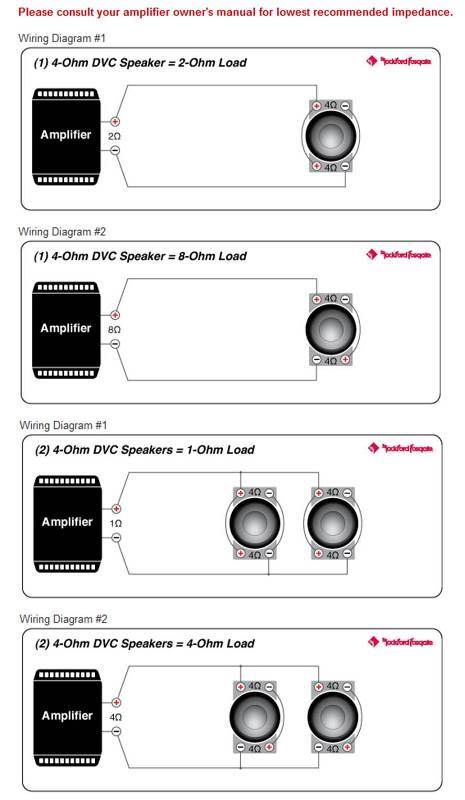

• Impedance: Dual 4 Ohm
• Magnet Weight (oz): 72.8 oz. (2.06 kg.)
• Speaker Connector: Dual 10 AWG compression
• Fs (Hz): 27.2
• Re (Ohms): 6.40
• Le (mH): 5.5
• Qms: 6.30
• Qes: 0.59
• Qts: 0.54
• Vas (Liters): 81.5
• Sd (cm2): 570
• PL (dB @ 1w/1m): 86
• Xmax (mm): 13.3
• Woofer Displacement (in): 0.170 cu. ft. (4.8 Liters)
• Cutout Diameter (in): 11.22 in. (285 mm)
• Mounting Depth: 6.40 Inches (162 mm)
• CEA 2031 Compliant
• Weight: 15.6 lbs (shipping)
• Product Condition: BRAND NEW!
• Part Number: **P2D4 12**
• Warranty: 2 Year VMInnovations Warranty
• ![List item][1]
• **Amplifier:**

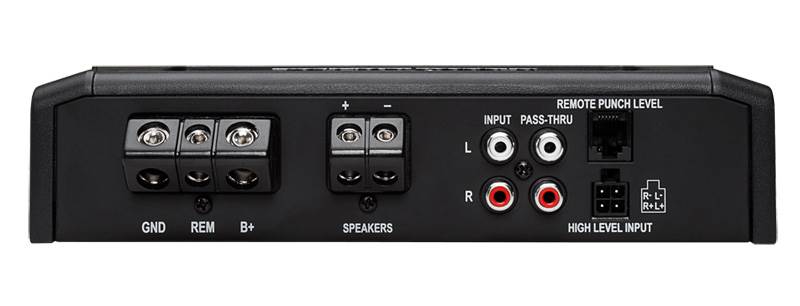

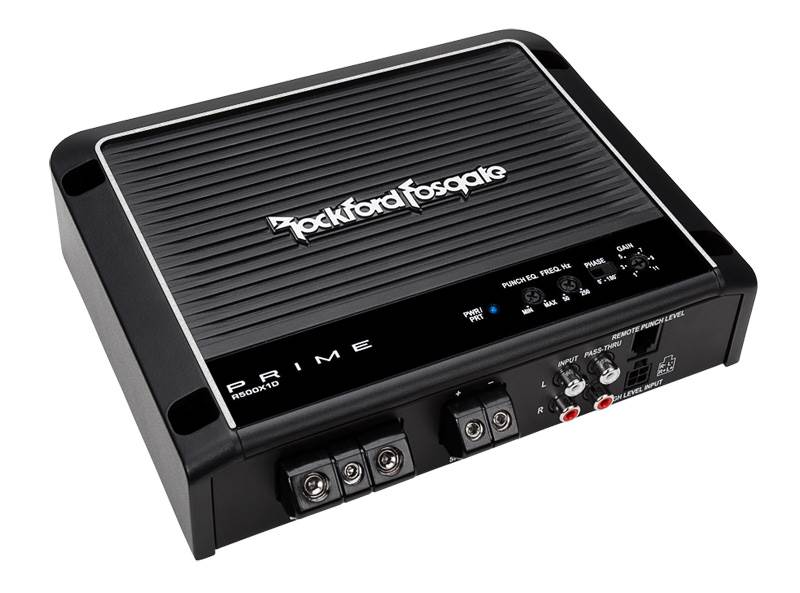

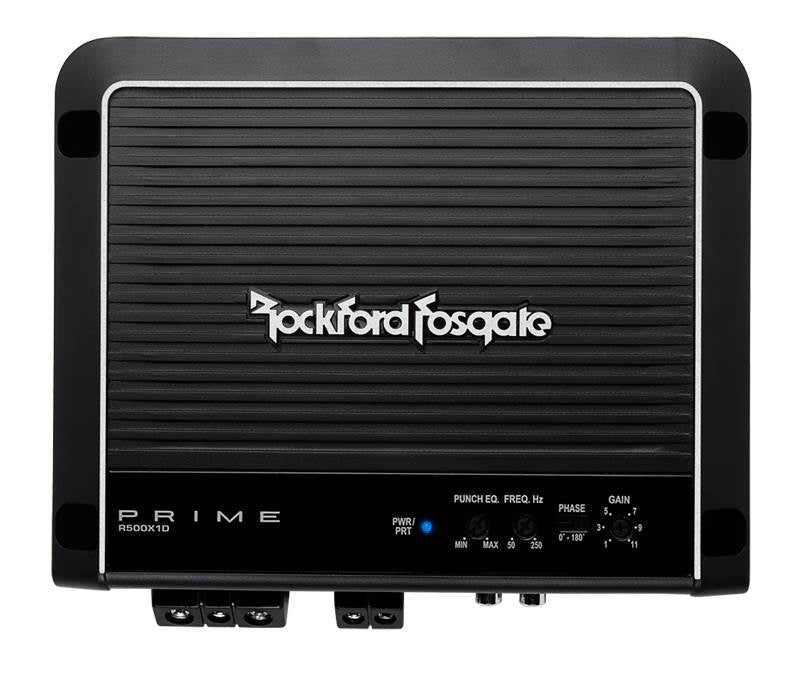

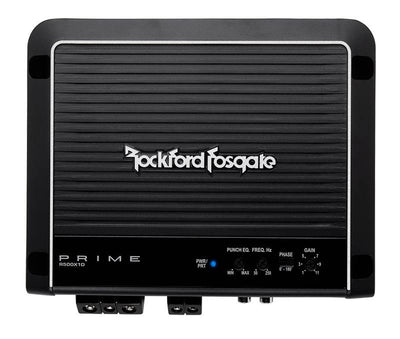

• New Rockford Fosgate R500X1D 500 Watt Mono D Car Amplifier
• Rated Power:
• 250 Watts x 1 @ 4 Ohms
• 500 Watts x 1 @ 2 Ohms
• Dynamic Power:
• 333 Watts x 1 @ 4 Ohms 0° Res
• 647 Watts x 1 @ 2 Ohms 0° Res
• Class D
• MOSFET power supply
• Cast aluminum heatsink
• Over current protection
• Short circuit protection
• Muted turn on
• 12dB/octave Butterworth crossover
• RCA pass thru outputs
• On board Punch EQ with +18dB boost @ 45Hz.
• High level inputs
• 0°/180° Phase Switch
• Real time output and power supply thermal sensing
• Remote Bass Control Included!
• 4 Gauge power/ground connectors
• CEA 2006 Compliant
• Product Condition: Brand New
• Item Weight: 6 lbs.
• Part Number: **R500X1D**
• 1 Year Manufacturer Warranty
• **Amp Kit:**

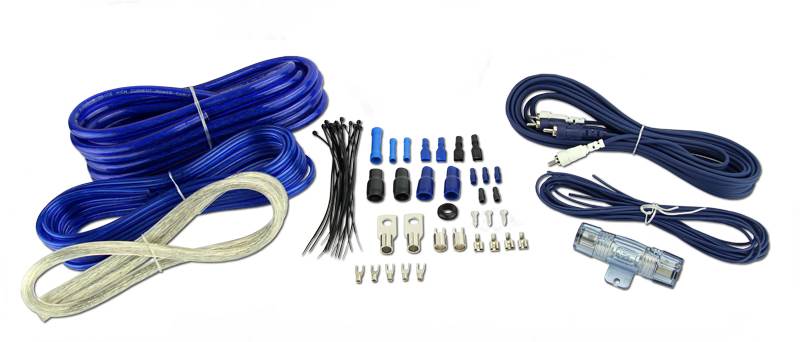

• New VM Audio SRSK4B **4 Gauge Amplifier Complete Wiring Kit**
• Maximum of 2000 watts
• Complete amplifier wiring kit with cables, connectors and accessories
• 4 Gauge high current power cables with 315 multi stranded bare copper
• 4 Gauge high current ground cables with 315 multi stranded bare copper
• 18 Gauge remote turn on wire with solid red insulation jacket
• 12 Gauge high density two conductor copper speaker wire with clear red insulation jacket
• E.M.I isolated RCA audio cables with maximum surface contact connection and exclusive VM audio barrel grip
• Nickel plated, high impact resistant 60 AGU fuse holder with exclusive 4 Gauge maximum wire to surface current flow directivity
• 4 Gauge nickel plated power/ground solderless ring crimp terminals
• 4 Gauge nickel plated power/ground solderless spade crimp terminals
• Quick connect nickel plated crimp speaker wire connector
• Element protection power cable loom jacket
• High quality insulated solderless crimp butt terminals
• Durable high strength nylon tie wraps
• Kit includes:
• 16 Ft blue 4 gauge power wire
• 3 ft silver 4 gauge ground wire
• 15 ft high performance RCA wire
• 4 Gauge In line AGU fuseholder
• 60 Amp AGU fuse
• 15 ft 18 Gauge Remote wire
• 20 ft 12 gauge Speaker wire
• 20) 6" wire ties
• 2) spade connectors
• 2) ring connectors
• 3) screws
• 3) butt connectors
• 4) fasten connectors
• 5) spade connectors
• Cable firewall black rubber gromments
• Product Condition: Brand New
• Item Weight: 3 lbs.
• Part Number: **SRSK4B**
• 1 Year Manufacturer Warranty
• [1]: http://www.vminnovations.com/sys/resource.ashx?guid=2d05aca4325e4310b89a5166b05f9f25
