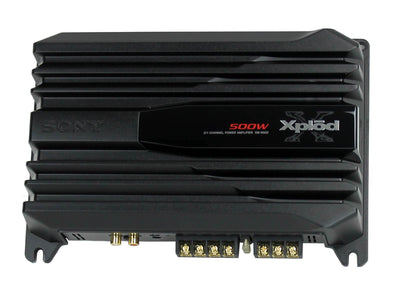

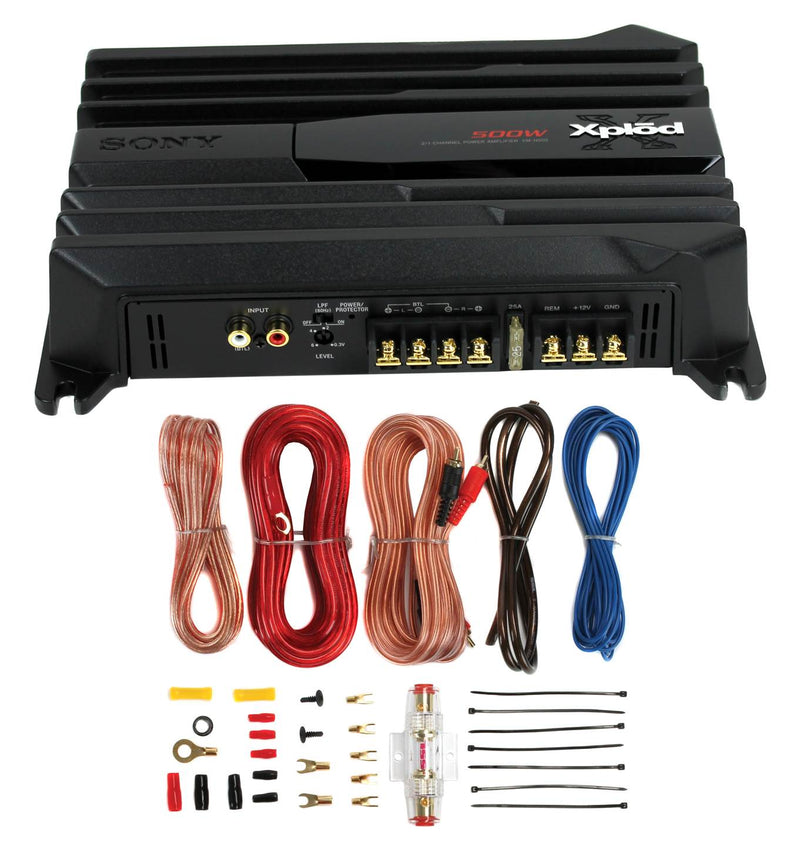

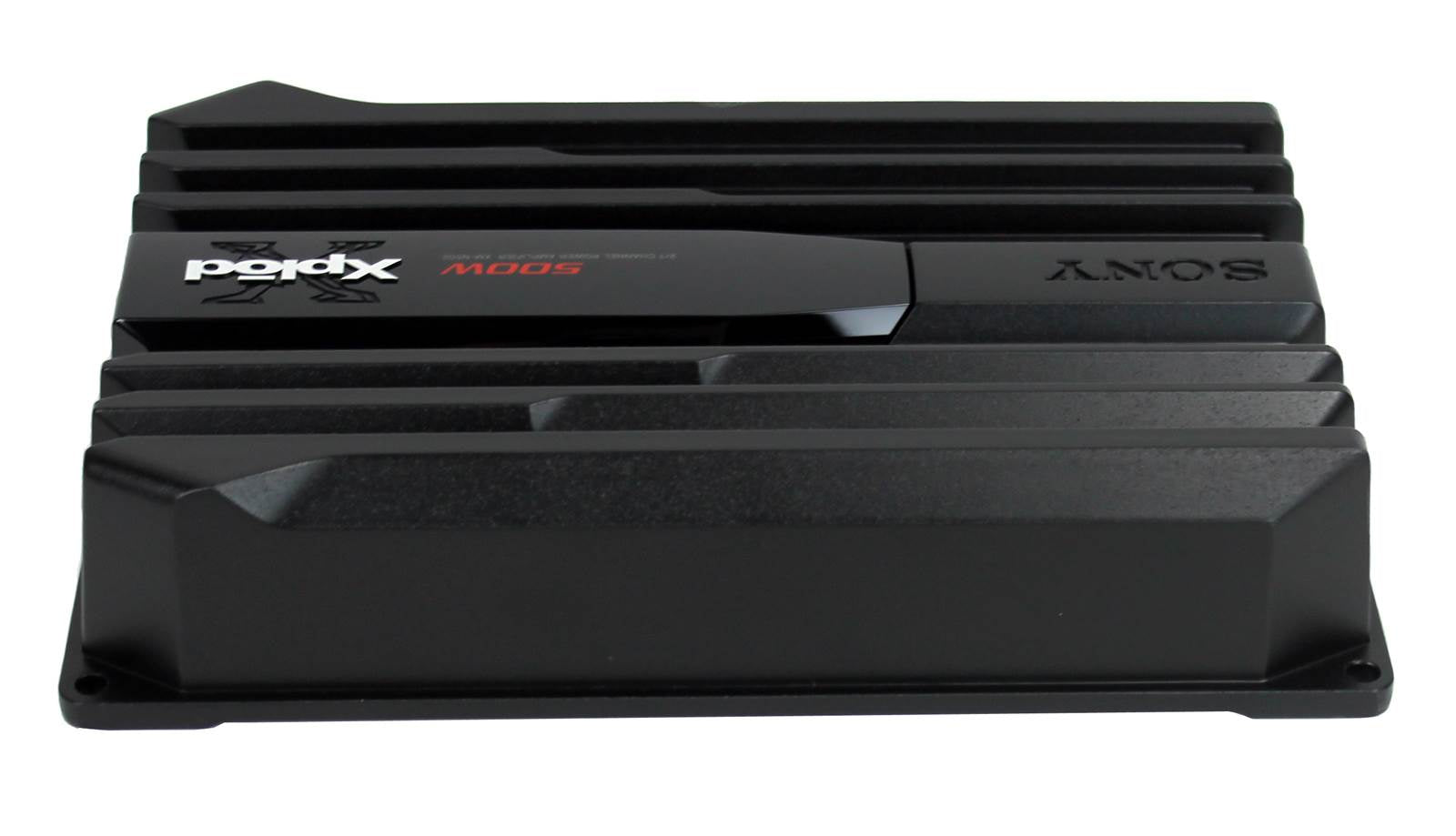

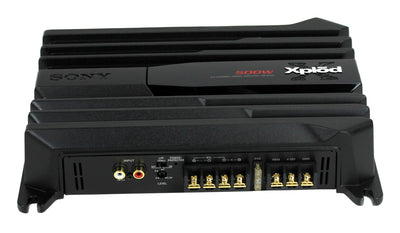

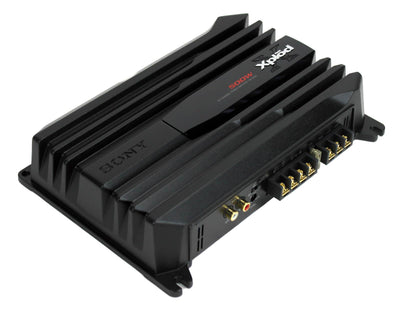

New Sony XM-N502 500 Watt 2-Channel Class AB Car Audio Amplifier Amp + Amp Kit

The **Sony XMN502** 2 channel car amplifier features a MAX power handling of 500 watts and a RMS power handling of 65 watts per channel at 4 ohms impedance. Other features include the unique thermal control chassis is designed to circulate air and cool the amplifier for powerful sound output.

Single Sided Connections

Color : Graphite

MAX Power: 500 Watts

Sony's Automatic Thermal Control circuit actually lowers the output levels to reduce amplifier temperature so your music continues to play. Components such as audio capacitors, power MOSFETs and choke coils are carefully selected for high quality sound reproduction as well as reliability.

Includes: 8 Gauge Complete Amplifier Installation Kit

**We are an authorized Sony dealer**

• **Amplifier:**
• Sony XM N502 500 Watt 2 Channel Class AB Car Audio Amplifier Amp Stereo XMN502
• Features:
• Automatic Thermal Control
• Efficient Cooling Design
• High Quality Coponents
• LPF Crossover
• Single Sided Connections
• Specifications:
• Power
• Power Requirements : 12V DC Car Battery (Negative Ground)
• Current Drain : At rated output: 15A (at 4 Ohms) Remote Input: 1 mA
• Output Power : Maximum Output: 150W x 2 (at 4 Ohm)
• Rated Output : 65W x 2 (20Hz 20kHz, 1% THD+N, 4 Ohms, 14.4V)1
• 85W x 2 (20Hz 20kHz, 1% THD+N, 2 Ohms, 14.4V)
• 175W x 1 RMS (20Hz 20kHZ 1.0% THD+N, at 4 Ohms)
• Input Voltage : 10.5 16V Power Supply Voltage
• Internal Power Supply : OTL (Output Transformerless) circuit. Pulse Power Supply
• Amplifier Section
• Power Ad Hoc : 65W per channel at 4 Ohms from 20Hz 20kHz with < 1% THD1
• Speaker Impedance : 2 8 Ohm stereo. 4 8 Ohms mono
• Max power output : 500W max power
• Audio
• Harmonic Distortion : 0.05% (1kHz @ 4 ohm)
• Power Supply : OTL (Output Transformerless) circuit
• Pulse Power Supply
• Input Level : 0.3 6.0V (RCA input)
• Band : Selectable crossover: 18dB/oct LPF @ 80 HZ
• Signal Circuitry : Selectable LPF crossover
• Signal to Noise Ratio (dB) : 93 dBA
• Frequency Response : 5 Hz 50 Khz (+0/ 3 db)
• Audio Features
• Level Control : 0.3 6.0V (RCA input)
• Color : Graphite

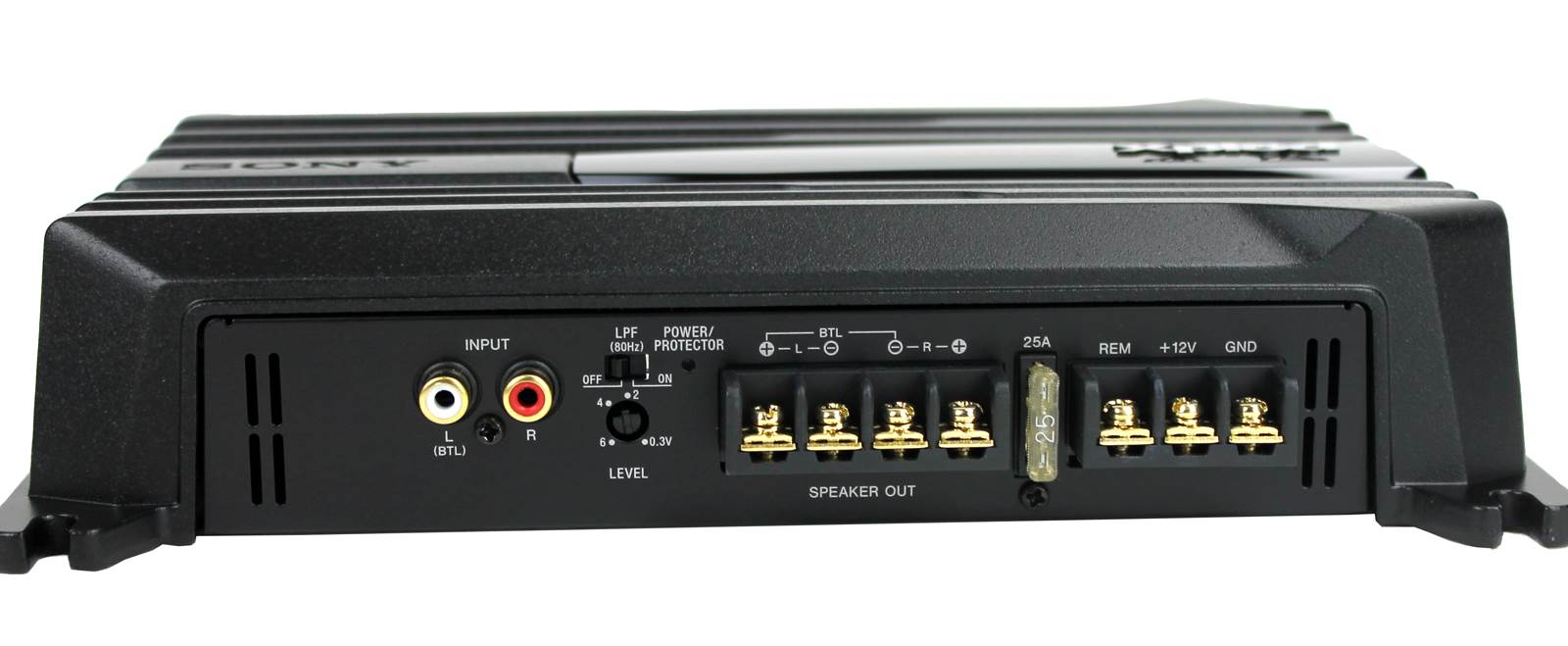

• Inputs and Outputs
• Audio Out : Speaker Terminals
• RCA Audio Input(s) : Pin Jacks: 0.3 6V
• Input(s) : RCA Pin Jacks
• Output(s) : Speaker Terminals
• Line Level Input(s) : RCA pin jacks
• Audio In : RCA Pin Jacks
• Condition: Brand New!
• Item Weight: 4.3 lbs.
• Part Number: **XMN502**
• 1 Year Manufacturer Warranty
• **Amp Kit:**

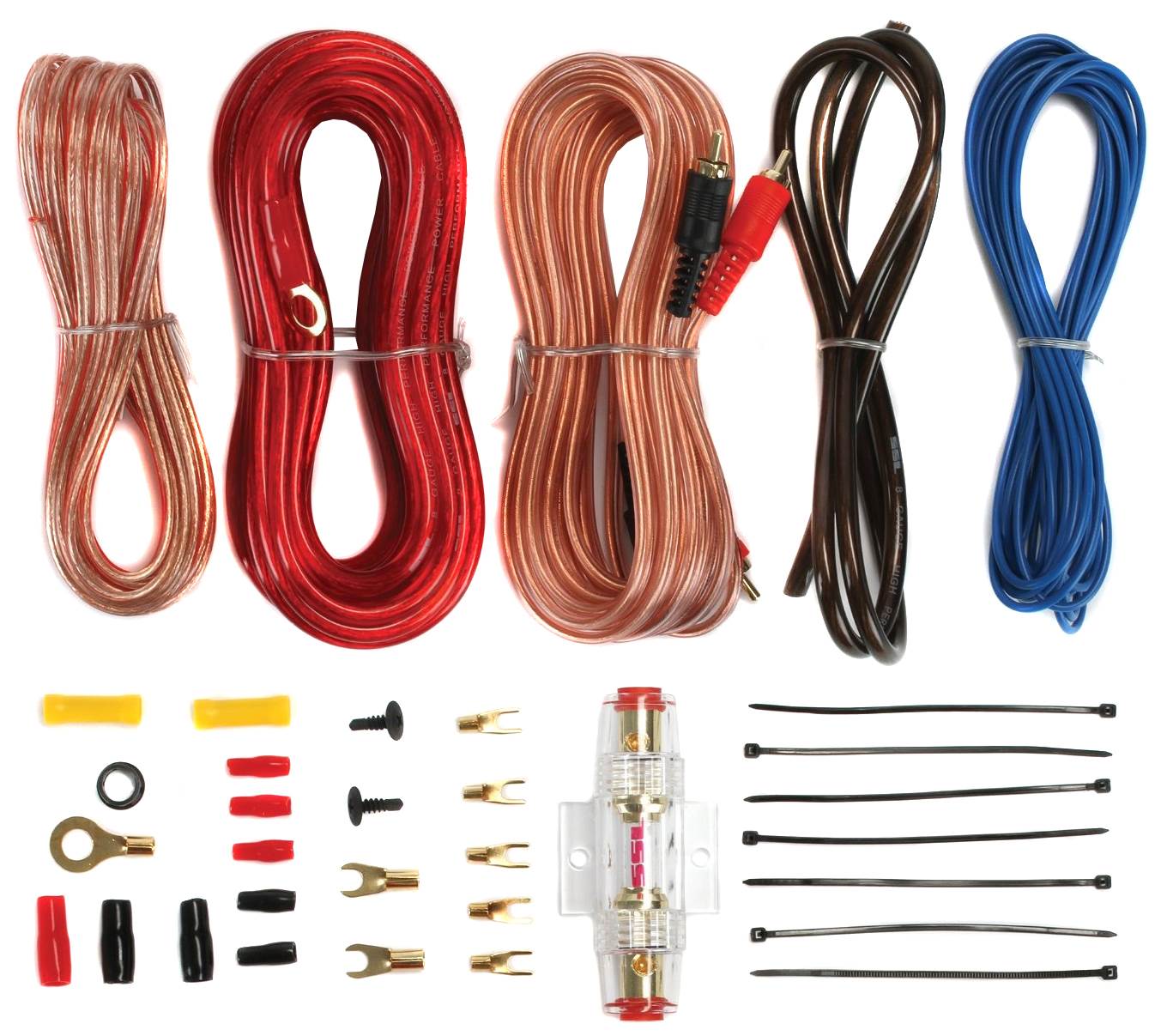

• Soundstorm AKS8 Complete 8 Gauge Amplifier Installation Kit
• 20 ft. 8 Gauge Red power cable
• Competition high quality fuse holder
• 1/4" Gold plated ring terminal
• 3 ft. 8 Gauge Black ground cable
• #10 Gold plated ring terminal
• 16 ft. 18 Gauge Blue turn on wire
• 20 ft. High performance RCA interconnect
• (3) Rubber grommets
• 30 ft. Speaker wire
• 5/16" Gold plated ring terminal
• 6 ft. Split loom tubing
• (20) 4" Wire ties
• Product Condition: Brand New
• Part Number: **AKS8**
• 1 Year Manufacturer Warranty
