Pioneer 18000 BTU 208/230V Ductless Mini Split Air Conditioner Heat Pump System

Keep your home cool in the summer and warm in the winter with the Pioneer WYS Ductless Wall-Mounted Mini Split Air Conditioner Heat Pump System. This mini split AC system is great for providing heating and cooling to garages, guest houses, or recent additions to your home when retrofitting to a ductless heating and cooling system.

This air conditioner works by using an outdoor condensor unit and an indoor evaporator unit to remove or deliver heat to areas of your home. Small but mighty, this wall-mounted mini split air conditioner is rated at 18,000 BTUs per hour when cooling and 18,000 BTUs per hour when heating. This makes this mini split heat pump great for small areas and rooms between 450 and 650 square feet in size.

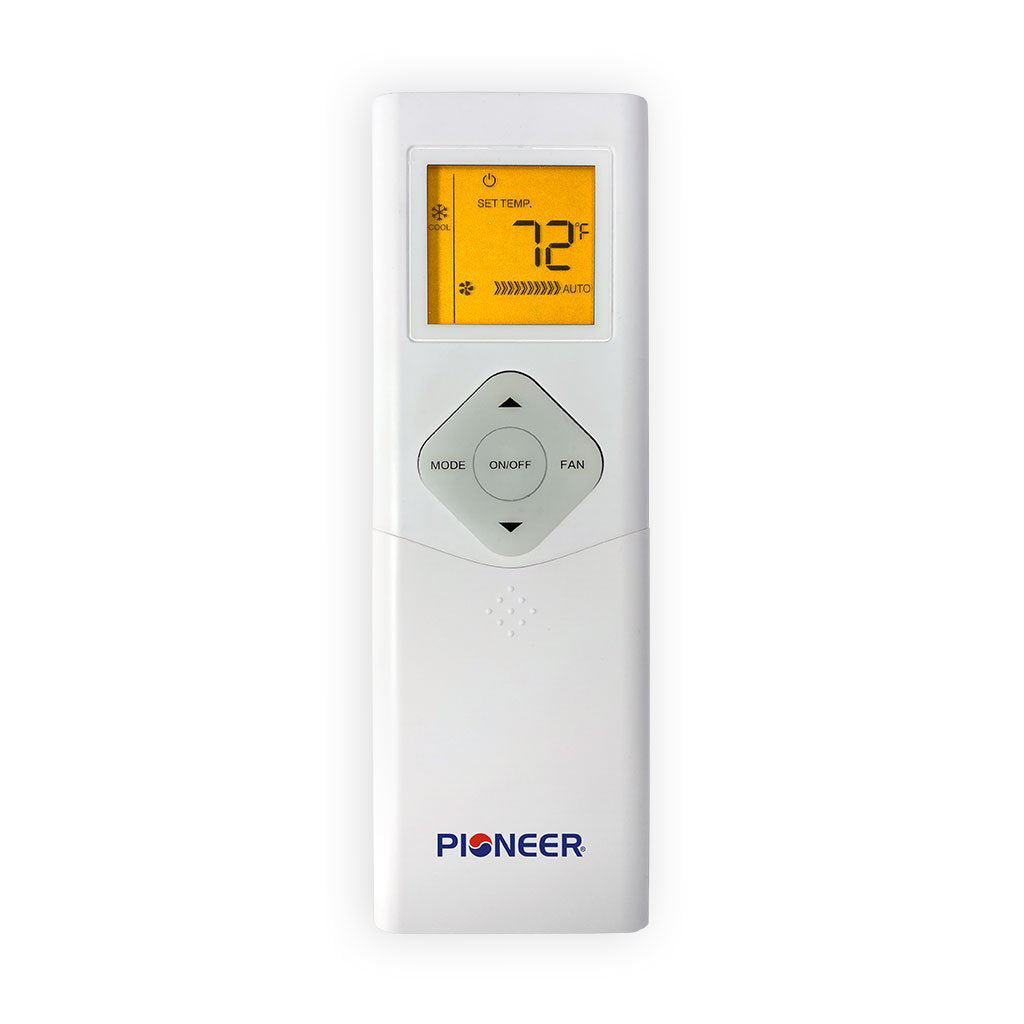

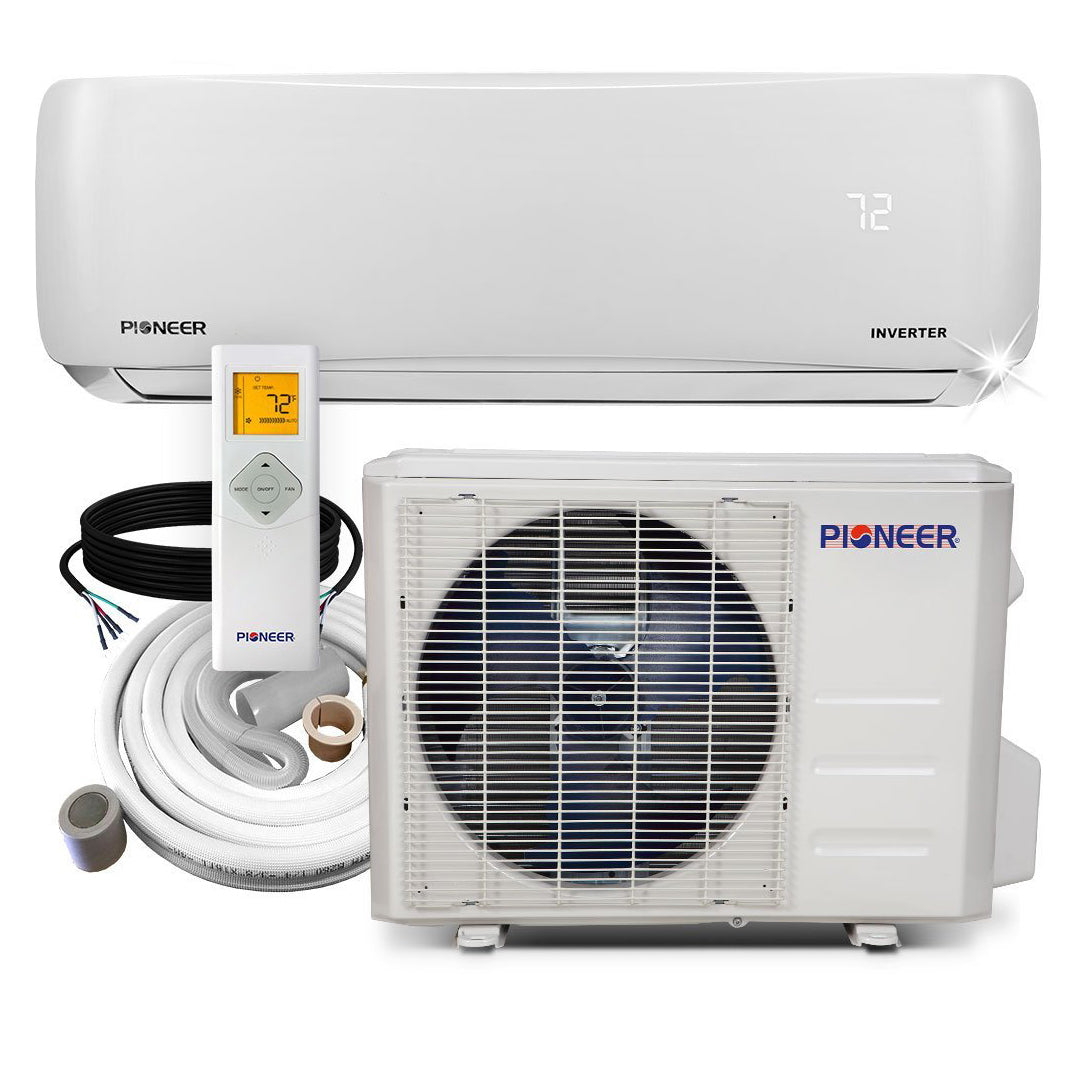

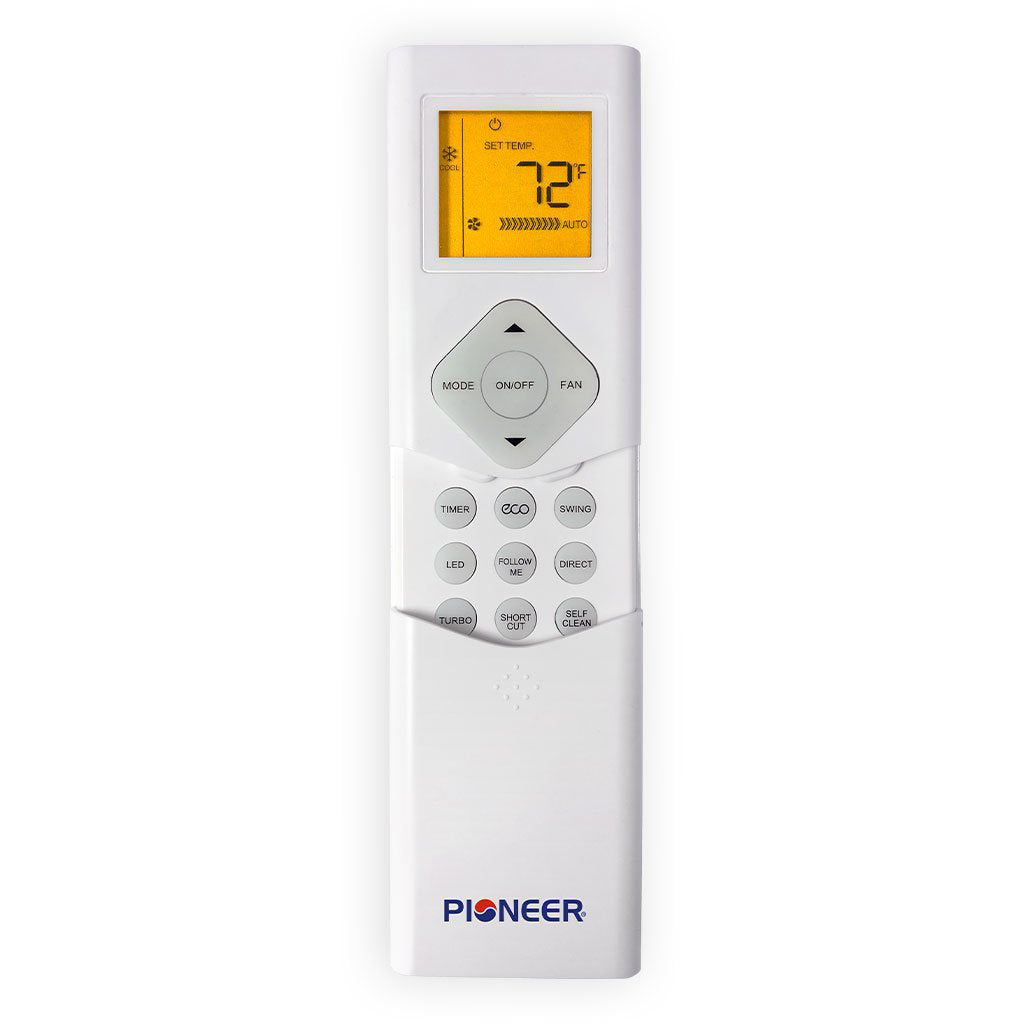

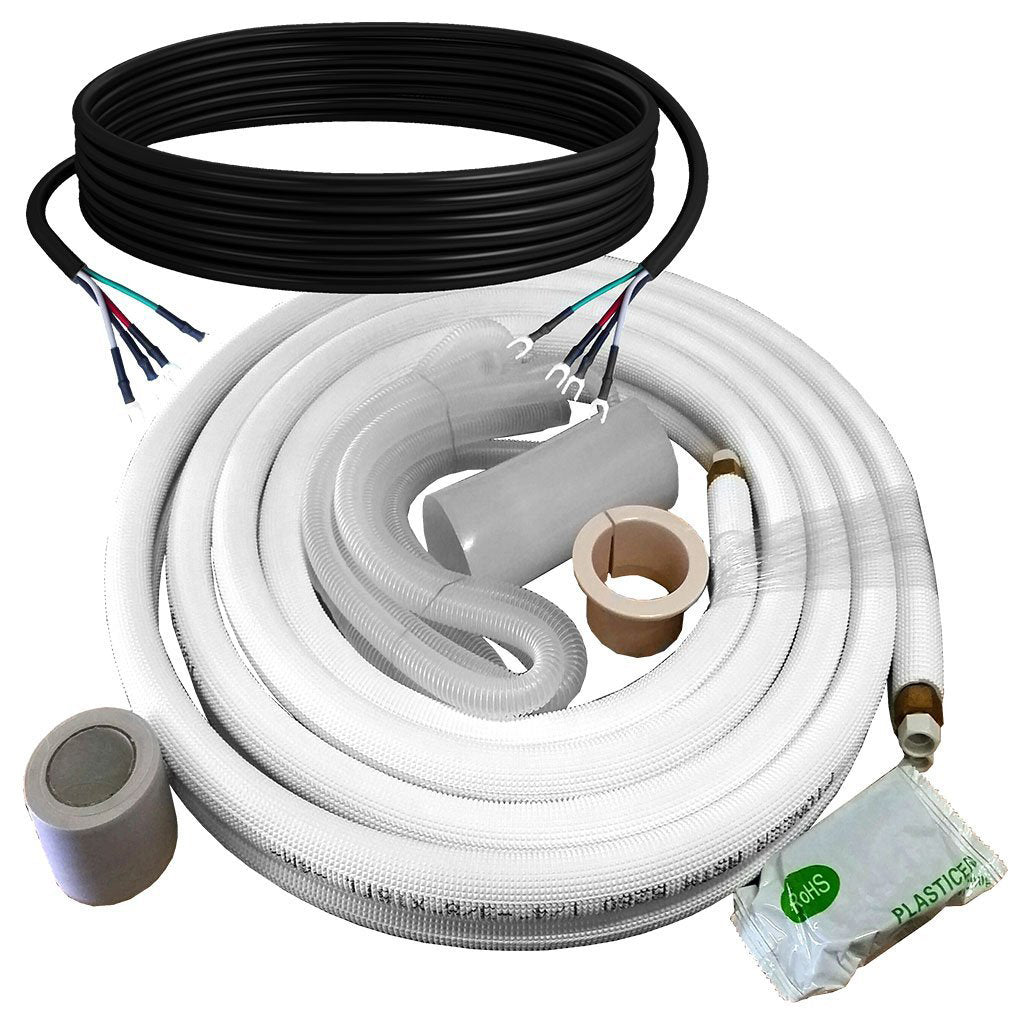

You'll get an indoor unit, outdoor unit, wireless remote control, flare connection leak-guard sealer, installation manual, and user's manual with this mini split air conditioner system. Your air conditioning system also comes with a 16-foot installation kit pre-attached to the back of the indoor unit. The installation kit includes copper refrigeration lines, communication wire for connecting the indoor and outdoor unit, 10-foot drain hose, wall cap, sleeve, and putty. with It's recommended you use a local HVAC specialist for safe and efficient installation.

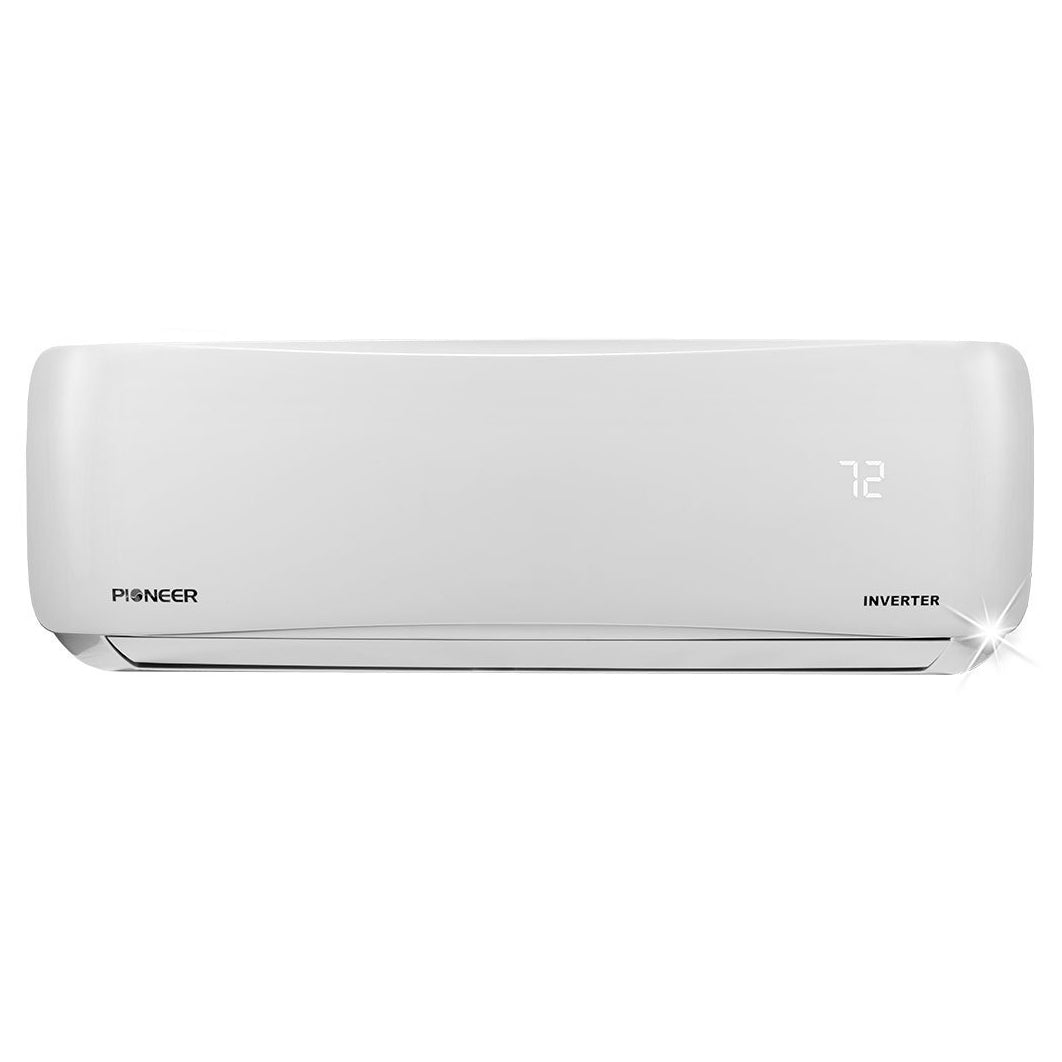

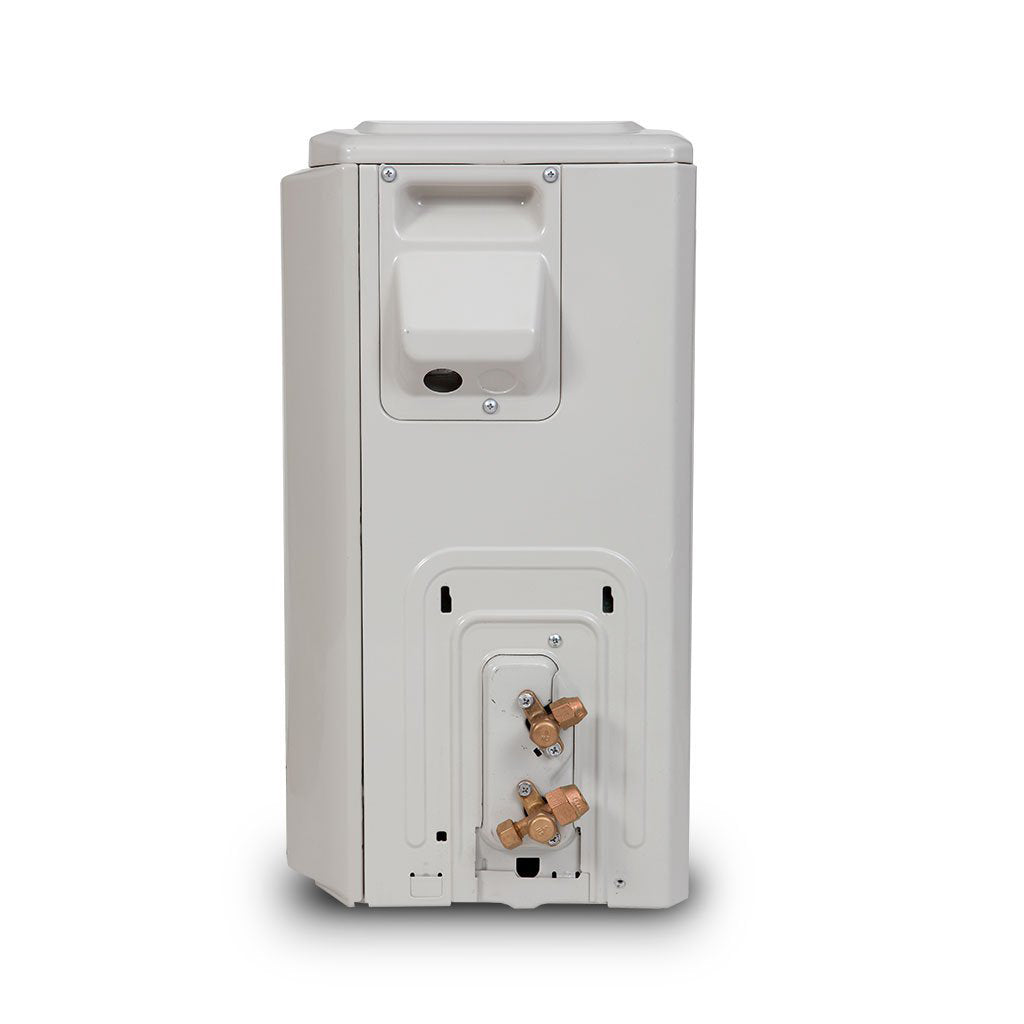

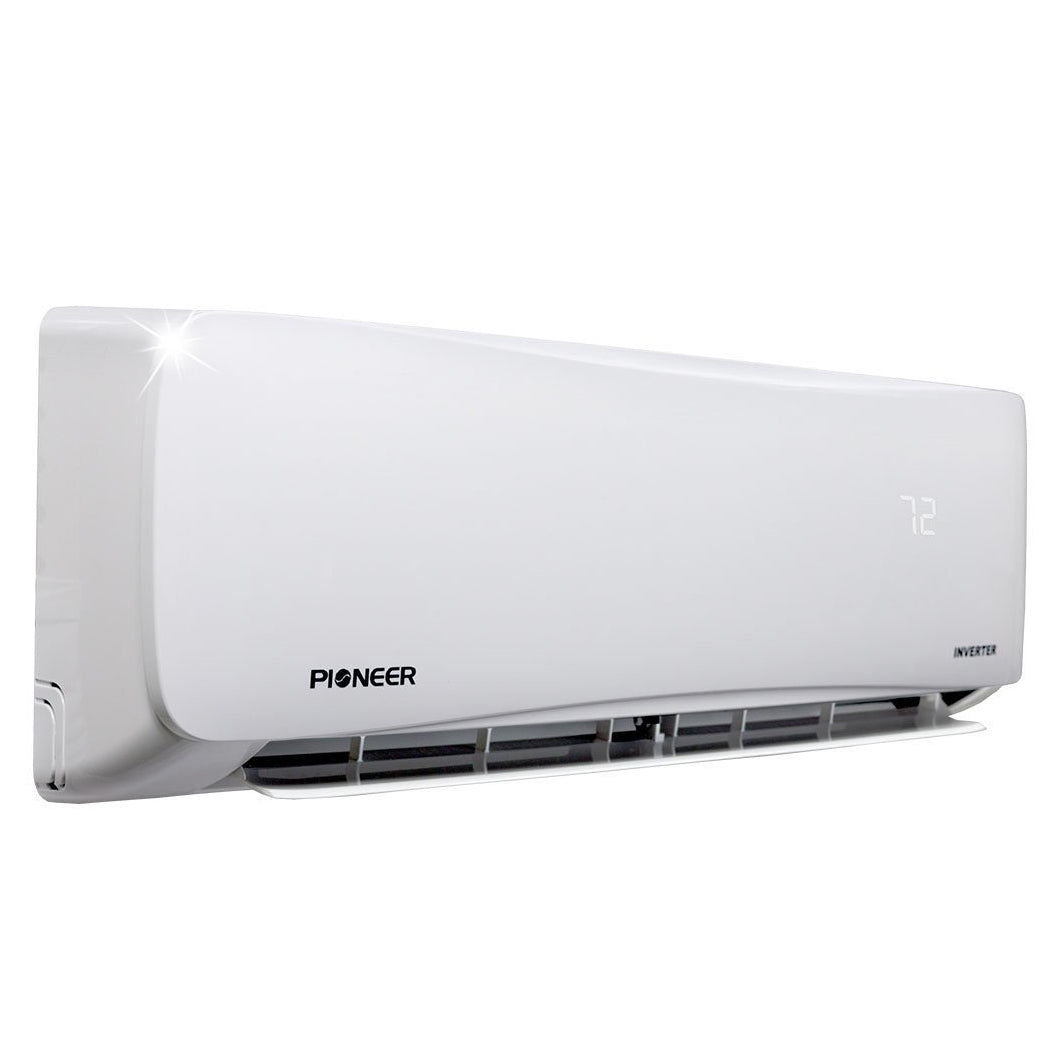

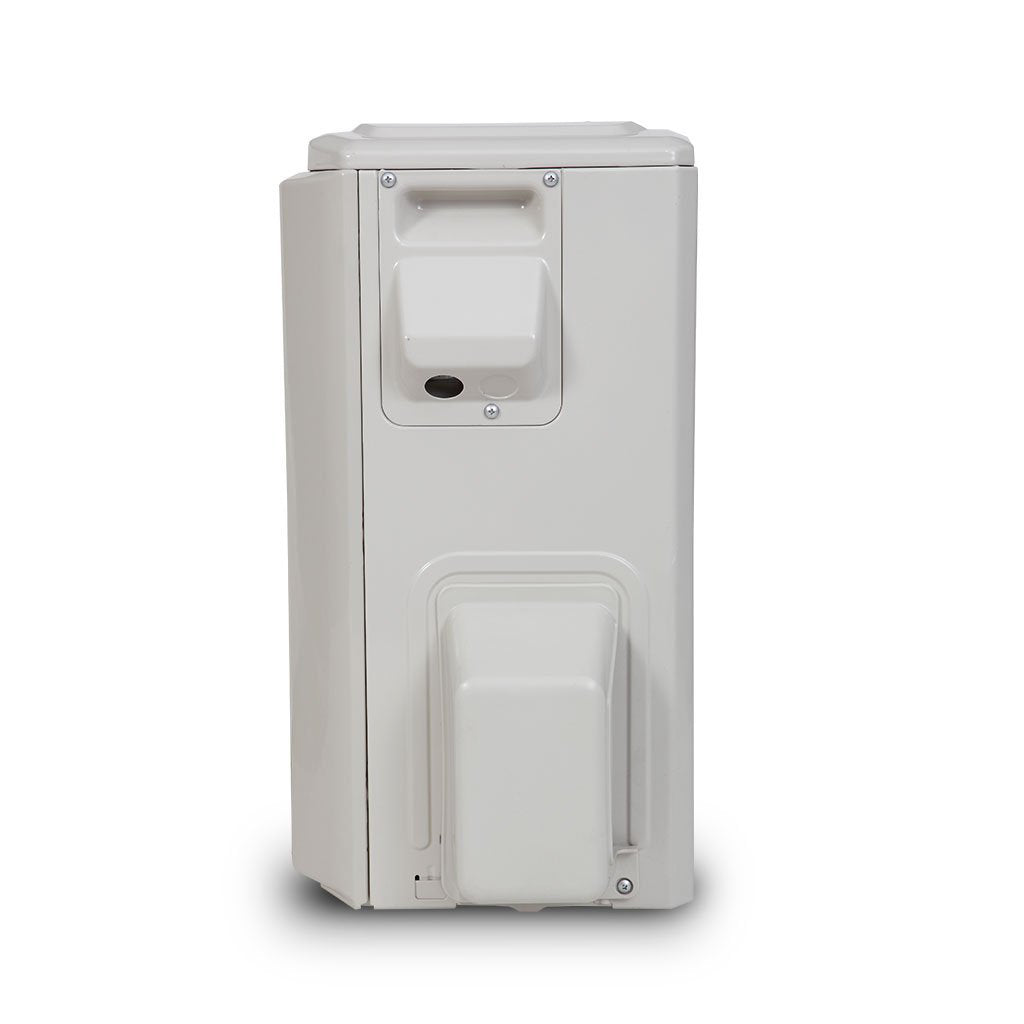

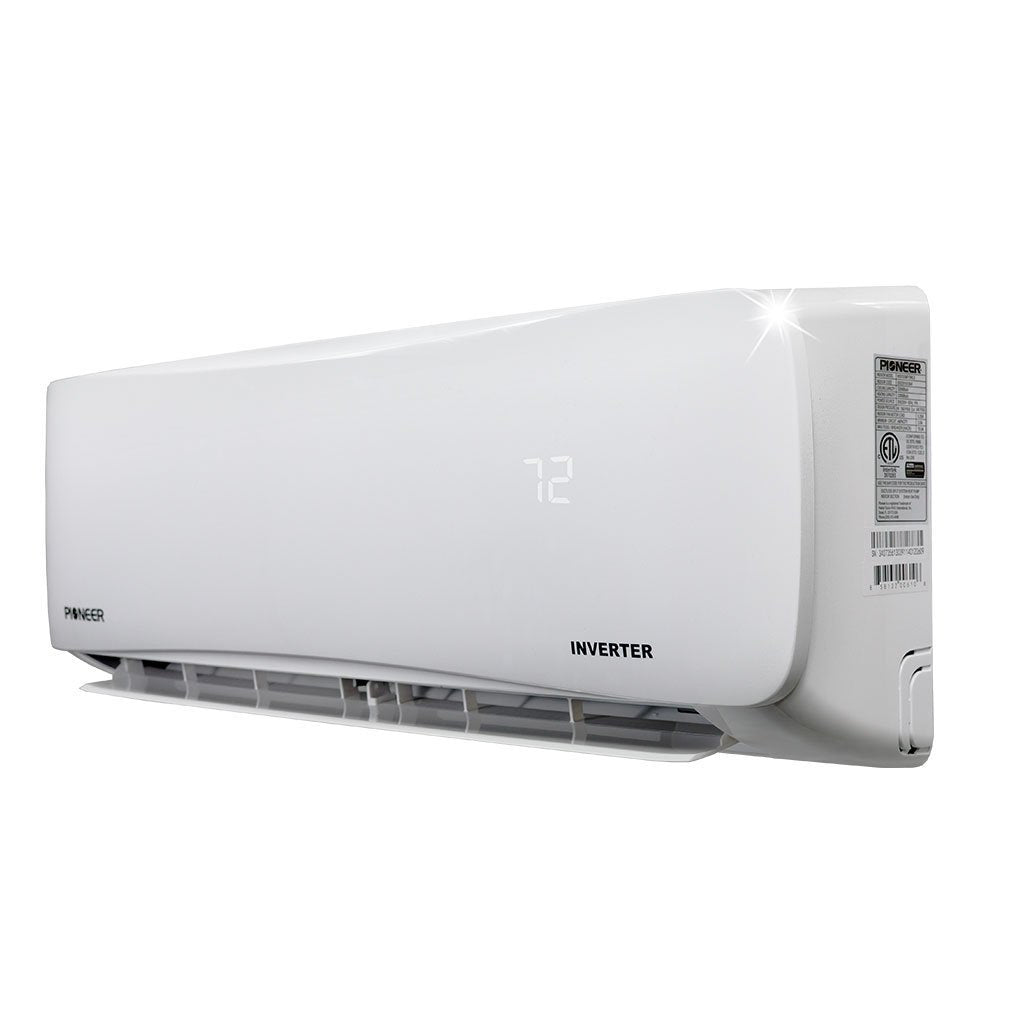

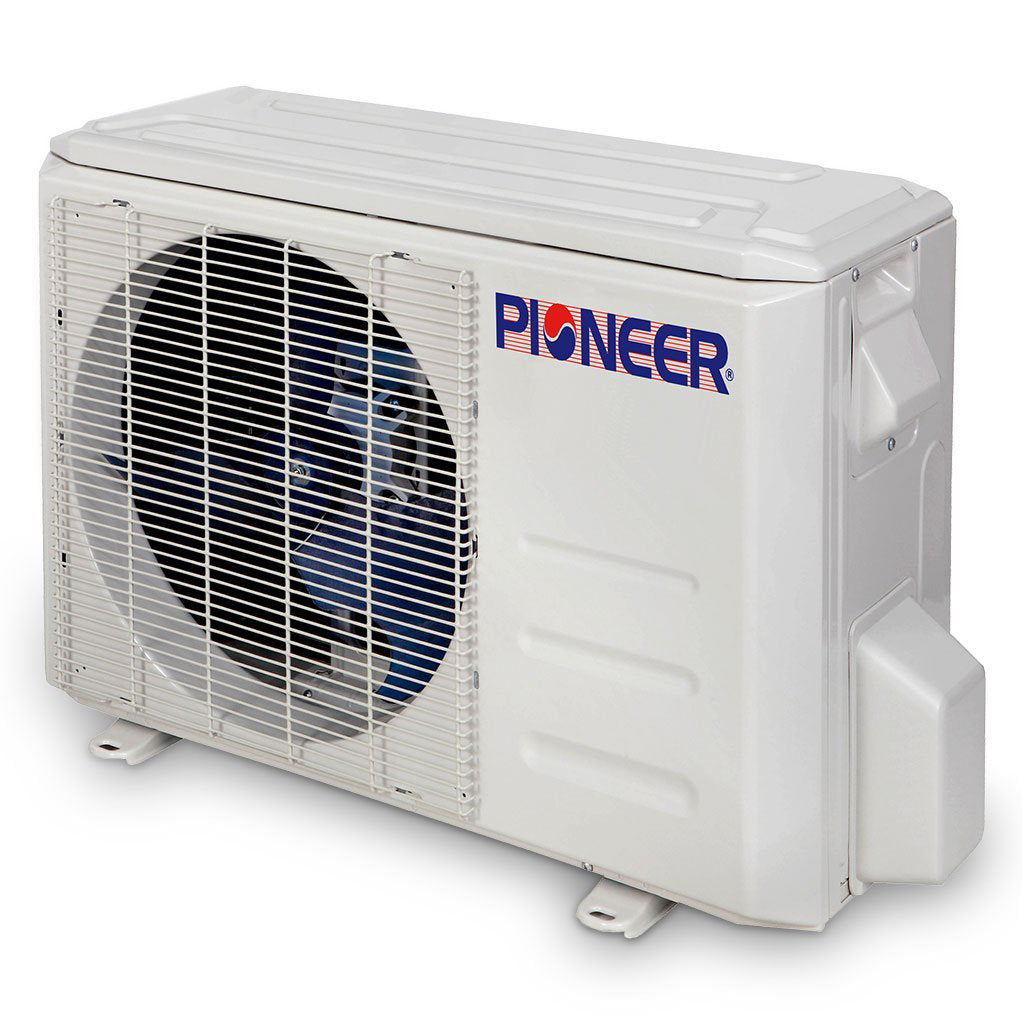

The outdoor condensor AC unit measures 13.1 inches deep, 31.5 inches wide, 21.8 inches tall. The indoor cooling unit measures 8.5 inches deep, 38 inches wide, and 12.6 inches tall. These 2 parts of the mini split heating and cooling system may arrive in separate boxes.

Expanding your home shouldn't break the bank. For an efficient and cost-effective way of cooling your extra rooms, look to the Pioneer WYS Ductless Wall-Mounted Mini Split Air Conditioner Heat Pump System.

• Keep your home cool in the summer and warm in the winter with this ductless heating and cooling mini split system
• Uses an outdoor condensor unit and an indoor evaporator unit to remove or deliver heat to areas between 450 and 650 square feet
• Includes indoor unit, outdoor unit, wireless remote control, flare connection leak-guard sealer, installation manual, user's manual, and 16-foot installation kit with copper refrigeration lines, communication wire for connecting the indoor and outdoor unit, 10-foot drain hose, wall cap, sleeve, and putty
• Cools up to 18,000 BTUs per hour with a 19 SEER efficiency and heats up to 18,000 BTUs per hour with a 10 HSPF efficiency
• Requires 208/230-volt outlet and installation by a HVAC specialist for proper sealing and peak performance
• Mounts high on your wall to deliver heating/cooling to your space
• Features heating setting for vacation and travel during the winter months, simply set your unit to heat your space to 46 degrees for energy savings and home safety
• Features adjustable temperature, adjustable louvers and air direction, automatic restart with power loss, sleep mode, timer, air filter, automatic temperature sensors, and refrigerant leakage detection
• Should not be used in high humidity
• Quiet operation
• Low ambient cooling lets the unit run air conditioning even with outdoor temperatures as low as 5 degrees Fahrenheit
• Specifications:
• Power supply: Requires 208-230-volt, 60 Hz power supply
• Cooling capacity range: 4,075 to 24,101 BTU per hour
• Heating capacity range: 7,560 to 24,101 BTU per hour
• Refrigerant type: R410A/30
• Air flow, indoor unit (hi/med/lo): 395 / 263 / 223 CFM
• Sound level, indoor unit (hi/med/lo): 43 / 35 / 30.5 dB(A)
• Sound level, outdoor unit: 57.5 dB(A)
• Color: White
• Dimensions, indoor unit (L x W x H): 8.46 x 38 x 12.56 inches
• Dimensions, outdoor unit (L x W x H): 13.11 x 31.5 x 21.81 inches
• Weight, indoor unit: 23.98 pounds
• Weight, outdoor unit: 79.64 pounds
• Manufacturer warranty: 2-year warranty
