RapidAir 90100 1/2 Inch 150 PSI Compressed Air Hose Piping System Outlet Kit

Name: RapidAir 90100 1/2 Inch 150 PSI Compressed Air Hose Piping System Outlet Kit
Brand: RapidAir
SKU: 168620
Price: 31.49 USD
Availability: OutOfStock

Save 48%

$31.49 $59.99

Product variants

Out of stock

Free 1-3 Day Shipping

Easy & Secure Payments

Hassle Free Returns

Description

Creating a compressed air system in your garage or shop is easy with the RapidAir 1/2-Inch Outlet Kit.

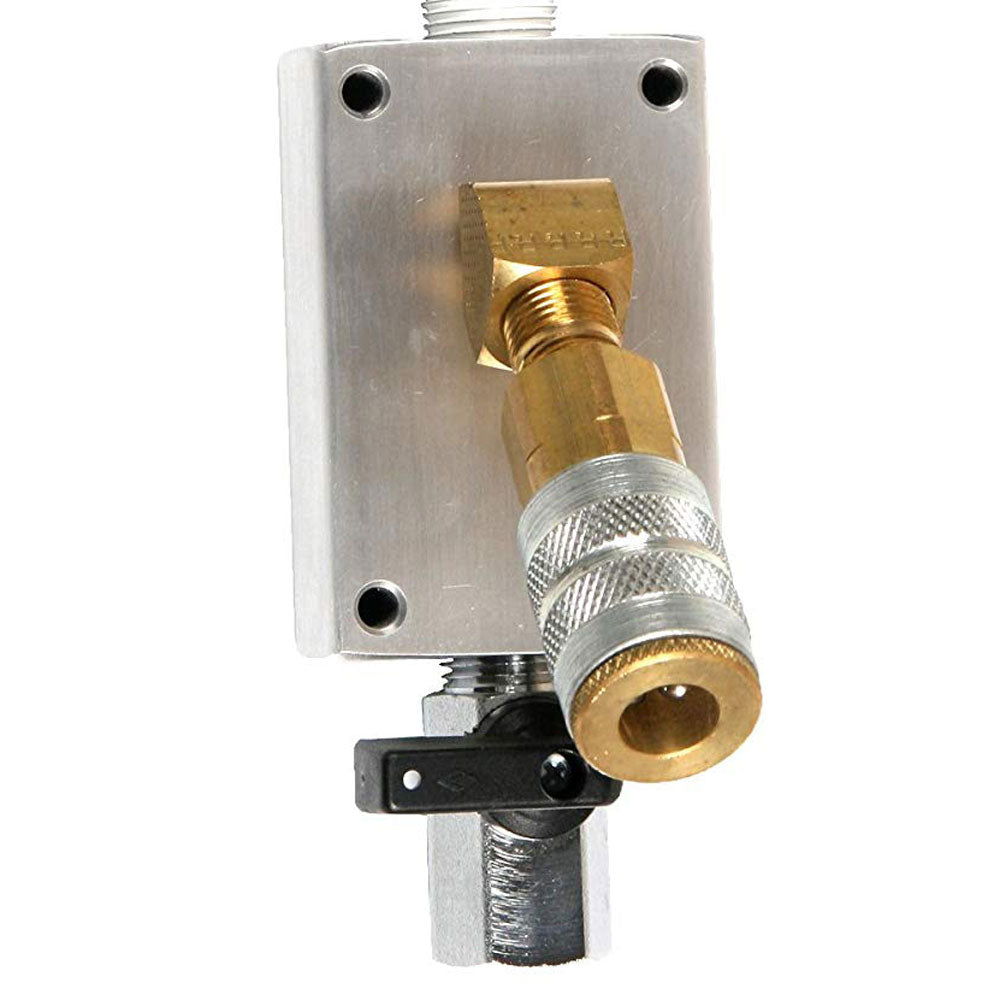

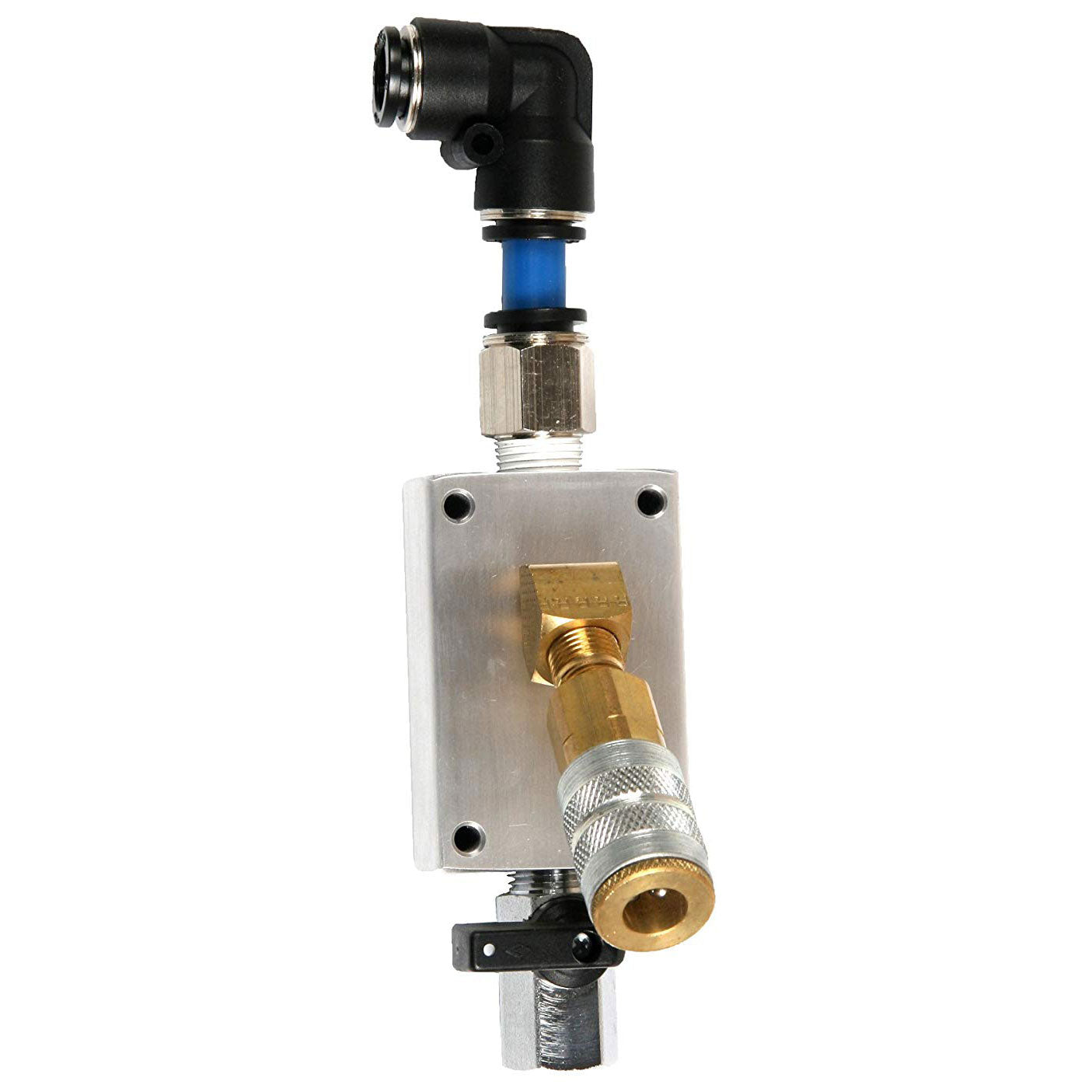

You'll get everything you need to start your compressed air piping system. This kit includes an aluminum outlet block (90120), 3/8-inch NPT straight connector (50100), union elbow (50300), drain valve (50120), 1/4-inch NPT brass nipple (50125), 1/4-inch NPT brass 45-degree elbow (50130), and 3/8-inch NPT brass plug (50135). This compressed air outlet features threaded NPT ports with 3/8-inch female NPT on 3 sides and 1/4-inch female NPT outlet port on front.

The versatile design allows you to mount this compressed air outlet on any surface, including walls and ceilings, and you can even install it in-wall for a flush look.

This compressed air outlet kit works with RapidAir K6221 and K7221 quick couplers to provide up to 150 PSI maximum working pressure. Only use with 1/2-inch outer-diameter, 3/8-inch inner-diameter nylon tubing.

Create a compressed air system in your garage or shop with the help of this outlet kit that mounts to surfaces, walls, or ceilings
Kit includes: aluminum outlet block (90120), 3/8-inch NPT straight connector (50100), union elbow (50300), drain valve (50120), 1/4-inch NPT brass nipple (50125), 1/4-inch NPT brass 45-degree elbow (50130), and 3/8-inch NPT brass plug (50135)
Threaded NPT ports with 3/8-inch female NPT on 3 sides and 1/4-inch female NPT outlet port on front
Up to 150 PSI maximum working pressure
Compatible with RapidAir K6221 and K7221 quick couplers; requires quick coupler air chuck, tee fitting (50200), and 1/2-inch outer diameter, 3/8-inch inner diameter nylon tubing (none included)
Specifications:
Maximum working pressure: 150 PSI
Coupler size: 1/2-inch
NPT sizes: 3/8-inch, 1/4-inch
Color: Silver
Manufacturer warranty: 1-year warranty

Shipping & Returns

Shipping Information

VMInnovations is proud to offer fast, free shipping every day. Items are typically delivered between 1-3 days.

Most orders placed before 2:00 PM CST ship the same day.

Questions? We’ve Got Answers.

Helpful answers about product features, setup, and more

What material is the system made of?

The system is constructed from aluminum. This material choice supports everyday use while maintaining the structural integrity needed for the product's intended applications.

Does the system come with a warranty?

Yes. The system is backed by 1-year manufacturer warranty. Coverage details and claim procedures are provided by the manufacturer; retain your order receipt as proof of purchase if you ever need to file a claim.

Is the system intended for indoor use?

The system is intended for indoor placement in spaces such as living areas, kitchens, bedrooms, or offices. Avoid exposing it to direct moisture or weather conditions unless the listing specifies otherwise.

What is the best way to maintain the system?

Clean with mild soap and water; rinse thoroughly. Aluminum resists rust but can show water spots if left wet. Regular light cleaning extends the lifespan of the system and keeps it looking and performing well over time.

How is the system installed or mounted?

The system is a recessed / in-wall / in-ceiling setup. Plan the installation around this mounting type — verify wall studs, ceiling joists, or surface stability as applicable, and follow the included instructions for mounting hardware and placement.

Who makes the system?

The system is made by RapidAir. RapidAir produces this item as part of its lineup, and product details such as specifications, included accessories, and warranty terms are set by the brand.
