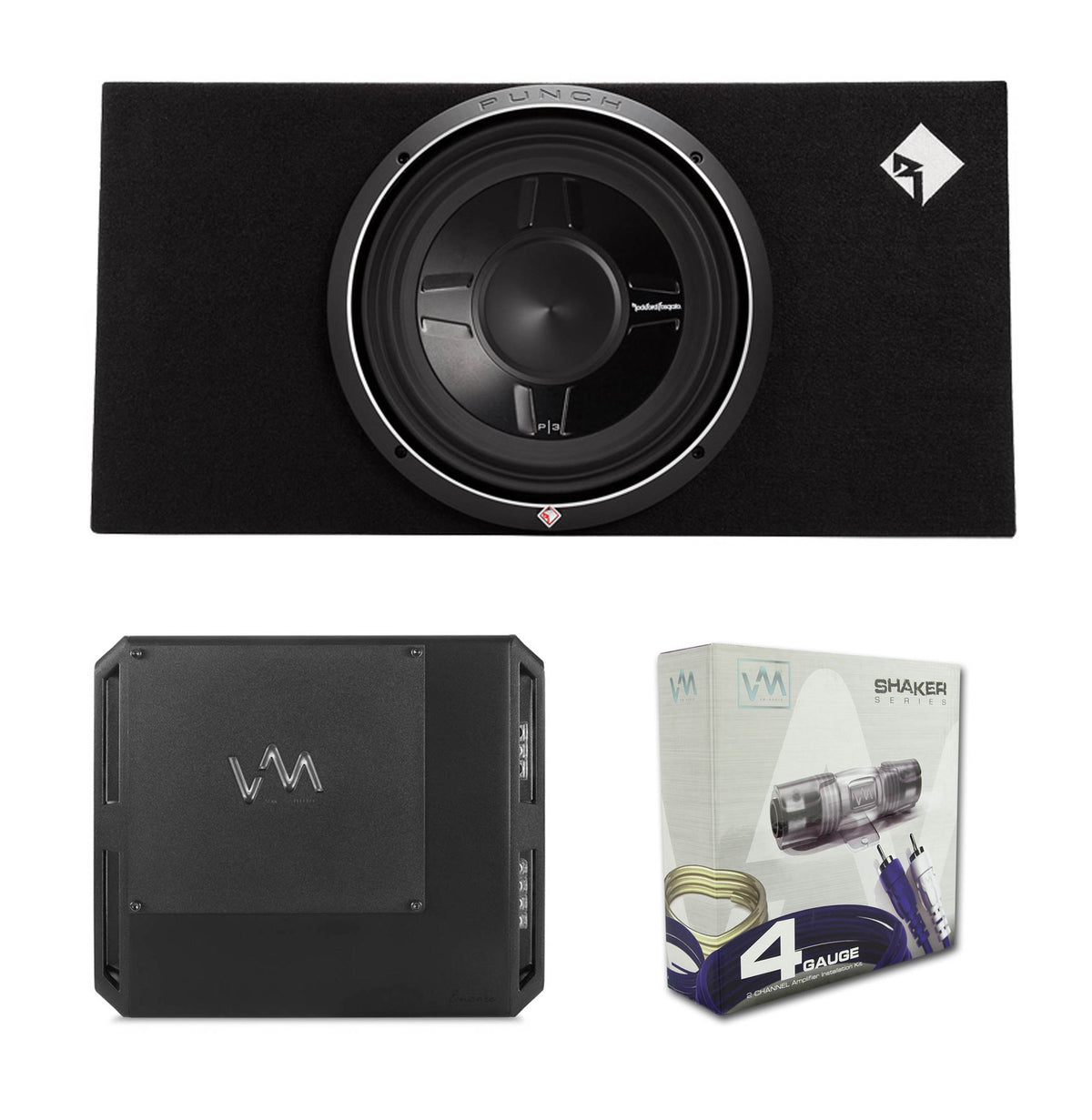

Rockford Fosgate P3S-1X12 12" 800W Shallow Subwoofer + Class D Amp + Wiring Kit

**We are an authorized Rockford Fosgate dealer**

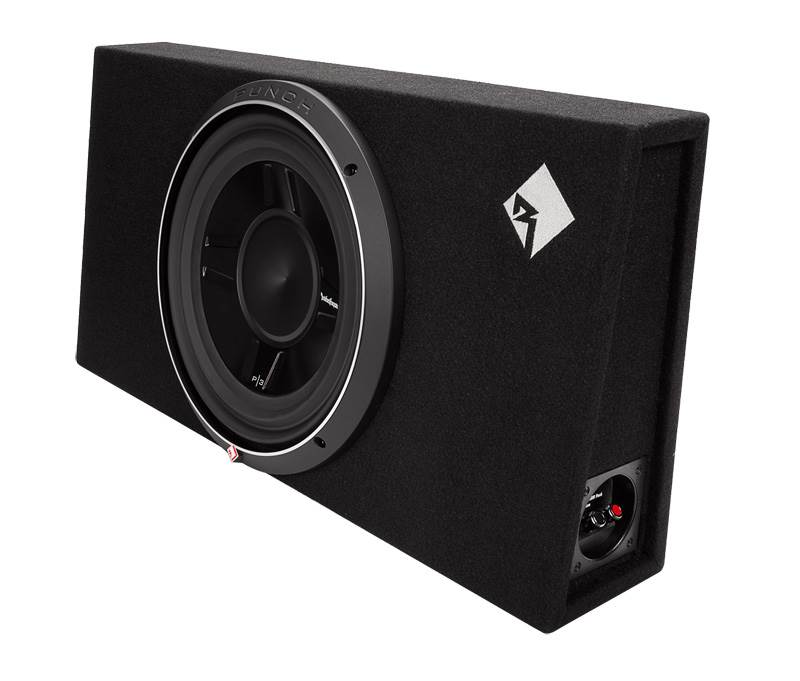

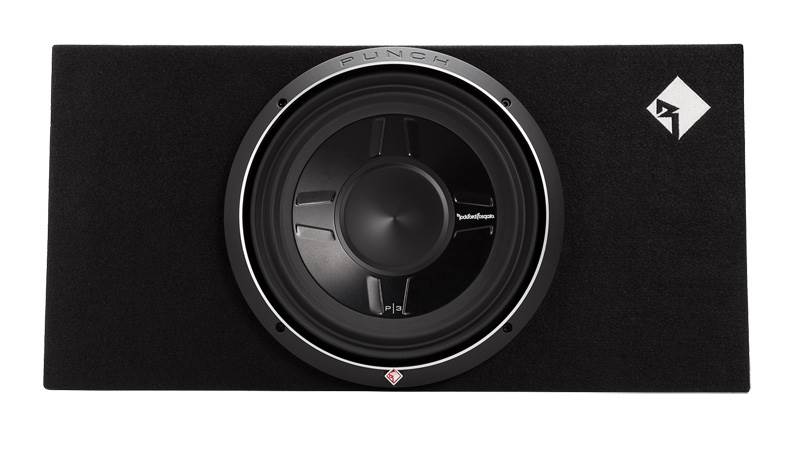

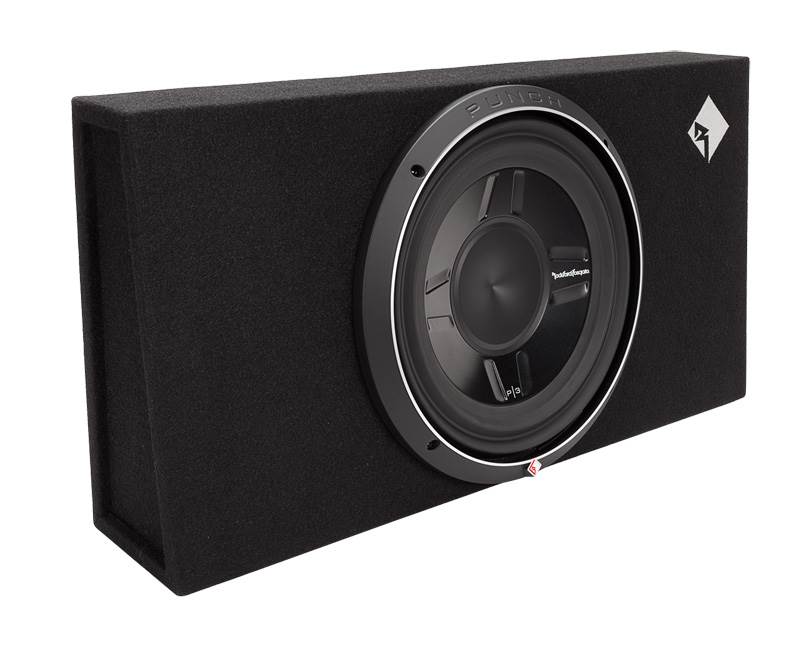

The **Rockford Fosgate P3S 1X12** is a single 12” Punch Shallow subwoofer rated at 400 Watts RMS and 800 watts of MAX power loaded in a sealed enclosure. This subwoofer enclosure is internally wired to a 1 Ohm load and features 5/8” MDF and 10 AWG quick release input terminals.

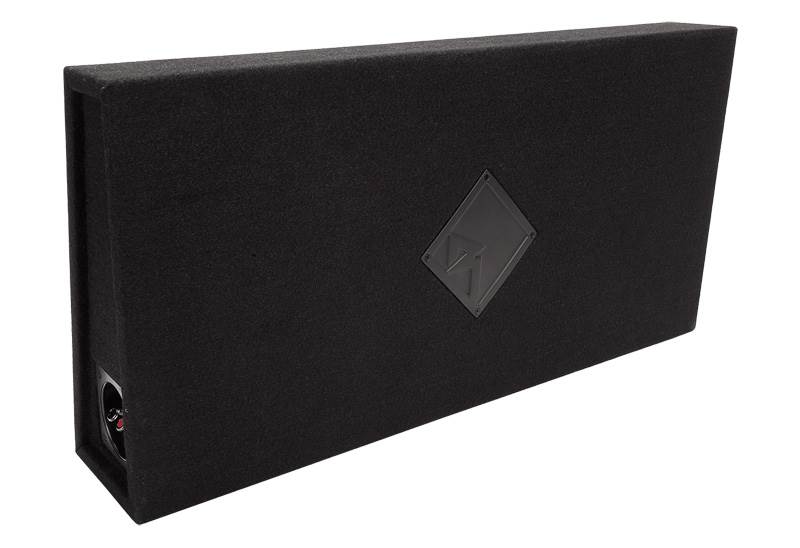

Sealed truck box style enclosure

Constructed with 5/8" MDF

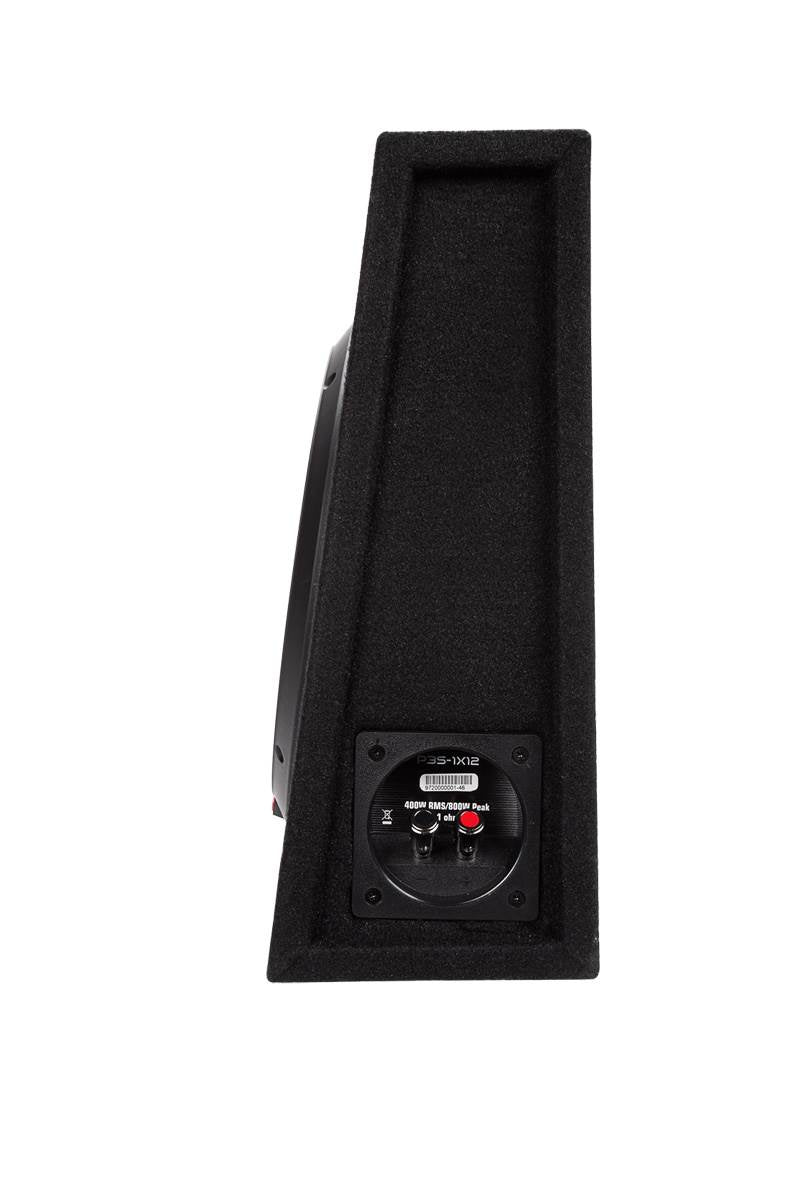

10 AWG input terminals

• New Rockford Fosgate P3S 1X12 12" 800W Shallow Loaded Subwoofer Sub Enclosure
• Power Handling:
• Peak: 800 watts
• RMS: 400 watts
• 1 Ohm wired impedance
• Computer optimized design
• Covered with high density carpet
• Wired exclusively with Rockford Fosgate speaker cable
• Included trim ring ready to accept optional stamped mesh grille insert
• Sealed truck box style enclosure
• Constructed with 5/8" MDF
• 10 AWG input terminals
• Dimensions: 13.5 x 27.4 x D1 5.3 D2 3.3 (in)
• Condition: Brand New!
• Item Weight: 27.6 lbs.
• Part Number: **P3S 1X12**
• Manufacturer warranty: 1-year warranty

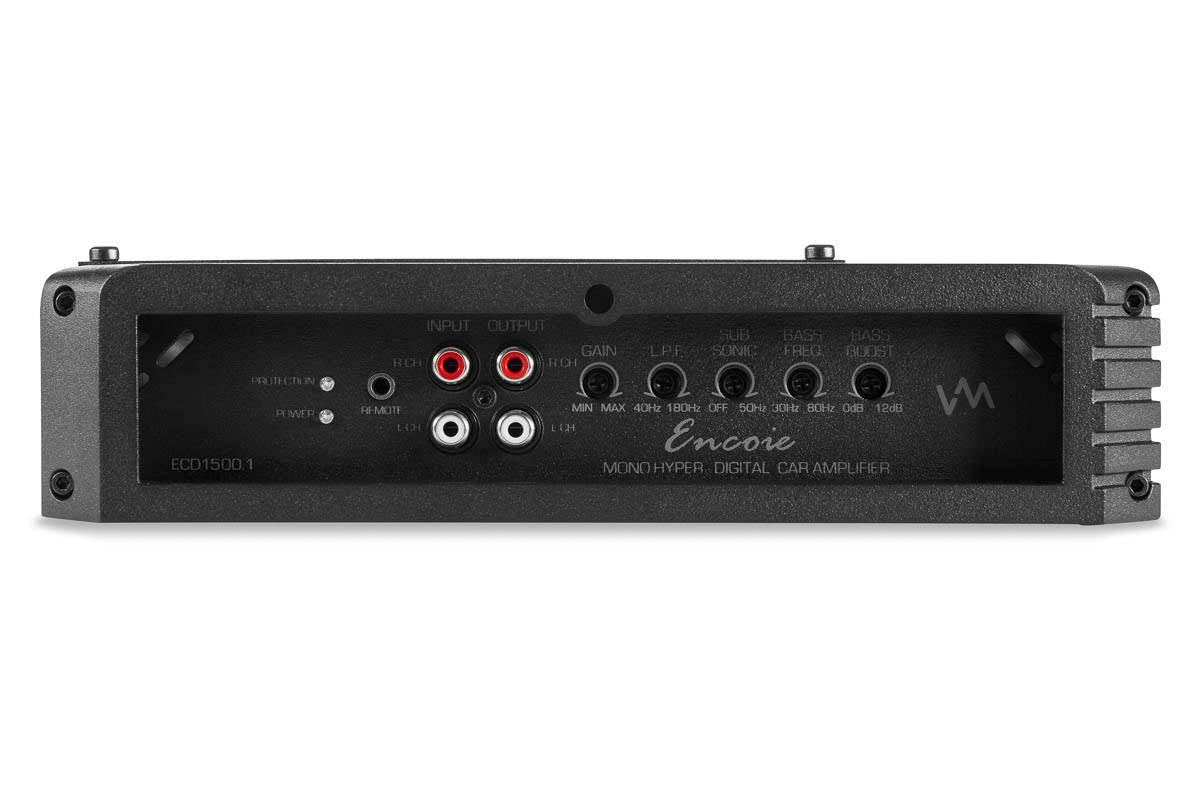

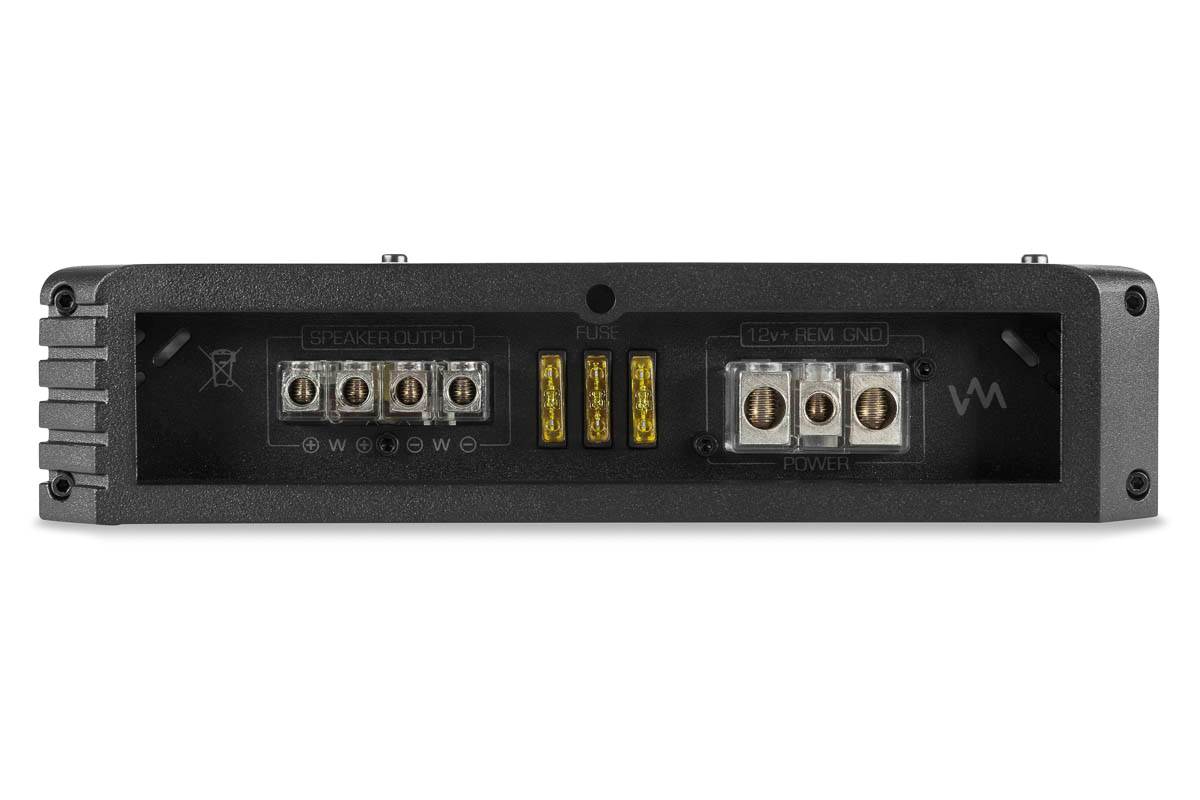

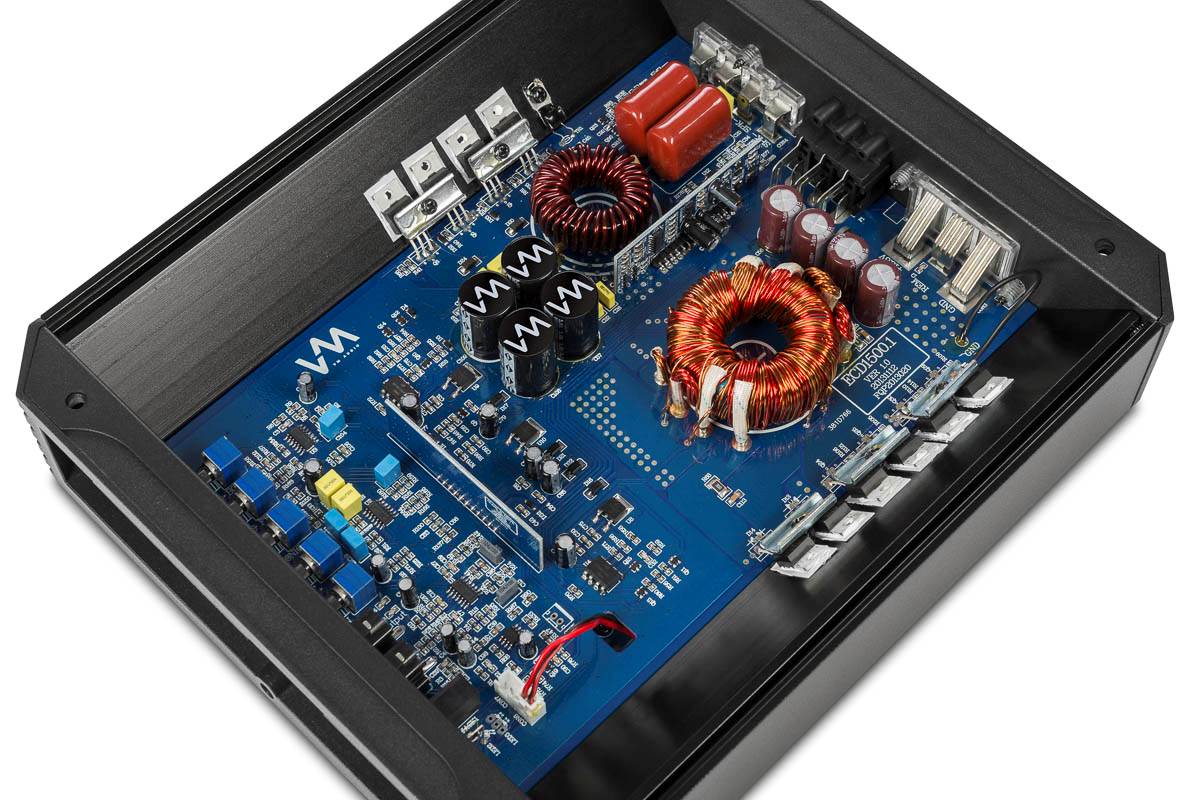

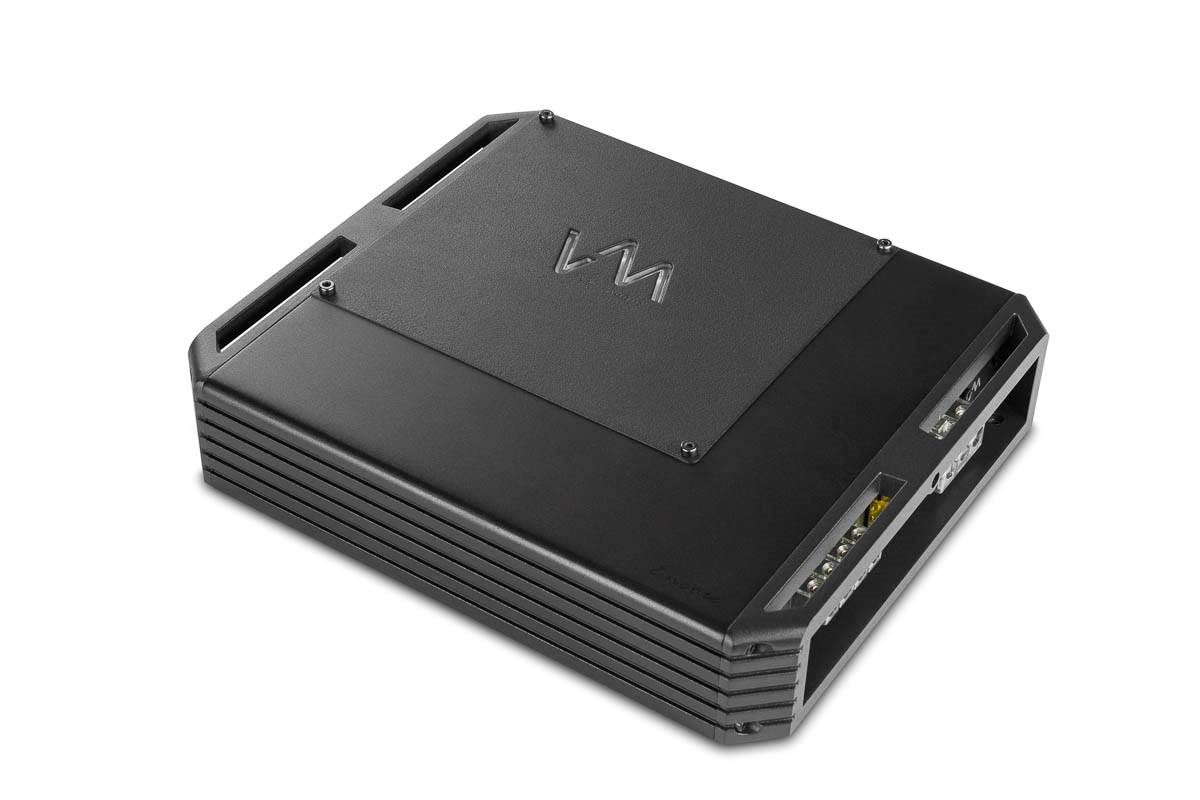

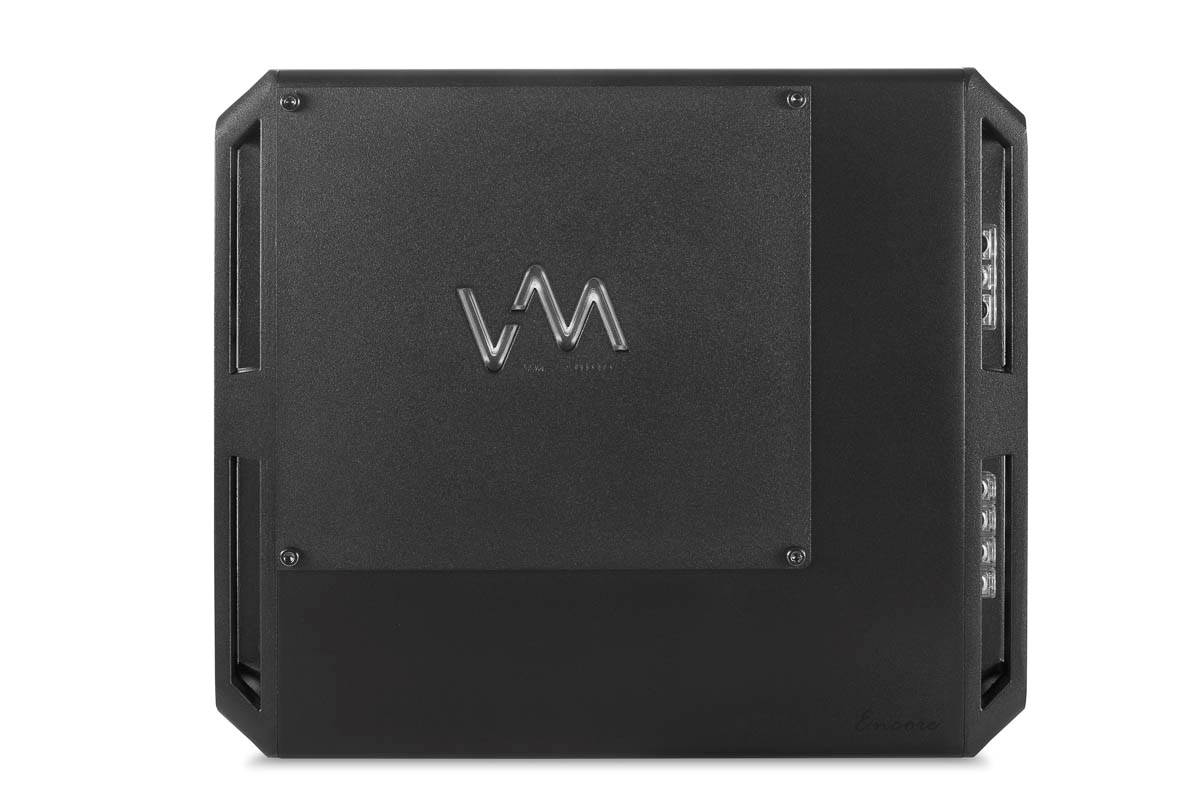

• VM Audio ECD1500.1 POWER AMPLIFIER SPECIFICATIONS
• RMS Power 4 Ohms: 375W x 1

• RMS Power 2 Ohms: 750W x 1

• RMS Power 1 Ohm: 1500W x 1

• Frequency Response: 10Hz – 180Hz

• Lowpass Crossover: 40Hz – 180Hz

• Subsonic: 0Hz – 50Hz

• Bass Boost Frequency: 30Hz – 80Hz

• Bass Boost: 0dB – 12dB

• Fuse 20A x 3
• Input Voltage: 0.12V – 4.2V

• Dimensions (L x W x H): 11.18” x 9.65” x 2.17”

• Manufacturer warranty: 1-year warranty

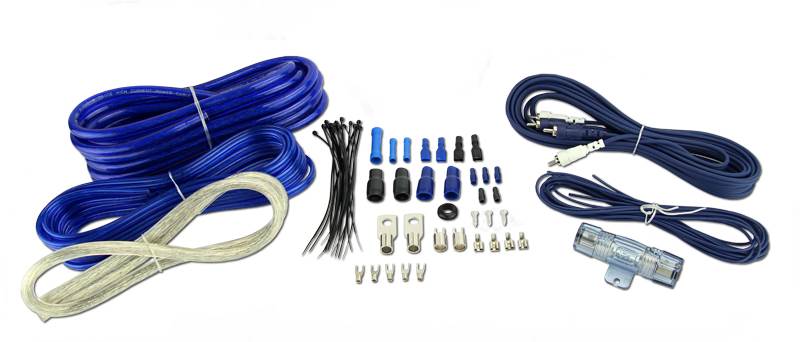

• VM AUDIO 4 GAUGE WIRING KIT VM SRSK4B TECHNICAL SPECIFICATIONS

•

• Type: 2 Channel

• Amplifiers Supported: Single Amplifier

• Power/Ground Wire Size: 4 Gauge

• Strand Count: 315

• Power Wire Length: 16Ft

• Ground Wire Length: 3Ft

• Speaker Wire Size: 12 Gauge

• Speaker Wire Length: 20Ft

• Remote Wire Size: 18 Gauge

• Remote Wire Length: 15Ft

• RCA Cable Length: 15Ft

• Fuse Holder: AGU

• Fuse Size: 60A

• Wire Ties: 20

• Spade Connectors: 2

• Ring Connectors: 2

• Ring Spade Terminals: 5

• Butt Connectors: 3

• Split Loom Tubing: Yes

• Screws: 3

• Fasten Connectors: 4
