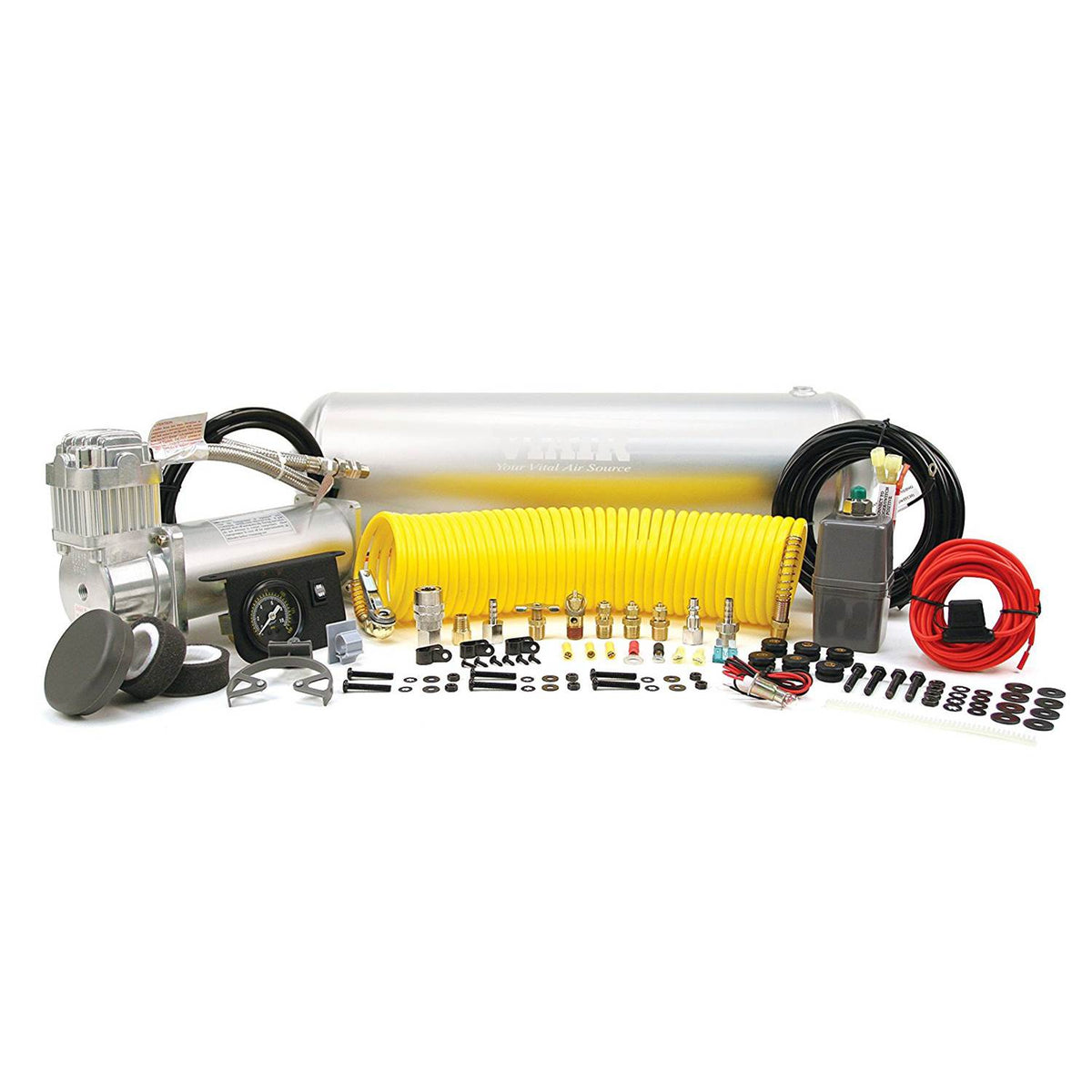

Viair 150 PSI 2.5-Gal Constant Duty Onboard Air System for Tires (For Parts)

####This item is either refurbished, or used, does not function properly, or does not function at all and should be used for parts only. There may also be slight damage to the item and there is no guarantee of usability. Item is sold as-is with NO warranty.####

• Pre-packaged compressed air solution that provides a 100% duty cycle
• Capable of inflating tires up to 37 inches
• 450C compressor
• 2.5-gallon air tank
• 35-foot coil hose with tire chuck
• Dash panel gauge with ON/OFF switch
• Pressure switch with relay (110 PSI on and 145 PSI off)
• Reducer: 0.13-inch (F) to 0.25-inch (M)
• 0.25-inch quick-connect stud (F)
• 0.25-inch quick-connect coupler (F)
• 0.25-inch 175 PSI safety valve
• 0.25-inch drain cock
• 3, 0.25-inch compression fittings
• 20-foot 12-gauge wire with inline fuse holder
• 4-inch strip of continuous grommet material
• Accessory airline
• Electrical connections
• Specifications:
• 12-volt
• Permanent magnetic motor
• Duty cycle: 100% at 100 PSI
• Maximum working pressure: 150 PSI
• Maximum amp draw: 23 amps
• Ingress protection rating: IP67
• Fill rates:
• 0 to 145 PSI: 3 minutes, 2 seconds
• 110 to 145 PSI: 59 seconds
• 35-inch by 12-inch:
• 0 to 30 PSI: 6 minutes, 55 seconds
• 15 to 30 PSI: 3 minutes, 30 seconds
• 37-inch by 12.5-inch:
• 0 to 30 PSI: 7 minutes, 56 seconds
• 15 to 30 PSI: 4 minutes, 9 seconds
• RV tires 275/80R22.5:
• 80 to 90 PSI: 30 seconds
• 90 to 100 PSI: 3 minutes, 50 seconds
• 110 to 130 PSI: 4 minutes, 37 seconds
• Product Condition: For Parts – Item does not function properly, or at all
• **NO warranty, item sold as-is**
